New Energy Vehicle Solar Charging Station Wallbox 22Kw Ev Station Ev Battery Charger For Home Use With Mppt Photovoltaic Panels

Price:$2399.00 / 1 - 9 pieces
$2398.00 / 10 - 19 pieces
$2395.00 / >=20 pieces
Min. Order:1 piece
Supplier:Chengdu Natural Smart New Energy Co.,Ltd
Region:Sichuan, China
Contact:Mr Benjamin Yan

PRODUCT DETAIL

place of origin; place of origin:	Sichuan, China	Packaging Details:	carton
model:	NS-SL-001	Input voltage:	380Vac±10%
Output Power:	22KW	The output voltage:	200-750Vdc
brand:	NS/OEM	port:	any port in China
Supply capacity:	3500 boxes per week	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Output current:	33A	product name:	Solar Electric Vehicle Charging Station
standard:	GB, EN 61851; EN61000; JEVS; UL2202, 2231, 2231-2, etc.	Packaging Preview:
Connector:	CHAdeMO CCS GB/T

Product Description

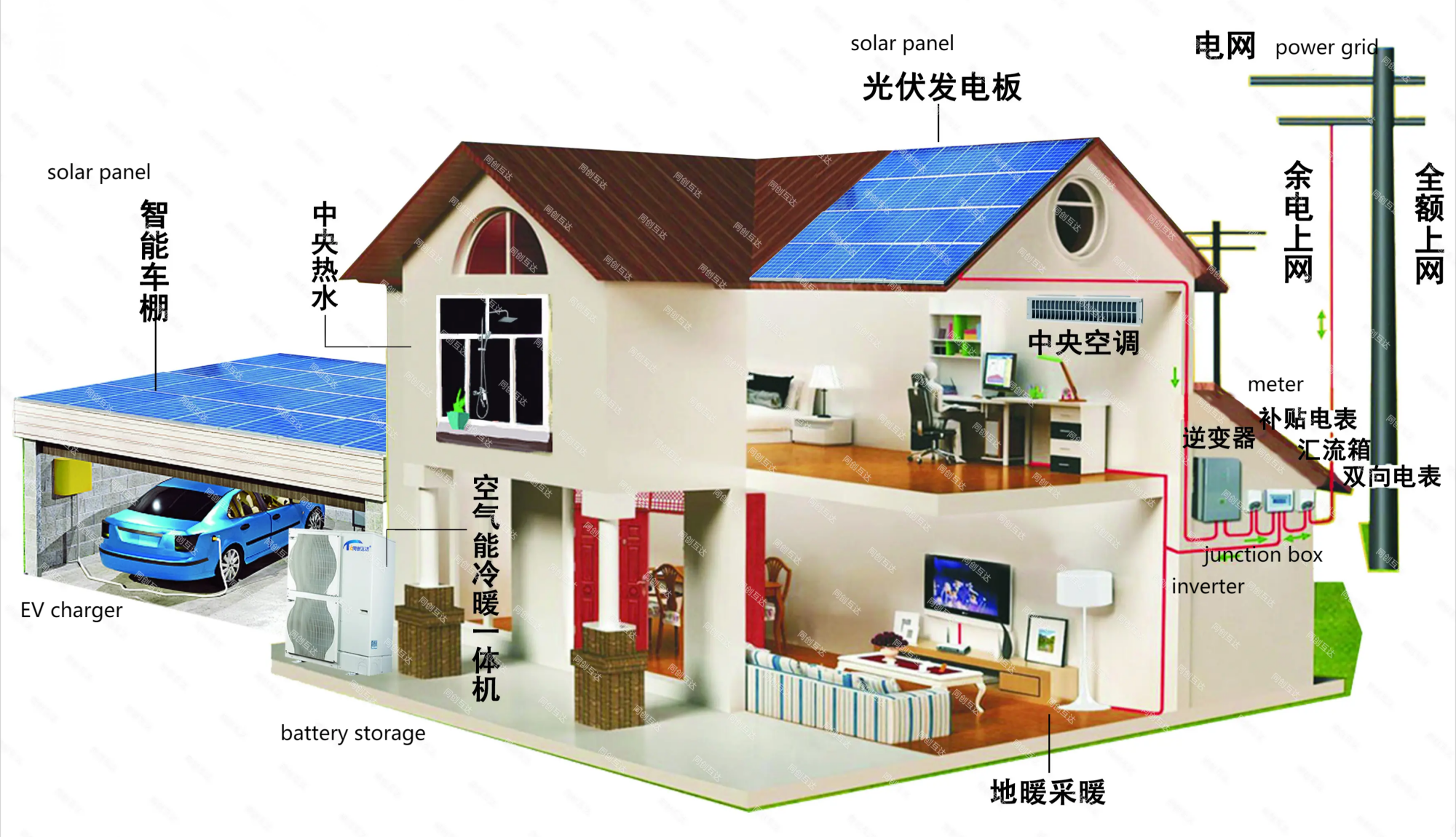

solar home system

Including solar panels, electric vehicle chargers, batteries, inverters, junction boxes, meters, etc.

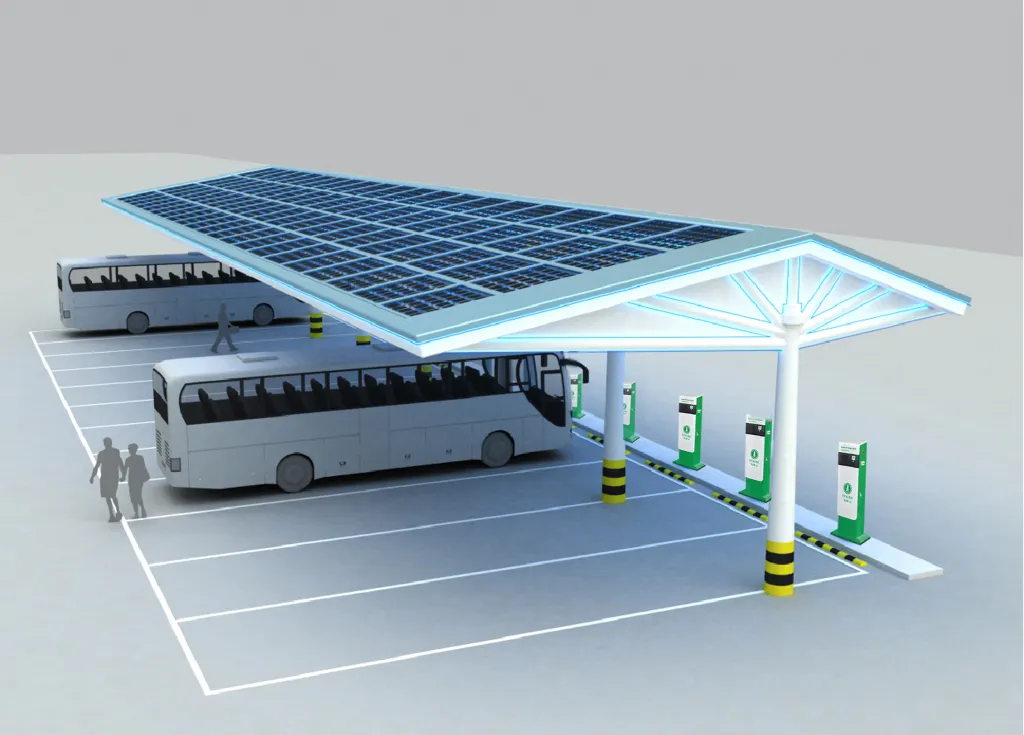

High power solar bus shed

·Can be expanded according to charging needs

·Can be adapted to high-power charging piles

·Can be equipped with energy storage battery pack

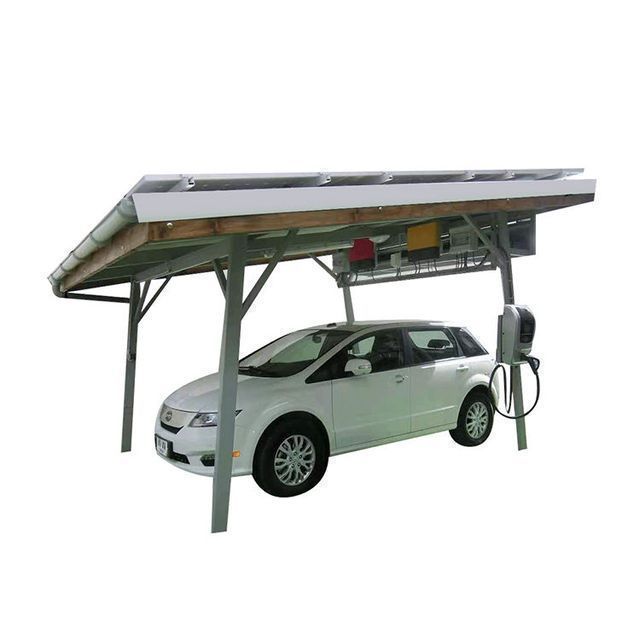

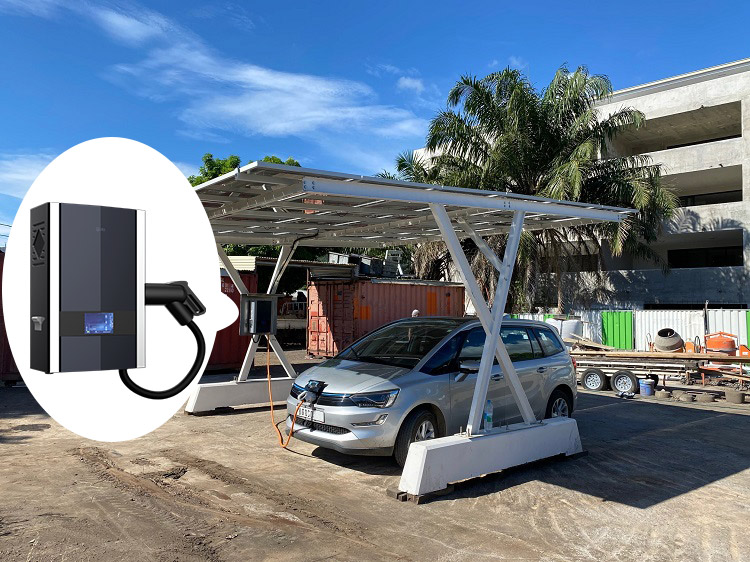

Home Solar Carport

·Modular assembly

·Function optional

·Support expansion

·Program customization

· Home energy storage can be installed

Modular installation

·It can be used with energy storage system to ensure stable power output.

·The power of the charging box can be selected.

·We only choose domestic first-class suppliers and first-class raw materials

Equipped with MPPT energy management system

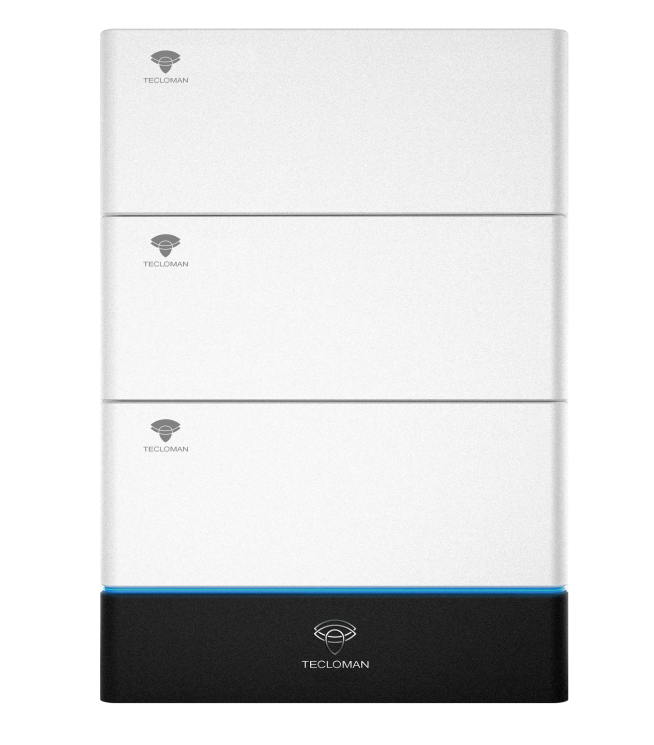

Home energy storage battery

Simple installation with a flexible modular and cable-free design. Capacity ranges from 3.6 to 25.2kWh.

Flexible to meet the needs of different scenarios and support expansion.

The lithium iron phosphate battery independently developed and manufactured by Chuangmei is safe, reliable and durable.

The bottom is the power management module, and the battery pack above can be stacked

Electrical parameters (at STC)			Mechanical parameters			Package

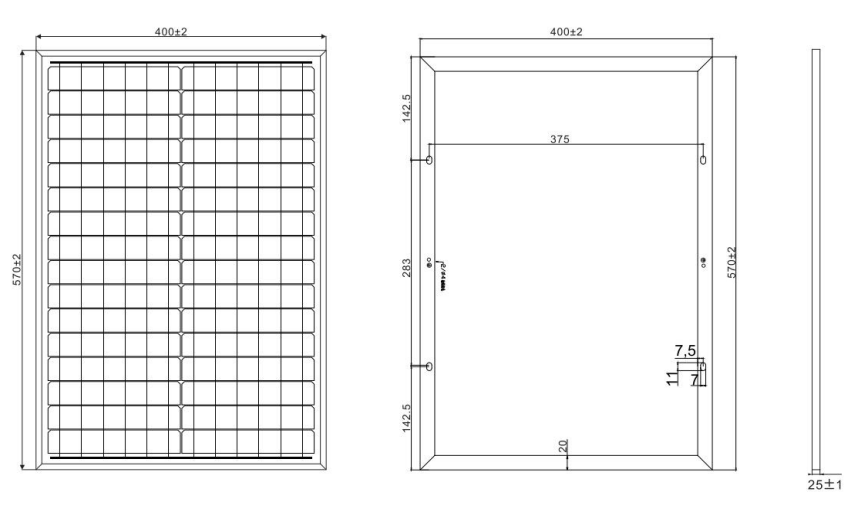

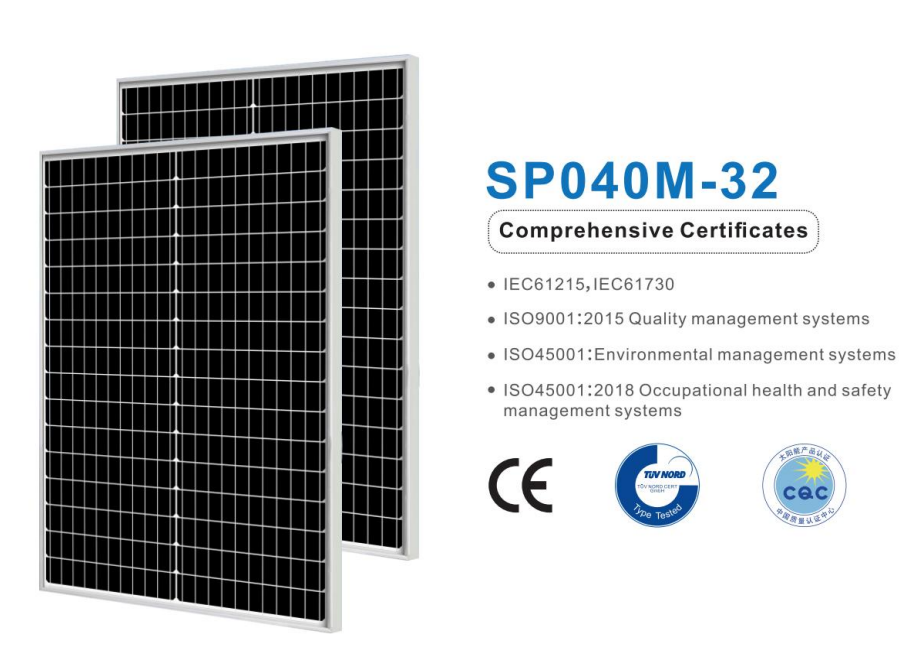

module	SP040M	Solar cells (type/size)	Mono (182mm)	carton size	600430170mm
Power (W)	40W	Number of solar cells	32 (2*16)	number	5/box
Module efficiency (%)	17.50%	aspect	57040025mm	weight	15KG/carton
Voltage at Pmax (Vmp)	18.24	weight	2.80KG/pc	volume	0.044Cbm/Ctn
Current at Pmax(Imp)	2.19	tempered glass	3.2mm high transparency coating	20GP container	3180
Open circuit voltage (Voc)	21.80	frame	Anodized aluminum alloy	40HQ container	7730
Short circuit current (Isc)	2.39	Junction Box	IP67, 0*bypass diode
power tolerance	±3%	Connector	Original MC4

Electrical parameters (at STC)			Mechanical parameters			Package

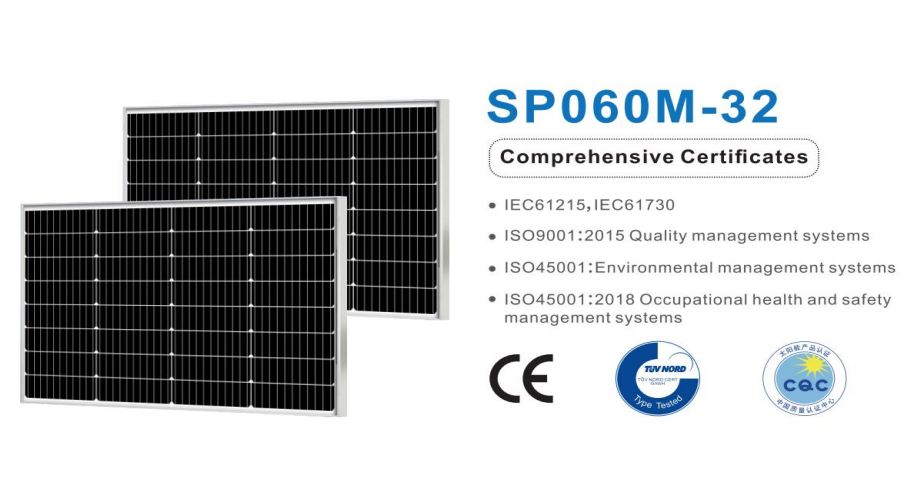

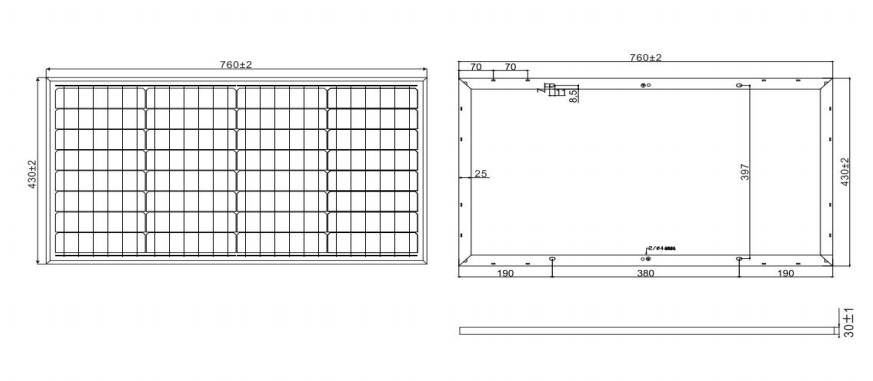

module	SP060M	Solar cells (type/size)	Mono (182mm)	carton size	45078075mm
Power (W)	60W	Number of solar cells	32 (4*8)	number	2/box
Module efficiency (%)	18.30%	aspect	43076030mm	weight	9kg/carton
Voltage at Pmax (Vmp)	18.24	weight	4.30KG/pc	volume	0.026Cbm/Ctn
Current at Pmax(Imp)	3.29	tempered glass	3.2mm high penetration coating	20GP container	2600
Open circuit voltage (Voc)	21.80	frame	Anodized aluminum alloy	40HQ container	5340
Short circuit current (Isc)	3.49	Junction Box	IP67,1*bypass diode
power tolerance	±3%	Connector	Original MC4

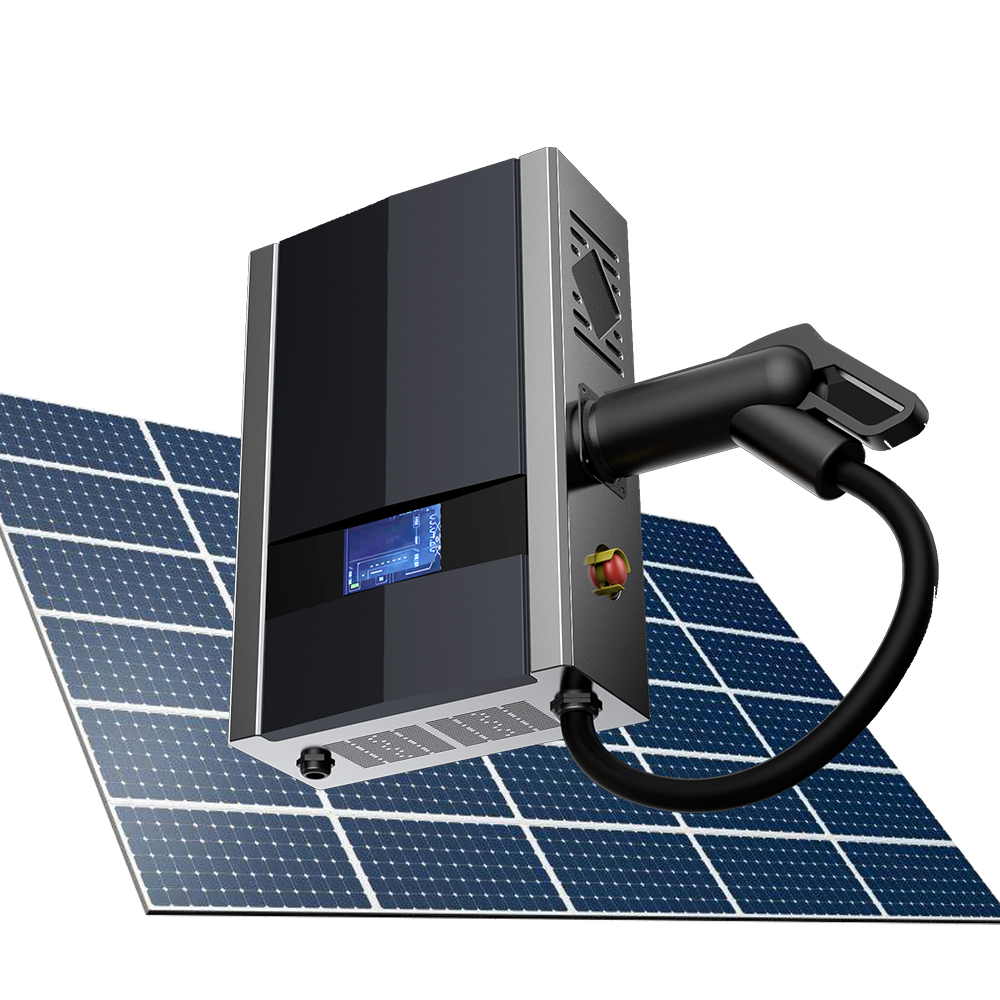

solar power charger

The AC Wallbox is designed for AC charging of small electric vehicles with on-board chargers.

Product Description

product name	Hybrid Solar Home System
Specification	custom made
Solar panels
type	Monocrystalline silicon
Solar panels	custom made
strength	no limit
Solar inverters
Inverter	Growatt Hybrid Inverter
Electric vehicle charger
type	AC/DC charger
strength	7-360KW
Installed	Wall mounted/mobile/floor mounted
Protect	Temperature, voltage, overload, leakage, lighting, etc.
grade	IP54
Battery
type	lithium battery
capacity	2-500KWh
Certificate	CE, TUV, ROHS, etc.
Support load balancing management and phase rotation
