New Refrigeration Commercial Copper Tube Condenser Refrigeration Coil Evaporator

PRODUCT DETAIL
Supply capacity:10,000 units per weekDelivery Details:Ships within 30 days of payment
payment terms:letter of credit, wire transferplace of origin; place of origin:Zhejiang, China
Material:Copper tube with aluminium finsbrand:Retech
The refrigerant:R134atype:condenser
Fin Type:naturePackaging Details:Carton size: 100*60*60 wooden box
port:Shanghai, NingboVoltage:220V
Card:Retechdescribe:Copper Tube Condenser Commercial Refrigerator Condenser
Certification:ceapplication:refrigeration accessories
model:Retekcool102

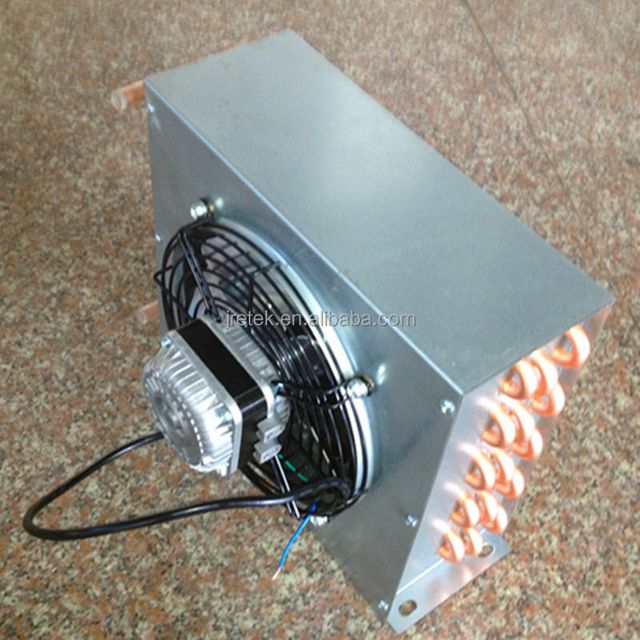

New Refrigeration Copper Tube Condenser Commercial Refrigerator Condenser Coil

  1. Raw materials: copper tube, aluminum fin, galvanized sheet, stainless steel sheet
  2. Copper pipe size: diameter: 7/7.94/9.52mm, inner groove or light pipe.
  3. Aluminum foil: hydrophilic or bare
  4. Fin type: louver fins, flat fins, corrugated fins
  5. Fin spacing can be adjusted between 1.8-5.8mm
  6. Hole spacing and row spacing: 25x21.65mm, 19.05x12.7mm, 25.4x22mm, 21x12.7mm, 22x19.05mm......
  7. 3.0MPA air pressure bitrogen test for leaks.



Mold information:



Copper tube diameter

keep and line spacing

Fin space

hold array

Fin face

Fin type

Defrost heater

Φ15.88mm

50×50mm

4-10mm

Equilateral triangle

Sine & Ripple

flat + wave

and

Φ15.88mm

38×33mm

2.5-4mm

Equilateral triangle

Sine & Ripple

flat + wave

and

Φ12.7mm

31.75×27.5mm

3-9mm

Equilateral triangle

Sine & Ripple

flat + wave

and

Φ9.52mm

25×21.65mm

1.5-6mm

Equilateral triangle

Sine & Ripple

flat + wave

and

Φ9.52mm

31.75×27.5mm

2.5-7.5mm

Equilateral triangle

Sine & Ripple

flat + wave

and

Φ9.52mm

25×21.65mm

1.5-2.5mm

Equilateral triangle

shutters

flat

No

Φ7.94mm

25×21.65mm

1.5-3.5mm

Equilateral triangle

flat

flat + wave

No

Φ7.0mm

21×12.7mm

1.3-1.8mm

Equilateral triangle

shutters

flat

No




Packaging and Shipping



Seaworthy export cartons are placed on pallets or wooden boxes.

We can also follow customers' requirements for packaging.
