Factory direct sale TYNRB35 thermal hot water heat pump with solar panel

PRODUCT DETAIL
payment terms:L/C,D/P,T/TStorage/No Tanks:Instant/No Tanks
use:bathroomensure:one year
Heat Pump Color:whiteport:Shanghai, Ningbo
Supply capacity:10000 pieces per monthtype:water source heat pump, thermal solar heat pump
Uses of heat pumps:heating waterSolar:5000W
Heating capacity:1600Woperating hours:24 hours
model:TYNRB35Packaging Details:Thermal hot water heat pump with solar panels in a wooden box
The refrigerant:R410aplace of origin; place of origin:China
Building Materials:aluminum plateCertification:ce
thickness:1.5~2.0mmInstall:Wall-mounted
fan:AxialDelivery Details:Within 25 days of receiving your deposit
brand:Retech
Product Description

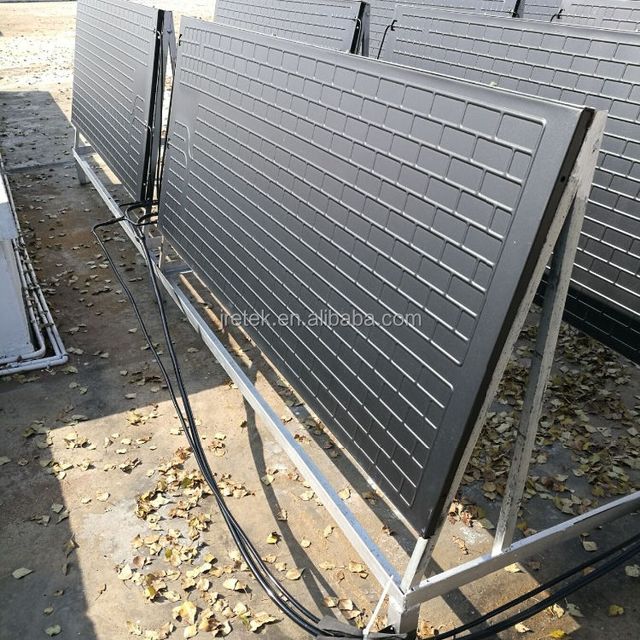

TYNRB35 Thermal Hot Water Heat Pump with Solar Panels

Thermal solar panels use the principle of refrigeration to heat hot water. it can

Collects heat from sun, rain, snow, sleet and even nighttime air 24 hours a day, 365 days

Per year.

It can heat water up to 55°C, has a lifespan of up to 25 years, and saves up to 90% on hot water and electricity bills.

Material: aluminum plate

Main dimensions: 2000x800mm 1700x800mm 2000X1000mm 1700X500mm 1700X900mm 1700X990mm

Thickness: 1.5~2.0mm

Accessories: Wall or Frame Mount

application:

1. Domestic hot water

2. Engineering hot water

3. Floor heating and radiators

4. Central heating and cooling



main part:



Compressor: Scroll.

Refrigerant: R410a/R22

Sanitary hot water supplier 24 hours a day

Our products absorb heat from the sun through a new generation of heat sinks on sunny days. Working ambient temperature -10°c to 45°c. The heat pump will start working on rainy or snowy days.

Advantage:.



1. Our products will provide hot and sanitary water all year round.

2. Compared with air source heat pump water heaters, our products are more energy-saving and environmentally friendly. Since this product mainly obtains thermal energy from the sun, it is green and free of charge.

3. Compared with solar water heaters, our products can obtain thermal energy from ambient air in rainy or snowy days.



The main advantages of solar hybrid heat pumps

74% less emissions than oil-fired boilers

low operating cost

Specially designed and manufactured for domestic sanitary hot water

easy installation

long lasting

Hot water for year-round operation*

minimal maintenance

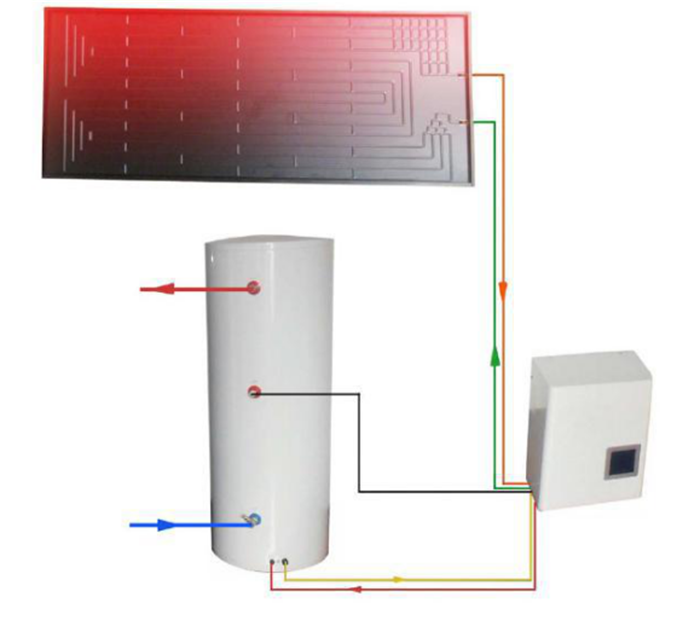

Split unit means that the main engine and the water tank are separated, and the installation location is convenient and flexible. The capacity of the water tank can be selected according to the family situation.

Water and electricity separation, safe and reliable.

The water tank is made of high quality stainless steel. Resin sponge is filled between the inner and outer walls and has good thermal insulation.

Using microcomputer controller, automatic intelligent mode, hot water setting within 24 hours, timing on/off designation free setting.

The products are economical and energy-saving, and the average annual electricity consumption is equivalent to 65% of solar water heaters and 25% of electric water heaters.

The product adopts the principle of heat conduction: the compressor runs, the high temperature carrier of the refrigerant is discharged, and the water is heated, that is, there is no exhaust gas emission and no waste residue.

The product adopts high efficiency sealed shell heat exchanger/condenser. The system's water and refrigerant exchange heat throughout the dynamic process, protecting the pipes from contamination.

Products are suitable for home, hotel, barber shop, beauty shop, school, hospital, etc.



 No built-in water pump andheat exchanger

Model

TYNRB-15

TYNRB-20

TYNRB-35

TYNRB-50

TYNRB-200

strength

~220V 50/60HZ

380V 50/60HZ

Rated outlet water temperature (℃)

55

55

55

55

55

Maximum outlet water temperature (℃)

65

65

65

65

65

Rated heat capacity (W)

1600

2000

3500

4500

20000

Rated input power (W)

320

370

680

800

5000

Rated current input (A)

1.4

1.7

3.1

3.7

7.5

Noise (dB(A))

≤45

≤45

≤45

≤45

≤60

Weight (kg)

18

20

twenty three

26

80

Size (L*W*H)

325X225X400

380X280X440

500X400X600

Water tank capacity (L)

100,150

150,200

200,300

300,500

2000

Applicable ambient temperature (℃)

-20~45

Our factory

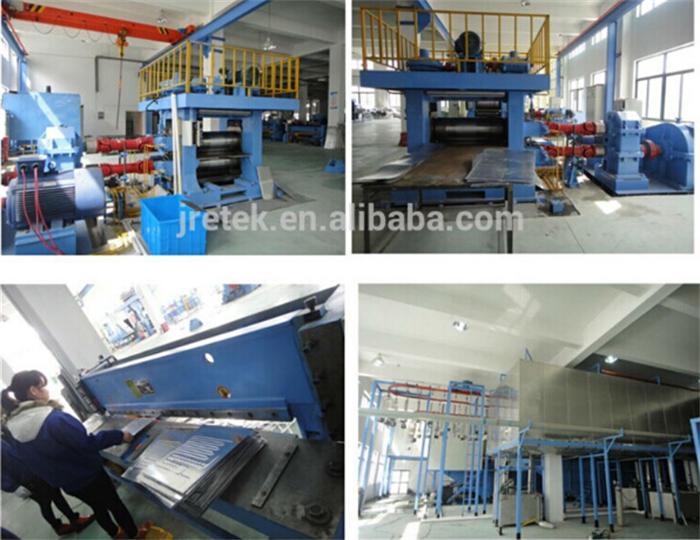

Production process of heat pump
