Water heater with heat pump and air conditioner

PRODUCT DETAIL
type:Heat pump + air conditionerOEM/ODM service:Yes
Install:Freestanding, wall-mountedOrigin:Guangdong, China
Function:Air heating, cooling, hot waterPackaging Details:Carton + plywood pallet
Warranty:2 yearspower supply:230V/50Hz/1P
Cooling capacity:9000BTUHeating capacity:3 kW
use:bathroomcompressor:General Motors Corporation
port:Shunde Port, Guangzhou Port, Shenzhen PortController:to lead
application:family, hotel, business, homeBuilding materials:Metal
model:KP-30Supply capacity:500 sets per month
payment terms:Western Union, T/TEnergy source:electrical
Storage / Tankless:storageApplication Control:No
brand:santriAfter-sales service provided:Free spare parts, returns and replacements
color:whiteRefrigerant:R410a

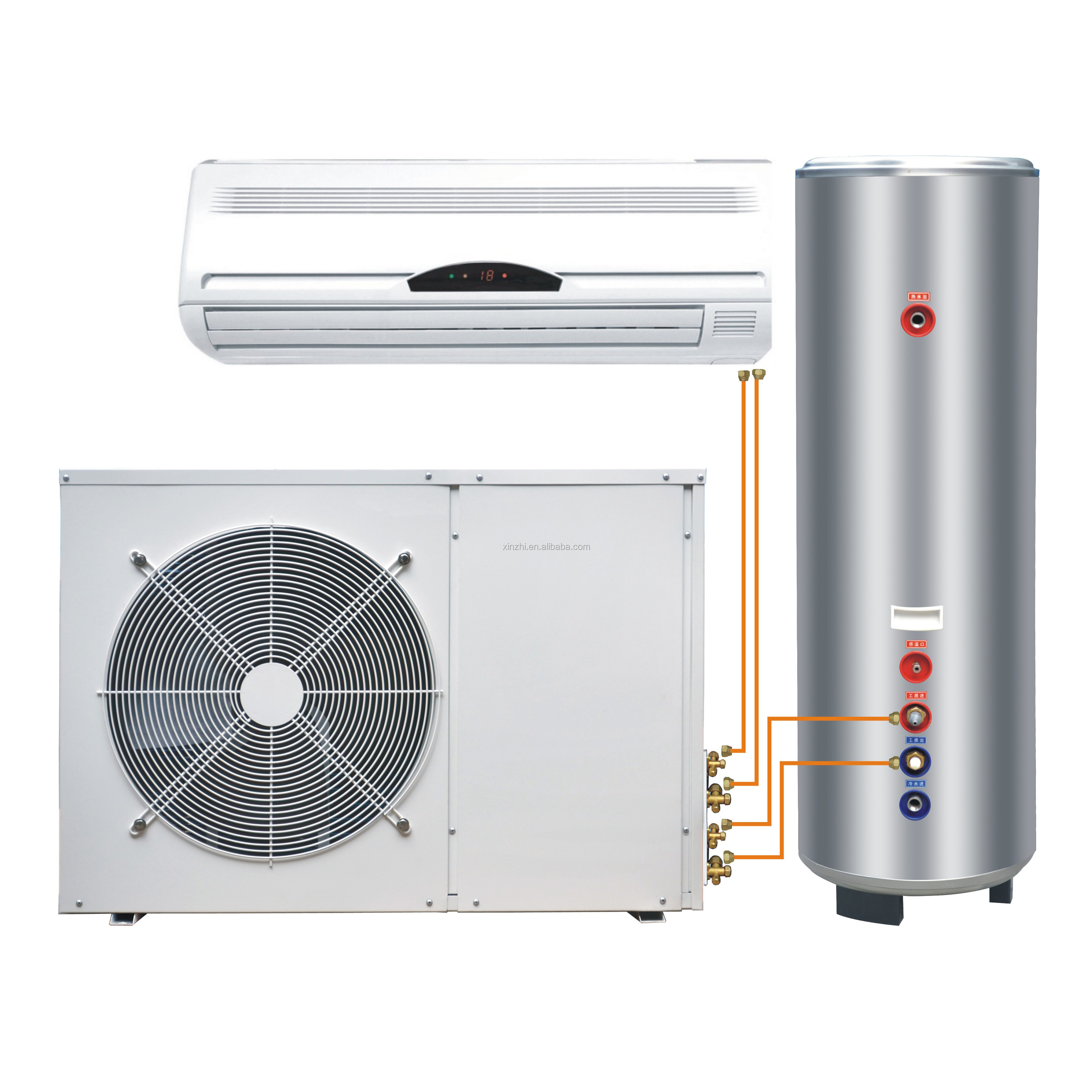

Heat pump water heater + air conditioner

Product Description



This unit is designed for home use.

It can provide hot water, air cooling, air heating, air cooling + hot water.

Air cooling provides free hot water.



feature:

1) Split design:

- Outdoor unit with evaporator, fan motor, compressor, PCB

- Indoor unit air conditioners can be wall-mounted split type, floor-standing type, ducted ceiling type split type.

- Hot water tank:
* Liner material SS304
* SS316 coil is directly installed in the inner tank

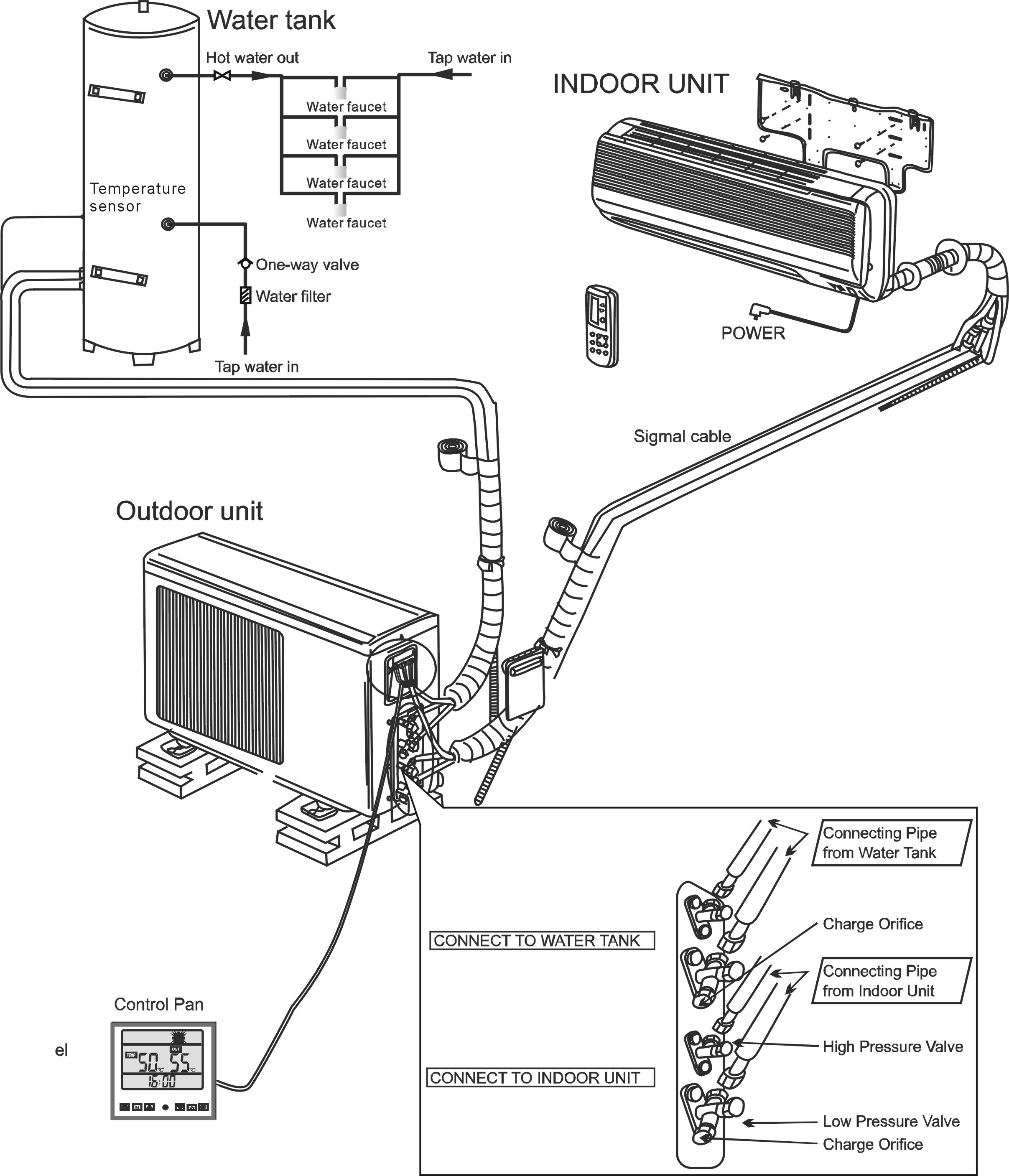

- The indoor unit and outdoor unit, water tank and outdoor unit are connected by refrigerant copper pipes.



2) Function: Air COOL, Air HEAT, Hot water only, Air C00L+Hot water



3) Refrigerant gas R410A

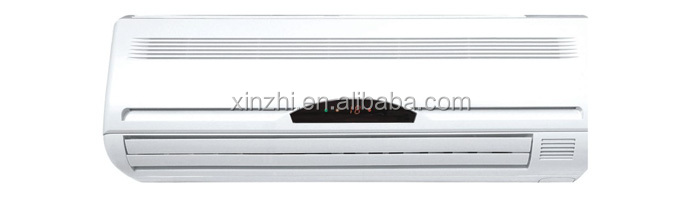

Wall-mounted

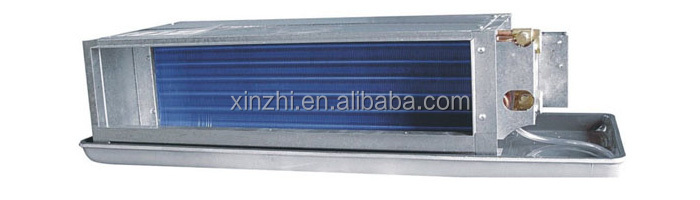

Air Duct Ceiling Type

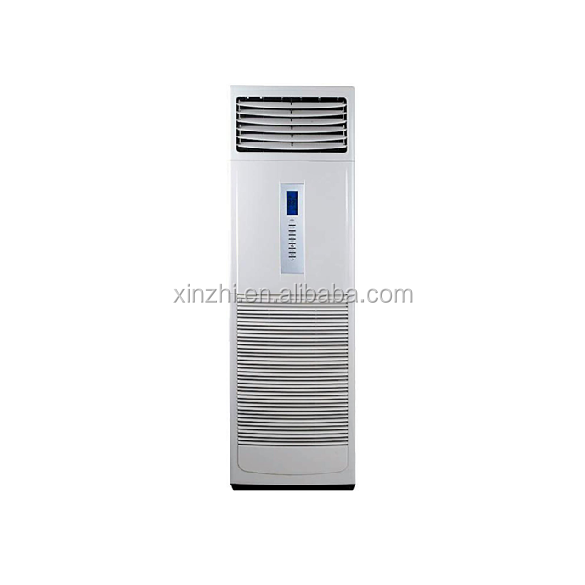

Floor type

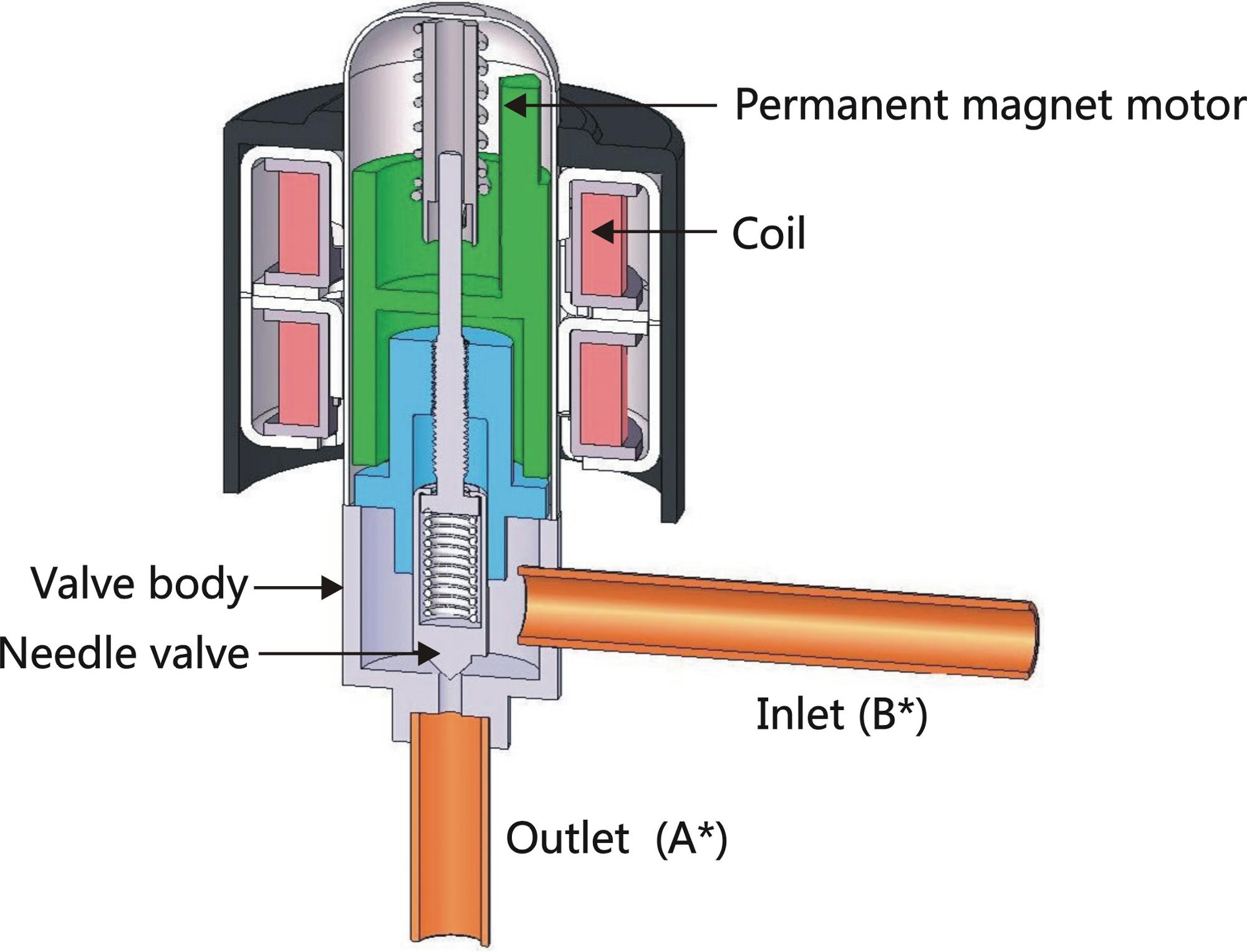

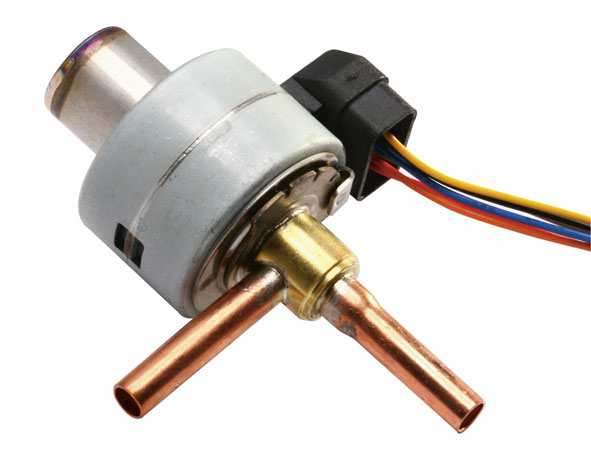

Electronic expansion valve

Wider operating temperature range, faster and more accurate refrigerant flow control.





Install:





Specification:



thing

unit

KP-30

KP-50

KP-70

KP-90

KP-120

KP-160

The outdoor unit

heat output

watt

3,800

4,800

7,600

9,800

14,800

16,800

input power

watt

950

1,200

1,900 people

2,450

3,700

4,200

Running current

A

4.5

5.7

9.1

11.7

6.4

7.3

COP (for water heating)



4

4

4

4

4

4

power supply

Voltage/frequency/frequency

220/1/50

380/3/50

compressor style



spiral

scroll

Hourly hot water supply (delta=40C)

L/h

81

103

163

210

Chapter 317

360

Extended device type



Electronic expansion valve

fan type



Axial

Fan flow direction



horizontal

number of fans



1

2

Gas connection (refrigerant)

inch

3/8

3/8

1/2

5/8

1/2

3/4

Liquid connection (refrigerant)

inch

1/4

1/4

1/4

3/8

1/4

1/2

noise

decibel(A)

50

50

53

58

65

68

Air conditioner

Output cooling and heating capacity

Btu/hour

8,000

11,000

18,000

24,000

36,000

42,000

air circulation

cubic meter/hour

4,600

Chapter 530

700

1,000

1,500 people

1,800

noise

decibel(A)

46

52

43

43

43

43

Liquid connection (refrigerant)

inch

3/8

3/8

1/2

1/2

1/2

1/2

Gas connection (refrigerant)

inch

1/4

1/4

1/4

1/4

1/4

1/4
