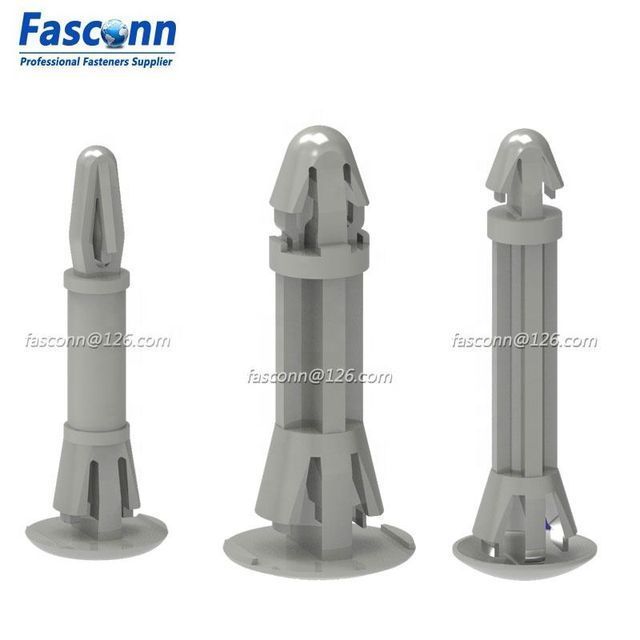

Nylon Cup Reverse Mount Locking Board Support Post for Round Holes, Heavy Duty PCB Holder, RLCBS
- $0.07 / 1000 - 19999 pieces
$0.06 / 20000 - 49999 pieces
$0.05 / >=50000 pieces - 1000 pieces
- HuaZhan Plastic & Hardware Products (Shenzhen) Co., Ltd.
- Guangdong, China
- Mr
| Flame class: | UL94V2 | deliver goods: | 20 days |
| Certification: | ROSH | Plastic model type: | injection |
| payment terms: | wire transfer | Processing services: | forming |
| pack: | 1000pcs/nylon bag | Origin: | Guangdong, China |
| Supply capacity: | 1,000,000 pieces per month | Packaging Details: | Packed in nylon bag and carton outside. |
| brand: | No | Material: | Nylon 66 (RMS-01) |
| MOQ: | 5000 | model: | RLCBSA, CRLCBSR, RLCBSRE, |
| color: | Nature |

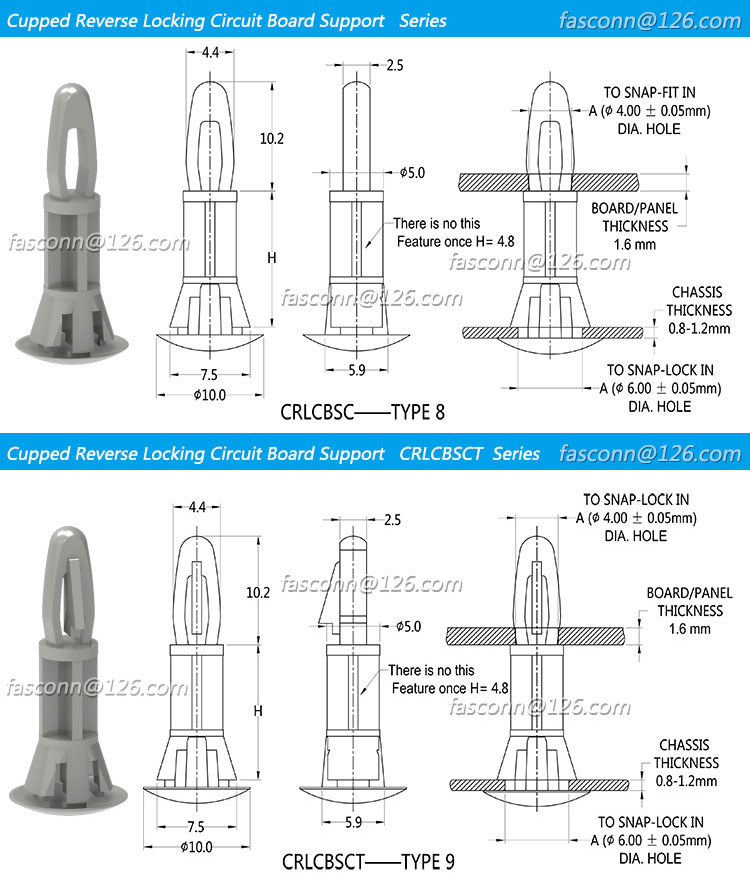

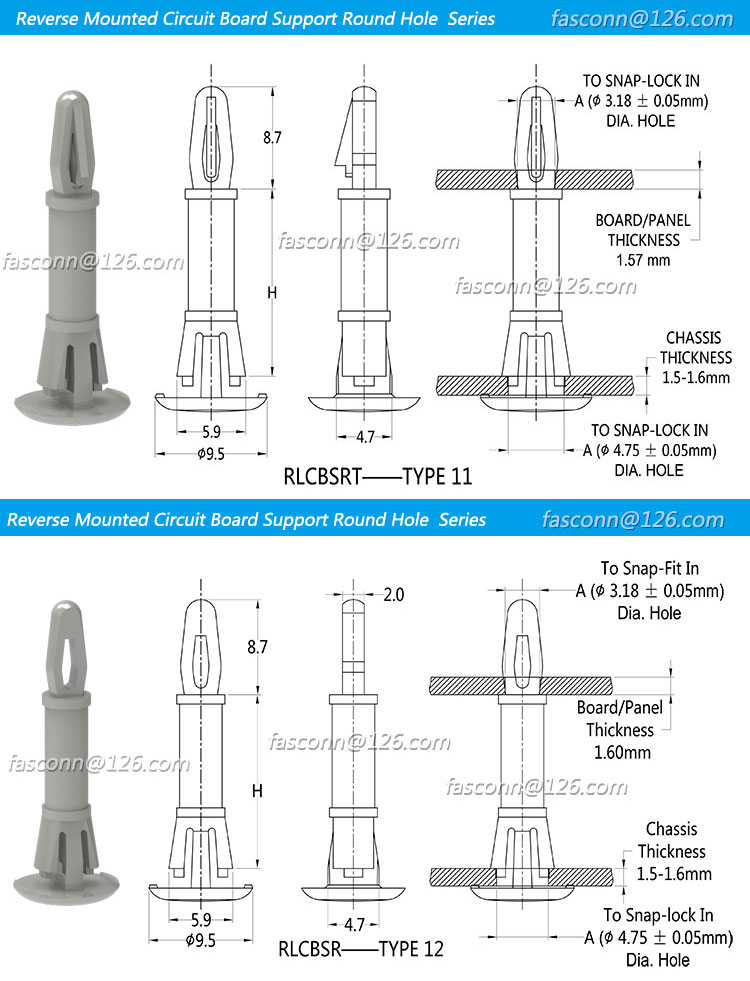

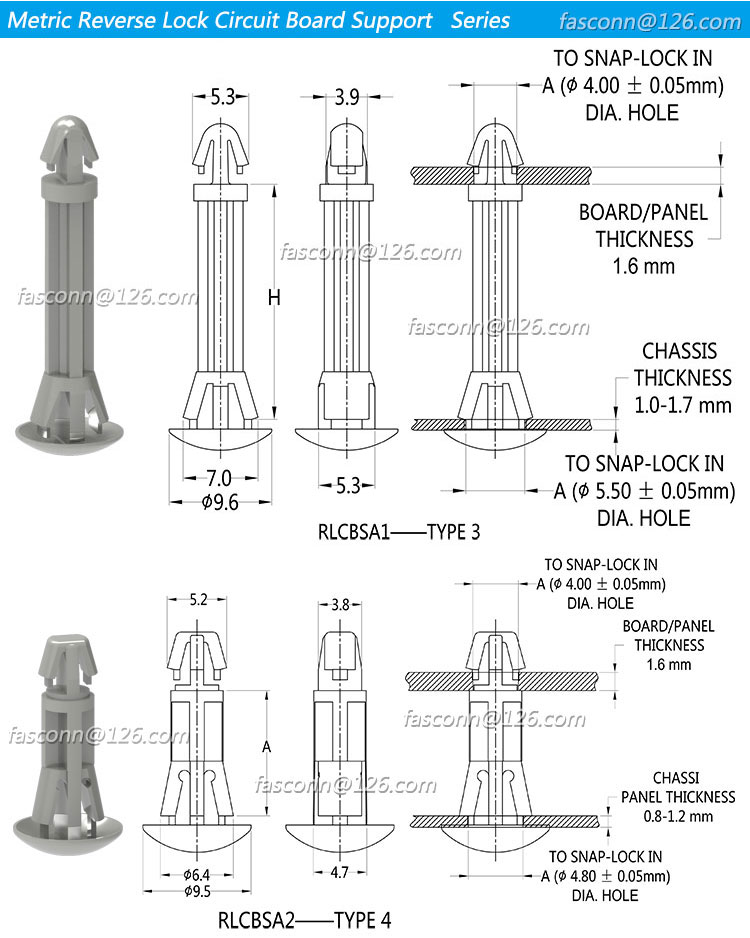

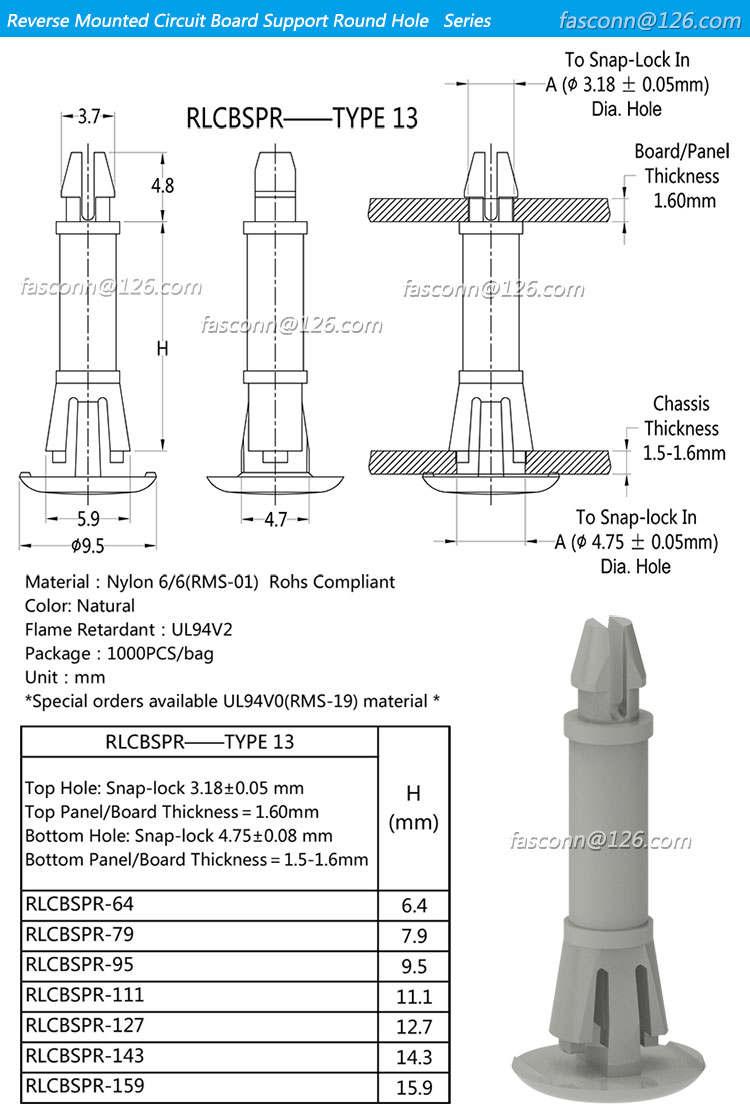

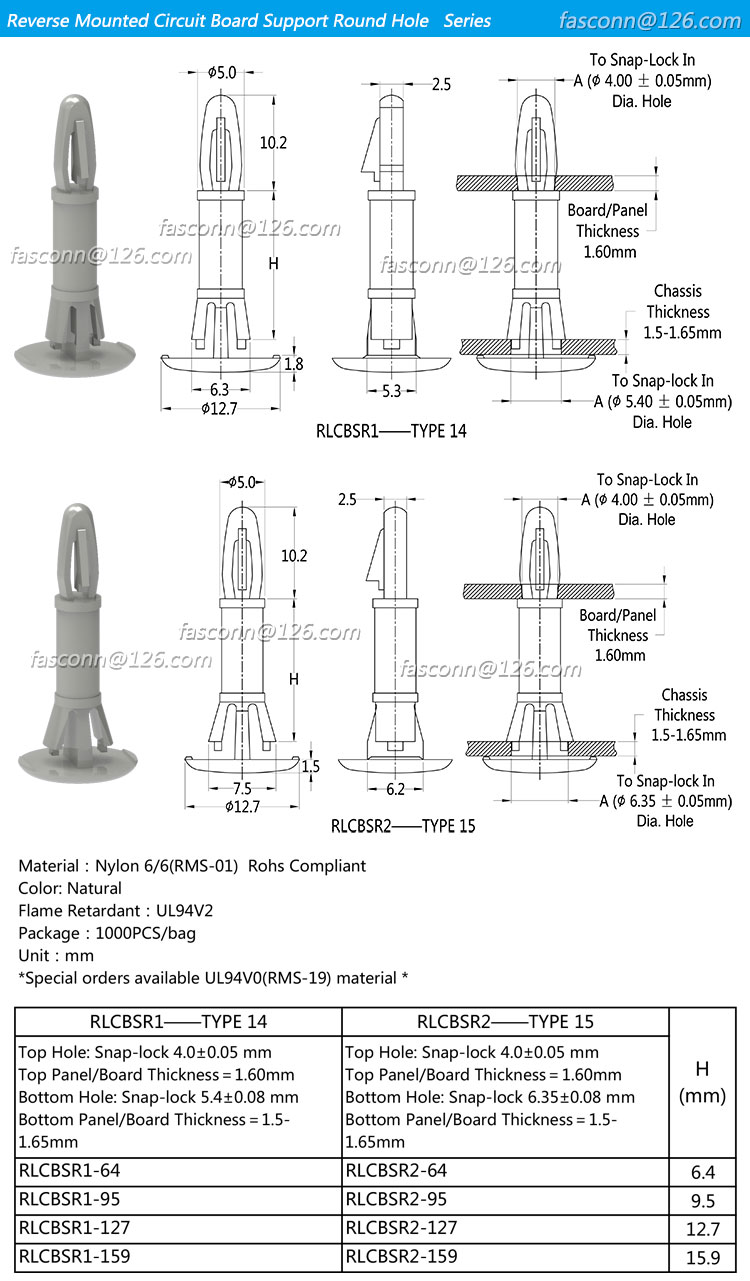

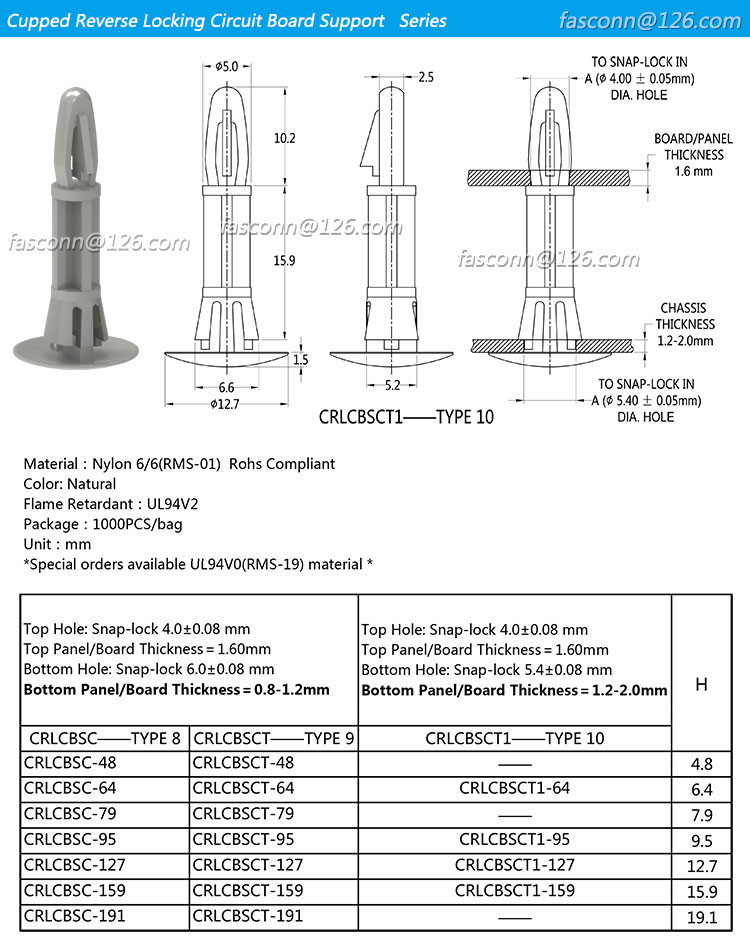

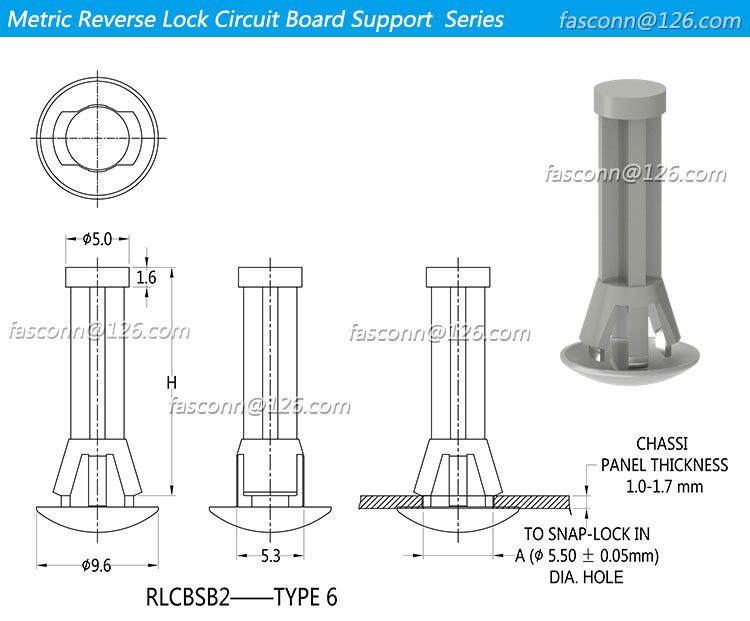

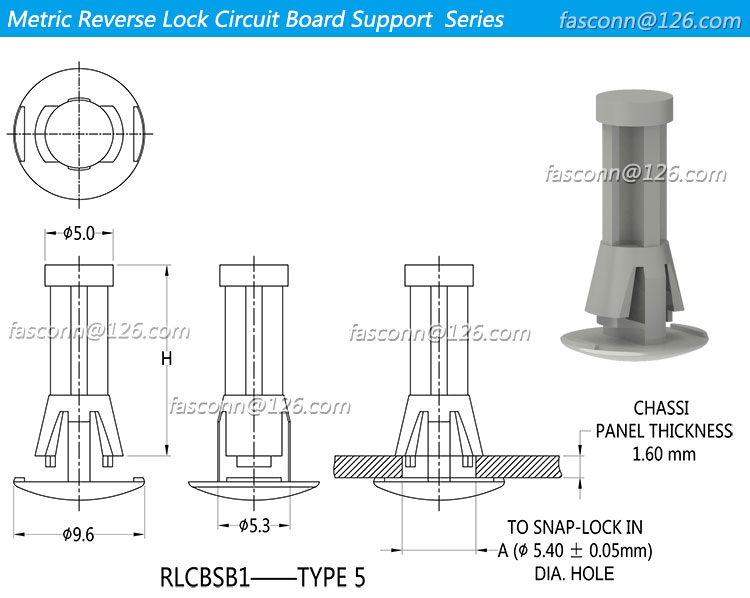

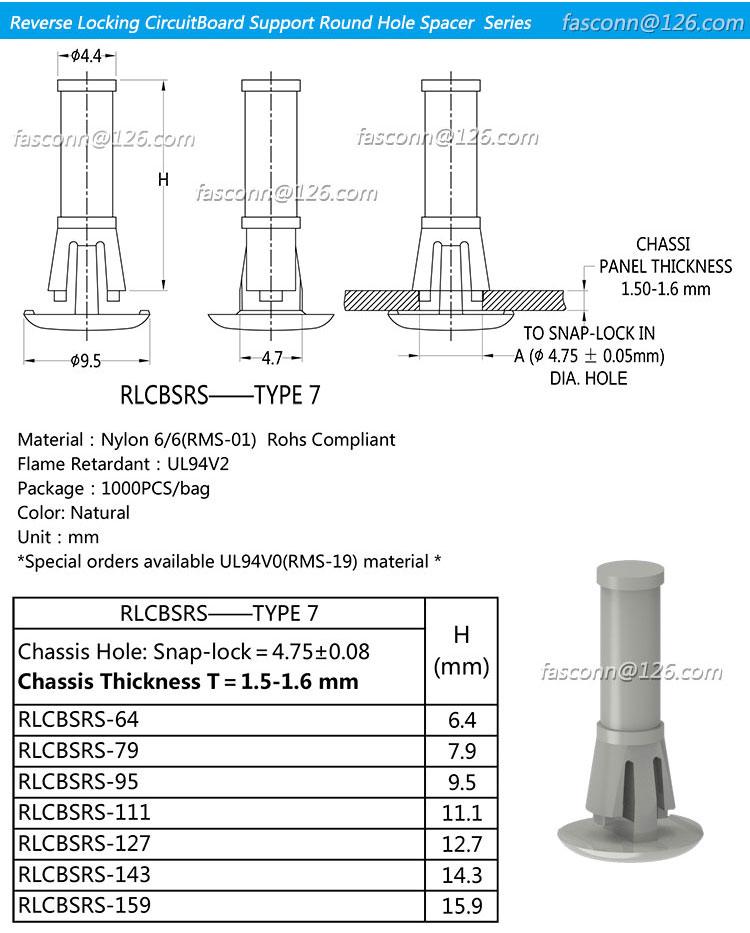

The reverse-mount circuit board support round holes are suitable for heavy-duty circuit boards. It provides minimal protrusion under the board. It inserts from the bottom of the chassis, first the body, then the pins. The two-piece assembly provides a solid component that can withstand high shear loads while still providing an understated finished look on the back of the chassis.
Applications and Benefits:

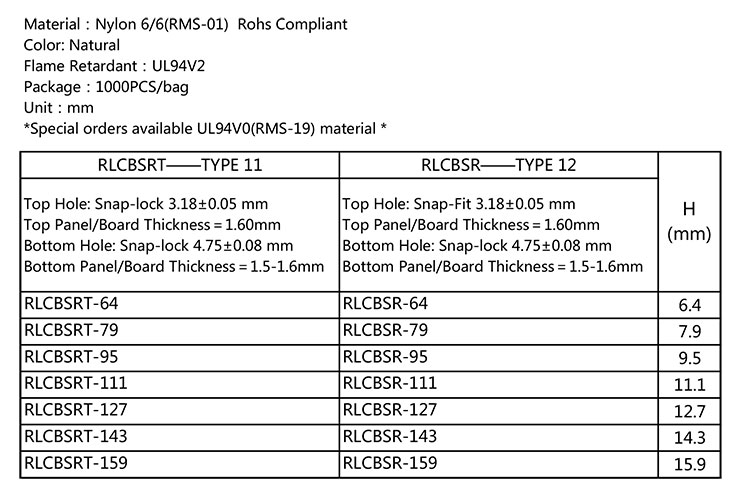

* Available in natural UL94 V2 Nylon 6/6 RMS-01 and available in UL94V0, RMS-19 material.
* Should be inserted from the outside of the case.
* Provides minimal protrusion under plate.
* Suitable for heavily loaded circuit boards.
Due to the wide variety of styles, the prices listed above are for reference only.
Please contact us for a detailed quote on a specific style. Quotation will vary according to material and size, batch size.
Samples are free, and the express fee is borne by the customer.
Delivery within 3-5 working days after receipt of payment;
