Plastic PCB Spacer Support screw plastic nylon spacer PCB board
- $0.04 / 1000 - 9999 pieces
$0.03 / 10000 - 49999 pieces
$0.02 / 50000 - 99999 pieces
$0.01 / >=100000 pieces - 1000 pieces
- Shenzhen Haodate Electronics Co., Ltd.
- Guangdong, China
- Ms Anna Zeng
PRODUCT DETAIL
| Plastic model type: | injection | PCB spacer height: | From 3.2 mm to 25.4 mm |
| suitable for: | Two sizes for insertion into PCB holes | Processing services: | forming |
| brand: | hd | payment terms: | L/C, Western Union, T/T, Paypal |
| PCB Spacer Support Material: | Nylon 66 | Operating temperature: | -20~120 |
| Flame class: | 94V-2 | Origin: | Guangdong, China |
| PCB Thickness: | 1.2 mm to 2.0 mm | Packaging Details: | First is PE bag, then carton, then plastic pallet. Other packaging is available upon customer request. |
| model: | PCB spacer support | PCB Spacer Color: | Nature |
| Package preview: | PC board hole size: | 3mm | |
| Supply capacity: | 50000 pieces per week | port: | Shenzhen |

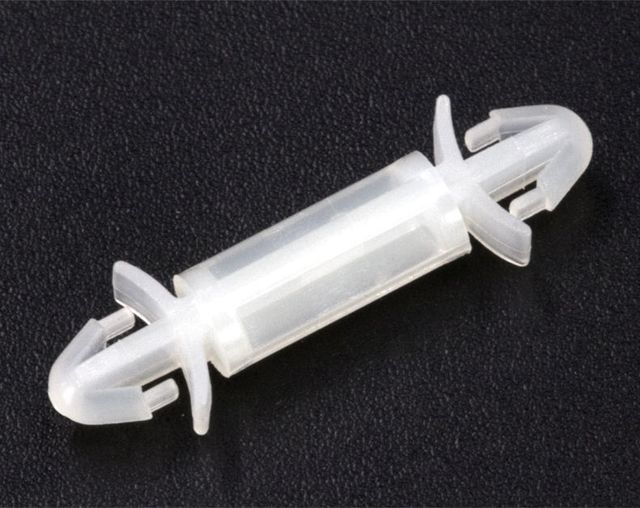

Plastic PCB Spacer Support Plastic Screw Nylon PCB Board Spacer
Specification
| Material | Nylon 66 |
| color | Nature |
| Flame class | 94V-2 |
| usage | Fix the PCB board and main board; the hexagon is not easy to move. |
| Operating temperature | -20℃~120℃ |

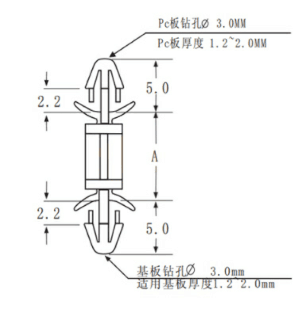

painting
size chart
| Part Number | A | pack |
| SST-3 | 3.2 | 1000 |
| SST-4 | 4.0 | |
| SST-5 | 5.0 | |
| SST-6 | 6.4 | |
| SST-7 | 7.0 | |
| SST-8 | 8.0 | |
| SST-10 | 9.5 | |
| SST-11 | 11 | |
| SST-12 | 12 | |
| SST-15 | 15 | |
| SST-17 | 17 | |
| SST-20 | 20.2 | |
| SST-25 | 25.4 |

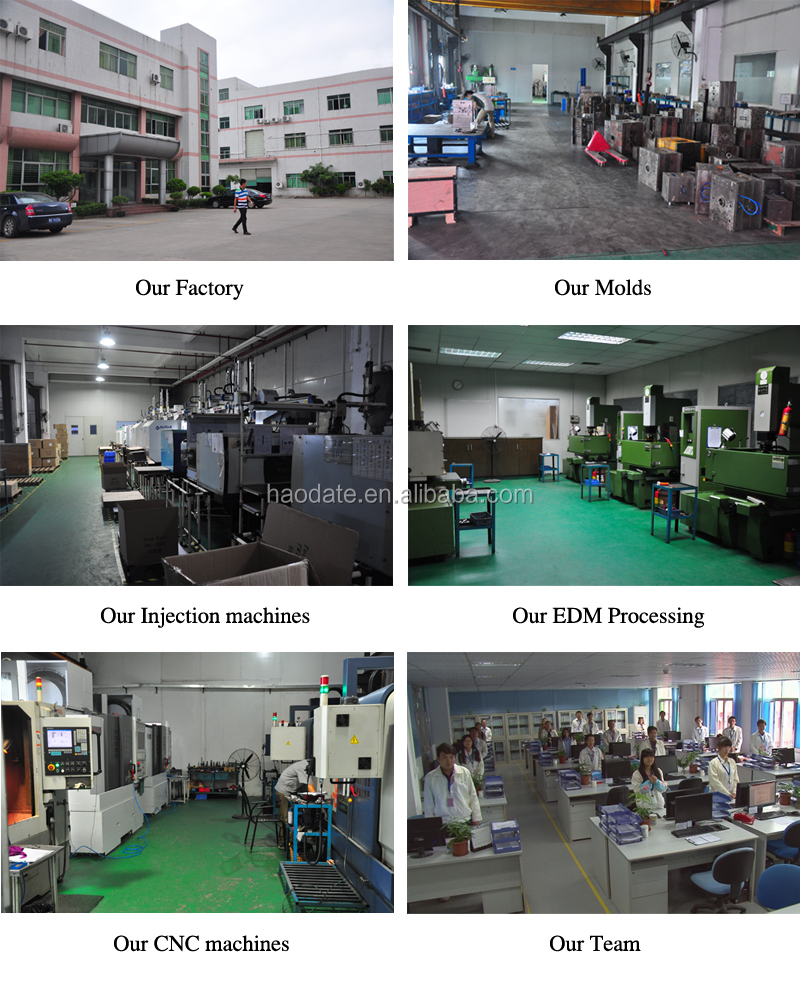

Factory Tour
We promise:
Free samples can be provided.
For OEM products, payment can be made after confirming the samples.
