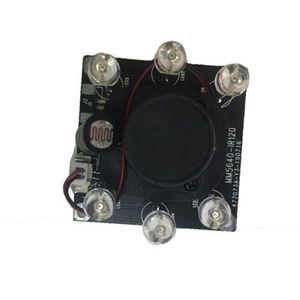

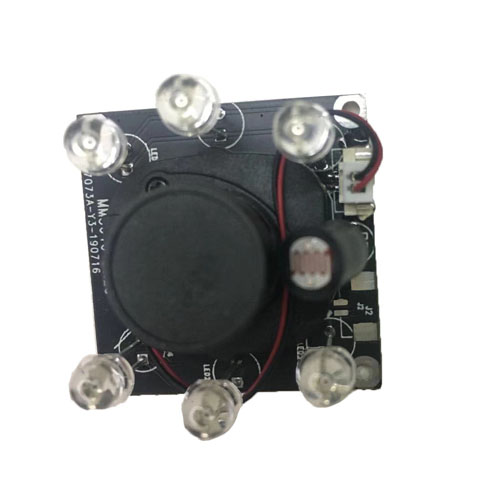

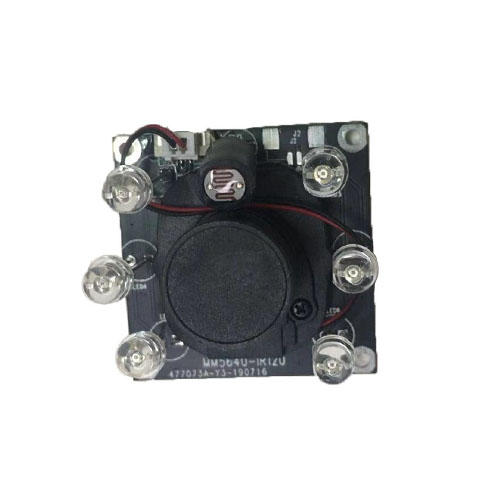

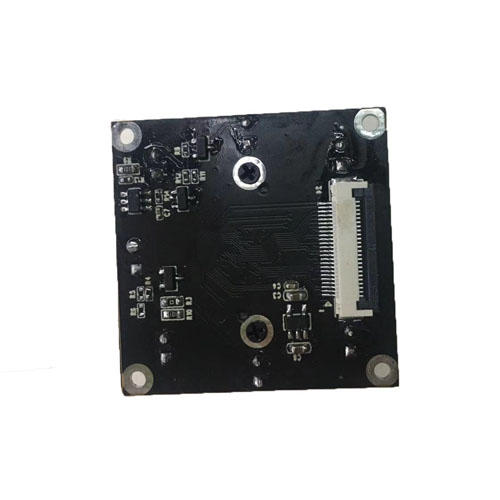

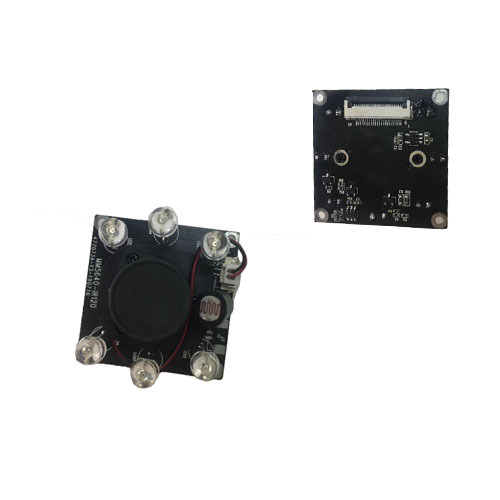

OV5648 OV5640 5MP DVP IR-CUT Camera Module with Omnivision CMOS Sensor with Flex Cable

PRODUCT DETAIL
Surface treatment:Mountersensor:1/4''CMOS
Interface Type:vice presidentResolution:2592(H) x 1944(V)
minute. Line spacing:0Substrate:circuit board
payment terms:Western Union, wire transferFocus Type:fixed focus
Plate thickness:0,2Packaging Details:box packaging
brand:cbritechplace of origin; place of origin:Guangdong, China
Copper Thickness:0.2aspect:35mm*35mm*18mm
Key words:OV5640 MIPI/DVP IR-CUT Camera Modulemodel:CBT-5MPFF-IR157
Board size:35*35MMtype:heavy copper pcb
Maximum dynamic range:pendingminute. Hole size:0,002
minute. Line width:0FOV (diagonal):120°157°198° (interchangeable lens)
Product Description
product name
OV5640 MIPI/DVP IR-CUT Camera Module
sensor
1/4' OV5640
Resolution
2592×1944@15FPS
FOV (diagonal)
120°, 157°, 198° (optional lens)
focus type
fixed focus
Compression format/video stream format
MJPEG / YUV2 (YUYV)
shutter type
Electronic rolling shutter
maximum dynamic range
pending
signal to noise ratio
pending
IR-CUT
Yes
night vision
Yes
Object distance
8CM (optional)
aspect
35mm*35mm
interface
MIPI/DVP interface
  • Main features:


1.OV5640 DVP IR-CUTcamera module. 2. The most effective pixel is 2593(H) x 1944(V)@15FPS (MJPEG). 3. Fixed focus, DVP interface.
4. Support lens90°,120°, 157°, 198°5.Support IR-CUT equipment, 650nm lens during daytime, 850nm night vision.
