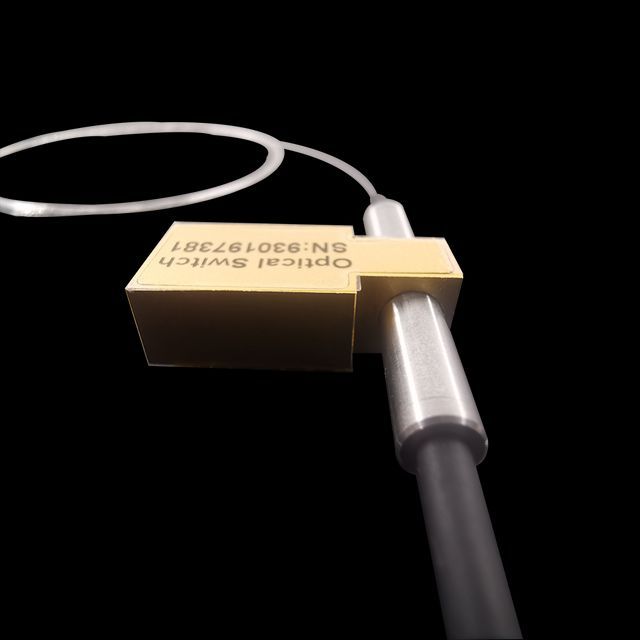

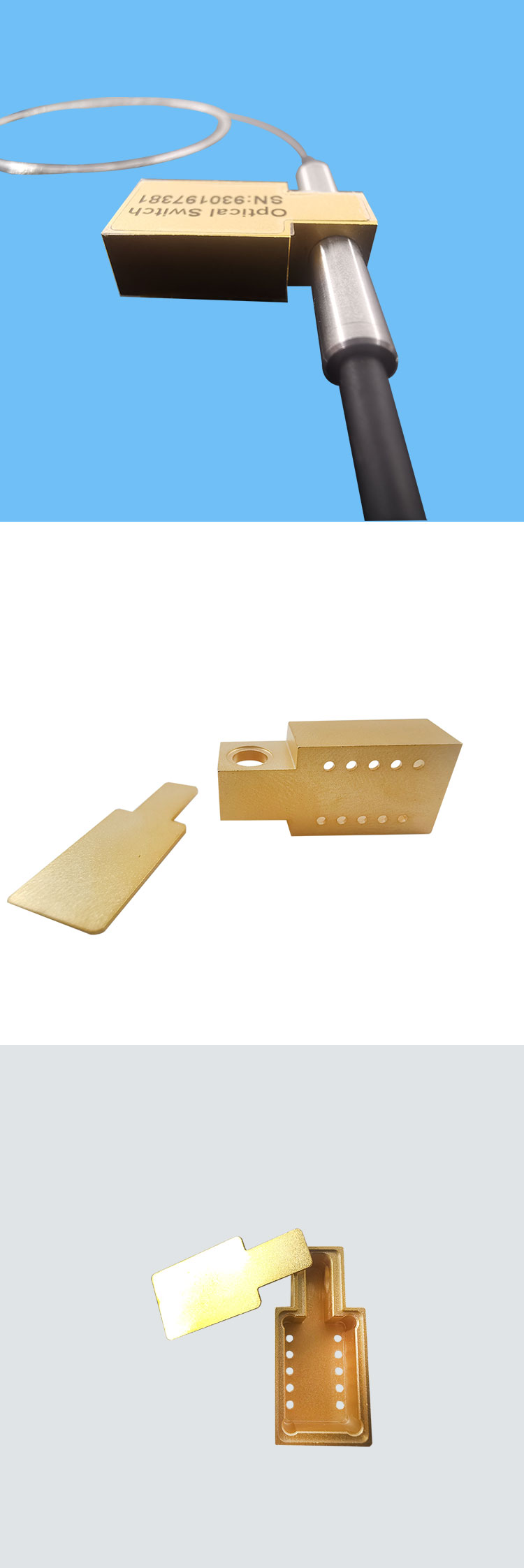

Optical mechanical switch 1x1 1x2 2x2 with loose tube 0.9
- $10.00 /set
- 1 set
- Qingdao Applied Photonic Technologies Co., Ltd.
- Shandong, China
- Ms Echo Wang
PRODUCT DETAIL
| port: | Qingdao | type: | optical fiber |
| wavelength: | 1260-1650nm | Connector: | SC LC FC ST |
| use: | FTTH | Voltage: | 3v or 5v |
| payment terms: | L/C, D/P, D/P, T/T | Return Loss: | 50 decibels |
| brand: | OEM production | Supply capacity: | 10000 sets per month |
| Insertion loss: | ≤0.6dB | product name: | fiber optic switch |
| application: | telecommunications | Packaging Details: | Standard carton packaging |
| Certification: | ISO9001 | model: | other |
| Origin: | Shandong China |

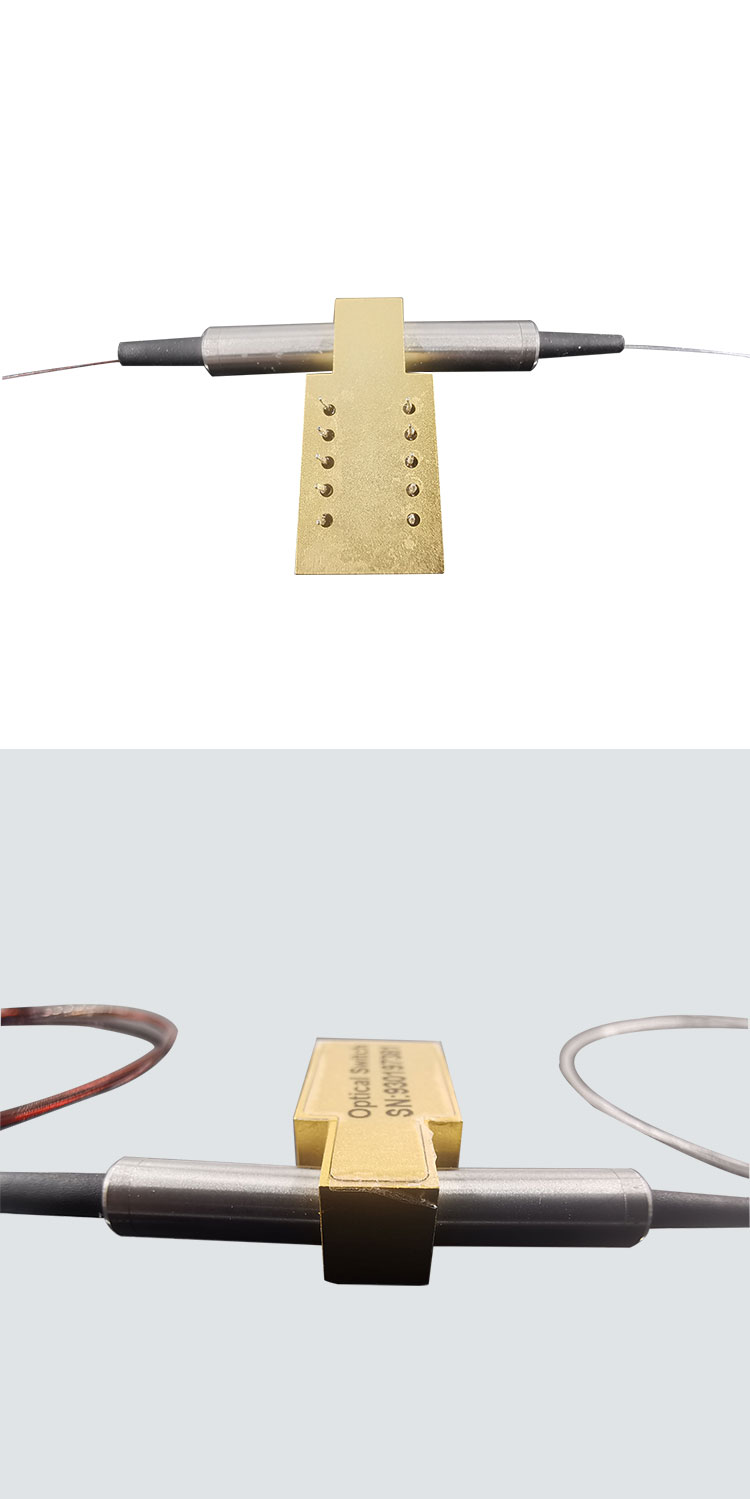

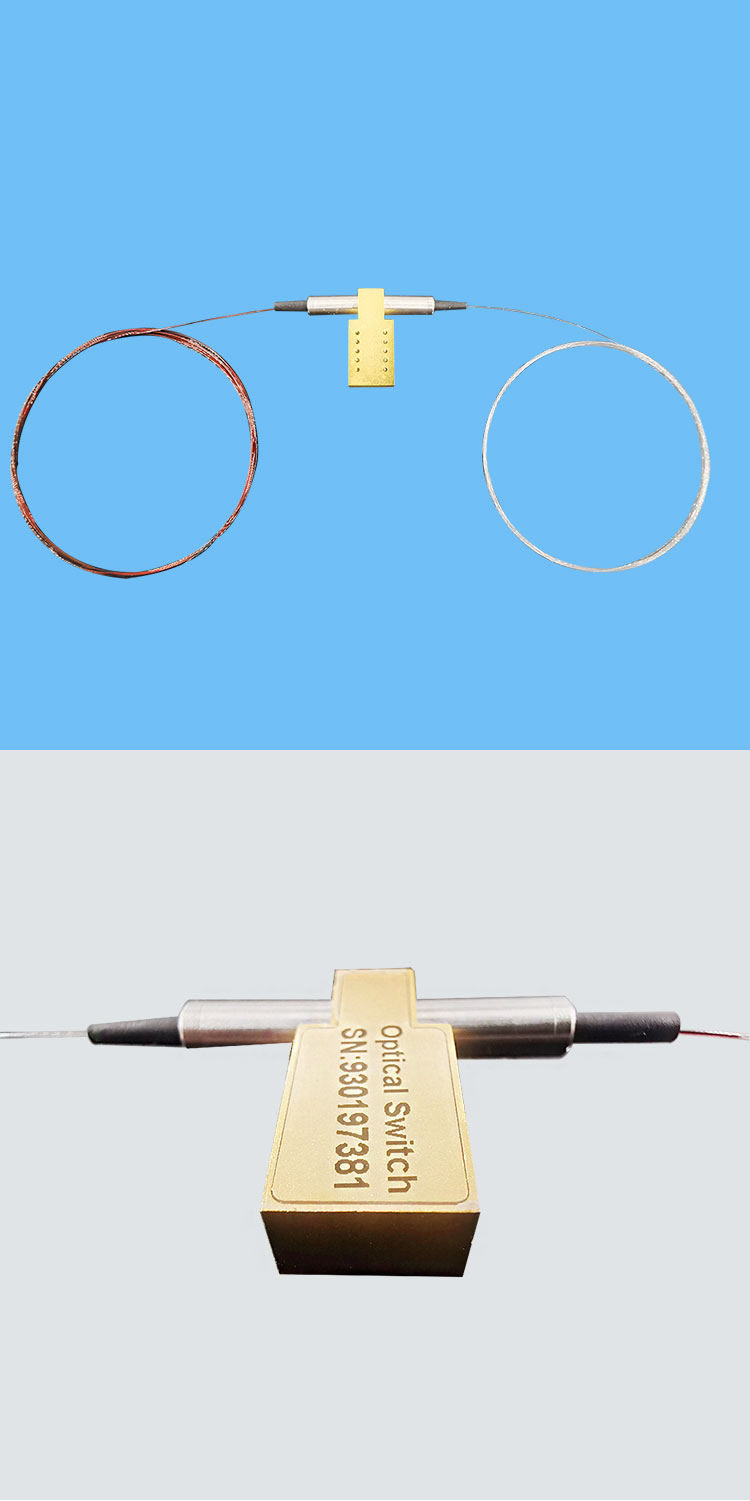

1×2 optical switch
feature
- low insertion loss
- Wide wavelength range
- low crosstalk
- High stability, high reliability
- Optical path without epoxy
- latching and non-latching
application
- Laboratory research and development
- System monitoring
- OADM
- MAN (Metropolitan Area Network)

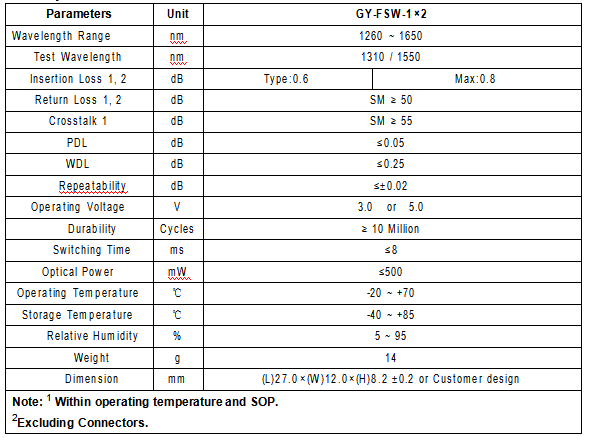

Specification

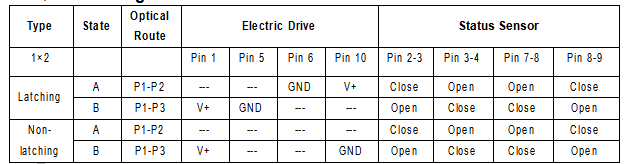

pin configuration
light path

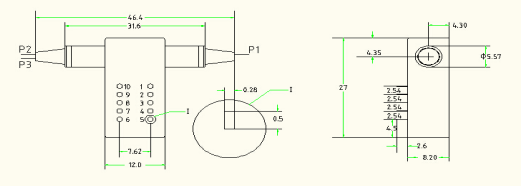

aspect

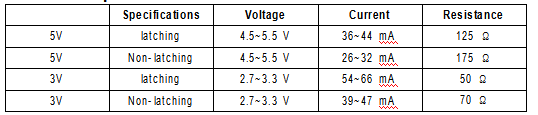

Electrical Specifications
Ordering Information:
fiber type | Voltage | switch type | Test wavelength | cast | fiber length | Connector |
SM:SM,9/125 | 3:3V | L: Latch | 850:850nm | 25:250um | 05:0.5m±5cm | FP: FC/PC, FA: FC/APC |
M5:MM,50/125 | 1310:1310nm | 90:90 microns | 10:1.0m±5cm | SP: SC/PC, SA: SC/APC | ||
M6:MM,62.5/125 | 5:5V | N: non-latching | 13/15:1310/1550nm | X: other | 15:1.5m±5cm | LP: LC/PC, LA: LC/APC |
Ten: Other | X: other |
| X: other | OO: None, X: Other |
