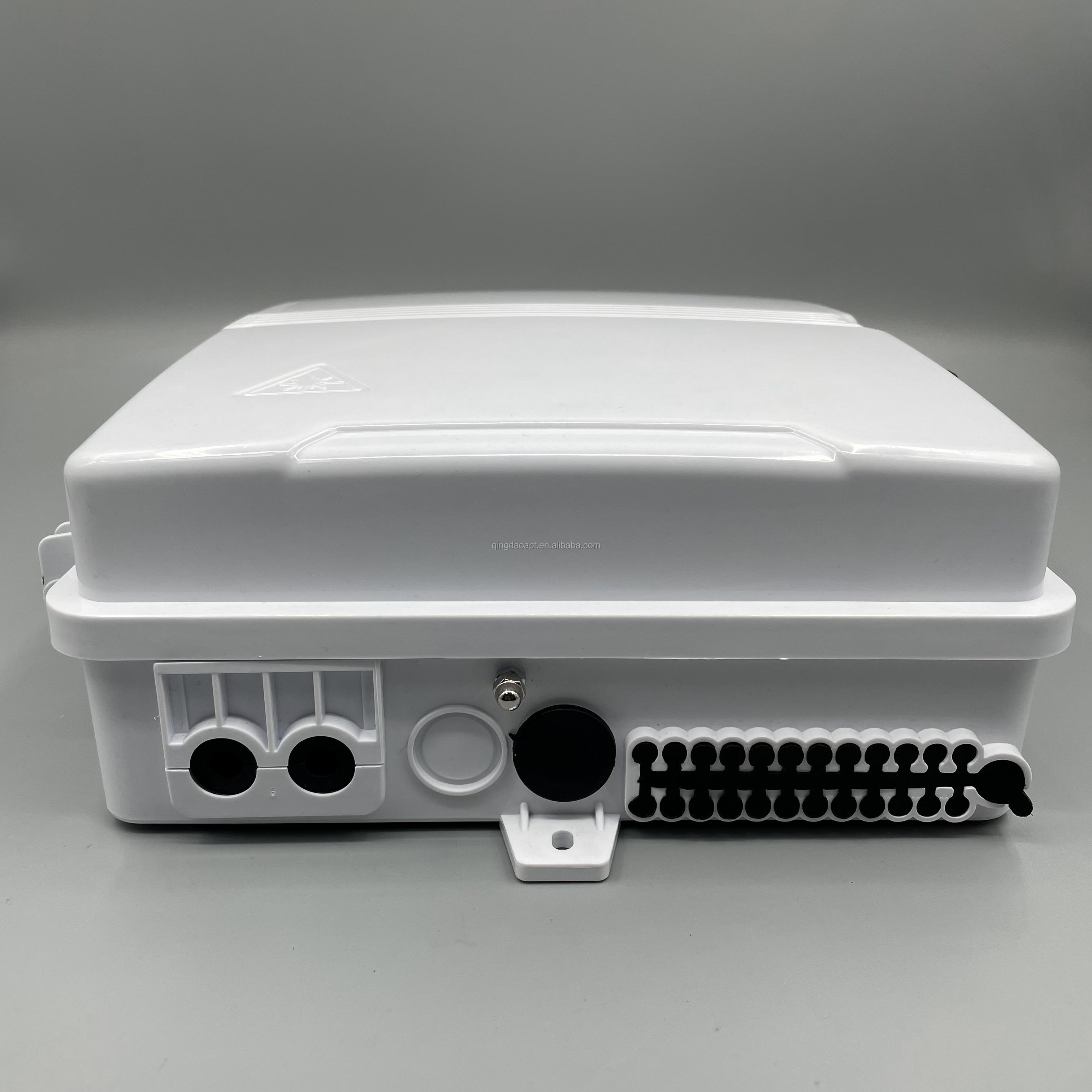

ftth fiber separator distribution box ODP NAP CTO 24 core terminal box terminal box optical fiber 24 port
- 1 piece
- Qingdao Applied Photonic Technologies Co., Ltd.
- Shandong, China
- Ms Echo Wang
PRODUCT DETAIL
Product Description
OTB ODP 24 core fiber ACESS terminating frame CAJAS NAP CON SPLITER 1*16 1x16 PLC box box terminal box
Specification

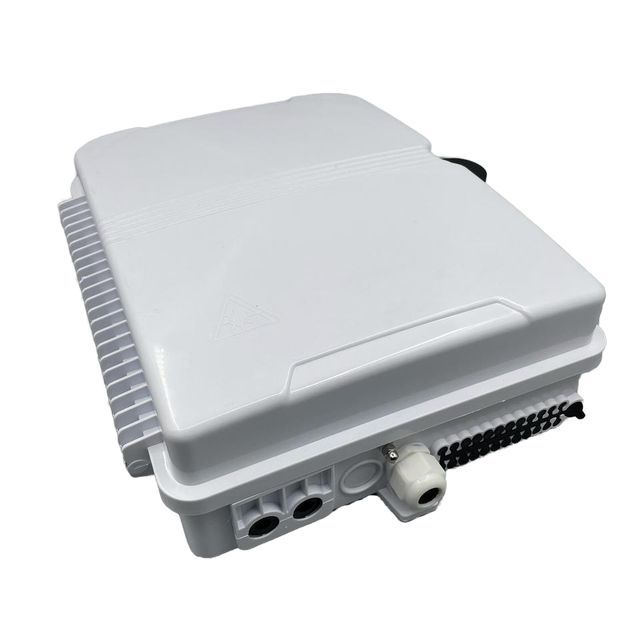

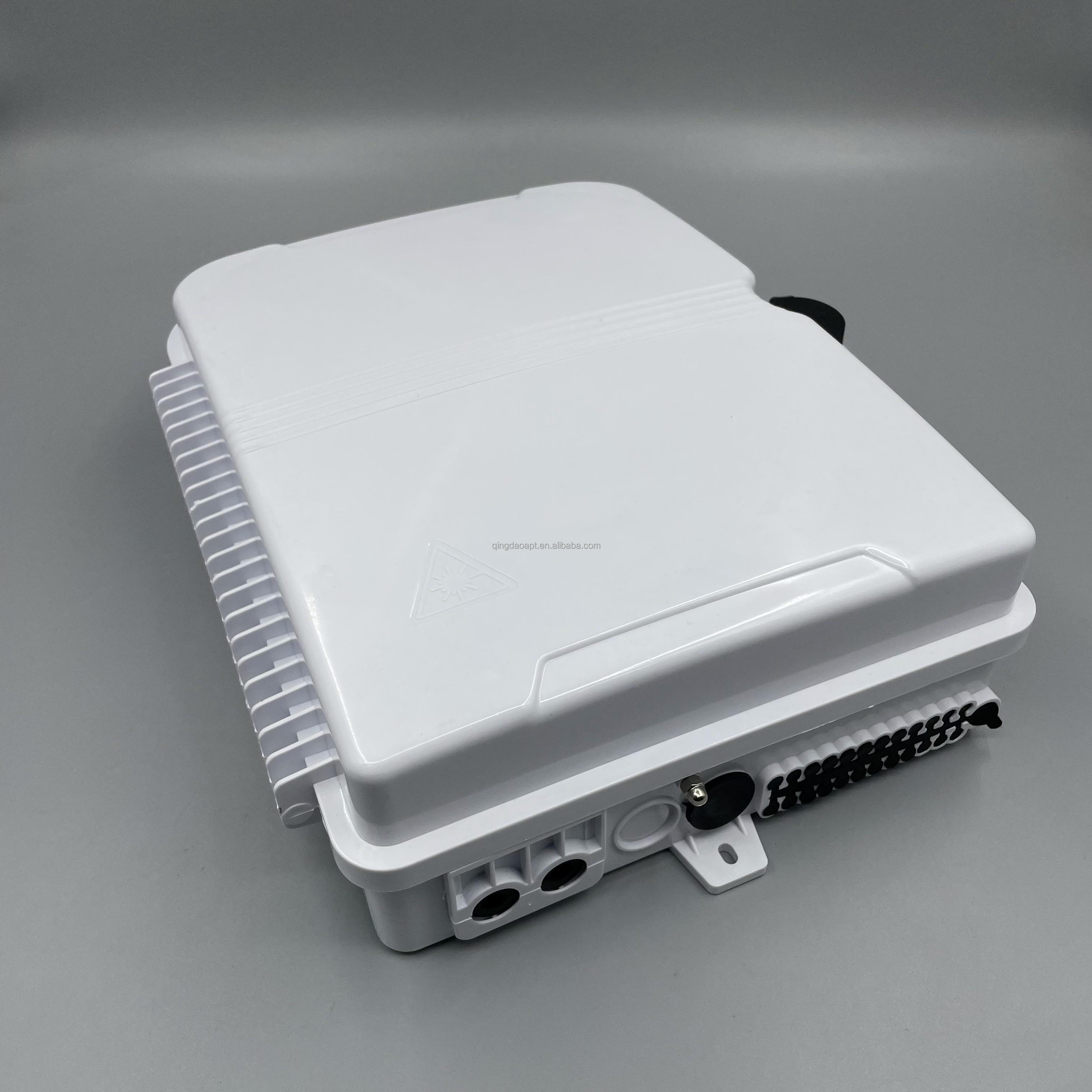

Fab-24 fiber access termination enclosure can accommodate up to 24 scribers and
24 points are used as a close point. It is used as the termination point for the clipping closure and feed cable connections
Cables in FTTX network system. It splices, splits, distributes, stores and cables to make up fibers
Protection box.
24 points are used as a close point. It is used as the termination point for the clipping closure and feed cable connections
Cables in FTTX network system. It splices, splits, distributes, stores and cables to make up fibers
Protection box.
feature
1. Waterproof design with IP-65 protection level.

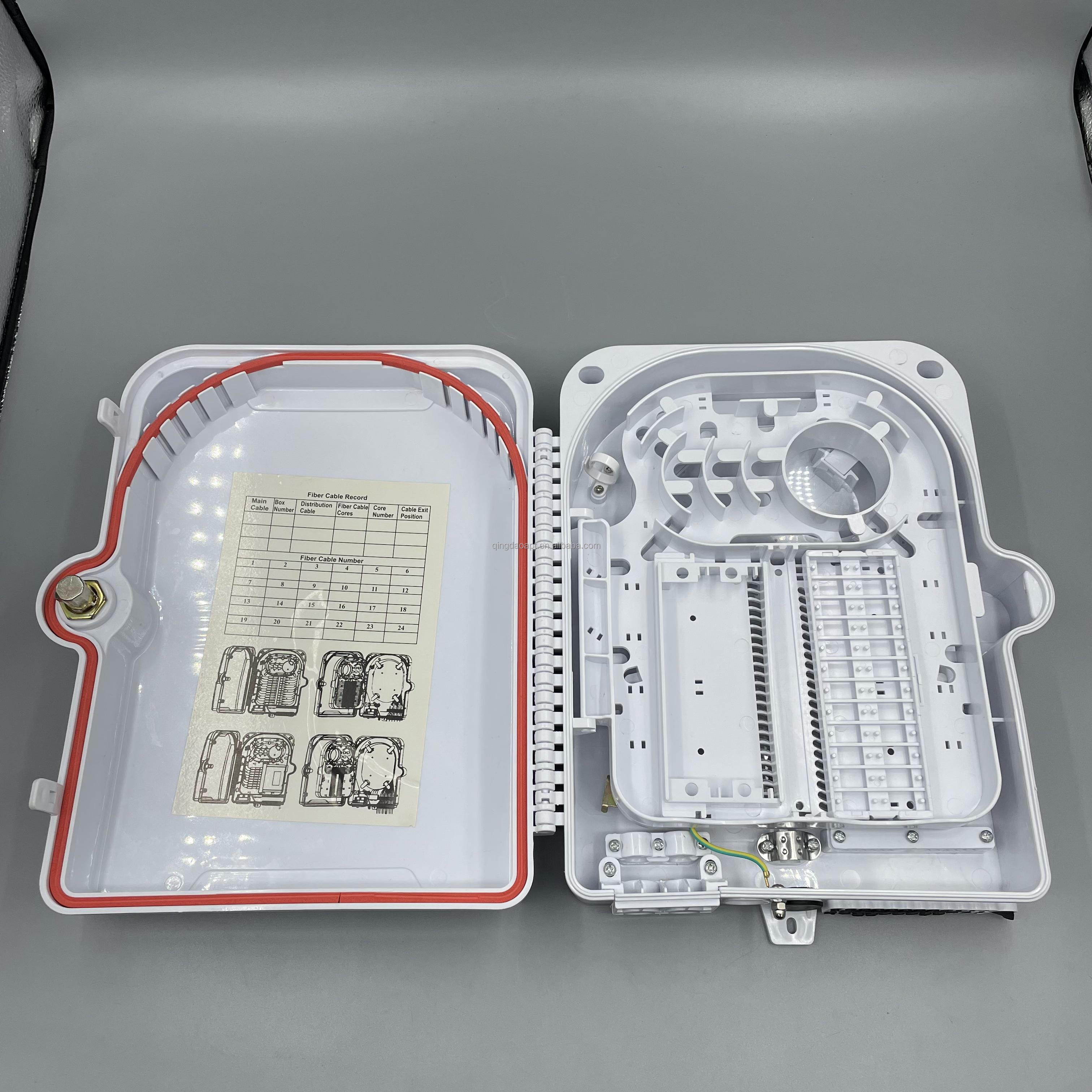

2. Integrated with flap clipping box and adapter bracket
3. All stainless steel plates and anti-stick bolts, nuts
4. The fiber bending radius control exceeds 40mm
5. Suitable for fusion splicers or mechanical splicing
6. 2pcs 1*8+1*16 separator can be installed as an option
7. Mechanical seal structure and mid-span cable entry.
8.24 port cable entry drip cable
9. Adapter for 24 drop cable patches
2. Integrated with flap clipping box and adapter bracket
3. All stainless steel plates and anti-stick bolts, nuts
4. The fiber bending radius control exceeds 40mm
5. Suitable for fusion splicers or mechanical splicing
6. 2pcs 1*8+1*16 separator can be installed as an option
7. Mechanical seal structure and mid-span cable entry.
8.24 port cable entry drip cable
9. Adapter for 24 drop cable patches
Configuration
Material | size | Maximum capacity | PLC's nos | weight |
ABS + PC | A*b*c (mm) 330*270*100 | Spliced 24 fibers (2traysx12f) | 1*8 PLC LGX/+1*16PLC separator | 1.35 kg |

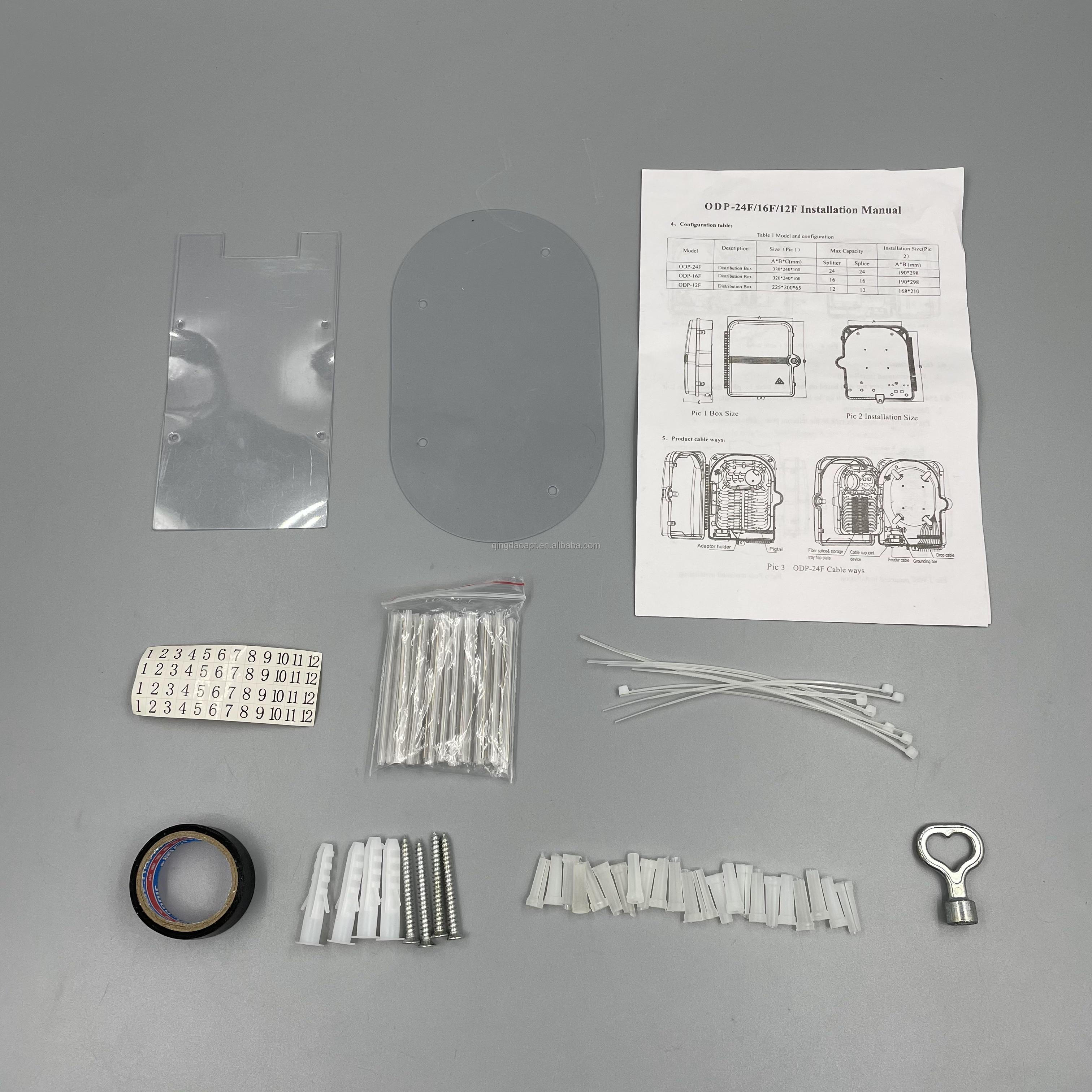

Standard accessories

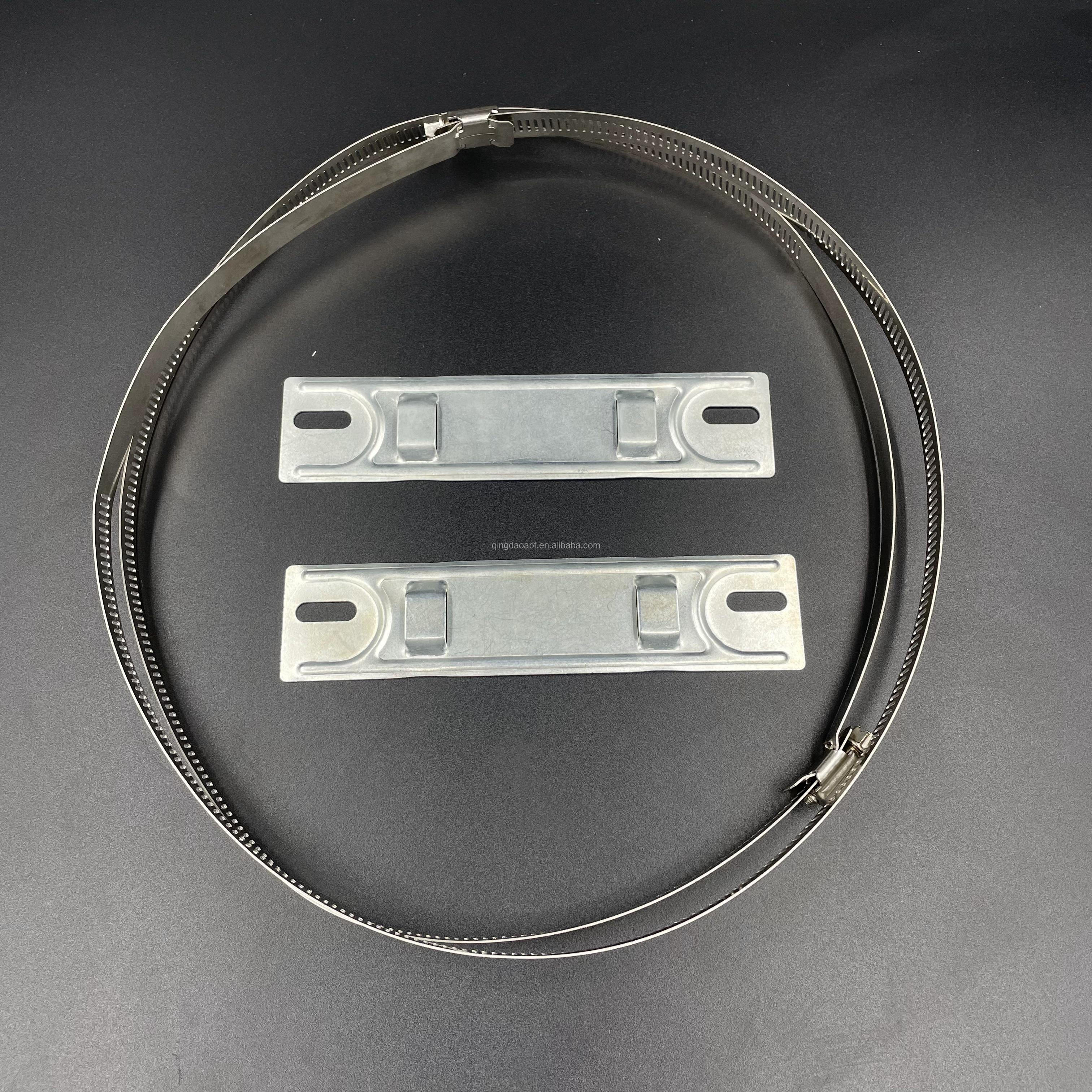

Cut cassette cassette and cable management tools, mounting nuts and bolts, protective casing hose clamps, cable tubes, wrench, covers, covers, brackets, brackets,
Rubber seal for cable entry
Rubber seal for cable entry

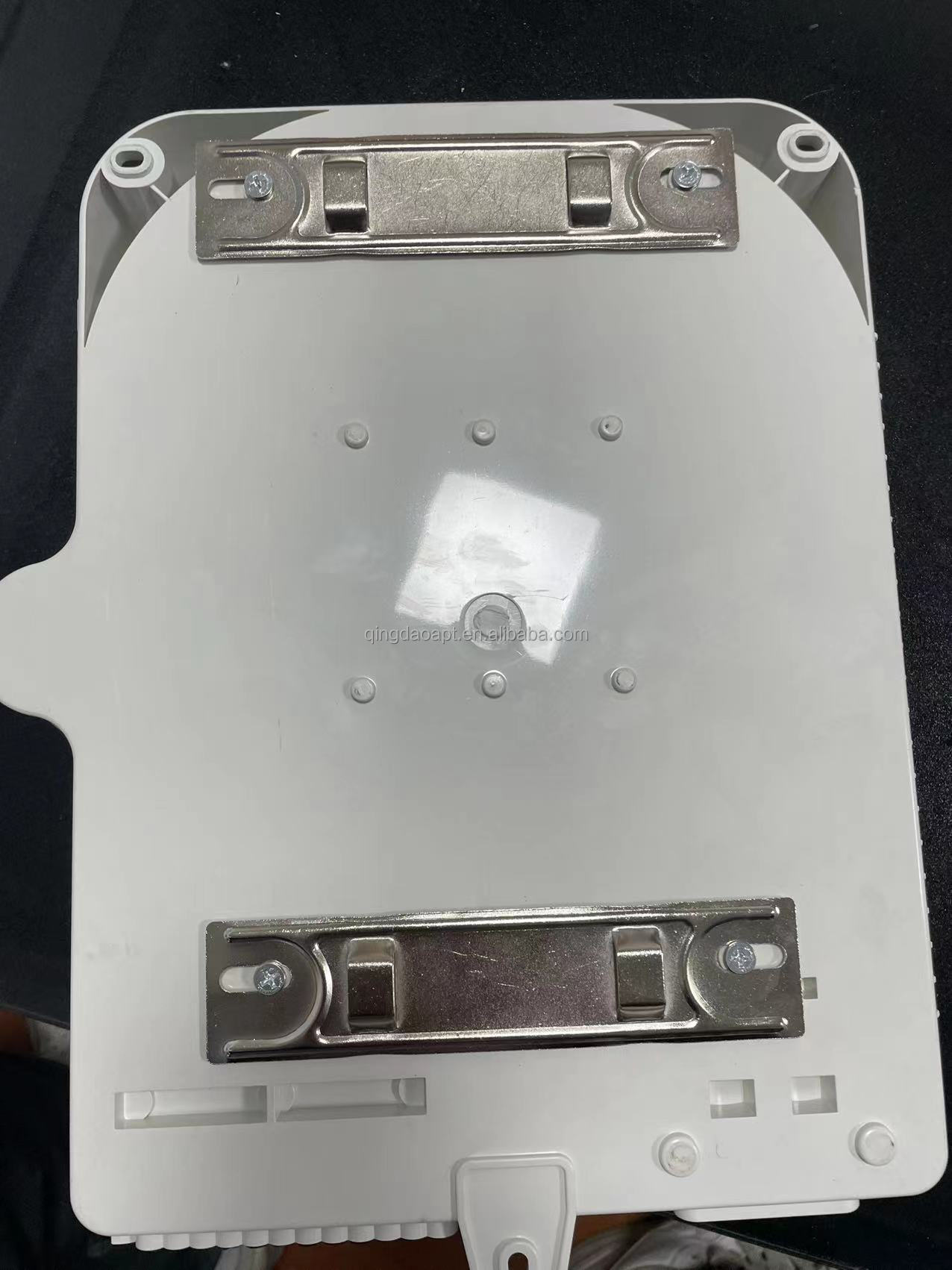

Wall-mounted iron plate
Apply

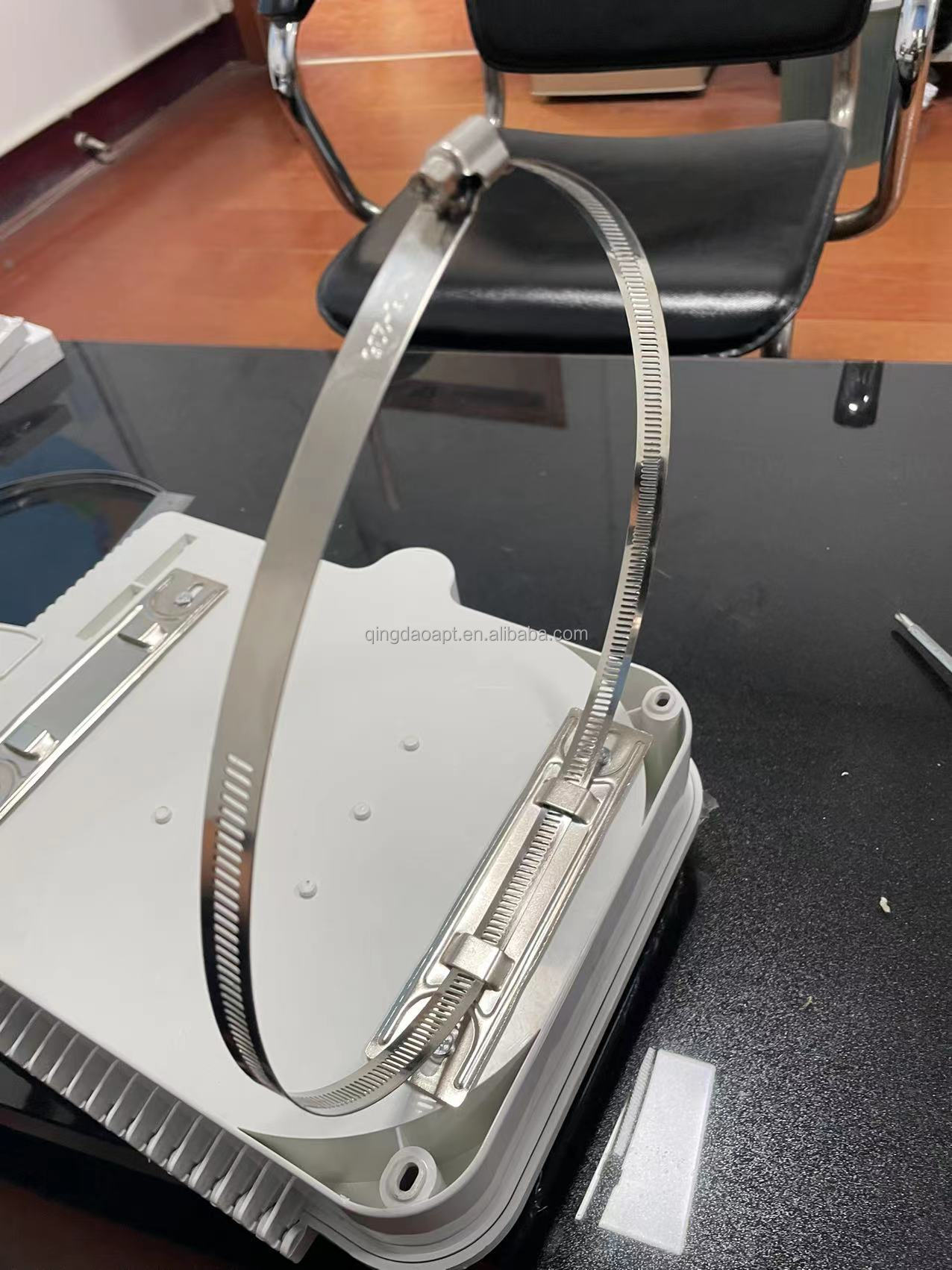

1. Wall installation and pole installation
2. ftth pre-install and submit installation
3.2*3mm indoor drop cable and outdoor figure 8ftth self-support cable
2. ftth pre-install and submit installation
3.2*3mm indoor drop cable and outdoor figure 8ftth self-support cable

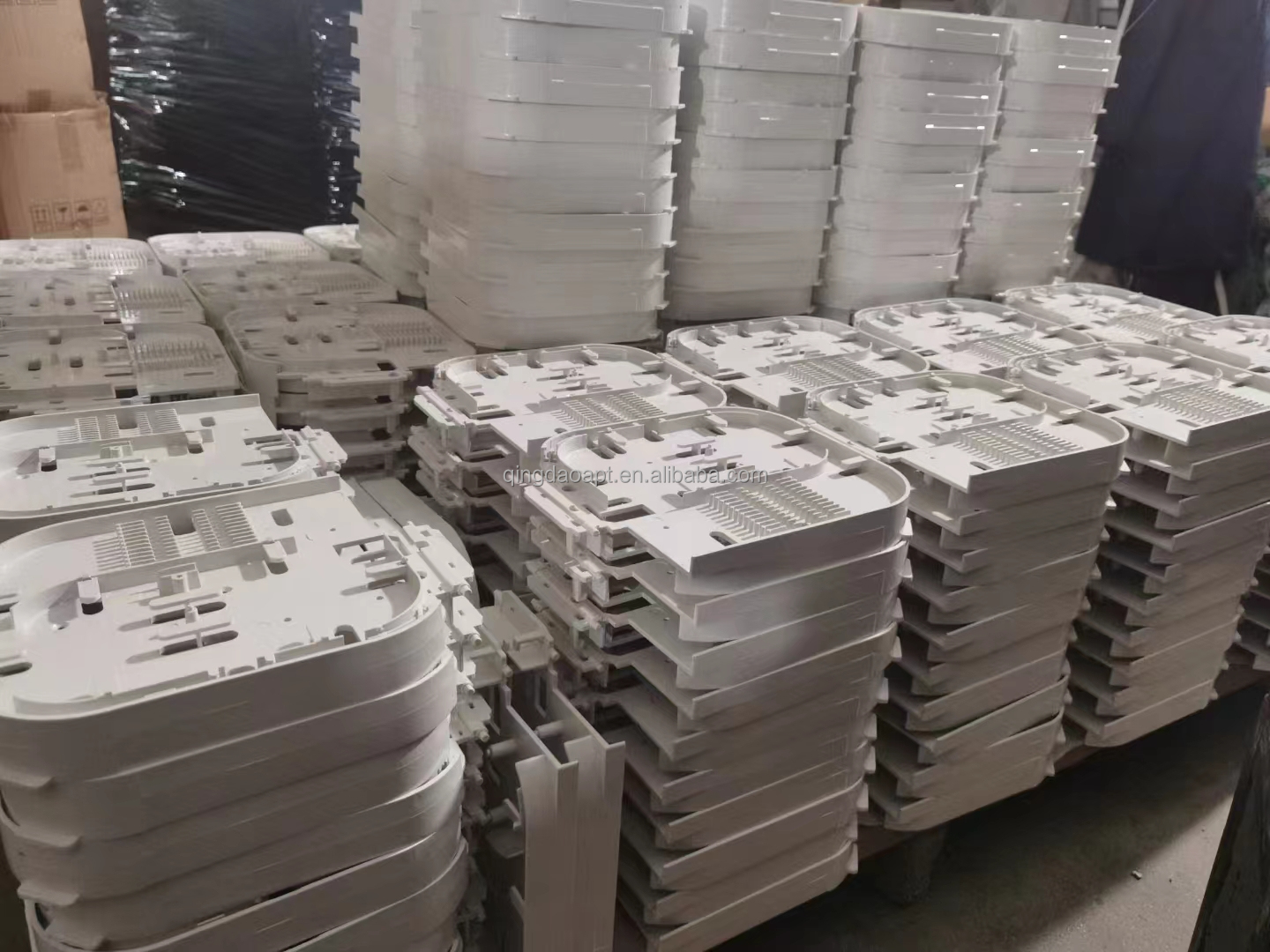

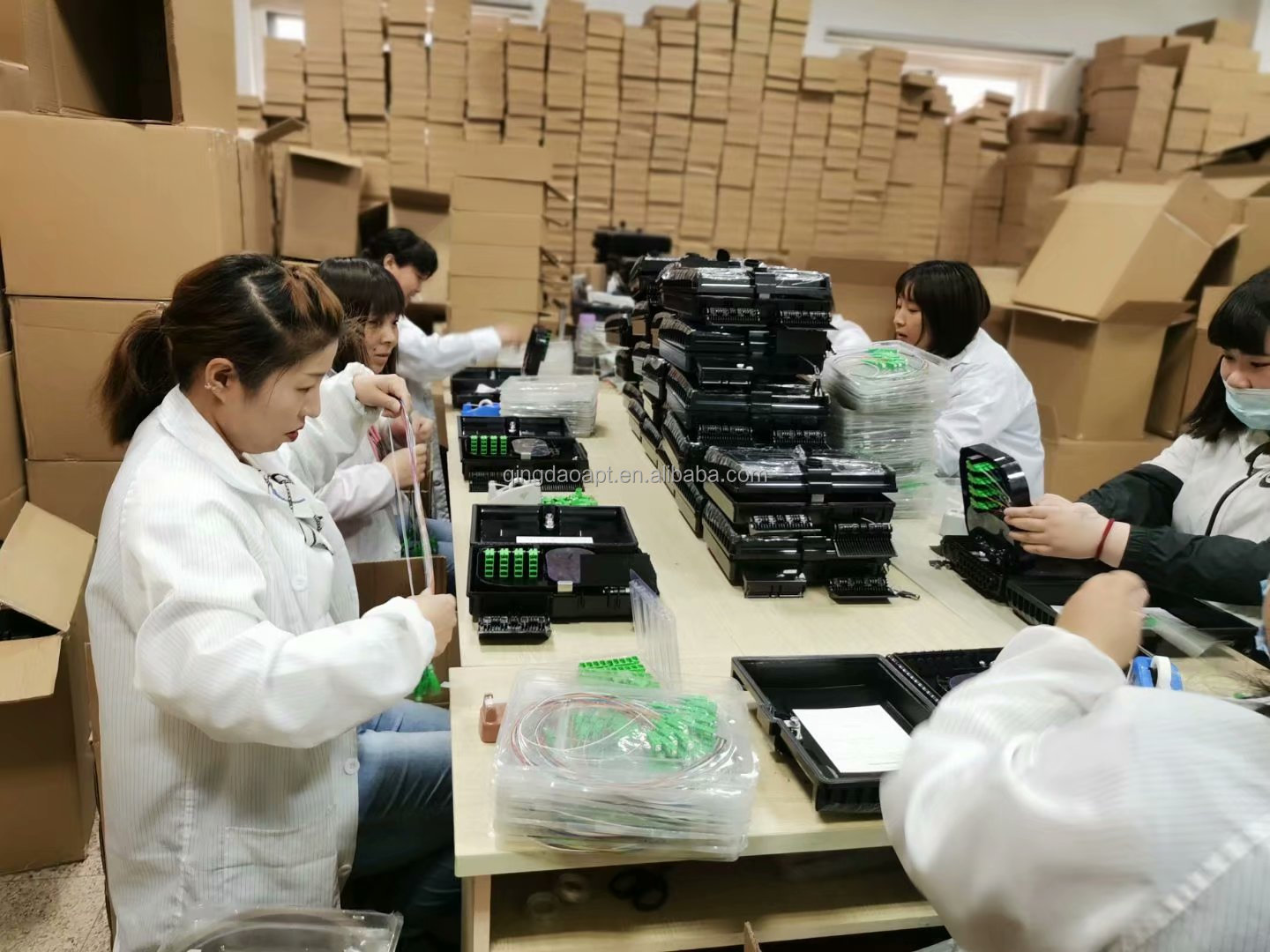

workshop
