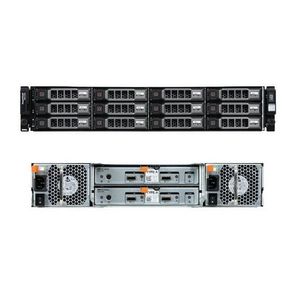

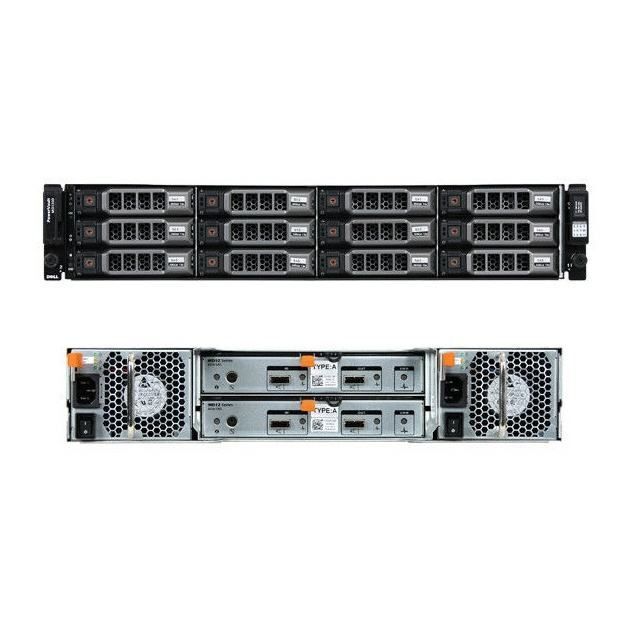

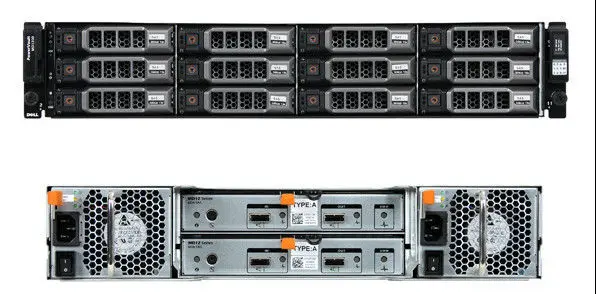

Original new Dell PowerVault MD1200 12-bay LFF DAS storage
- $800.00 /piece
- 1 piece
- Beijing Huahang Innovation Technology Co., Ltd.
- Beijing, China
- Ms Daisy Jin
| Brand: | Dell Original; | Brand Name: | dell; |
| Interface Type: | Port RJ-45; | Place of Origin: | Beijing, China; |
| Certification: | FCC,ce; | Unified Mode: | H800 (4 enclosures per port, single path); |
| Expansion Capabilities: | PERC H800 HostRAID; | Drive Performance and Capacities: | 2.5" SAS HDDs/SSDs; |
| Payment Terms: | Western Union,T/T,MoneyGram; | Package Preview: | ; |
| Product name: | Original new Dell PowerVault MD1200 12-bay LFF DAS storage; | Model: | Dell MD1200; |
| RAID Levels: | PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60; | Maximum Capacity: | 24TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS disk drives; |
| weight: | 28.39 Kg; | Supply Ability: | 50 Pieces per Week; |
| Wattage: | 600W; | Port: | beijing shanhghai; |
| Model Number: | Dell PowerVault MD1200; | Products Status: | Stock; |
Original new Dell PowerVault MD1200 12-bay LFF DAS storage
The PowerVault MD1200 offers seamless expansion for Dell PowerEdge servers with the PERC H800 HostRAID adapter and gives customers the most drive flexibility of any of Dell’s direct attached storage arrays. Easily expand your server capacity: This expansion array can support twelve 2.5-inch or 3.5-inch SAS HDDs and SAS SSDs in a 2U array and expands up to 8 arrays behind a single PERC H800 HostRAID adapter. Versatility and flexibility to meet most business needs: With the ability to mix 2.5-inch and 3.5-inch enclosures behind a single PERC H800 HostRAID adapter and support for 2.5-inch drives PowerVault MD1200 delivers capacity and performance to support most customer deployments.
|
model |
Dell MD1200 |
|
PERC H800 |
PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 512MB |
|
Controller |
Two |
|
Drives |
Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K |
|
Drive Performance and Capacities |
2.5” SAS HDDs in 3.5” carrier, 10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB |
|
Maximum Capacity |
24TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS disk drives |
|
Expansion Capabilities |
PERC H800 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port) |
|
Unified Mode |
Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC |
|
Split-Mode/Dual-Host Access |
Split mode with dual Enclosure Management Modules providing direct connectivity |
|
Enclosure Management |
2 EMM provide redundant enclosure management capability |
|
RAID Levels |
PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60 |
|
Host Connectivity |
1 SAS (SFF 8088) IN connector for connection to the host |
|
Expansion Connectivity |
1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure |
|
Service Management |
1 6-pin UART mini-DIN connector (for factory use only) |
|
Wattage |
600 W |
|
Height x Width x Depth |
8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 59.4cm (23.17 inches) |
|
Weight |
28.39 kg |
