hot swap NAS storage server server chassis rack mount 8 bays sas storage

PRODUCT DETAIL
power supply:1U/Flex 1U power supply (max length 19cm)Front Panel:Control buttons, indicator lights, USB port, security lock
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramInterface Type:USB
Certification:FCC.ROHS.CEproduct status:in stock
USB:USB 2.0X1, USB 3.0X1Hard drive bays:3.5" or 2.5" External (Hot Swap) 8 pieces
brand:Nuoqi Power/OEMplace of origin; place of origin:Guangdong, China
port:ChinaPackaging Details:Carton with PE/Styrofoam tray (optional)
fan:8025 PWM 4pin function*2pcsSupply capacity:1000 pieces per day
model:NP-ITX NAS8Motherboard Support:Mini ITX (17cm*17cm)
CPU:Height CPU cooler (max) 43mmCustom Items:LOGO, etc.
aspect:259*203*337mm

Product Description

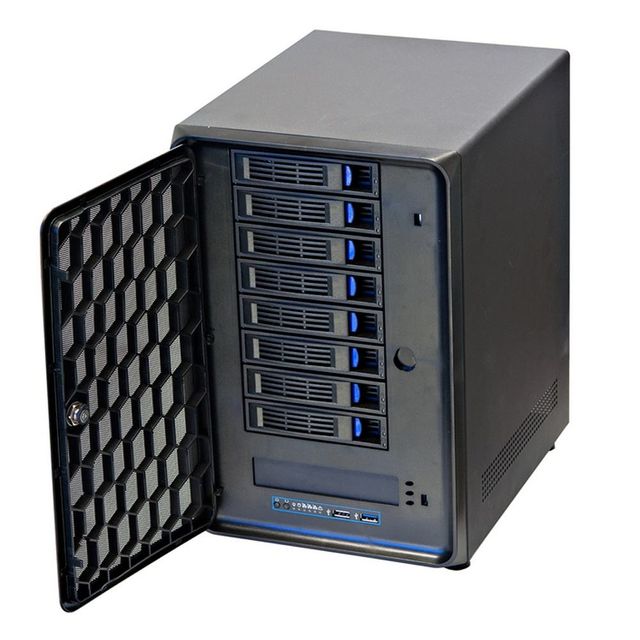

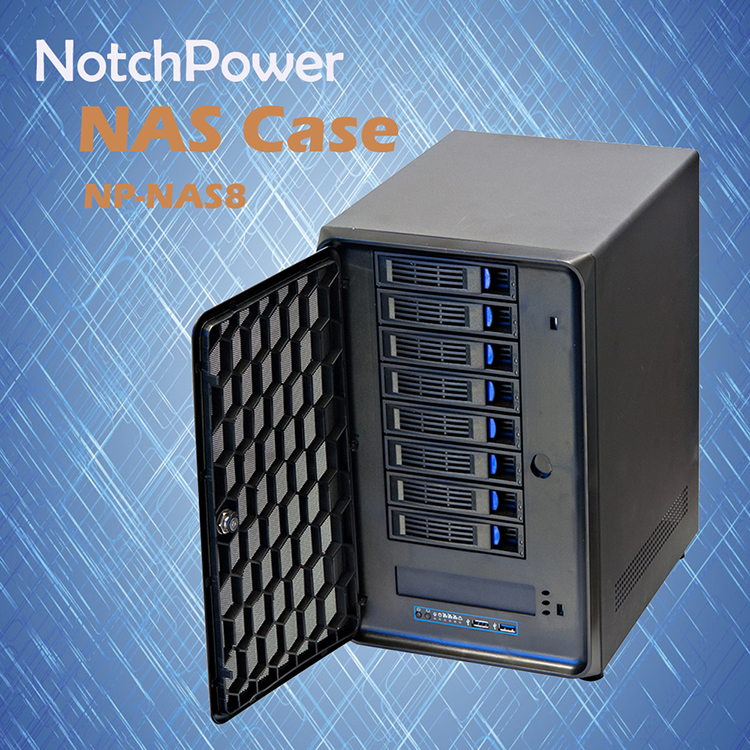

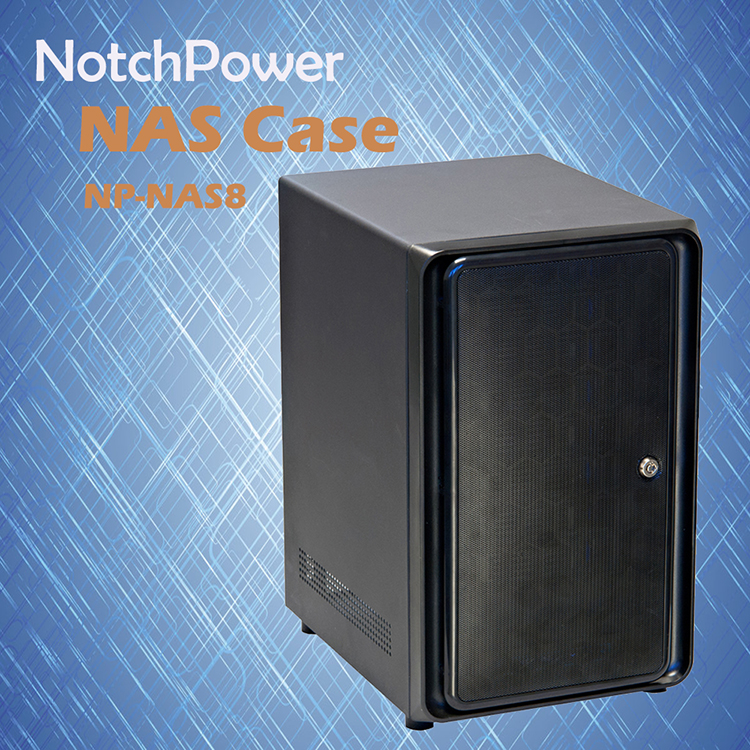

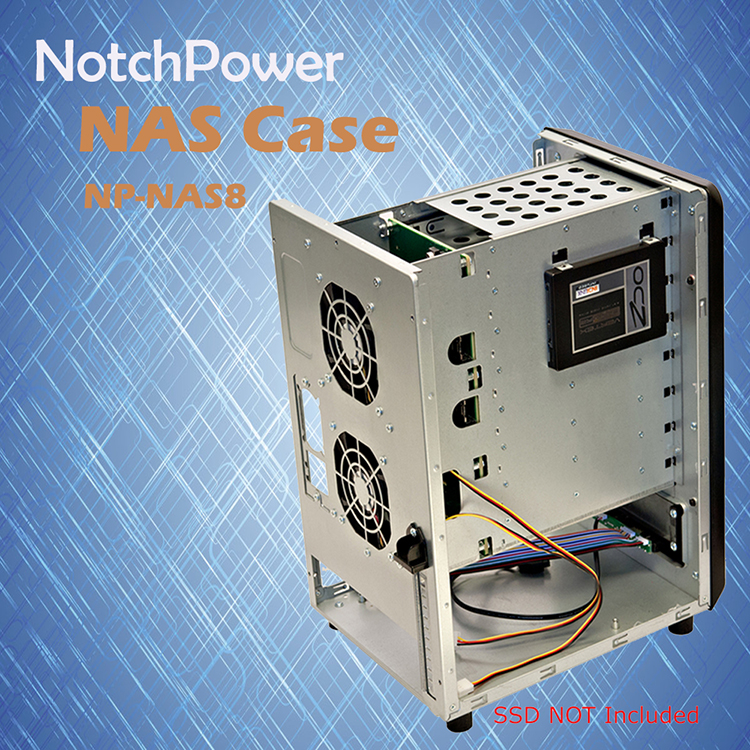

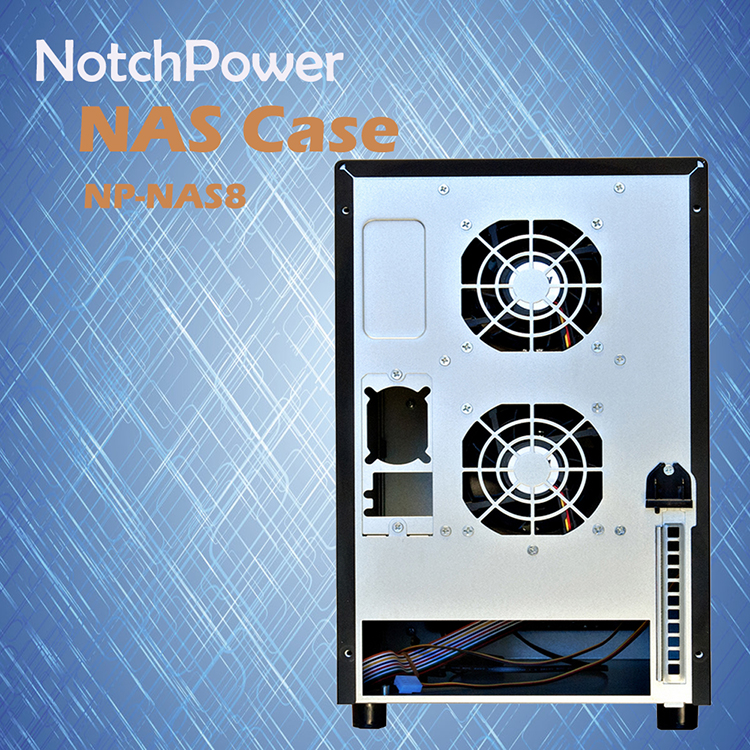

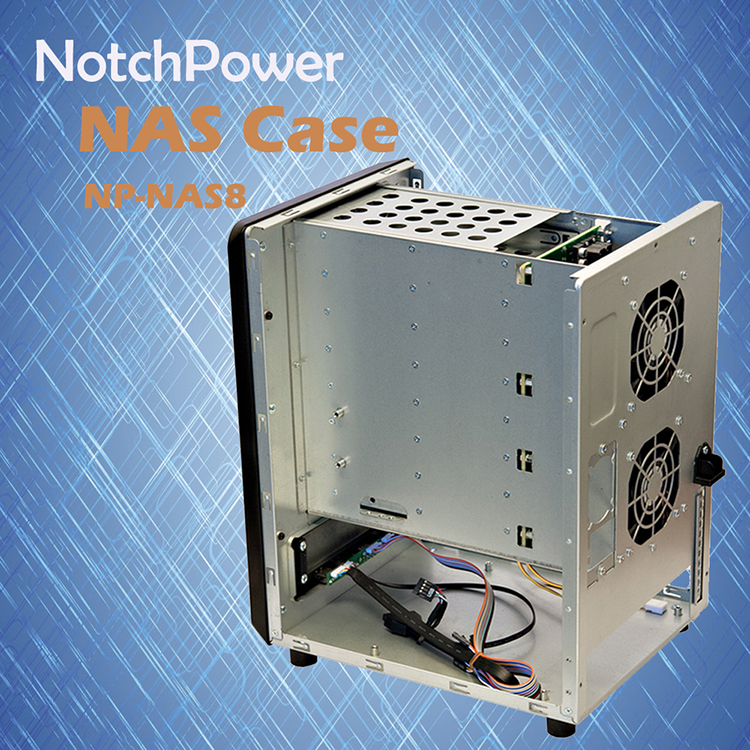

Model NP-NAS8
Constituents ITX-NAS8 Black Mini-ITX Table Computer Storage Server Chassis Chassis
Material Metal Material State Grid Corporation
Metal thickness 1.0mm
Safety Mesh front metal door with lock
M/B support Mini ITX (17cmX17cm)
CPU support Height CPU cooler (max) 43mm
Graphics card length (maximum) 190mm
size D*W*H(mm) 259*203*337
D*W*H(inch) 10.2*8*13.25
drive bay 3.5" or 2.5" external (hot swap) 8
Internal 2.5" bay 1
Power support 1U/Flex 1U power supply (max length 19cm)
front panel control button Power On/Off x 1, System Reset x 1
index Power On/Off x 1, Hard Disk x 1, Network x 3, Alarm x 1
port USB 2.0 x 1 , USB 3.0 x 1
expansion lift tank 1 (full size)
Hot-swappable backplane S-ATA/SAS backplane (up to 12Gbit/s)
System cooling (optional) rear 80x80x25 mm with PWM 4pin function 2pcs
net weight 5.4kg
gross weight 6.8kg
Package dimensions D*W*H(mm) 410*290*345
D*W*H(inc) 16*11.5*13.5
Packaging Materials Styrofoam with carton
ambient temperature 0/55 °C, 32/131 °F (operating) -20/60 °C, -4/140 °F (non-operating)
Relative humidity 5% to 95%, non-condensing
Vibration (5-500 Hz) 1 Grms (operating), 2 G (non-operating)
Shock 10 G (11ms duration, half sine wave) (operating), 30 G (non-operating)



detailed image
