PLC 9 Pincers shoe stick figure skating boots toe cap hot melt toe fixing machine

PRODUCT DETAIL
strength:2HPLocal service location:not any
pliers:9 clawsbrand:Tenorville
Production capacity:1800-2000 pairs/8hrPackaging Details:The shoe last machine will be packed by export wooden packaging
place of origin; place of origin:Guangdong, Chinafeature:Hydraulic toehead machine
application:Toe toe machineCore components:PLC, motor, pump
Applicable industries:factory, otherAuto grade:automatic
Voltage:220 or 380VMarketing Type:New Products 2021
type:automatic hydraulicSupply capacity:500 sets per month
After-sales service provided:There are overseas service centers, there are engineers serving machinery overseasweight:1165KG
Certification:CE/ISO9000payment terms:L/C,Western Union,D/P,D/A,T/T
Core Components Warranty:1 yearVideo external inspection:if
Key words:sneaker machinePackaging Preview:
Dimensions (L*W*H):980(L)*1750(W)*1950(H)MMport:Guangzhou/Shenzhen Port
Mechanical test report:ifHealth status:new
Warranty:1 yearAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
Showroom location:not any
product description

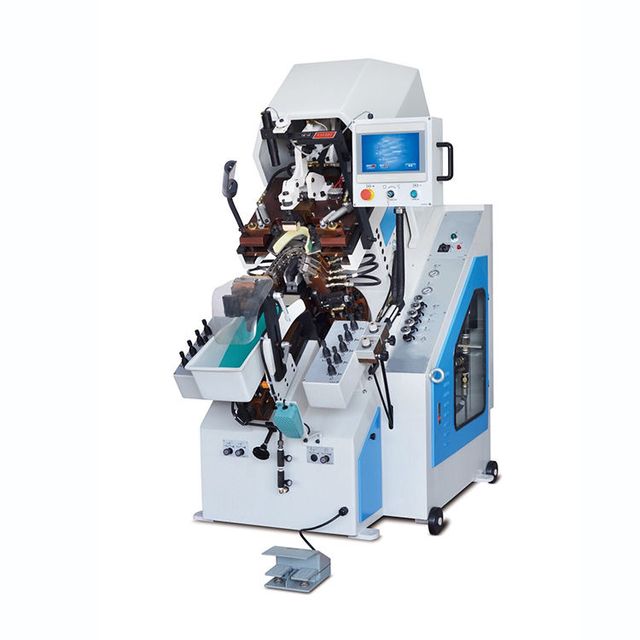

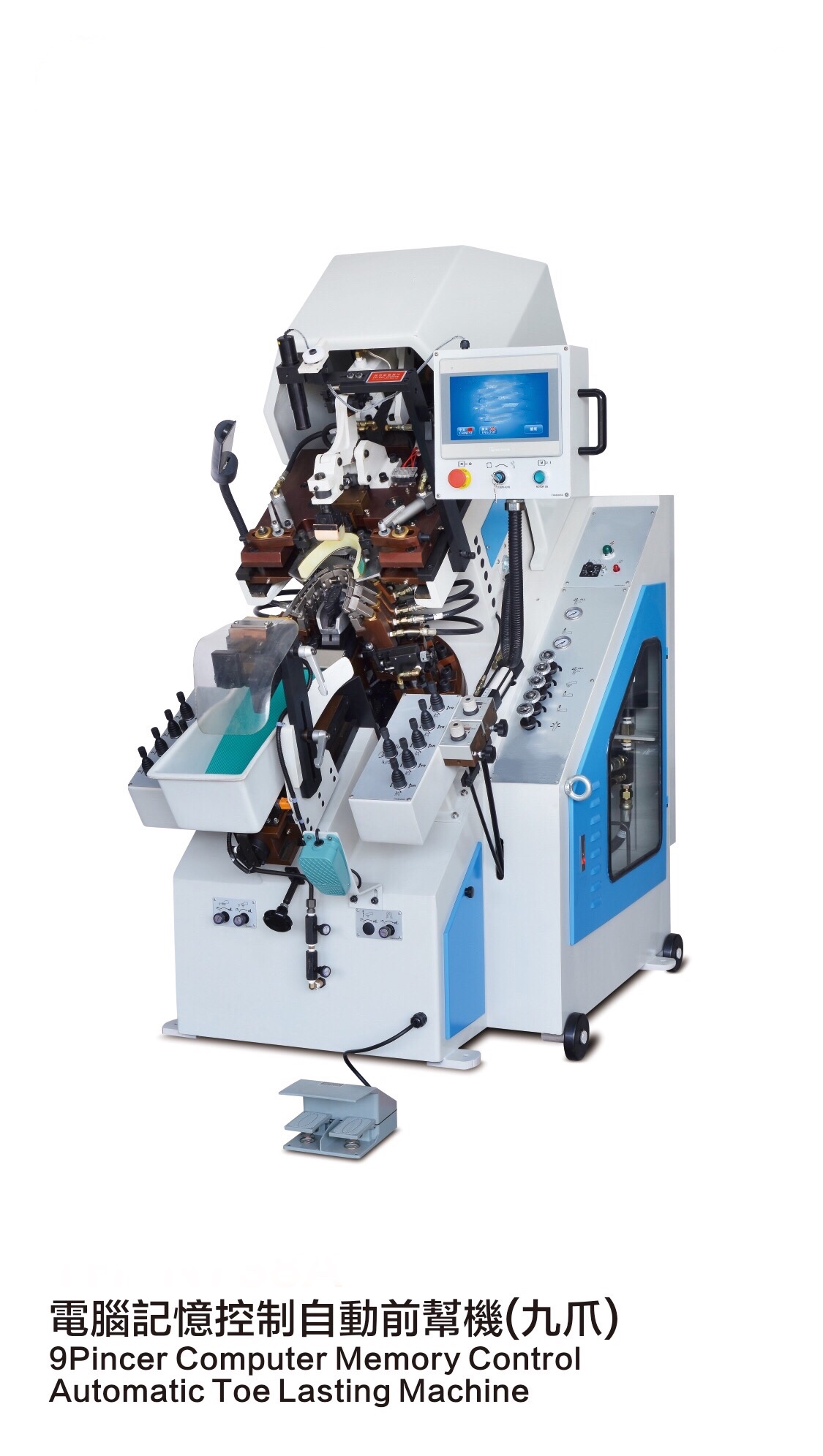

9 Clamp Computer Hydraulic Toe Head Machine
Purpose:This machine is suitable for automatic toe cap hot melt glue for all kinds of toe caps. feature:
feature:
1. PLC computer precision control, automatic cementing system.

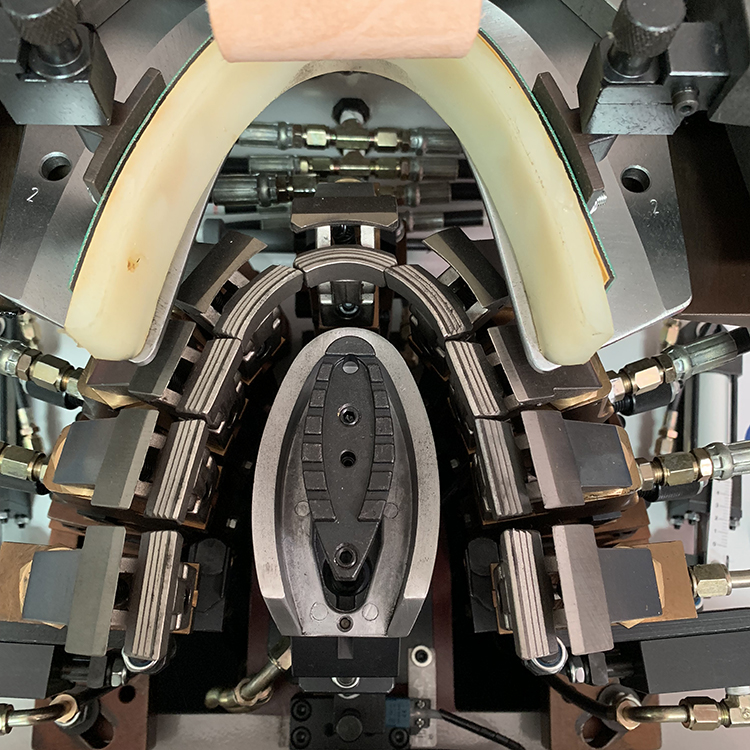

2. Quick-change pliers, quick-change wipers, and electronic control to quickly adjust the head frame.
3. The updated pliers assembly can move laterally.
4. The assembly position of the clamp can be adjusted back and forth.
5. The second clip can be adjusted according to the shoe type.
6. Quickly adjust speed and pressure.
7. The last supporter's second phase speed up.
8. Gravimeter positioning
Product Specifications
Do not
thing
data
1
Machine size
1680×980×1980(mm)
2
Package dimensions
1780* 1080*2100mm
3
northwest
1150 kg
4
GW
1300 kg
5
Voltage
220V/380V, 50/60Hz
6
strength
2 hp
7
output
1200-1800 pairs/8H
8
Hydraulic Oil Standard
Wear-resistant 68#, it is recommended to use 46# in cold areas. 110 liters.
