PVC Air Shoe Blowing Machine India
- $19000.00 /set
- 1 set
- Jieyang Jinhui Machinery Manufacturing Co., Ltd.
- Guangdong, China
- Mr Town Wang
| strength: | 18.5 | weight: | 5500 kg |
| Motor Power: | 18.5 kW | Certification: | ISO9001:2008 |
| Screw diameter: | 65/70mm | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | export package | Screw speed: | 0-200 rpm |
| Heater power: | 10 kW | Supply capacity: | 30 sets per month |
| payment terms: | wire transfer | port: | Shantou, Shenzhen |
| Dimensions (L*W*H): | 4000*3600*2300 | Production capacity: | 15 sets/month |
| Warranty: | 1 year | Number of temperature control sections: | 4 o'clock |
| Applicable industries: | manufacturing plant | Raw materials: | PCU,PVC,TPR |
| State of health: | new | Voltage: | 220/380V |
| Machine size: | About 4000*3600*2300 | After-sales service provided: | Free spare parts, video technical support |
| brand: | Jinhui | workstation: | 20, 24, 30 |
| Clamping force: | 600 knots |

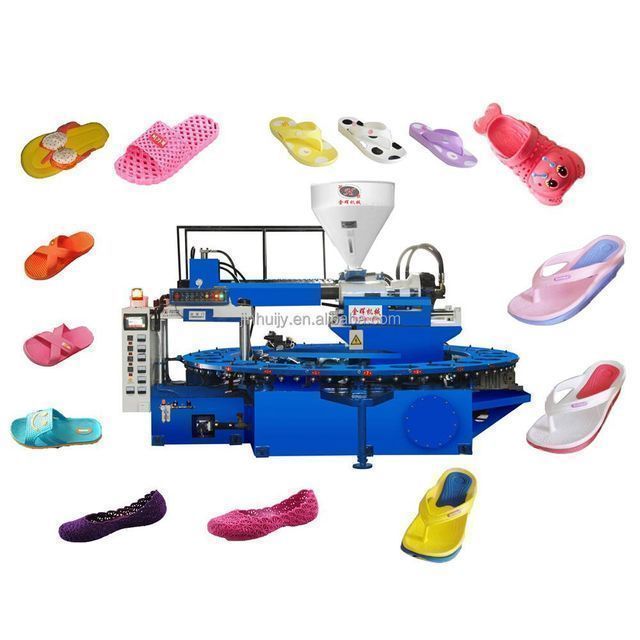

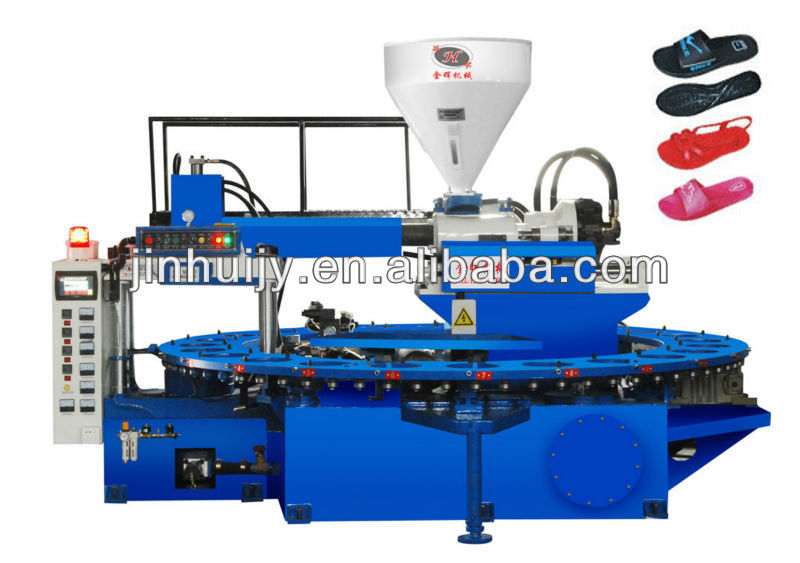

This machine is used to produce PCU slippers/PVC air-blown shoes.
1. Taiwan PLC and touch screen, easy to operate.
2. Large injection volume and strong mold clamping force ensure excellent product quality.
3. The blowing device makes the product lighter, softer, brighter on the surface and brighter in color. Compared with traditional production methods, this method can save about 20%-35% of materials. Product is almost as good as foam rubber.
Technical Parameters:
thing | unit | Measurement |
raw material | type | PVC,TPR |
workstation | pieces | 20,24,30 |
Bolt diameter | mm | φ65, φ70 |
Bolt rotation speed | Rotating speed | 0-200 |
Maximum injection volume | cubic centimeter | 650,750 |
Rated injection pressure | MPa | 6 |
Clamping force | kilogram | 600 |
Motor Power | kilowatt | 18.5 |
Heater power | kilowatt | 10 |
temperature control | View | 4 |
Machine size | mm | 4000×3600×2300 |
machine weight | Kilogram | about 5500 |
