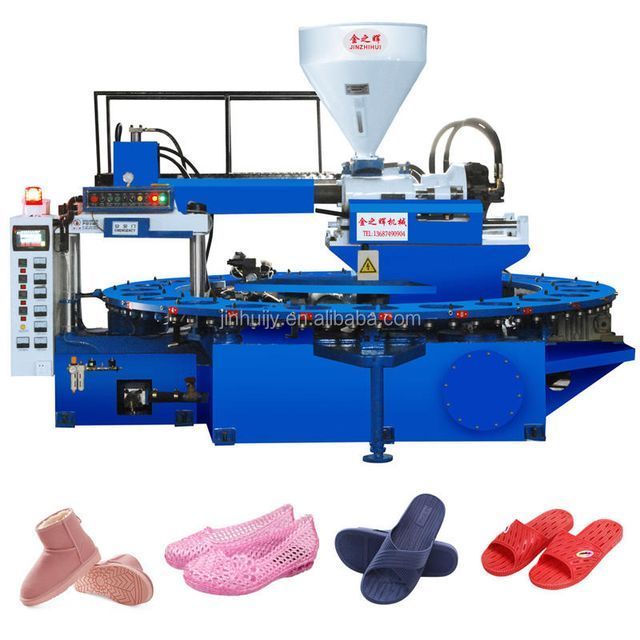

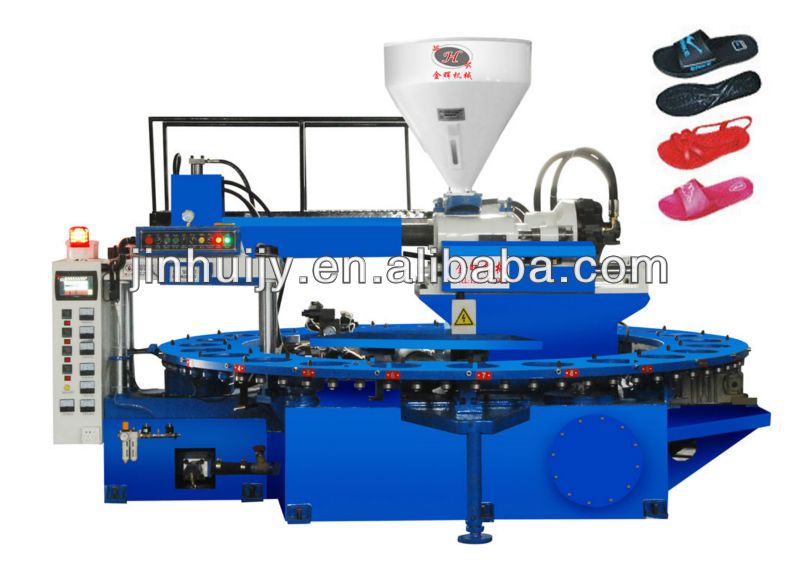

PVC Air Blowing Shoe Injection Mold Machine
- $16000.00 /set
- 1 set
- Jieyang Jinhui Machinery Manufacturing Co., Ltd.
- Guangdong, China
- Mr Town Wang
| Supply capacity: | 30 sets per month | Shipping Details: | 40 days after receiving the deposit |
| Packaging Details: | The machine will be disassembled, the main machine will be tightly fixed with steel wire, and the spare parts will be packed in cartons suitable for sea transportation. | Health status: | new |
| payment terms: | wire transfer | raw material: | pvc |
| port: | Shantou, Shenzhen |
Fully automatic thermoforming machine
feature
1. This machine is suitable for producing casual shoe soles, men's and women's slippers and sandals, and air-blown shoes made of PVC, TPR, TPU, PP and other materials.
2. PLC control, humanized interface, simple operation screen.
3. The operation is simple and safe, without professional operators.
4. Large injection volume and strong clamping force ensure product quality.
5. The machine is equipped with a feed nozzle switch, which saves the working cycle time and has high output.
6. The machine adopts dual proportional control, and the speed, material volume and pressure can be adjusted independently to ensure stable product quality.
7. Production can be arranged according to needs.
Technical Parameters
thing | unit | Measurement |
raw material | type | PVC,TPR |
workstation | pieces | 20,24,30 |
Bolt diameter | mm | φ65, φ70 |
Bolt rotation speed | Rotating speed | 0-200 |
Maximum injection volume | cubic centimeter | 650,750 |
Rated injection pressure | MPa | 6 |
Clamping force | kilogram | 600 |
Motor Power | kilowatt | 18.5 |
Heater power | kilowatt | 10 |
temperature control | View | 4 |
Machine size | mm | 4000×3600×2300 |
machine weight | Kilogram | about 5500 |
certified

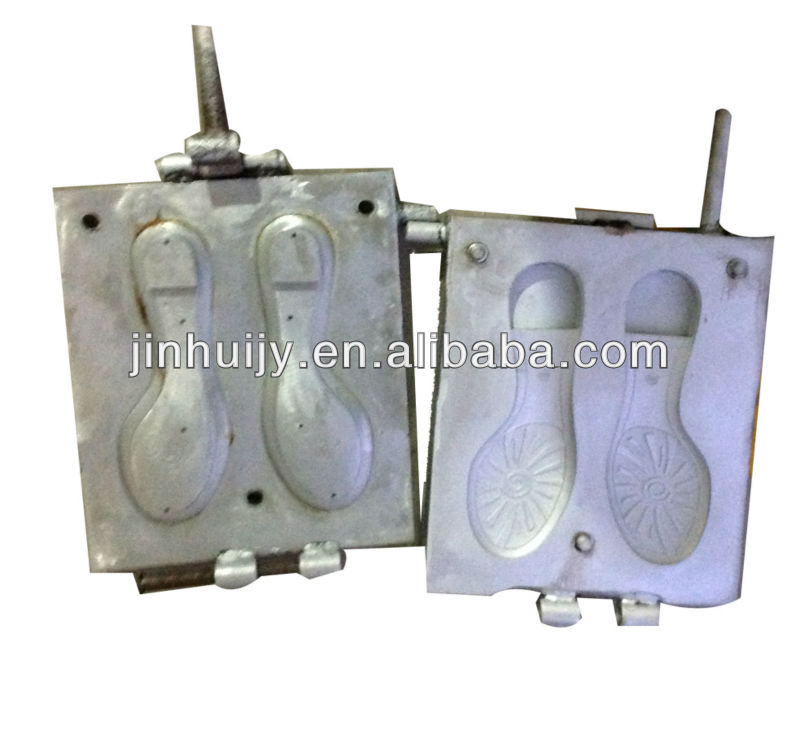

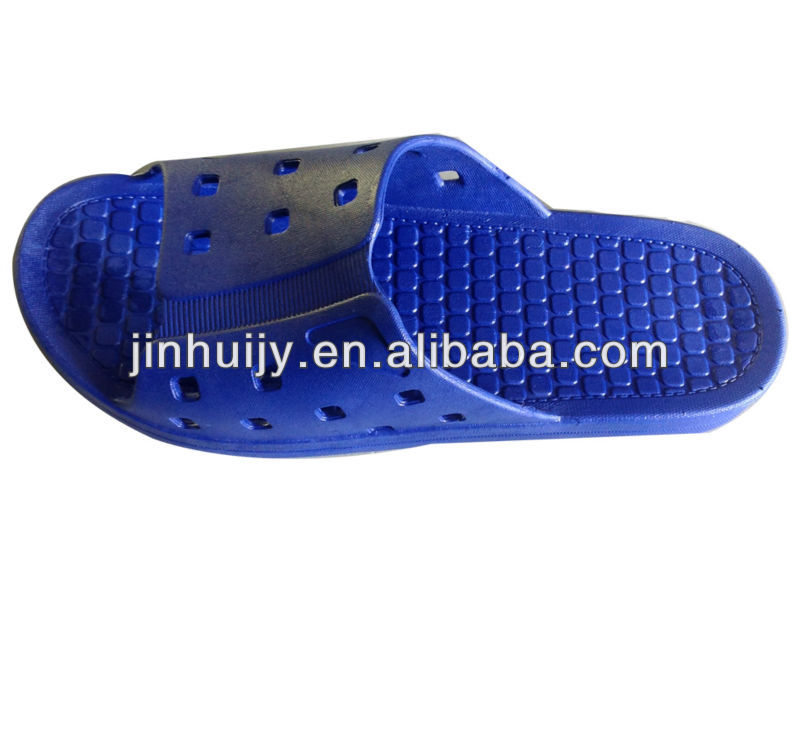

Molds and finished shoe samples
