Machine for the production of plastic bottle caps
- $9800.00 /set
- 1 set
- Zhangjiagang Shen Zhou Machinery Co., Ltd.
- Jiangsu, China
- Mr Chen Changhong
| Core component warranty: | 1 year | Heating zone: | 4 |
| Supply capacity: | 45 plastic bottle cap making machines per month | Warranty: | 1 year |
| strength: | 30KW | Function: | for bottles and caps |
| Origin: | Jiangsu, China | After-sales service provided: | Engineers available to service machinery overseas |
| Clamping force: | 950KN | Local service location: | Bangladesh, Ukraine |
| Health status: | new | Plastic processing: | pp/pvc/pe/ps |
| Mechanical test report: | if | automatic: | Yes |
| Blow molding type: | injection blow molding | weight: | 5 tons |
| Packaging Details: | Plastic Bottle Cap Making Machine: Wooden Box | payment terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Voltage: | 380V/50HZ | Dimensions (L*W*H): | 4.25*1.2*1.8 |
| Video shipment inspection: | if | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Marketing Type: | New Products 2020 | Name: | CE TUV |
| heating power: | 7.3KW | product: | injection machine |
| Certificate: | CE&TUV&ISO&SGS | Showroom location: | Bangladesh, Ukraine |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | port: | Shanghai |
| Certification: | CE&TUV&ISO&SGS | application: | Cups, bottles, boxes and various plastic products |
| Dimensions (mm): | 4.25*1.2*1.8 | Applicable industries: | Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, food and beverage stores |
| brand: | Shenzhou | Main selling points: | multifunctional |

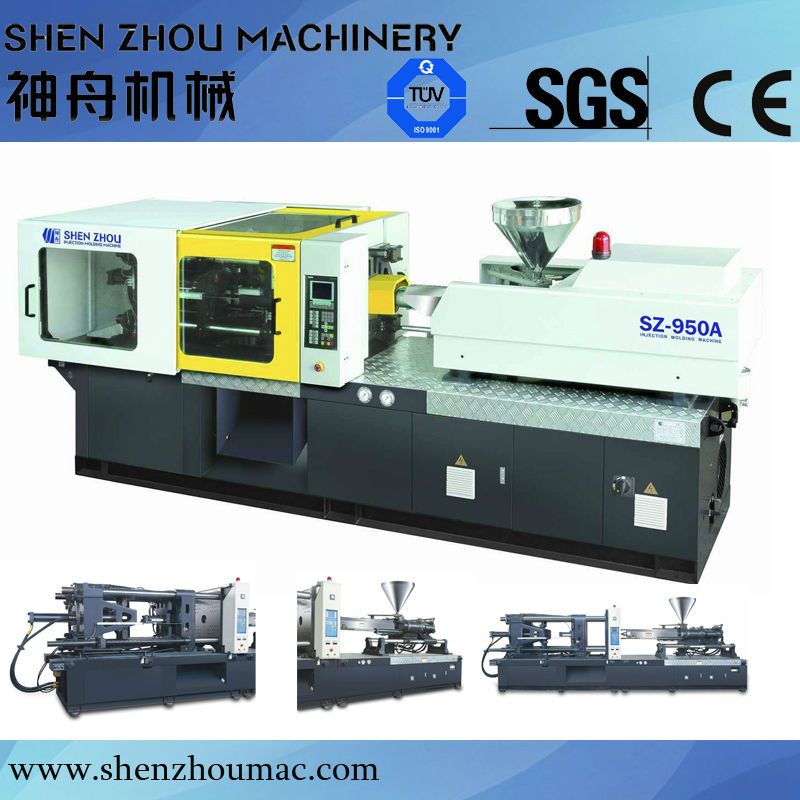

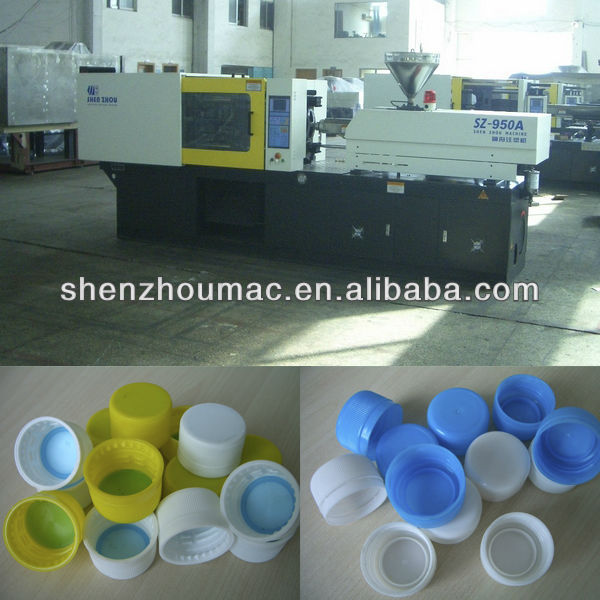

Plastic molding machine SZ-950A
Bottle Cap Making Machine Plastic Molding Machine Plastic Injection Machine
High-quality and innovative products, excellent productivity, efficient management, perfect technical solutions and services.
Shot weight: 103g--183g
Clamping force: 95 tons
Screw diameter: 30--40mm
Tie rod spacing: 360x360mm
All of our machines have passed CE/TUV certification
|
Technical Parameters |
||||
|
thing |
unit |
scope |
||
|
injection device |
|
|
||
|
Screw diameter |
mm |
30 |
35 |
40 |
|
Screw aspect ratio |
aspect ratio |
24.5 |
twenty one |
18.4 |
|
theoretical injection volume |
cm*3 |
113 |
154 |
201 |
|
Injection volume (ps) |
G |
103 |
140 |
183 |
|
Injection pressure |
MPa |
249 |
183 |
140 |
|
theoretical injection rate |
g/s |
67.5 |
91.8 |
120 |
|
plastic capacity |
g/s |
8.3 |
12.5 |
18 |
|
clamping device |
|
|
||
|
clamping force |
KN |
950 |
||
|
Maximum opening stroke |
mm |
340 |
||
|
space between tie rods |
mm |
360x360 |
||
|
mold height |
mm |
135-380 |
||
|
maximum daylight |
mm |
720 |
||
|
other |
|
|
||
|
Water pump motor power |
kilowatt |
11 |
||
|
pump pressure |
MPa |
16 |
||
|
heating power |
kilowatt |
7.3 |
||
|
size |
rice |
4.25x1.2x1.8 |
||
|
net weight |
Ton |
3.2 |
||
|
Fuel tank capacity |
large |
260 |
||
