EPS cup making machine

PRODUCT DETAIL
Certification:CEApplicable industries:Food and Beverage Factory
application:cupPost-warranty service:Online support
Dimensions (length*width*height):4*2*3Mpayment terms:L/C, D/A, D/A, wire transfer
Video outbound inspection:not availableboiler:international well-known brand
Health status:newMarketing type:2020 new products
brand:KeliPlace of origin:Guangdong, China
Blow molding type:injection blow moldingstrength:37kW
Core components:engineapplication:EPS Cup
Mechanical test report:not availableport:Shenzhen/Guangzhou
Warranty:one yearweight:8 tons
Main selling points:High accuracySupply capacity:150 sets per year
Packaging details:International standard bag packaging or decided by customersManagement style:Production
automatic:YesYear:2020
Local service locations:turkeyShowroom location:not any
After-sales service provided:Overseas service centerPlastic processing:earnings per share
Core component warranty:More than 5 yearsVoltage:380V



Features: Best quality. Reasonable price


1. The EPS foam cup production line is widely used in the production of large-volume hot coffee cups, hot tea cups, hot soup cups, noodle buckets and other food and beverage packaging.
2. Light weight, good rigidity and good heat insulation performance.
3. This machine has the advantages of high foaming multiple, high production efficiency, low steam consumption, low cost, and can produce different types of products at the same time.
4. The pipelines of the conveying system are all made of stainless steel, which is corrosion-resistant and easy to clean.
5. The pre-foaming and molding processes are all operated by automatic controllers, and the electromechanical devices are all from internationally renowned brands.

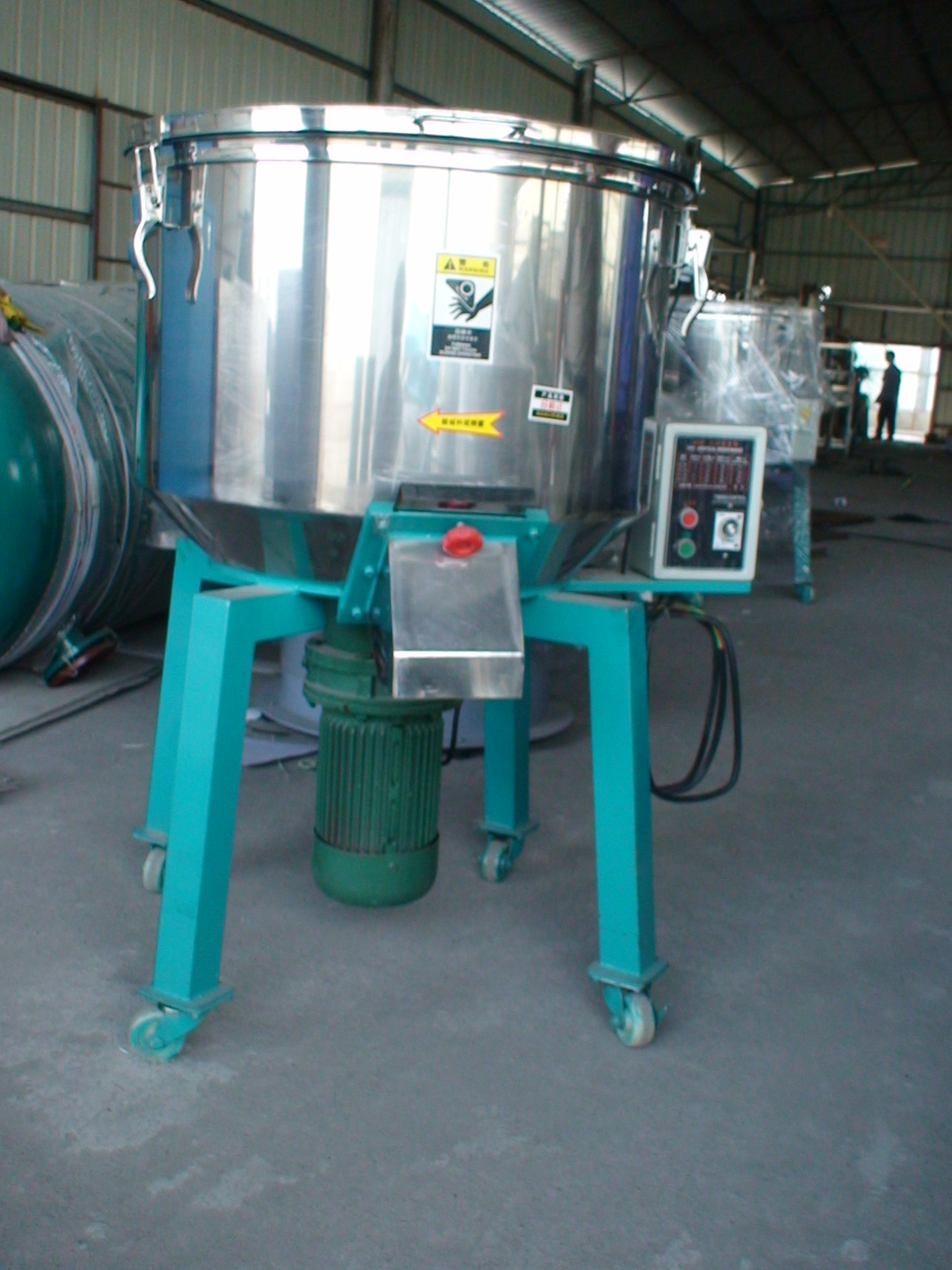

1 meterisser

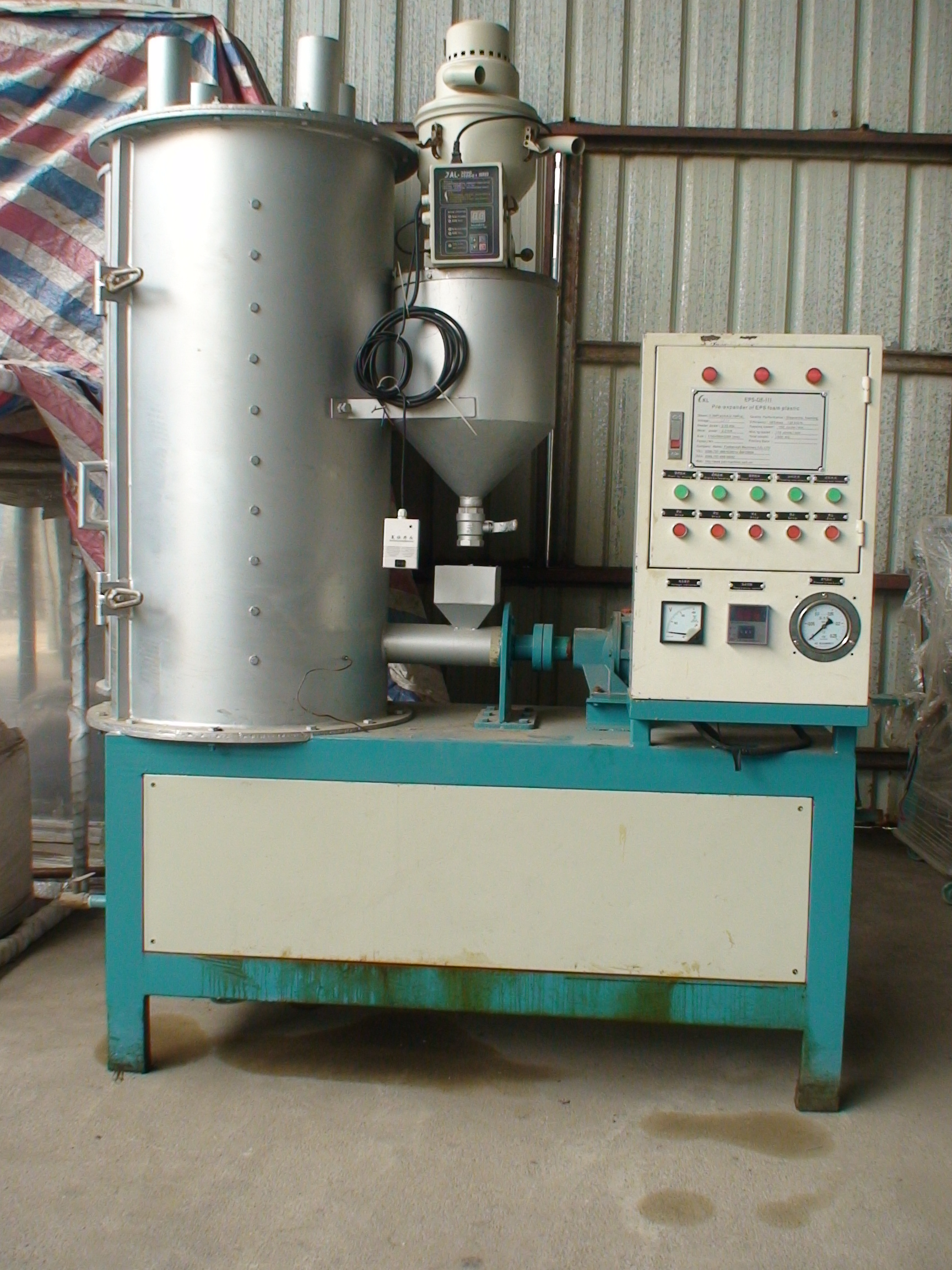

2. Pre-expander







3. Usain Bolt

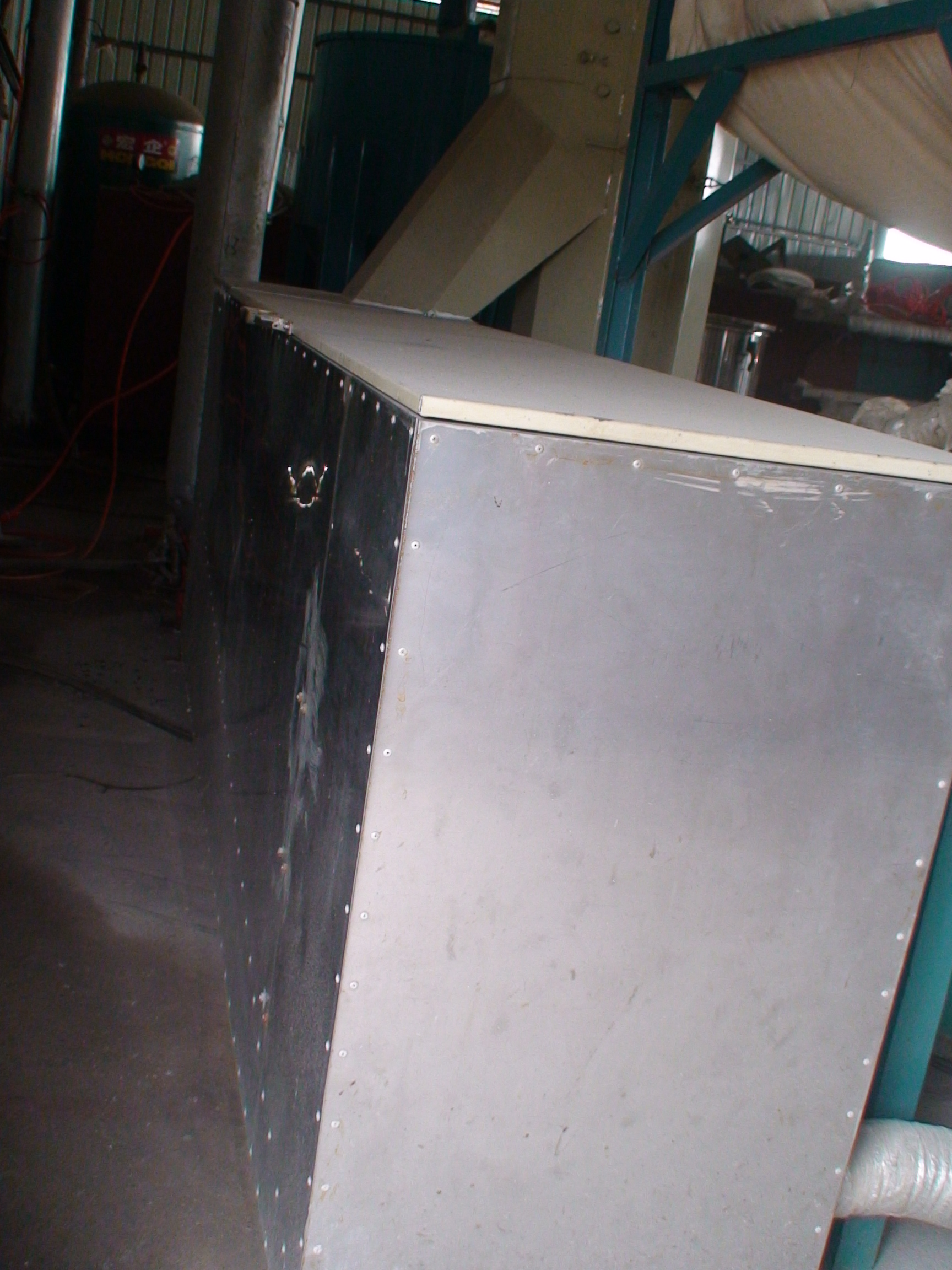

4. Dryer

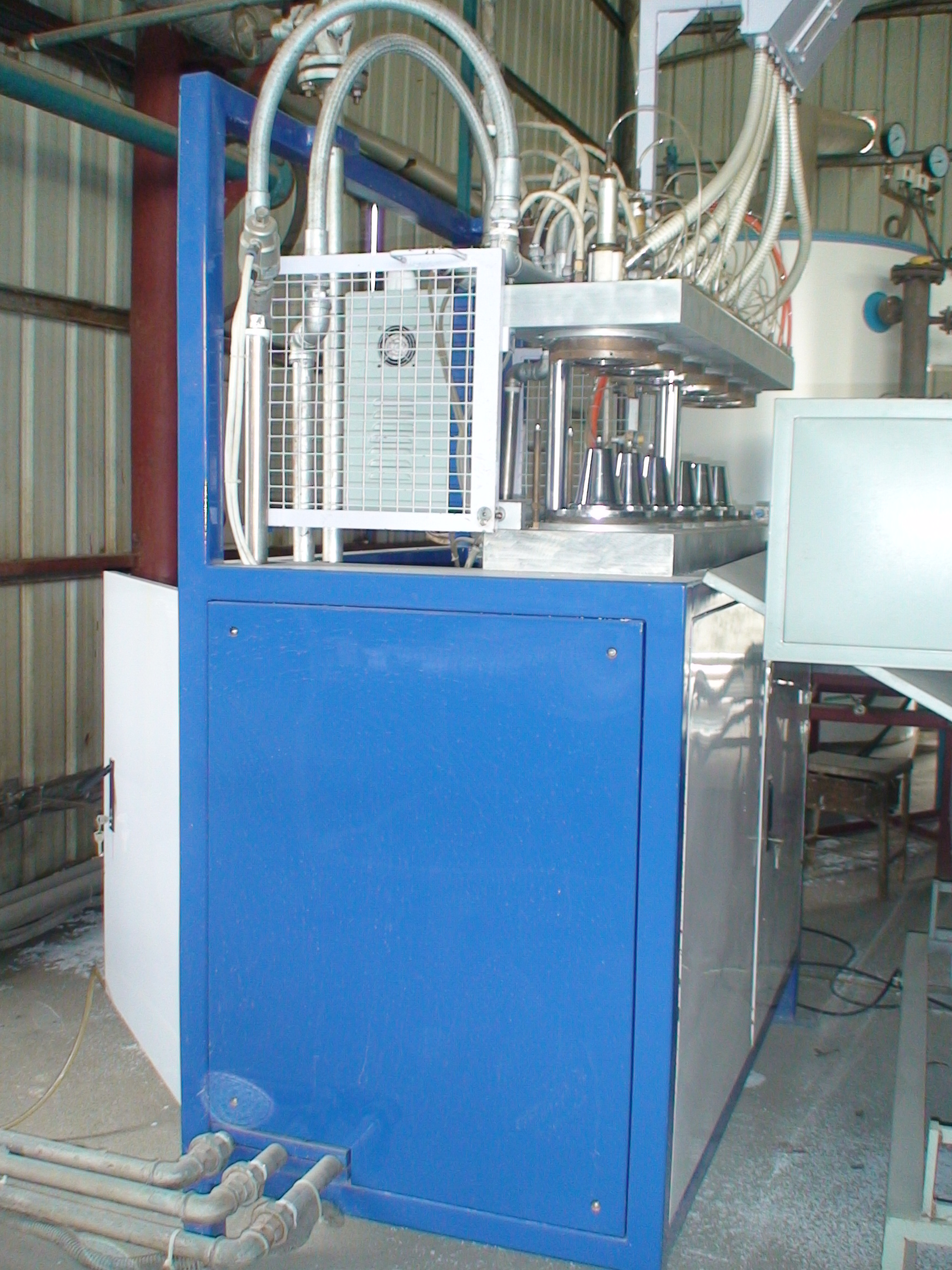

5. Forming








Process flow:
Raw material mixing→Pre-foaming→Drying→Vibration→Storage→Central supply device→Injection molding




Technical Parameters

Model EPS cup making machine
Molding area Length 1200mm* Width 280mm
Forming height 300mm
Molding speed ≤7-16 seconds/cycle
energy consumption ≤0.3kw/day
Voltage 220V
steam pressure 6-9 bar
Steam joint 1 foot
cooling water pressure 4-5 bar
cold water connector 1 foot
air pressure 6-9 bar
air connector 1 foot
aspect 1500mm*1250mm*2300mm
