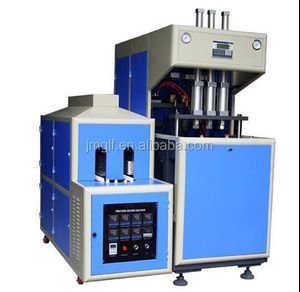

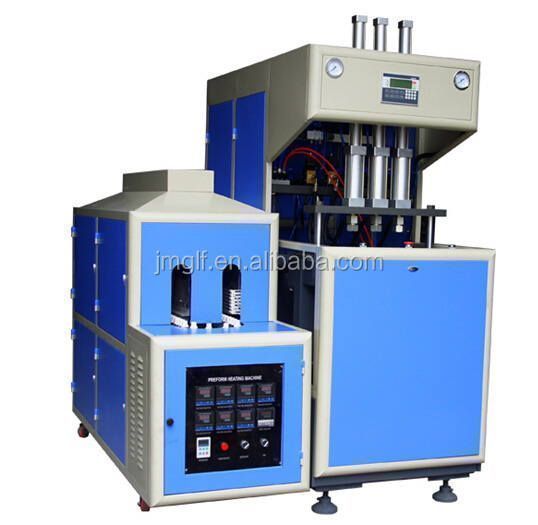

Pure water/mineral water bottle blow molding machine

PRODUCT DETAIL

automation:	semi-automatic	Health status:	new
Mechanical test report:	if	specialized:	semi-automatic
Product Category:	plastic bottle	Main selling points:	energy saving
Core components:	PLC, bearing, motor	payment terms:	Western Union, T/T, MoneyGram
Warranty:	1 year	Core component warranty:	1 year
weight:	1000	Marketing Type:	hot product
machine:	Injection Blow Molding Machine	year:	2022
Showroom location:	not any	place of origin; place of origin:	Guangdong, China
application:	bottle	Processing type:	Plastic thermoforming machine
Voltage:	custom made	After-sales service provided:	Engineers available to service machinery overseas
brand:	Greenfall	port:	Jiangmen
Certification:	CE certification	Video shipment inspection:	if
Plastic processing:	pet	Supply capacity:	72 sets per month
Blow molding type:	injection blow molding	Applicable industries:	farm, restaurant
Packaging Details:	wooden box

The main function of this machine

1. Simple and safe operation, easy maintenance

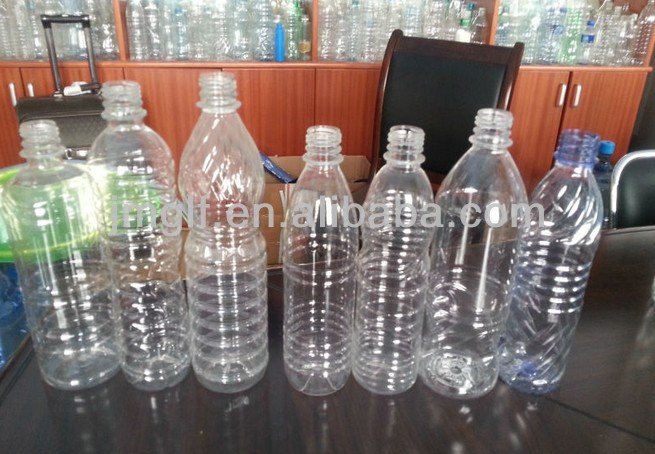

2. Suitable for producing various bottle types. Such as beverage bottles, water bottles, cosmetic bottles, oil bottles, PC bottles, etc.

3. Automatic adjustable sprocket module, fast and convenient, long service life

Technical data of the machine

project	HY-BI
Clamping force	80KN
production capacity	(2 bottles once) 800PCS/Hr
maximum. bottle container	(2 bottles once) 1.5L
Host working air pressure	0.8Mpa
blowing pressure	1.0-3.0Mpa
heating power	7.5KW
maximum. tensile length	350mm
maximum. Mold thickness	200mm
Allowable mold thickness	120-230mm
Allowable mold width	400mm
Distance between two mold centers	100-200mm
weight	500+200Kg
Host oversized (LWH)	1500×650×1700mm
king size oven	1400×680×1350mm

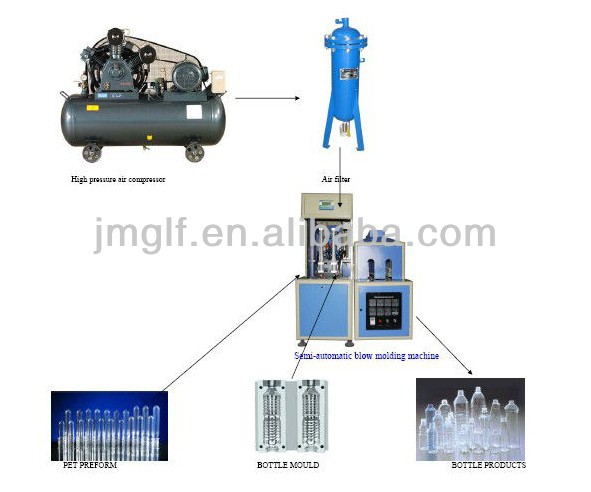

Complete unit and flowchart:1 blower, 1 high-pressure air compressor, 2 air filters, 1 high-pressure pipe, 1 mold

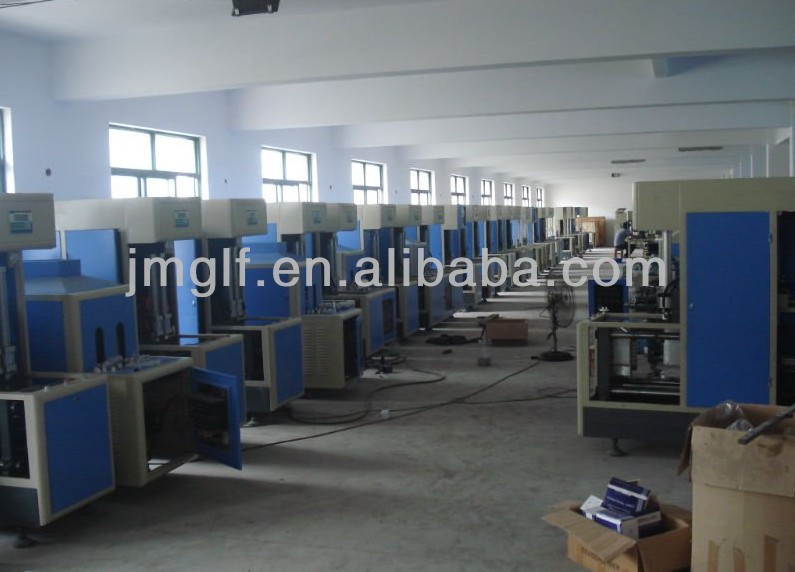

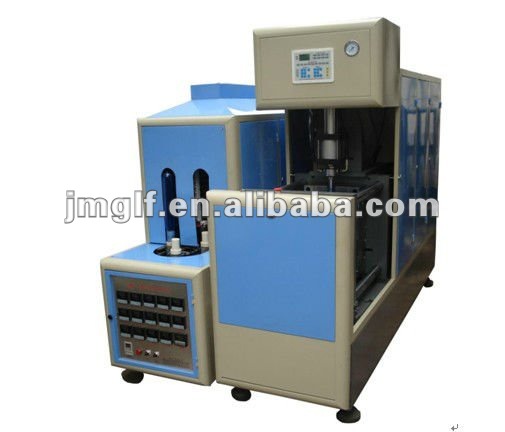

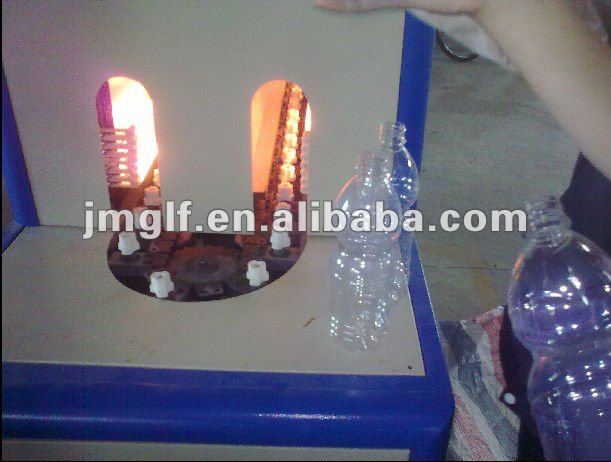

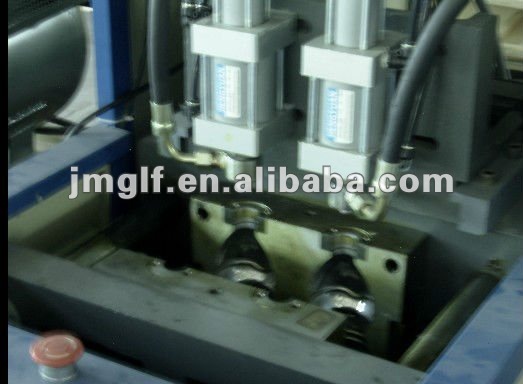

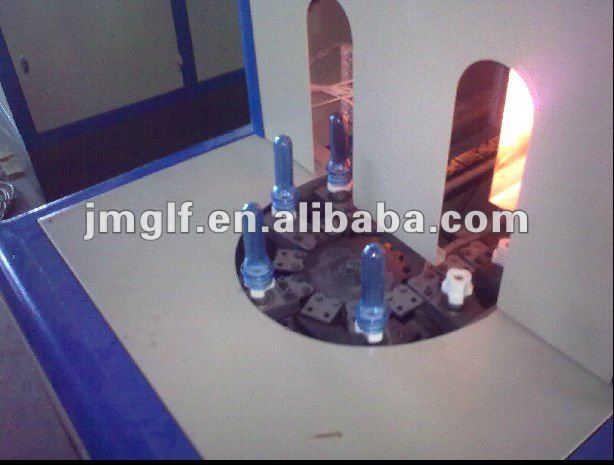

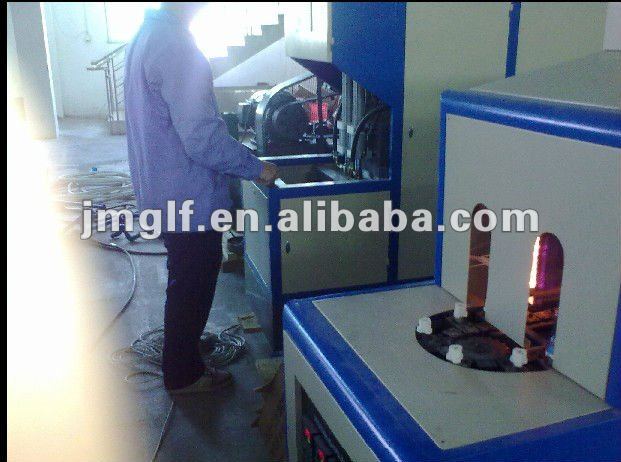

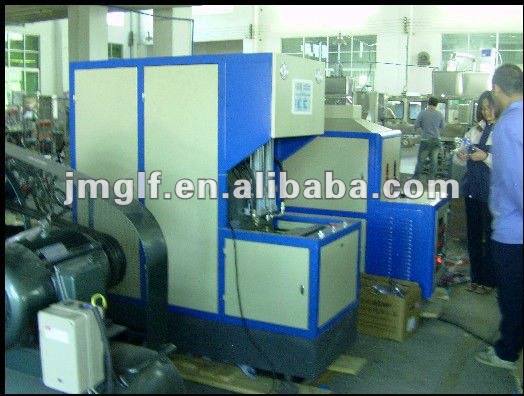

Detailed photos for reference:

We also have a 5 gallon blow molding machine
