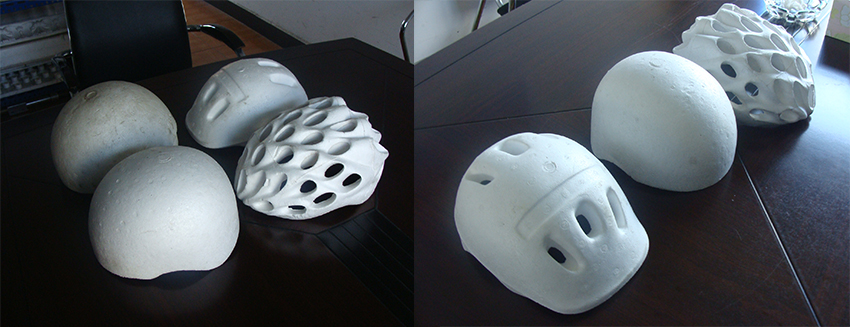

Fangyuan customized automatic vacuum eps foam bicycle helmet lining manufacturing styrofoam molding machine

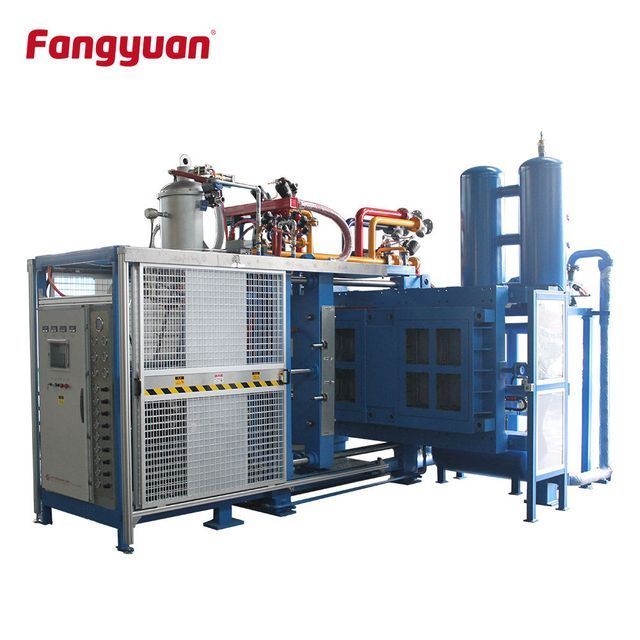

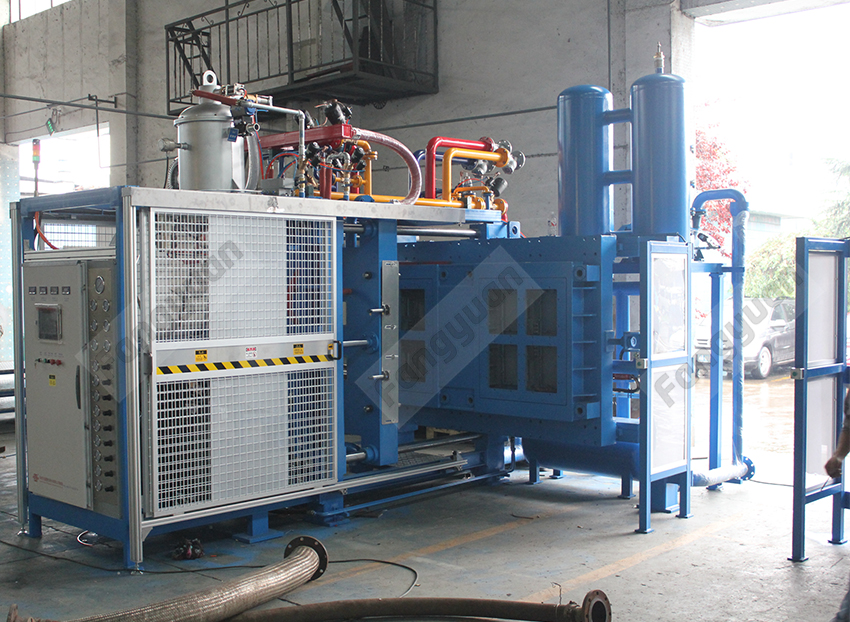

         SPZ9M bicycle helmet forming machine

1. This machine is controlled by PLC, with a touch-type visual human-machine interface, which can conveniently set and select time and process parameters according to the requirements of different products.
2. This machine adopts the pressure heating control method. The heating system is equipped with auxiliary balance valve control, which can effectively adjust the steam pressure at the outlet of the steam valve, and can realize the control of different outlet pressures in different heating stages in a specific way, so as to increase the product yield. stability. Users can adjust it according to their needs.
3. The machine is driven by a hydraulic system, with a differential circuit, and runs smoothly.
4. This machine has a pressing system, the user can choose the pressing method according to the process, so that more materials can enter the mold more fully, and the defective products caused by insufficient materials can be reduced.
5. Steam, compressed air, cooling water and vacuum blowing pipelines are located above or below the machine for easy maintenance, and each pipeline has a different color. Among them, the compressed air pipeline is a rectangular tube above the pressure plate, and the color is generally the same as that of the machine.
6. Use a rotary encoder to detect the distance between the moving mold and the fixed mold, and convert the distance into a number and display it directly on the touch screen. You only need to adjust the relevant values ​​on the touch screen to adjust the feeding interval of the machine and other positions.
7. The system has perfect fault detection function. For example: machine safety, motor overload, etc. Troubleshooting methods are available online.
8. The machine has multiple safety protection devices:
A. Motor overload is protected by thermal relay.
B. The closing of the safety door is protected by a proximity switch.
C. In case of motor failure, the computer will automatically shut down and give an alarm
light is on.
D. The heating system adopts multi-sensor control, which can control the heating
precise.
