Economic Price Used Blow Molding Machine A65 IBM LED Lamp Making Machine Used Plastic Injection Molding Machine

JASU machinery step IBM and ISBM PET machines

JASU plastic bottle making machine includes

Injection blow molding machines and injection stretch blow molding machines.

The machines are three-station injection molding preforms, blow molding/stretch blow molding and product release. The raw material enters the injection screw from the hopper to inject the preform; the plate rotates the preform to the blow molding/stretch blow molding station, self-heating, no need to reheat the blow molding,
Then the product will rotate to the release station and drop, it is fully automatic cycle rotation working mode.

Compared with the traditional bottle blowing machine, JASU plastic bottle making machine has many advantages, firstly, there is no need to reheat, the preform is heated by itself during injection blowing, highly energy-saving and shortens the molding time, what is more important is that the one-step machine cuts off the preform The process is transformed from a two-step blow molding machine to avoid pollution caused by the transformation process, especially for medicine and food containers, saving labor and transshipment costs, reducing production costs, and improving product competitiveness.

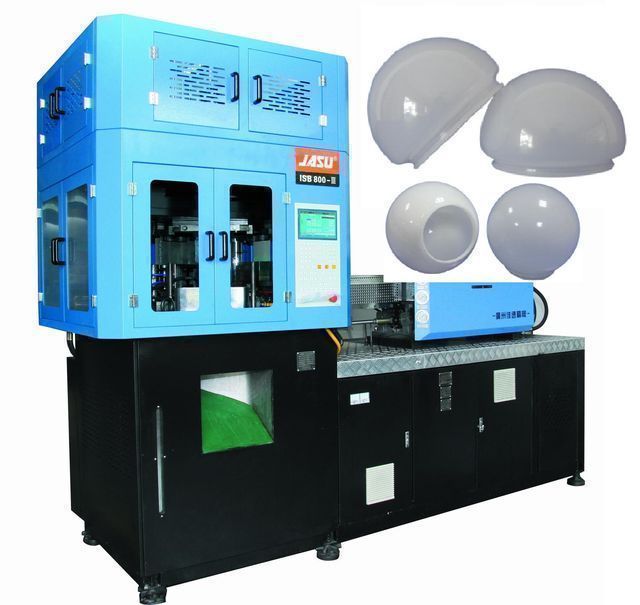

Models ISB800-3 and ISB800A-3 (larger sizes)

Suitable for PC, PS, PMMA lamp shades, LED lamp shades, Christmas glitter, garden and street lights.
Suitable for PET high transparency, thinner wall thickness, cosmetic bottles from 10ml to 500ml, PET jars, PET medicine bottles
PP high transparent, baby feeding bottle, sports feeding bottle
Compatible with PCTG, Tritan drinking water bottles, sports bottles.

Mold and tooling, we have our own mold workshop, advanced CNC machine tools and smart design engineers, we can handle products of different materials and sizes from different customers all over the world.

Auxiliary machines, we will equip you with the necessary high-quality auxiliary machines to ensure the smooth progress of the production plan and provide you with one-stop service.

If you are interested in our products
Click here to send us a message to send an inquiry >>>
We have someone to tell you the solution product

As food, beverages, cosmetics and other packaging fields have higher and higher requirements for high quality and elegant appearance, the plastic containers produced by old blow molding machines can no longer meet the needs of customers. The one-step injection stretch blow molding machine processes from raw materials to products in one step, and the whole process includes preform injection, stretch blowing and demoulding. No leftover material, no sprue material, perfect neck, bottom and line, higher transparency and higher rigidity. Stretch-blow molding products have thinner walls and less material.

The plastic bottle making machine can complete the high-speed forming without reheating the preform. Use the heat generated during preform injection, stretching and blowing to reduce unnecessary secondary heating, shorten preform cooling time, and save energy.

The plastic bottle making machine optimizes the working structure, removes the unfavorable factors of forming, saves the complicated process, makes the forming more reliable, and improves the scrap rate.

The plastic bottle making machine reduces transportation costs and avoids secondary pollution, especially for food and pharmaceutical companies. For example, to transport 19g of 500ML bottles, if a 1m³ suitcase is used, 1024 bottles can be loaded, that is, 9280 preforms, but if raw materials are used, 56421 bottles can be produced. The cost of material logistics is 98.2% lower than that of transfer bottles; compared with the cost of transferring preforms, the cost can be reduced by 83.6%.

Compared with one-step and two-step methods:

The advantages of JASU plastic bottle making machine model ISB800-3/ISB800A-3 are as follows:

1. Wheel rotation is driven by electric servo motor, not hydraulic.
2. Fully automatic control system, easy to operate.
3. The temperature of barrel and hot runner is precisely controlled by PIT.
4. Save more cost than traditional machines.
5. Compact structure; requires less space.
6. Injection:
Hot runner and temperature control device are standard configurations. Only change the mold to make new products;
Stretch blow:
Hydraulic mold clamping, core inserting, stretch blowing and bottom mold are standard configurations;
product release:
Comes with standard injectors.

Guangzhou Jiasu Machinery Co., Ltd. has been developing, designing and producing blow molding machines since 1989, specializing in the production of one-step injection molding blow molding machines and injection stretch blow molding machines. The high-quality, high-precision, low-cost, and low-energy plastic container solutions we provide have attracted the attention of the market.

More than 100 employees and 30 professional technicians are dedicated to JASU® brand series machines, and our R&D department is dedicated to continuously developing new blow molding technologies. We have set up 30 representative offices and 24-hour maintenance service network in China.

JASU® enjoys a high reputation among domestic and foreign customers, especially overseas customers in Southeast Asia, the Middle East, Africa, Europe, and South America. By the end of 2014, exports accounted for 60% of annual sales.

Located in the Pearl River Delta region, close to ship port and air transportation services, especially close to Hong Kong Airport, we have the competitive advantage of fast delivery system and centralized supply chain center. We sincerely invite trading partners and import buyers to visit our showroom and workshop to discuss possible cooperation.

Q1: Are all your products made by yourself or compacted by buying others?
A1: We have an independent technical team that focuses on manufacturing machines; all products are manufactured by our technical team.

Q2: How is the capacity of your factory?
A2: Regarding the blow molding machine, we can produce 15 machines per month

Q3: Do you have technical support for your products?
A3: We have long-term cooperation with Germany, and we have many cooperations with many advanced manufacturing companies in the world.

Q4: Do you have other services for your products?
A4: We have a lot of experience in producing complete "turnkey" projects and specifications for our customers. We also have a fixed service system

Q5: How do you quote for customers?
A5: The price depends on the quality and performance, but customers should satisfy us first
