High performance PC LED lampshade molding machine IBM
- $10000.00 /set
- 1 set
- Guangzhou Jasu Machine Co., Ltd.
- Guangdong, China
- Mr Peter lee
Dimensions (L*W*H): | 3.8X1.5X3.2M | Applicable industries: | Food and Beverage Factory, Construction Engineering |
place of origin; place of origin: | China | brand: | JASU |
Core components: | Motor, PLC | Supply capacity: | 50 sets per month |
payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | year: | 2020 |
Local service location: | not any | Mechanical test report: | if |
Voltage: | 380V 50HZ | port: | Guangzhou, Shenzhen |
Video shipment inspection: | if | automatic: | yes |
Plastic processing: | personal computer | State of health: | new |
Certification: | CE certification | Material: | pet |
Blow molding type: | injection blow molding | car: | fully automatic |
application: | Bulb | Packaging Details: | Plastic woven film. |
cavity number: | 8 cavities | automation: | automatic |
Marketing Type: | New Products 2020 | machine: | One Step Stretch Blow Molding Machine |
Hollow part volume: | not any | Core component warranty: | 1 year |
Warranty: | 1 year | Showroom location: | not any |
After warranty service: | Video technical support, online support | Operating mode: | step |
Main selling points: | energy saving | Power (kW): | 18.5 |
Strike mode: | Injection stretch blow | After-sales service provided: | Engineers available to repair machinery overseas, free spare parts |
Station No: | 3 stops | Weight (kg): | 5000 |
Production capacity (benign prostatic hyperplasia): | 1100 |
High performance PC LED lampshade molding machine IBM
JASU PET stretch blow molding machine includes
Injection blow molding machines and injection stretch blow molding machines.

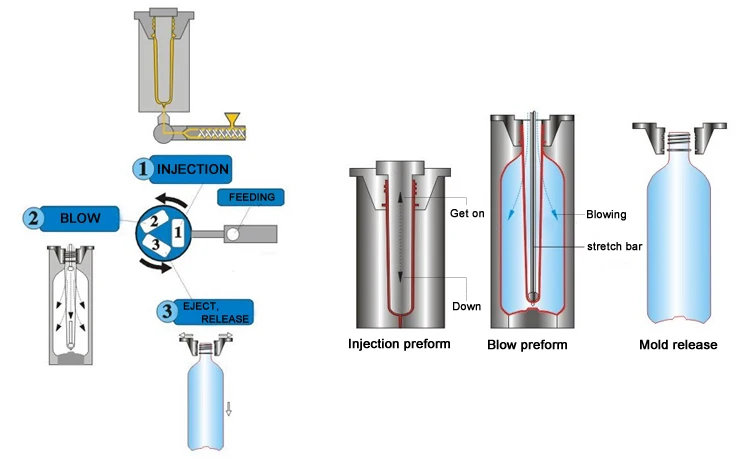

The machines are three-station injection molding preforms, blow molding/stretch blow molding and product release. The raw material enters the injection screw from the hopper to inject the preform; the plate rotates the preform to the blow molding/stretch blow molding station, self-heating, no need to reheat the blow molding,
Then the product will rotate to the release station and drop, it is fully automatic cycle rotation working mode.
Compared with the traditional blow molding machine, JASU 5 gallon water bottle blow molding machine has many advantages, firstly, there is no need to reheat, the preform is heated by itself during injection blow molding, it is highly energy-saving and shortens the molding time, what is more important is that the one-step machine has cut off The transfer process of the two-step blow molding machine avoids the pollution caused by the transfer process, especially for medicine and food containers, saves labor and transfer costs, reduces production costs, and improves product competitiveness.

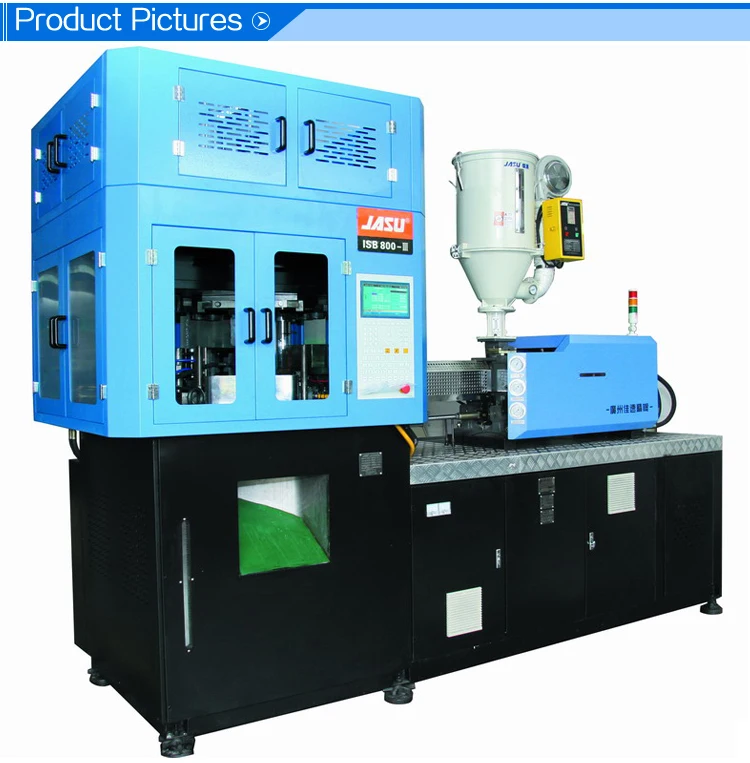

Models ISB800-3 and ISB800A-3 (larger sizes)

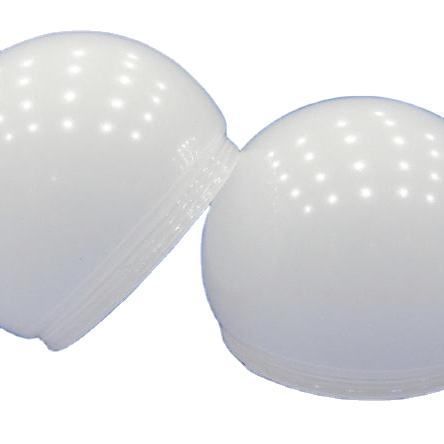

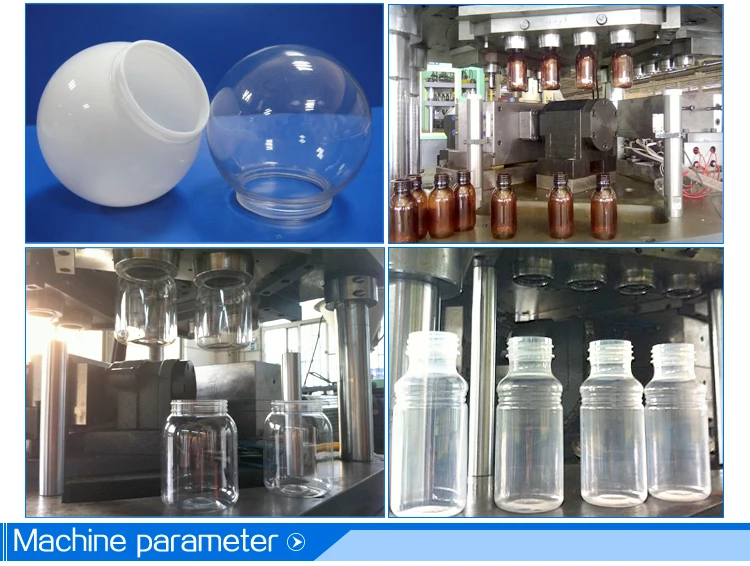

Suitable for PC, PS, PMMA lamp shades, LED lamp shades, Christmas glitter, garden and street lights.
Suitable for PET high transparency, thinner wall thickness, cosmetic bottles from 10ml to 500ml, PET jars, PET medicine bottles
PP high transparent, baby feeding bottle, sports feeding bottle
Compatible with PCTG, Tritan drinking water bottles, sports bottles.
Mold and tooling, we have our own mold workshop, advanced CNC machine tools and smart design engineers, we can handle products of different materials and sizes from different customers all over the world.
Auxiliary machines, we will equip you with the necessary high-quality auxiliary machines to ensure the smooth progress of the production plan and provide you with one-stop service.
Model |
ISBS 800-3 | |
injection part | ||
Screw diameter | 40mm | |
Screw aspect ratio | 20.5:1 | |
Screw speed | 0-190 rpm | |
theoretical injection volume | 238 cubic centimeters | |
Injection pressure | 174Mpa | |
maximum. hydraulic | 140kg/cm | |
Actual injection volume (PS): | 225g(ps)/8Oz | |
Screw stroke: | 190mm | |
clamping parts | ||
Strike clamping force: | 80Kn | |
Clamp tonnage: | 400Kn | |
Wheel diameter: | 800mm | |
maximum. Bottle height: | ISB:145/IB:140 | |
Turn on vertical mode strokes: | 430mm | |
other | ||
maximum. Pump pressure: | 16Mpa | |
Oil: | 18.5Kw | |
electricity: | 12.2Kw | |
tank: | 400L | |
Dimensions (L*W*H): | 3.8m*1.45m*3.0m | |
weight: | 5000 kg |
If you are interested in our products
Click here to send us a message to send an inquiry >>>
We have someone to tell you the solution product
As food, beverages, cosmetics and other packaging fields have higher and higher requirements for high quality and elegant appearance, the plastic containers produced by old blow molding machines can no longer meet the needs of customers. The one-step injection stretch blow molding machine processes from raw materials to products in one step, and the whole process includes preform injection, stretch blowing and demoulding. No leftover material, no sprue material, perfect neck, bottom and line, higher transparency and higher rigidity. Stretch-blow molding products have thinner walls and less material.
5 Gallon Water Bottle Blow Molding Machine achieves high speed molding without reheating preforms. Use the heat generated during preform injection, stretching and blowing to reduce unnecessary secondary heating, shorten preform cooling time, and save energy.
The 5-gallon water bottle blow molding machine optimizes the working structure, removes unfavorable factors in molding, saves tedious procedures, ensures more reliable molding, and improves the scrap rate.
The 5-gallon water bottle blow molding machine reduces transportation costs and avoids secondary pollution. It is specially used for food and pharmaceutical companies. For example, to transport 19g 500ML bottles, if a 1m³ suitcase is used, 1024 bottles can be loaded, that is, 9280 preforms, but if raw materials are used, 56421 bottles can be produced. The cost of material logistics is 98.2% lower than that of transfer bottles; compared with the cost of transferring preforms, the cost can be reduced by 83.6%.
Compared with one-step and two-step methods:
forming | process | structure | Human/Energy/Space | product quality |
step | From preform to product | one machine | small | Unaffected by moisture, less contamination; various shapes |
two steps | Injection molding and blow molding are two separate processes |
1. Injection molding machine 2. Preform transfer machine 3. Heating stretching demoulding machine |
more | susceptible to moisture and pollution; haplotype |
The advantages of JASU 5 gallon water bottle blow molding machine model ISB800-3/ISB800A-3 are as follows:
1. Wheel rotation is driven by electric servo motor, not hydraulic.

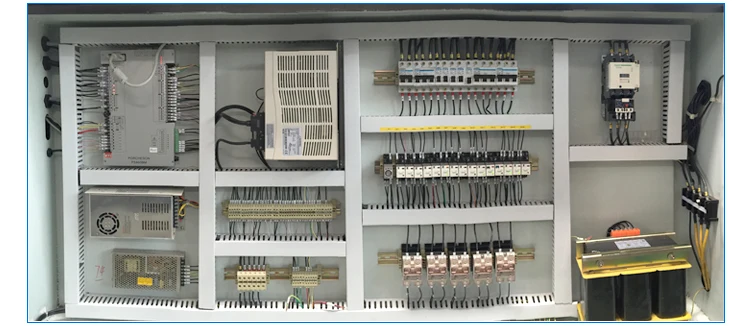

2. Fully automatic control system, easy to operate.
3. The temperature of barrel and hot runner is precisely controlled by PIT.
4. Save more cost than traditional machines.
5. Compact structure; requires less space.
6. Injection:
Hot runner and temperature control device are standard configurations. Only change the mold to make new products;
Stretch blow:
Hydraulic mold clamping, core inserting, stretch blowing and bottom mold are standard configurations;
product release:
Comes with standard injectors.
Guangzhou Jiasu Machinery Co., Ltd. has been developing, designing and producing blow molding machines since 1989, specializing in the production of one-step injection molding blow molding machines and injection stretch blow molding machines. The high-quality, high-precision, low-cost, and low-energy plastic container solutions we provide have attracted the attention of the market.
More than 100 employees and 30 professional technicians are dedicated to JASU® brand series machines, and our R&D department is dedicated to continuously developing new blow molding technologies. We have set up 30 representative offices and 24-hour maintenance service network in China.
JASU® enjoys a high reputation among domestic and foreign customers, especially overseas customers in Southeast Asia, the Middle East, Africa, Europe, and South America. By the end of 2014, exports accounted for 60% of annual sales.

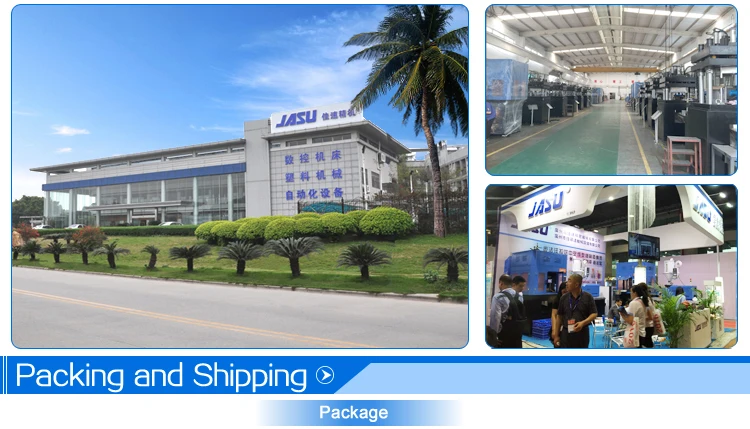

Located in the Pearl River Delta region, close to ship port and air transportation services, especially close to Hong Kong Airport, we have the competitive advantage of fast delivery system and centralized supply chain center. We sincerely invite trading partners and import buyers to visit our showroom and workshop to discuss possible cooperation.
Q1: Are all your products made by yourself or compacted by buying others?
A1: We have an independent technical team that focuses on manufacturing machines; all products are manufactured by our technical team.
Q2: How is the capacity of your factory?
A2: Regarding the blow molding machine, we can produce 15 machines per month
Q3: Do you have technical support for your products?
A3: We have long-term cooperation with Germany, and we have many cooperations with many advanced manufacturing companies in the world.
Q4: Do you have other services for your products?
A4: We have a lot of experience in producing complete "turnkey" projects and specifications for our clients. We also have a fixed service system
Q5: How do you quote for customers?
A5: The price depends on the quality and performance, but customers should satisfy us first
