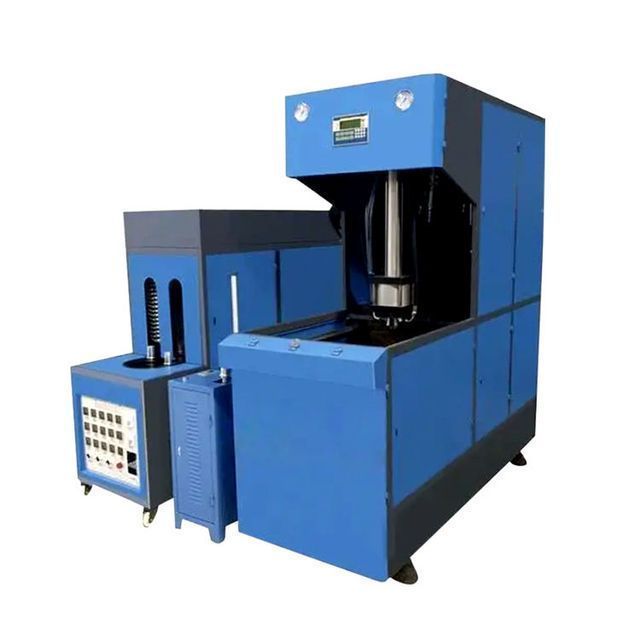

YG Automatic Pet Bottle Blowing Machine 5 Gallon Pet Bottle Blowing Machine

PRODUCT DETAIL
payment terms:L/C, D/P, D/P, T/Tapplication:bottle
Mechanical test report:ifHollow part volume:custom made
product name:Blow Molding MachineWarranty:1 year
Applicable industries:Energy and mining, building supplies store, constructionPower (kW):18
Key words:Blow Molding Machinesize:L1600*W900*H1600mm
Plastic processing:Polypropylene, polycarbonate, ABSplace of origin; place of origin:China
Core components:Gearbox, water pumpVideo shipment inspection:if
Main selling points:easy to operateMarketing Type:2019 Hot Products
Supply capacity:100 sets per weekShowroom location:not any
port:Shanghai or QingdaoApplicable volume:200ml-2000ml
Core component warranty:1 yearNumber of cavities:4
bottle height(mm):370mmBlow molding type:stretch blow molding
automation:semi-automaticState of health:new
color:blueMaximum bottle diameter (mm):220 mm
Features:plastic bottle makingWeight (kg):560
Product Description

The semi-automatic bottle blowing machine is suitable for producing PET plastic containers and bottles of 100ml-2000ml (2 cavities) or 2.5-3L (1 cavity), it has 1 infrared heater+1 bottle blowing machine and 1 infrared heater+2 blow molding machine, depending on your budget and production speed requirements.

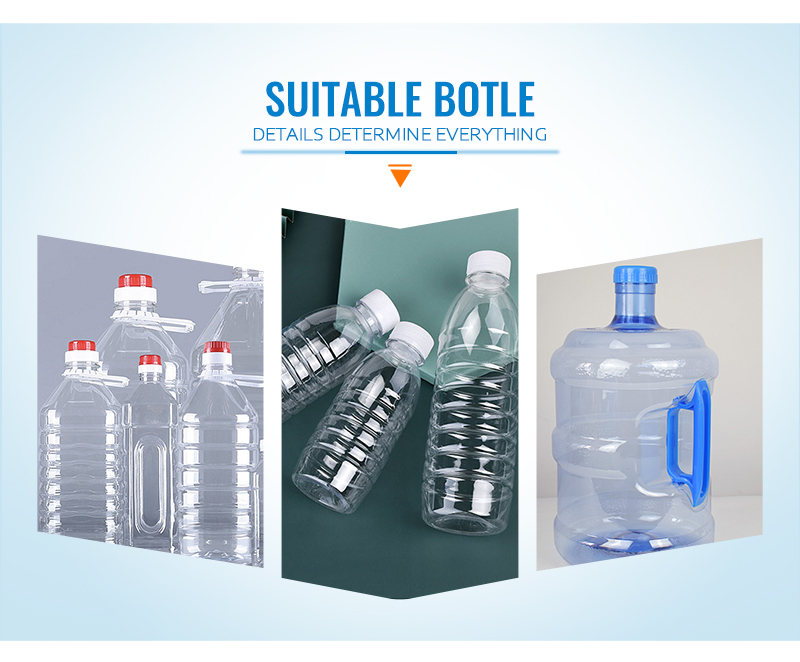

Widely used in the production of carbonated bottles, mineral water bottles, carbonated beverage bottles, pesticide bottles, oil bottles, cosmetic bottles, medicine bottles, jars, etc.
Double-crank mold adjustment, heavy-duty mold clamping, stable and fast, infrared oven is used to heat the billet, and the billet is heated evenly when it rotates.
The air circuit system is divided into two parts, the pneumatic action part and the bottle blowing part, to meet different action and bottle blowing requirements. It can provide sufficient and stable high pressure for blowing of large special-shaped bottles.



technical parameter



thing
unit
1 heater + 1 blower
1 heater + 2 blowers
Number of cavities
cavity
2&1
2
Theoretical output per hour
benign prostatic hyperplasia
600-800
1200-1600
bottle capacity
large
2/3 liter
2
bottleneck size
mm
18-100
18-100
bottle diameter
mm
105/130
105
bottle height
mm
340
340
Mold thickness
mm
70-230
70-230
Mold opening stroke
mm
160
160
strength
kilowatt
twenty two
26
heater size
mm
1700*600*1350
2200*600*1350
Blower size
mm
1600*600*1550
1600*600*1550
weight
Kilogram
850
1550

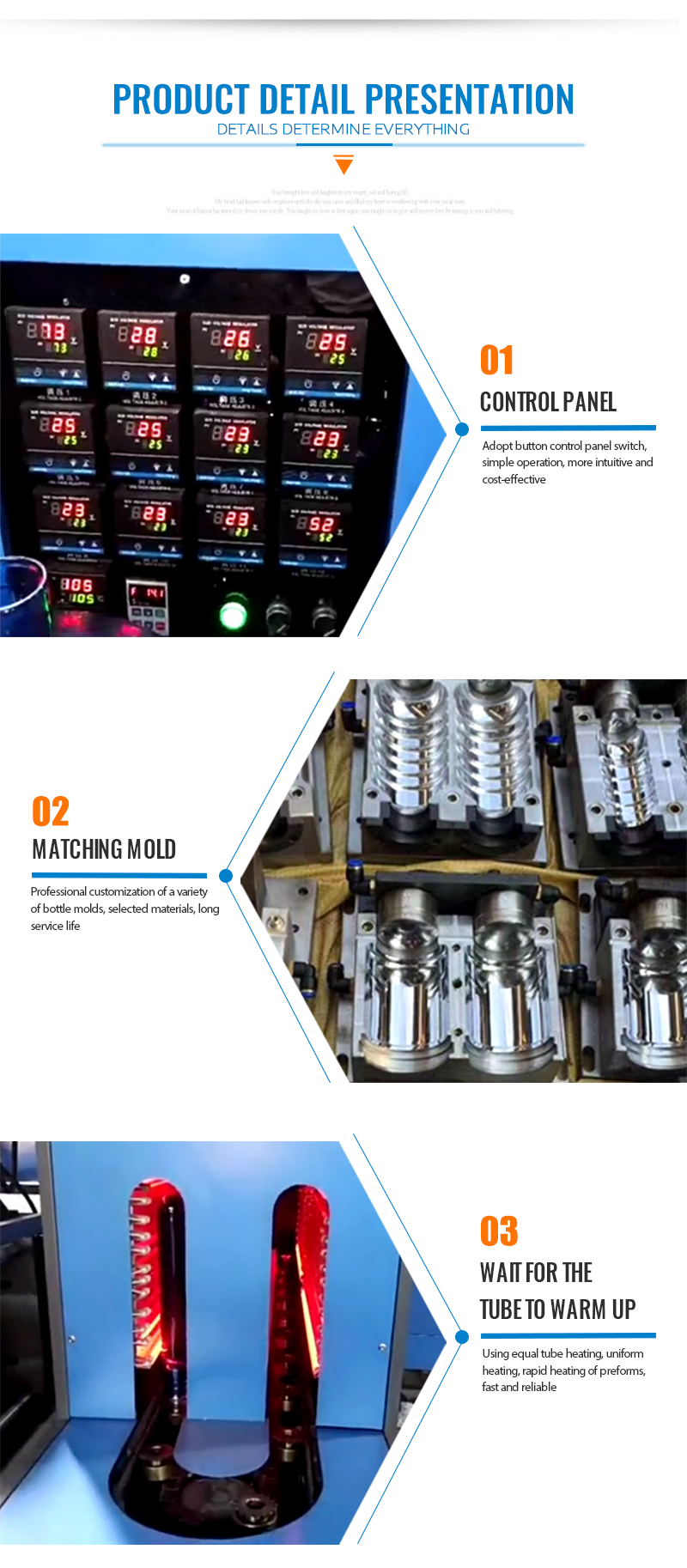

Details and Features

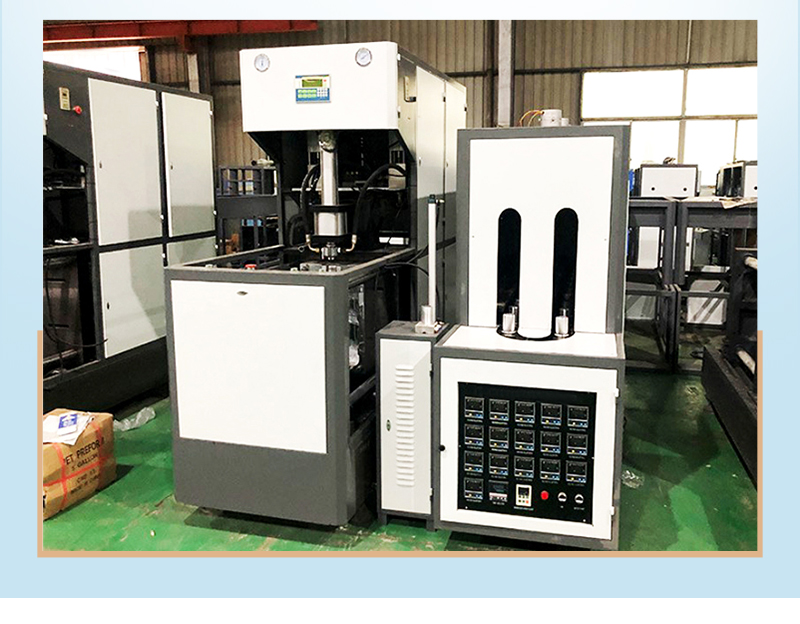

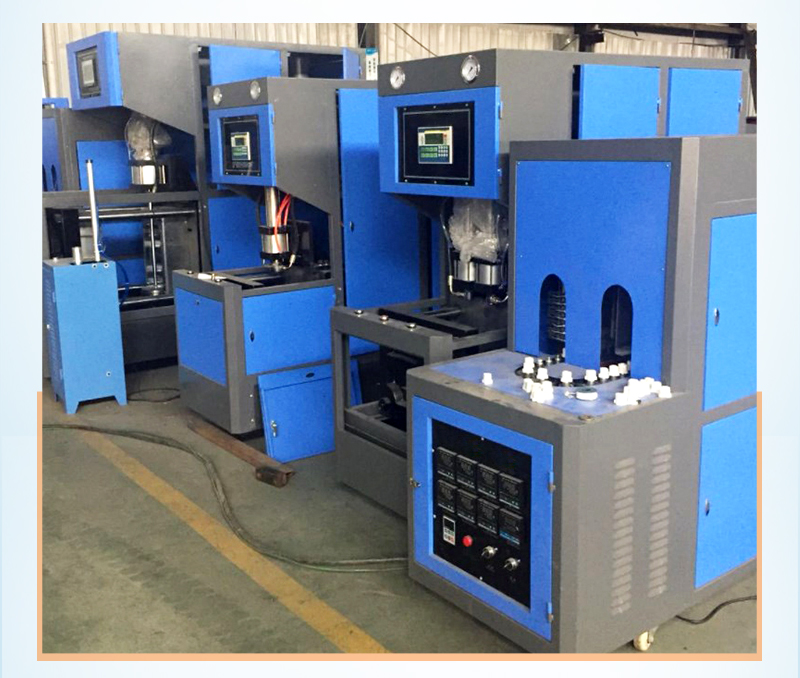

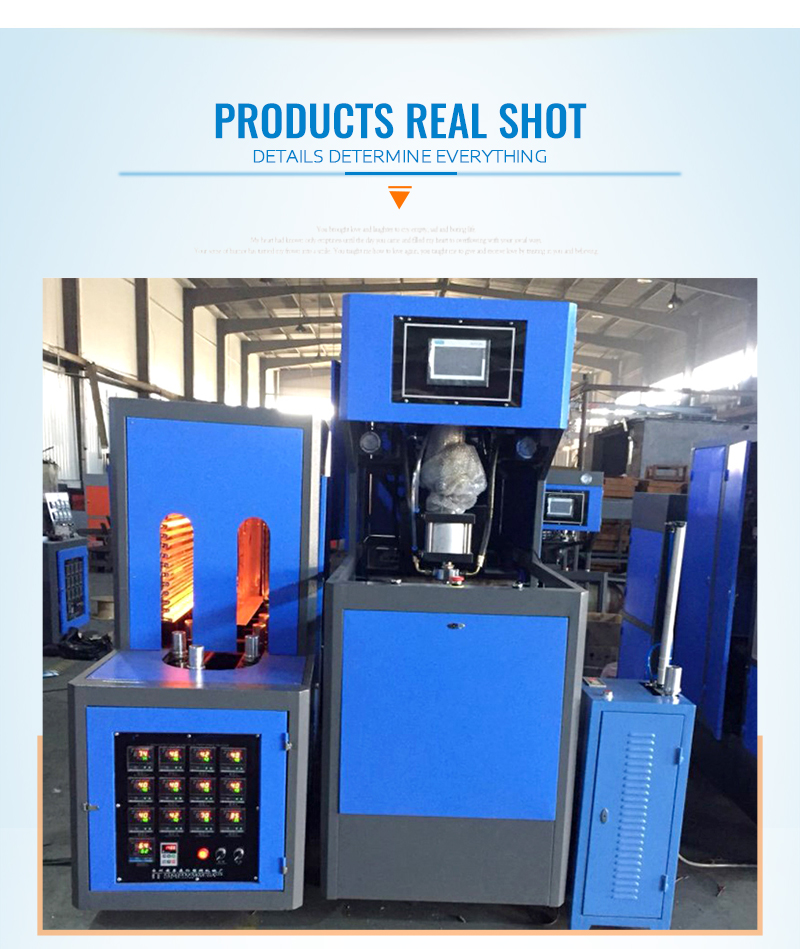

product display





Packaging and Shipping
