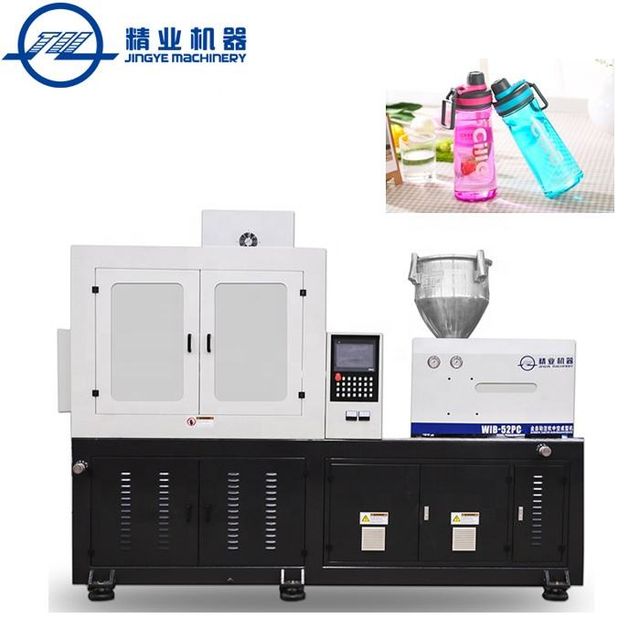

WIB-52PC Automatic Vertical Single Stage 2 Cavity Injection Blow Molding Machine
- $65700.00 / 1 - 9999 sets
$20000.00 / >=10000 sets - 1 set
- Liuzhou Jingye Machinery Co., Ltd.
- Guangxi, China
- Mr Hui Li
PRODUCT DETAIL
Core components: | Pumps, motors, PLCs, display screens, reducers, hydraulic valves, photoelectric sensors, electrical components | Programmable controller brand: | Omron |
automation: | automatic | port: | Shenzhen |
Core Components Warranty: | 1 year | Warranty: | 1 year |
Volume of hollow part: | 2000 ml | year: | 2021 |
online service: | if | Dimensions (L*W*H): | 3.8 * 1.5 * 2.6 meters |
Health status: | new | Mold number: | 2 cavity |
Marketing Type: | normal product | Mechanical test report: | if |
type: | Injection blow molding machine | Applicable industries: | Manufacturing Plants, Food and Beverage Plants |
Plastic Processing: | PP,PC,TRITAN | Mould: | if |
Packaging Details: | wooden box | Rotary cylinder brand: | Air Asia |
Main selling point: | automatic | Power (kW): | twenty two |
Showroom location: | turkey | Video external inspection: | if |
Blow molding type: | Injection blow molding | place of origin; place of origin: | Guangxi, China |
Type of machine: | vertical single stage | brand: | Liuzhou Jingye Machinery |
Voltage: | 380V three-phase | Clamping force (kN): | 406.9 |
application: | bottle | Weight (kg): | 6000 |
Supply capacity: | 300 pieces per year | High pressure valve brand: | SMC |
payment terms: | letter of credit, wire transfer |

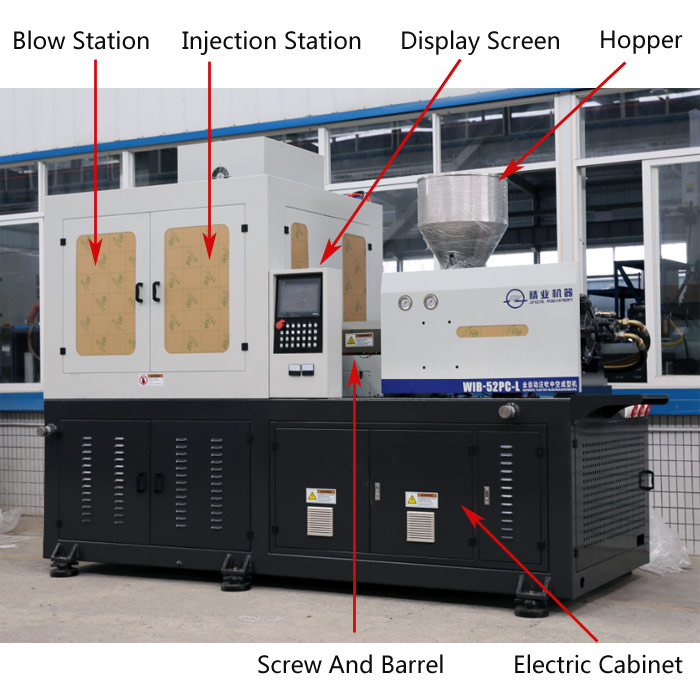

Product Description
WIB-52PC Automatic Vertical Single Stage 2 Cavity Injection Blow Molding Machine

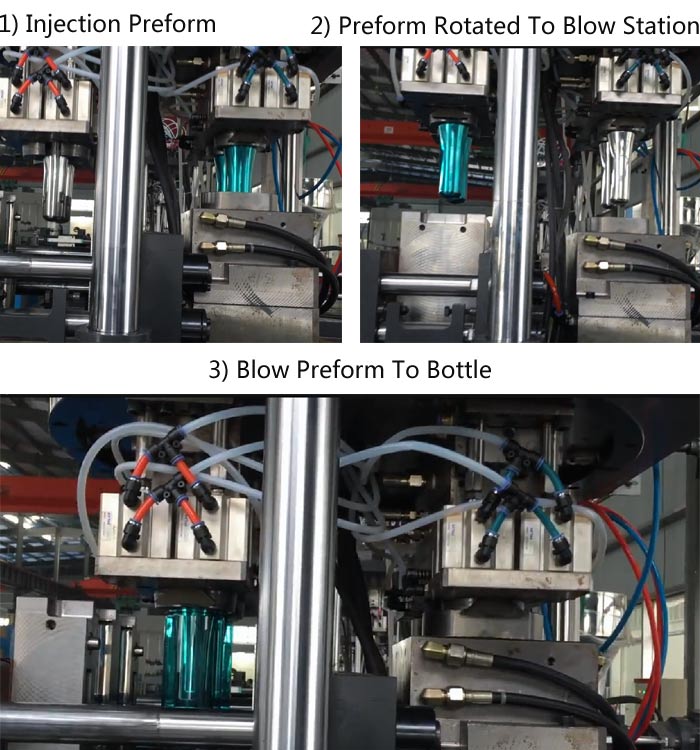

1) It has dual stations. The injection station is used to inject preforms and the blowing station is used to blow the preforms into finished bottles.
2) Please check the pictures and video below, you will understand how this machine works.
Technical data sheet
thing | data |
machine type | WIB-52PC |
Screw diameter | 50 mm |
Theoretical injection capacity | 392.5 cm3 |
Injection mold clamping force | 406.9 kN |
blow clamping force | 123.1 kN |
Motor Power | 22 kW |
Heater capacity | 15kW |
blowing pressure | 1.0 - 2.0 MPa |
cooling water pressure | 0.2 - 0.3 MPa |
Machine size | 3820*1470*2636mm |
machine weight | 6000 kg |
sample
This machine is widely used to make Tritan and PC plastic bottles.
Packaging and Shipping

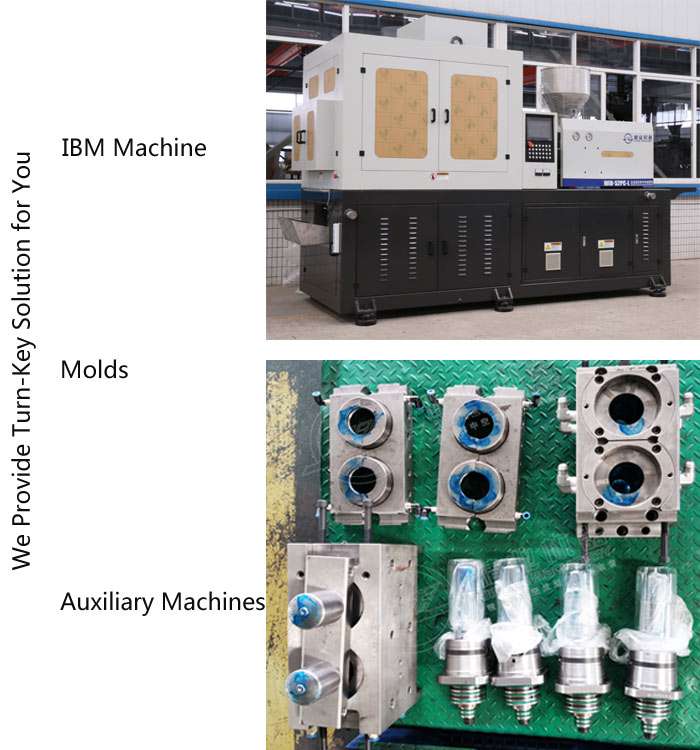

We provide turnkey solutions, machines, moulds and auxiliary machines. Get quotes and solutions, contact us now.

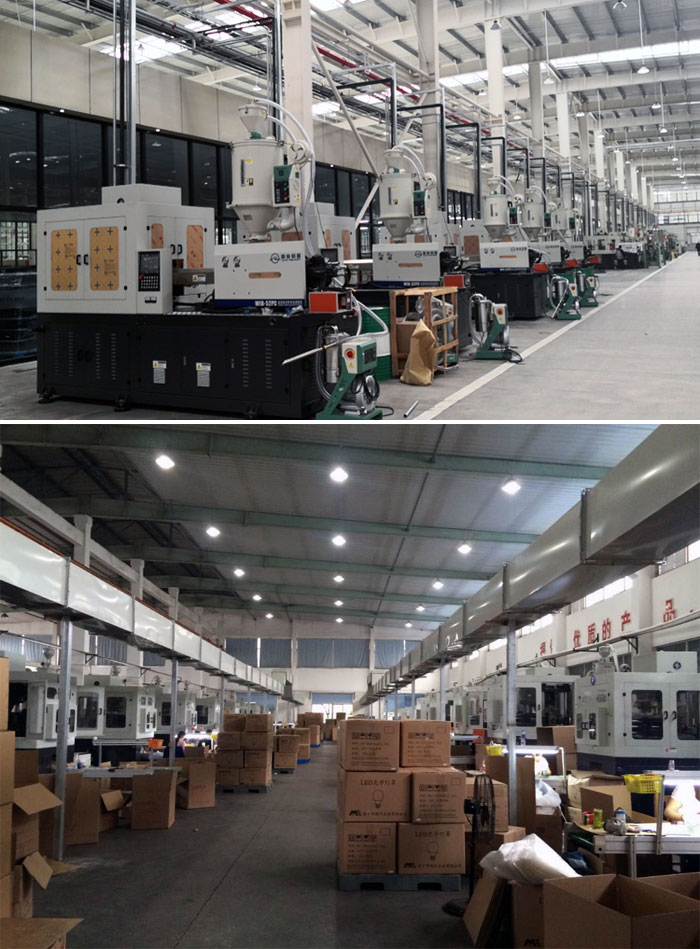

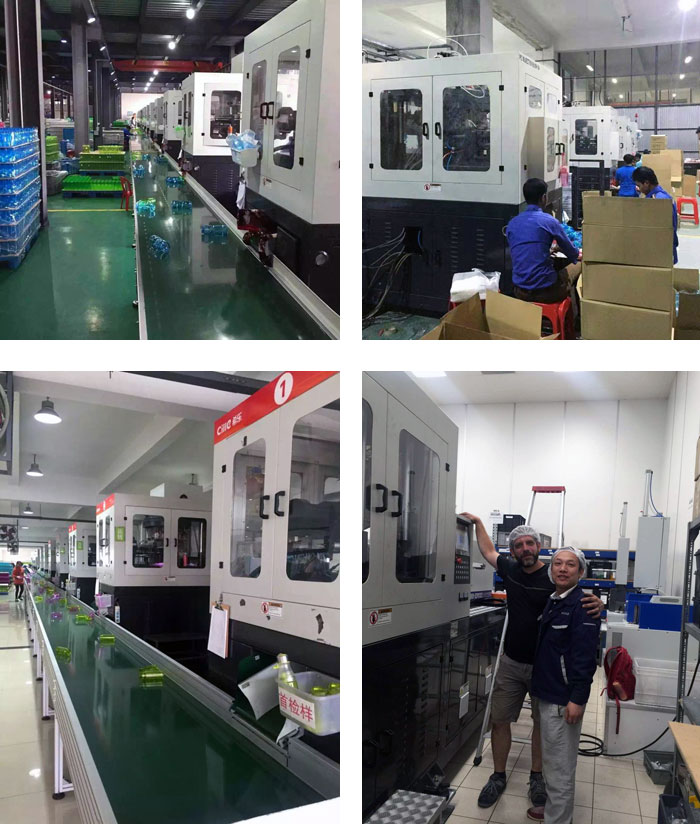

customer factory
