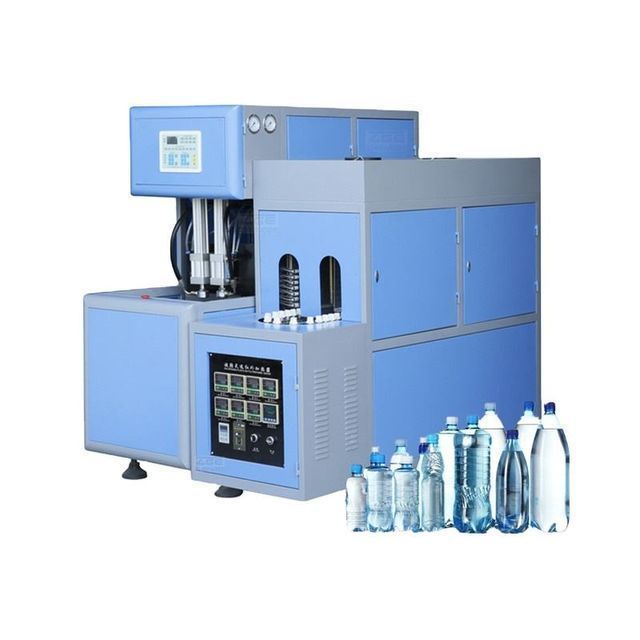

Semi-automatic pet show machineSemi-automatic bottle blowing machineAutomatic pet blow molding equipment
- $3300.00 /set
- 1 set
- Taizhou Huangyan Zhengge Plastic Machinery Co., Ltd.
- Zhejiang, China
- Ms Amy Zhang
PRODUCT DETAIL
| year: | 2022 | automation: | semi-automatic |
| Drum brand: | SMC | Dimensions (L*W*H): | 1.63*0.62*1.59 |
| Blowing pressure: | 2.0-3.0Mpa | port: | Ningbo Shanghai Yiwu Guangzhou Port |
| Main selling points: | long lasting | Supply capacity: | 100 sets of semi-automatic pet show making machine semi-blowing machine Automa per day |
| Core component warranty: | 1 year | place of origin; place of origin: | Zhejiang, China |
| Maximum mold thickness: | 100mm | payment terms: | L/C, Western Union, T/T |
| Plastic processing: | PC,PET,PE/PP | Weight (kg): | 1000 |
| High pressure valve brand: | AirTAC | Applicable industries: | Food and Beverage Factory |
| brand: | Zhengge | automatic: | Do not |
| Maximum heating power: | 14KW | Machine weight: | 0.75 tons |
| Host size: | 1.85*0.77*1.75 | Showroom location: | Egypt, Canada, Germany, Philippines, Brazil, Peru, Korea, Tajikistan, Japan, Malaysia, Australia |
| Video shipment inspection: | if | Core components: | Bearings, motors, PLCs |
| Health status: | new | Voltage: | 380V |
| Packaging Details: | Wooden packaging or according to your requirements on semi-automatic pet execution making machine semi-blowing machine automatic pet sales blow molding equipment HS Code: 8477309000 3CBM | Marketing Type: | New Products 2022 |
| capacity: | 1 | application: | bottle |
| Mechanical test report: | if | Work pressure: | 0.8-10.0Mpa |
| Warranty: | 5 years | Theoretical output: | 800-1000pcs/hour |
| After-sales service provided: | Overseas service center available | Package preview: | |
| Power (kW): | 15 | brand: | delta |
| Blow molding type: | stretch blow molding |
Recommended Products
Product Description
Advantage

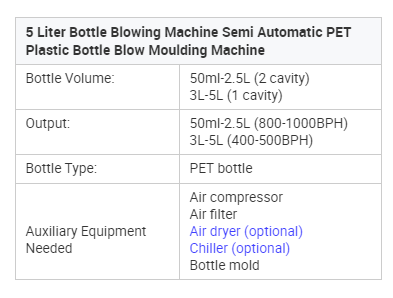

1. Semi-automatic operation of theoretical output:
400-500BPH 3L-5L bottle.
800-1000BPH 50ml-2.5L bottle. (requires additional components)
2. Advanced PLC control system, humanized touch screen.
3. Simple installation and start-up operation.
4. Double crank mold adjustment, heavy-duty mold locking, stable and fast.
5. The preform rotates in the heater to ensure uniform heating.
6. Equipped with an air cooling system to ensure that the bottleneck does not deform.
7. Equipped with a specially designed gas storage device.
8. Machine surface paint treatment.
400-500BPH 3L-5L bottle.
800-1000BPH 50ml-2.5L bottle. (requires additional components)
2. Advanced PLC control system, humanized touch screen.
3. Simple installation and start-up operation.
4. Double crank mold adjustment, heavy-duty mold locking, stable and fast.
5. The preform rotates in the heater to ensure uniform heating.
6. Equipped with an air cooling system to ensure that the bottleneck does not deform.
7. Equipped with a specially designed gas storage device.
8. Machine surface paint treatment.

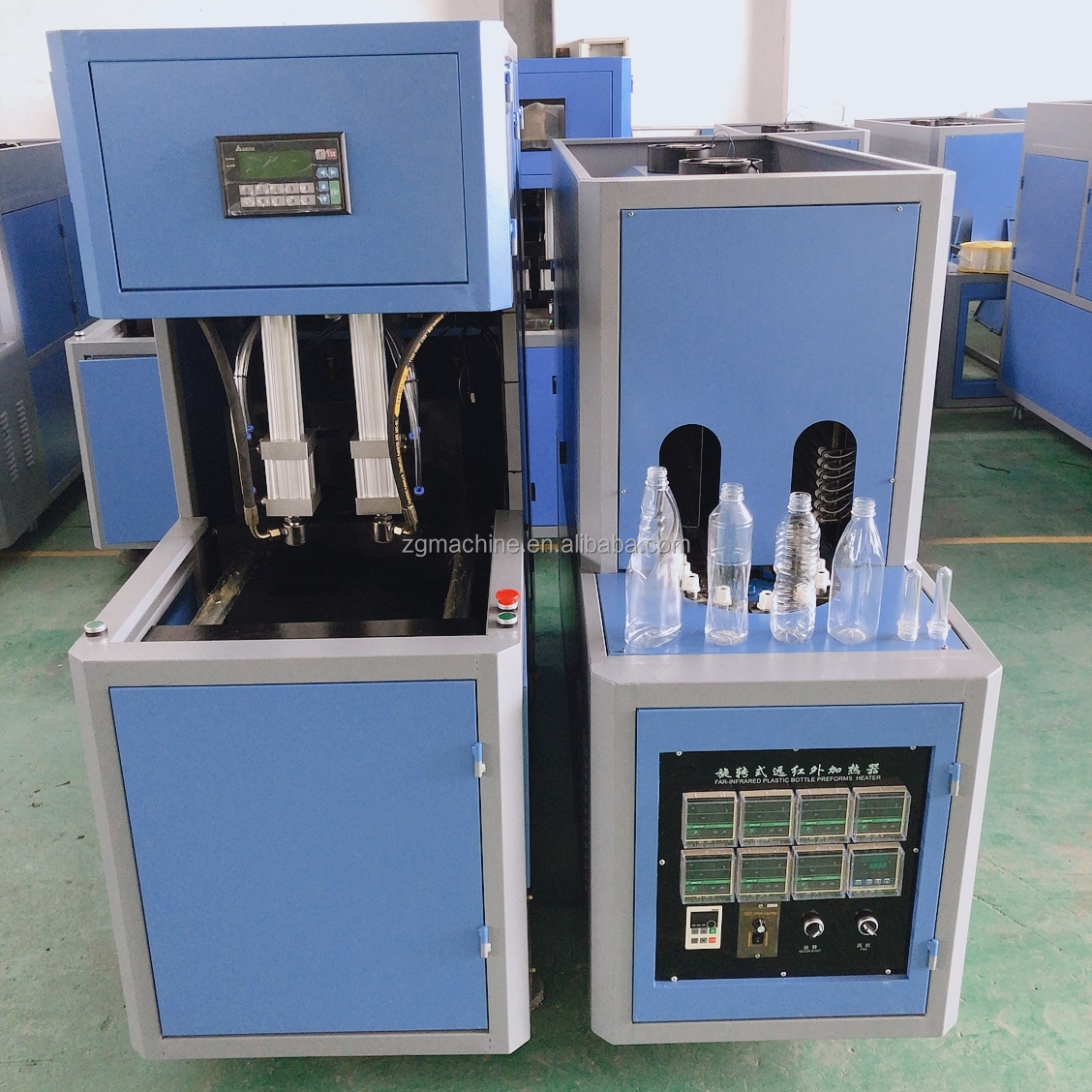

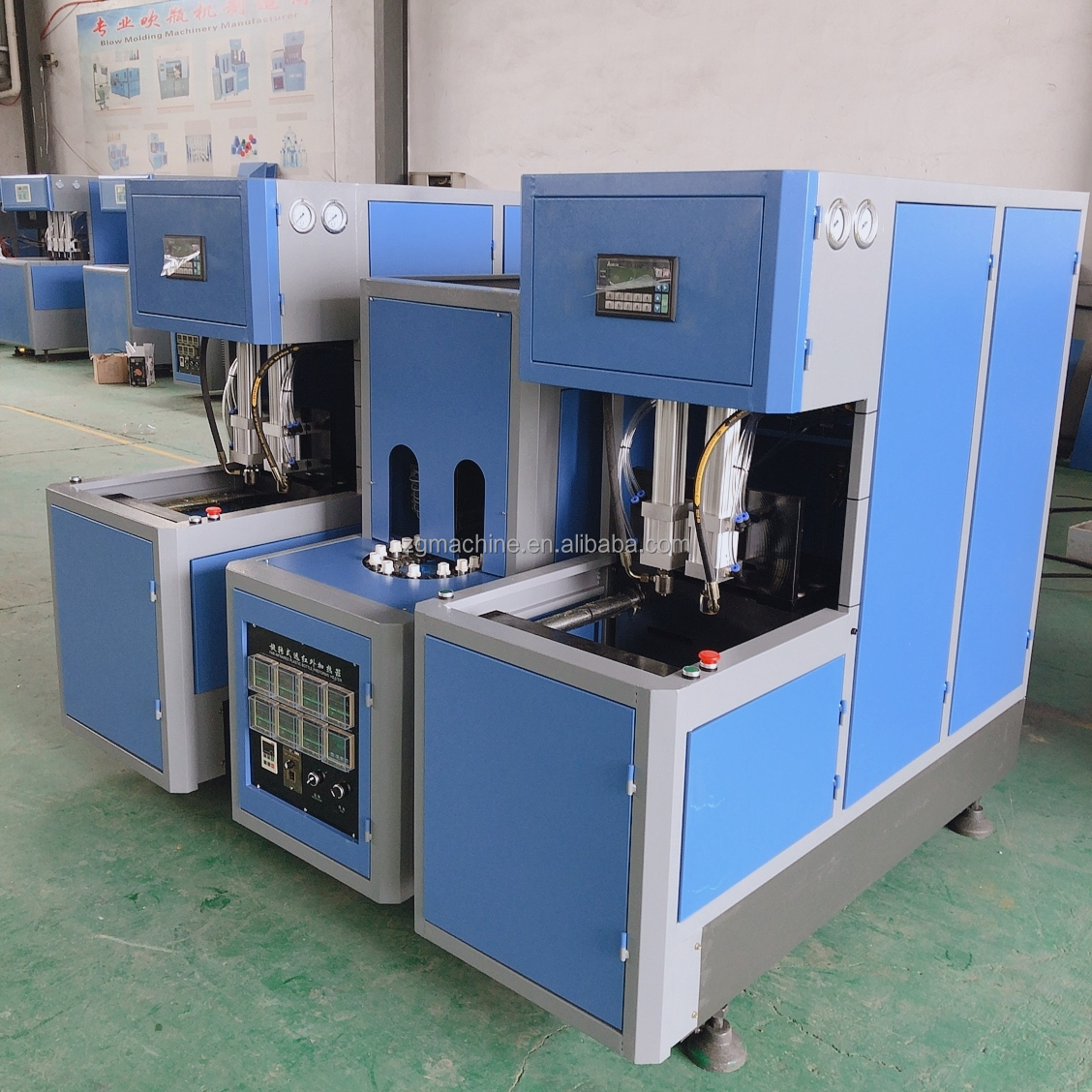

detailed image

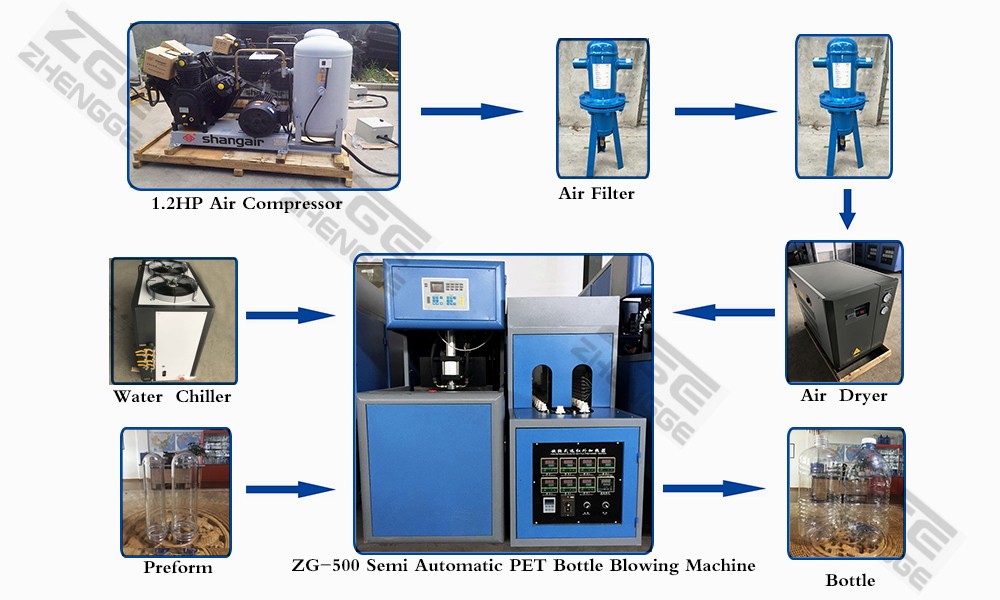

Auxiliary equipment
1.Air compressor: Compressed air for bottle blowing and blower action. (Pressure 3.0Mpa) 2. Air Tank: Stores high-pressure air.
3.air filter: Including 1 set of T-grade filters (1um) and 1 set of A-grade filters (0.01um). Cleans oil and dust.
4.air dryer: Cool and dry the air, improve bottle quality and prolong the life of pneumatic parts.
5.chiller: Cool the mold to make the machine suitable for working 24 hours a day.
1.Air compressor: Compressed air for bottle blowing and blower action. (Pressure 3.0Mpa) 2. Air Tank: Stores high-pressure air.
3.air filter: Including 1 set of T-grade filters (1um) and 1 set of A-grade filters (0.01um). Cleans oil and dust.
4.air dryer: Cool and dry the air, improve bottle quality and prolong the life of pneumatic parts.
5.chiller: Cool the mold to make the machine suitable for working 24 hours a day.
In order to ensure the safety of transportation, all equipment is packed with PE film and wooden box!
our service
before service
*Welcome to visit our factory.
* 24 hours online to answer your questions.
* Help customers choose the right machine.
* Video shooting at customer's request.
*Consider other needs of customers.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* We provide useful documents with the machine. (Machine Layout Drawings, Electrical Diagrams, Machine Certificates, General Manuals/Service Manuals)
* All spare parts are always available, the first year can be provided free of charge upon your request.
