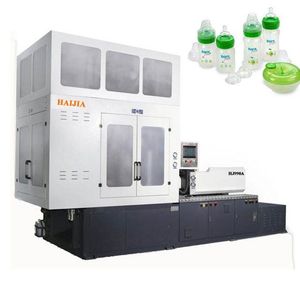

One Step Plastic Baby Bottle Making Machine Bottle Production Line Plastic Injection Blow Molding Machine

PRODUCT DETAIL
Voltage:380VHollow part volume:2 liters
Packaging Details:Standard export packagingSupply capacity:100 sets per month
Applicable industries:Machinery repair shop, manufacturing plantMechanical test report:if
application:bottleautomatic:Yes
Origin:Zhejiang, ChinaHealth status:new
Warranty:1 yearHigh pressure valve brand:SMC
automation:automaticPower (kW):37
weight:8800 kgport:Ningbo
brand:deltaCore components:engine
Blow molding type:injection blow moldingpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Clamping force(kN):1400Showroom location:Russia, Argentina, Bangladesh, Uzbekistan
speed:High Speed ​​Blow Molding MachineDimensions (L*W*H):7.3*2.2*2.1m
model:Haijia 350Plastic processing:PP,PC,ABS,HDPE,PVC,PET,PE,PE/PP
Power (watts):60KWCore component warranty:1 year
Main selling points:easy to operateMarketing Type:New Products 2020
Weight (kg):6000Drum brand:SMC
Year:2020After-sales service provided:Engineers available to service machinery overseas
brand:HaijiaVideo shipment inspection:if

high qualityProduction
The bottle neck screw size and the parting line of the bottle mouth are perfect, and the bottle body is stronger.
fully automatic
Automated production, no need to remove burrs, no need to transport preforms, greatly saving raw materials and labor costs.
Energy conservation
There is no need to reheat the preform, and with the energy-saving system, it can save about 30% of electricity.
Clean
Preform forming and bottle blowing are completed on one machine, which avoids the pollution of preforms during transportation.
stable
The machine runs smoothly with low noise.
Pocket
The machine is compact, from raw materials to finished products, there is no need to buy injection molding machines, which can greatly reduce equipment investment costs and save workshop space (machine and preform storage space).
easy to operate
The machine has a built-in error detection and alarm system, and it is displayed on the operating screen.
Wide range of applications

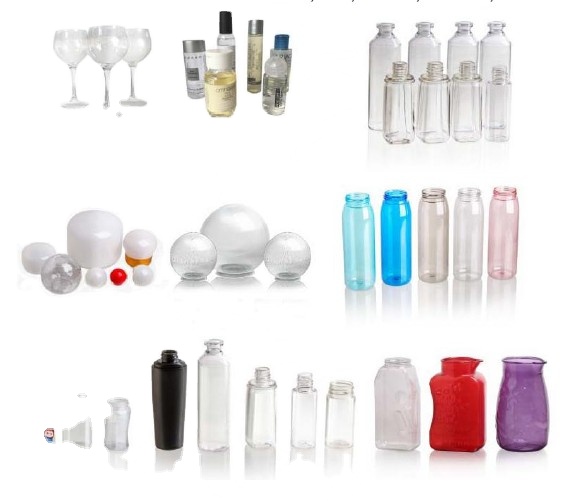

Machine production capacity from 5ml to 2500ml, from PET, PETG, TRITAN/PCTG, PP, PC. Only one machine can meet the needs of various materials.

Specification

HAJIA PC,TRITAN,PE,PETG,HIPS,PET,PP,PMMA/AS,PPSU,PEN,PLA injection blow molding machine

Technical Parameters:

A. Introduction
HAIJIA-B series injection blow molding machine (preheating). It has 3 to 8 chambers, and the maximum capacity of the product is 2000mL. Bottles of various shapes can be blown: carbonated beverage bottles, mineral water bottles, pesticide bottles, cosmetic bottles, jars, hot-filling bottles and other packaging containers, made of crystalline plastics, such as PPC, PP, etc.
1). High degree of automation
2). High degree of intelligence: the machine can be controlled through the touch screen, and the operating status is clear at a glance.
3). High quality: Stable infrared heating system blowing and high-precision blowing mold clamping system ensure quality.
4). High speed: 6000BPH (6 cavities), 8000BPH (8 cavities), 12000BPH (12 cavities), 16000BPH (16 cavities).
5). No pollution: closed production area, good self-lubricating system to avoid pollution.
6). Low cost: low consumption of electricity, air and water.
7). High transparency: easy maintenance, absolute safety, visual inspection, low noise.

B. Settings:
a).PLC color display: SIEMENS (GERMANY)
b). Pneumatic components: FESTO (Germany)
c). Preform transfer controller: servo motor National(JAPAN)
d).Other electrical components adopt world famous brands

C. Machine Features:
C.1. Advanced PLC with stable performance.
C.2. Use the conveyor to automatically transport the preforms.
C.3. The infrared preheater allows the bottle to rotate on its own and at the same time revolve on the track, with strong penetrating power and good and rapid heat distribution.
C.4. Strong adjustability, by adjusting the length of the lamp tube and reflector in the preheating area, the preheater can be preheated to form preforms, and the temperature inside the preheater can be controlled by an automatic constant temperature device.
C.5. High safety, each mechanical action has a safety automatic locking device, when a process fails, the process will enter a safe state.
C.6. The cylinder replaces the oil pump to drive the action, no pollution and low noise.
C.7. In the air pressure diagram of the machine, the blowing and action are divided into three parts to meet the blowing and mechanical actions of different atmospheric pressures.
C.8. Strong mold clamping force under high pressure, double crank connecting rod clamping.
C.9. Two modes of operation: automatic and manual.
C.10. Safe and reliable, the unique valve position design makes the air pressure diagram of the machine clear at a glance.
C.11. It has the characteristics of low cost, high efficiency, convenient operation, convenient maintenance, etc., and has an automatic process flow.
C.12. Avoid bottle contamination.
C.13. The cooling effect of the cooling system is satisfactory.
C.14. Ease of installation and startup
C.15. Low rejection rate: less than 0.2%.


No.

thing

unit

data

01

Screw diameter

mm

48-52

02

Theoretical injection volume

G

350-600

03

Injection clamping force

Potassium

990

04

blow clamping force

Potassium

80

05

Motor Power

kilowatt

30-37

06

heater capacity

kilowatt

16/9.4/4

07

working pressure

MPa

0.7-0.9

08

blowing pressure

MPa

2-3

09

Cooling water

bar

1-3

10

Machine size

rice

5.3*1.5*3.5

11

Overall weight (approx.)

Kilogram

6000

12

Applicable material

PC Tritan PETG PCTG
