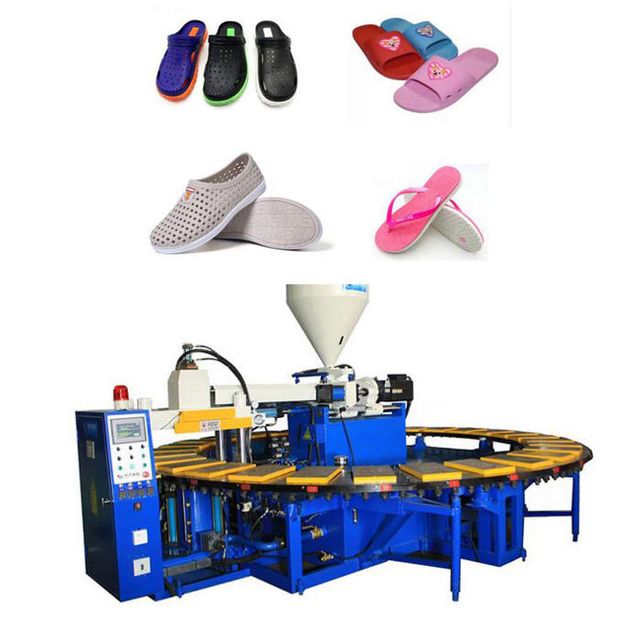

PVC Air PCU Shoe Slipper Sandal Molding Machine
- $12800.00 / 1 - 1 sets
$5000.00 / >=2 sets - 1 set
- Ningbo Haijiang Machinery Manufacturing Co., Ltd.
- Zhejiang, China
- Mr Haijiang China
advantage: | short cycle time | Ejection force (kN): | 45kN |
product name: | Injection molding machine | Plastic injection molding machine: | Injection molding machine |
Power (kW): | 7.5kW | Supply capacity: | 50 sets per month |
Video external inspection: | if | Packaging Details: | container |
type: | Shoulder injection | Mould height (mm): | 180 - 550 mm |
Mechanical test report: | if | Theoretical injection volume (cm³): | 349 cubic centimeters |
application: | insert plastic | Function: | Injection molding machine |
Core components: | Bearings, Motors, Pumps, Gears, PLCs, Others, Pressure Vessels, Engines, Gearboxes, Screws | Injection rate (g/s): | 128 g/sec |
Tie rod spacing (height) (mm): | 480mm | payment terms: | letter of credit, wire transfer |
Type of machine: | hydraulic | Plasticizing capacity (g/s): | 314 |
Injection weight (g): | 314 g | Screw speed (rpm): | 1 - 185 rpm |
Weight (kg): | 5500 kg | Warranty: | 18 months |
Plastic Processing: | PVC,FRPP/PVC,ABS/PP | Health status: | new |
After-sales service provided: | Provide overseas third-party support | Tie rod spacing (width) (mm): | 480mm |
Injector number: | 4 | Marketing Type: | Hot Products of 2021 |
Card: | Hajia | style: | horizontal |
Screw aspect ratio: | 20 | automatic: | Yes |
Ejector stroke (mm): | 130 mm | Showroom location: | Egypt, United States, Italy, Brazil, Peru, Saudi Arabia, Pakistan, India, Russia, Kenya, Algeria, Sri Lanka, Bangladesh, South Africa, Ukraine, Australia |
port: | Ningbo | place of origin; place of origin: | Zhejiang, China |
Distance between drawbars: | 470*470 | Key words: | Plastic Machinery |
brand: | Haijia | Plastic Type: | thermoplastic |
model: | HJF180 | Core Components Warranty: | 1.5 years |
Main selling point: | competitive price | Opening stroke (mm): | 450 mm |
Applicable industries: | Hotels, Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Screw diameter (mm): | 45 mm |

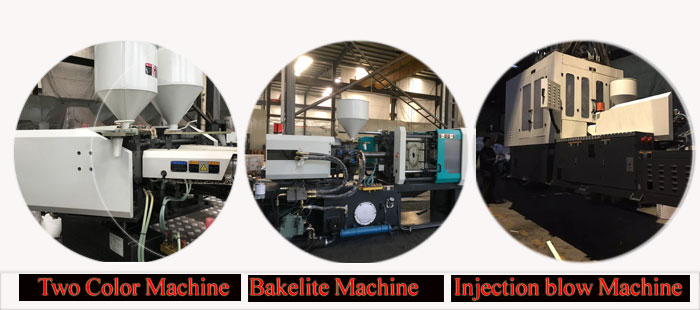

Haijiang provides various injection molding machines from 50T to 3000T, including color film machines, energy-saving injection molding machines, gear machines, double-clear injection molding machines, bakelite injection molding machines, PET preform injection molding machines, fixed pump and variable pump injection molding machines, PVC Pipe fitting injection molding machine, injection molding machine screw barrel, etc.
Machine Components:
1. This machine is mainly configured with most of the imports such as:

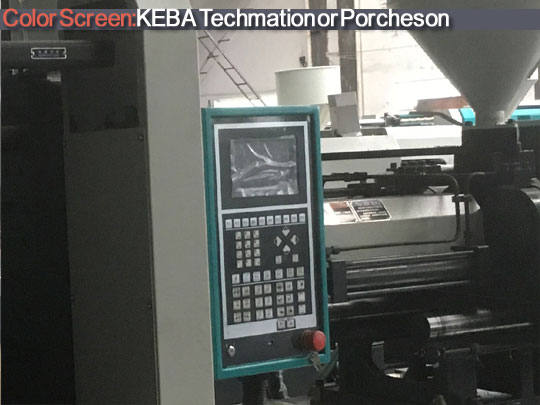

Machine PLC, 80T-290T is Porcheson, 360T-580T is Techmation, over 650tT is Keba
Korea Air Circuit Breaker - LS
Japanese Limit Switch - Omoron

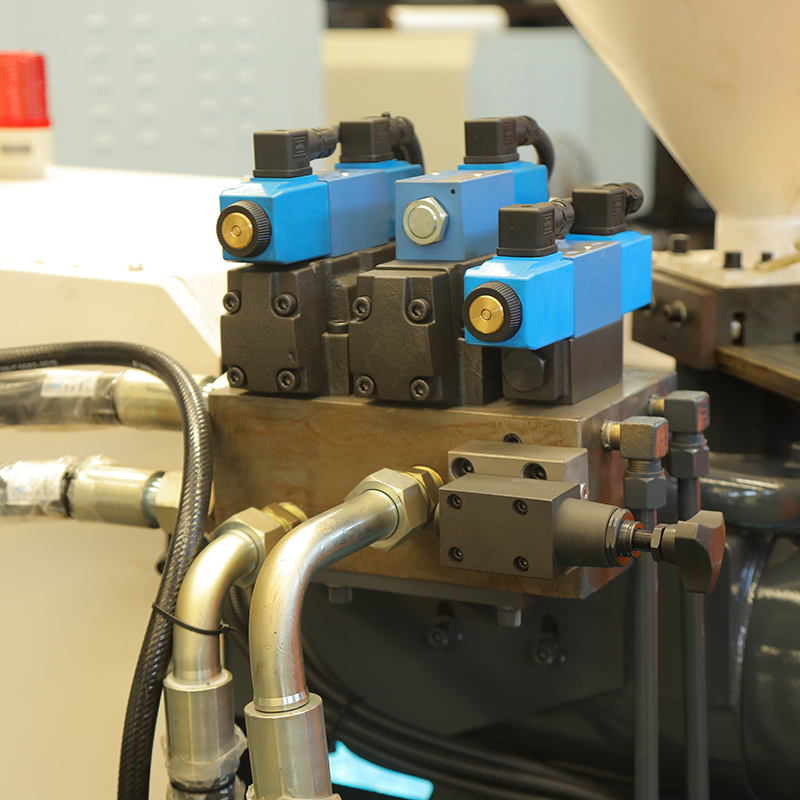

American-Vickers Directional Valve
Taiwan SSR (Solid State Relay)-Fotek
Taiwan Servo Drive-Detla
Servo pump made in Japan-Sumitomo
American Servo Motor-Albert
German-Ashcroft Servo Sensors
And note:
1. Machines above HJF650 include proportional back pressure valve.
2. Machines above HJF650 include hydraulic safety devices.
3. Machines above HJF780 include automatic doors and loading platforms.
4. If the machine needs to add the above additional equipment, additional charges will be required
Injection molding machine free spare parts:
Clamping and Bolting: 8PCS, Nozzle: 2PCS, Tool Box: 1SET, Heating Ring: 2PCS,
Lubricant: 1 barrel, limit switch: 2PCS, hexagon wrench: 1SET,
Thermocouple: 2PCS, sealing ring: 2PCS, auxiliary power socket: 2PCS,
Wrench: 1PCS, Screwdriver: 2PCS, Vise: 1PCS, Machine Shock Pad: 6PCS
The main technical data of 180T injection molding machine are as follows:
Specification |
HJF180 |
|||
screw type |
One |
Second |
C |
|
Screw diameter |
mm |
42 |
45 |
50 |
Screw aspect ratio |
long/deep |
22.5 |
20 |
18.8 |
Lens size (theoretical) |
cubic centimeter |
304 |
349 |
431 |
Injection Weight (PS) |
G |
274 |
314 |
388 |
injection rate |
g/s |
108 |
128 |
158 |
injection pressure |
MPa |
202 |
159 |
140 |
Screw speed |
number of revolutions |
0~185 |
||
clamping force |
KN |
1800 |
||
Open itinerary |
mm |
450 |
||
space between tie rods |
mm |
480*480 |
||
Maximum mold height |
mm |
500 |
||
Minimum mold height |
mm |
180 |
||
Ejector stroke |
mm |
130 |
||
Ejector tonnage |
KN |
45 |
||
Max pump pressure |
MPa |
16 |
||
Pump motor power |
kilowatt |
15 |
||
Heater power |
kilowatt |
7.5 |
||
Motor Power |
kilowatt |
19.2 |
||
Machine size (L*W*H) |
Meter |
5.1*1.4*1.9 |
||
machine weight |
Ton |
5.5 |
||
Fuel tank capacity |
large |
240 |

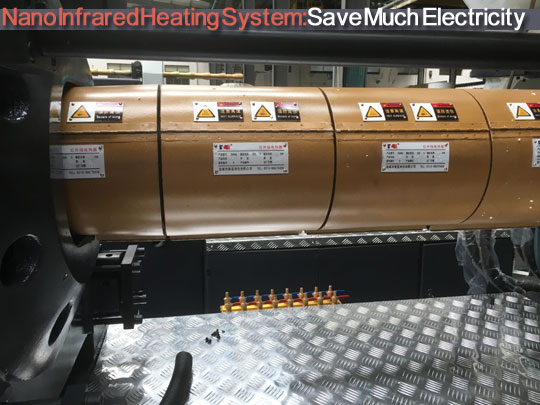

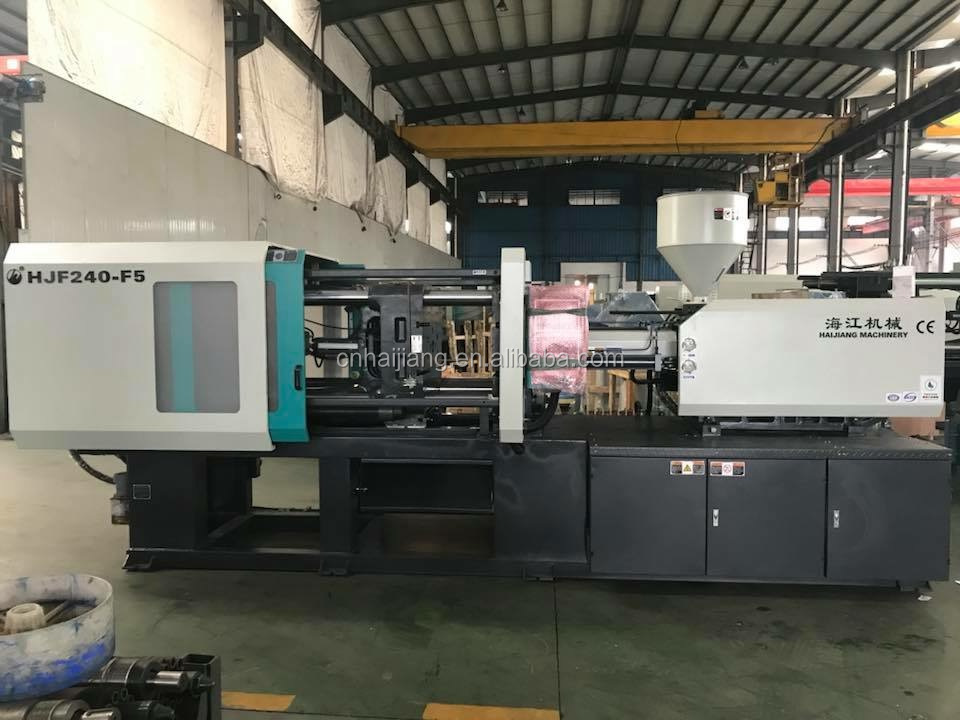

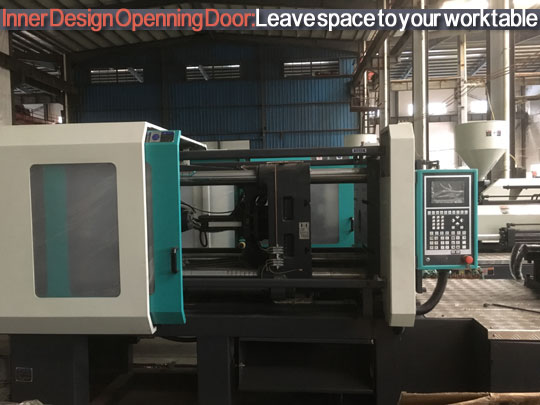

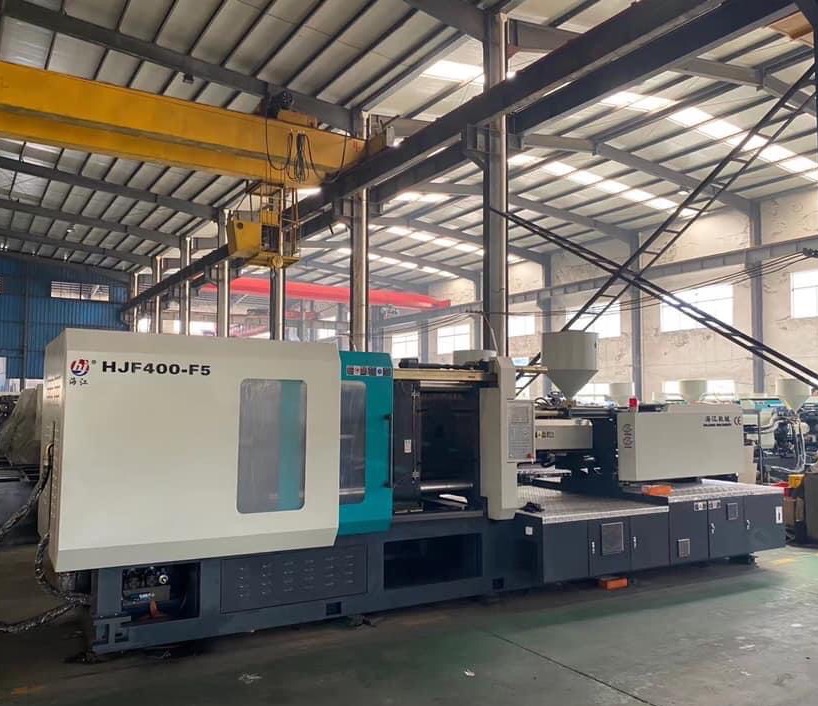

Haijiang injection molding machine picture display:
Haijiang Injection Molding Machine Certificate
Are you interested? If so, you can contact me directly:
whatsapp : 008618270239344
WeChat: 18270239344
