Three-layer extrusion line of PE packaging film blowing machine
- $80000.00 /set
- 1 set
- Laiwu Huaya Polymer Sci.&Tech. Co., Ltd.
- Shandong, China
- Mr Steven Cao
| Core component warranty: | 1 year | Voltage: | 220 volts |
| Showroom location: | Pakistan, Russia, South Korea | Name: | Huaya film blowing machine |
| Main selling points: | cheap price | payment terms: | wire transfer |
| Mechanical test report: | if | Winding: | Double station winding machine |
| Video shipment inspection: | if | strength: | 37 kW |
| Dimensions (L*W*H): | 12*5*8.8 | Warranty: | 12 months |
| Extruder: | single screw extruder | Plastic processing: | polyethylene |
| application: | envelope | roller: | 800mm folding roll |
| Applicable industries: | manufacturing plant | technical support: | Engineer installation training |
| Origin: | Laiwu, China | Packaging Details: | wooden box |
| Serve: | Alan Chen | origin: | Laiwu, China. |
| Core components: | PLC, bearing | port: | Qingdao Port |
| weight: | 3800 | Year: | 2018 |
| Blow molding type: | blown film | Mold: | 250mm, customized |
| Health status: | new | Traction: | Upper traction and secondary traction |
| Supply capacity: | 3 sets per month | brand: | Huaya |
| style: | Three-layer co-extrusion |
Three-layer extrusion line of PE packaging film blowing machine
Here are some details of the machine:
3FM800Packaging Blown Film Machine
1.extruder parts
Screw diameter:50mm
Screw aspect ratio: 28/1
Structural form: corrugated screw with mixing head
Screw material: 38CrMoAl
Process: normalizing - quenching and tempering - stress relief - nitriding
maximum. Screw speed: 150M/MIN
Cylinder heating area: 4 zones
Heater Type: Stainless Steel Heater
Cylinder cooling fan: (3 units in total)
Structure: The inner part is made of cast aluminum ring, and the outer part is made of stainless steel heating ring.
Gearbox Material: Match hardened gearbox.
Gearbox lubrication method: oil circulation lubrication
Host motor power: 45KW; motor frequency conversion control
2.diehead
Die diameter: 400
Die gap: 1.2-2.0MM
Heater: stainless steel heater
Machine head material: 45#; hard chrome-plated flow path inside the machine head.

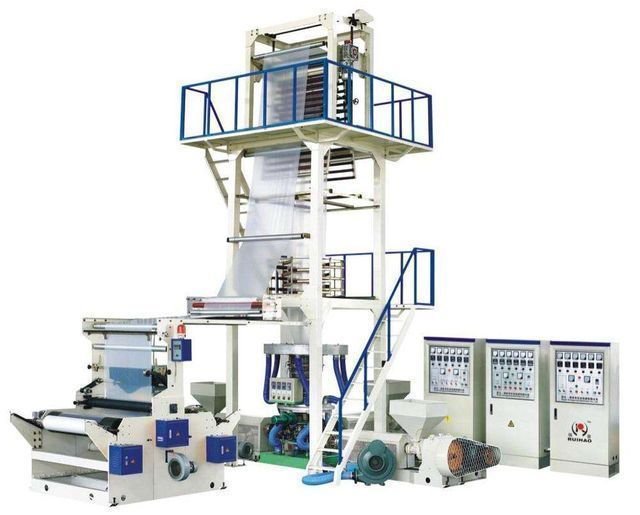

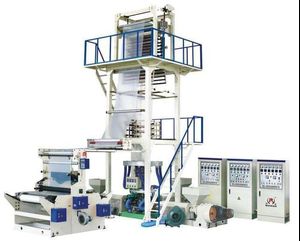

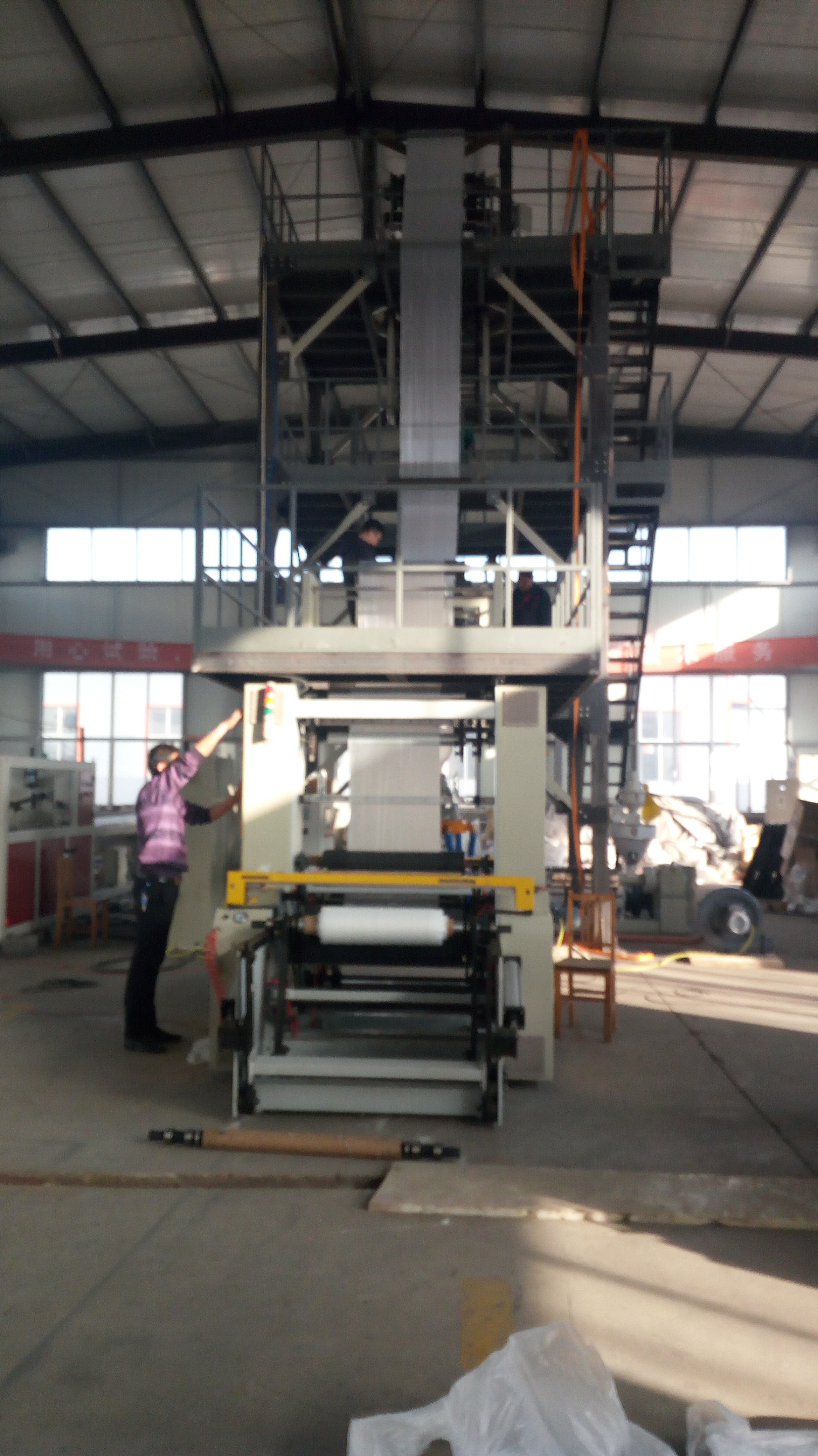

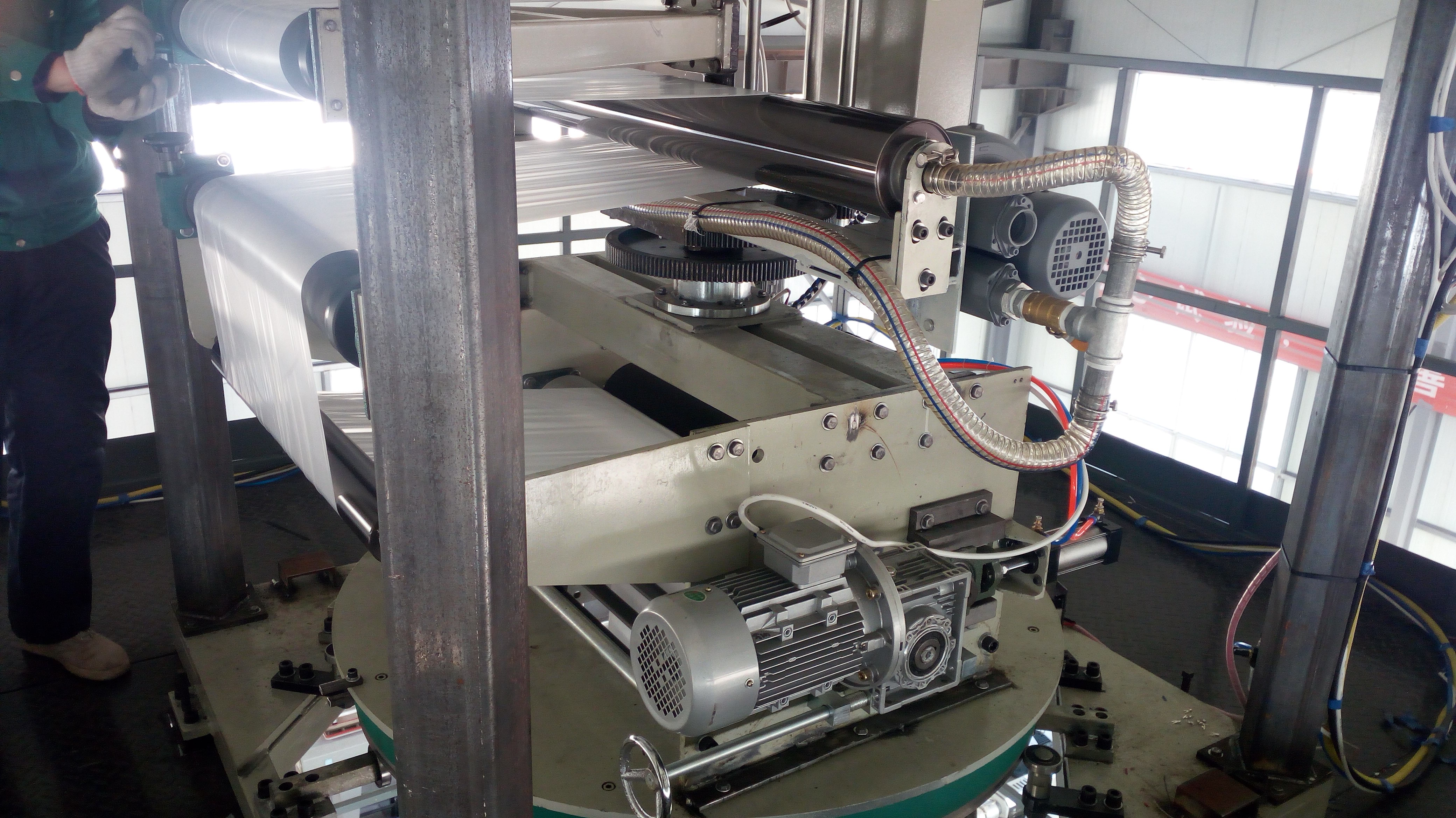

3.Pictures of the whole production line
