Paper honeycomb core expander

PRODUCT DETAIL
Supply capacity:60 sets per yearOrigin:Jiangsu, China
strength:18 kWMaximum expanded thickness:90 mm
port:ShanghaiVoltage:380V/220V
payment terms:L/C, T/TMaximum Expanded Width:1600mm
After-sales service provided:Engineers available to service machinery overseasShipping Details:30 days
Automatic level:automaticPackaging Details:Sea packing
Function:Expanded honeycomb core plugged into the doorusage:Mechanical hardware
speed:0.7--8m/minWarranty:1 year
weight:700 kgbrand:Asia Union
type:Honeycomb core expandermodel:YLHE
Health status:newDimensions (L*W*H):3750*1800*1375 mm
Minimum cutting length:20 cm
machine details

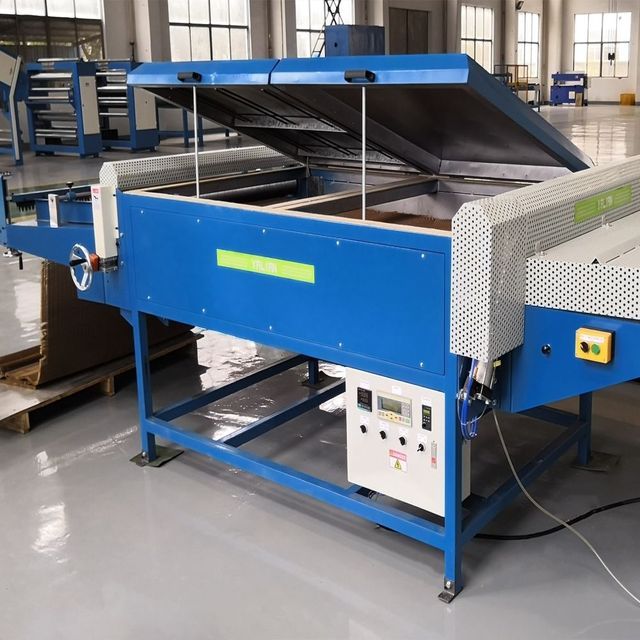

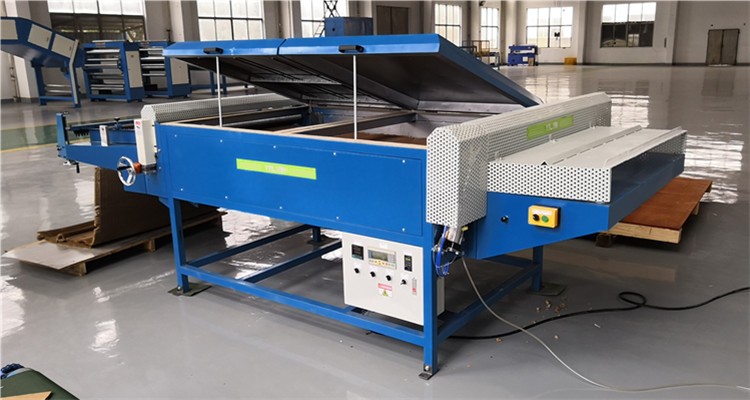

Paper honeycomb core expander:

This machine is used for expanding the diameter of paper honeycomb core. It includes two heating chambers that expand without shrinking. It has a crosscut and can also have a slitting blade inside if desired. The number of blades can be customized. This machine is widely used by door manufacturers.

Maximum Expanded Width
1600mm
Voltage
380V/50HZ three-phase
maximum expansion thickness
90mm
strength
18KW
speed
0.7--8m/min
pressure
4-6kg/cubic centimeter
Minimum cutting length
20cm
weight
700 kg

Matt roller

• With calibration function, it is easier to stick the face paper

traction roller

• Automatic core feeding, saving labor cost

can be cut

• Cutting to the size required by the customer

main feature:

1) With two heating chambers for better molding, the expanded core will not shrink

2) Both cross-cut and vertical cut are available

3) With calibration function

4) With automatic core feeding function

5) Using famous brand electrical components

6) Easy to fit and maintain

application
door filler

• Core for door packing

board lamination

• Core for board lamination

furniture board

• Core for board lamination

detailed image

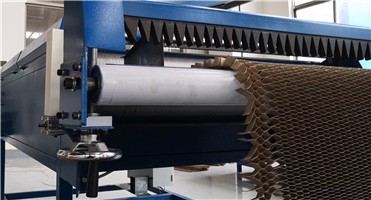

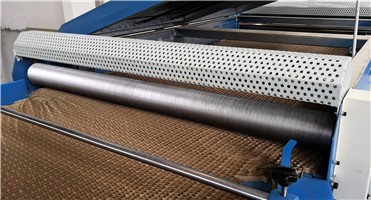

traction roller

• Paper honeycomb core automatic feeding
• Save labor costs

substance roll

• Surface paper lamination with better surface treatment
• With calibration function

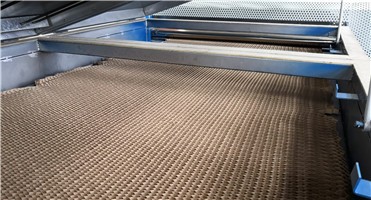

heating chamber

• Dual heating chambers for better molding


Slitter

• Used to cut into customer's required size

Packaging and Shipping
our service

pre-sale service

* Inquiry and consultation support.
* Machine design and quotation sheet with technical details
* Check out our factory and see machines in action

After-sales service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.

certified
