Semi-automatic stainless steel 304 turntable collection glass bottle sorting sorting table machine
- $700.00 / 1 - 1 sets
$500.00 / >=2 sets - 1 set
- Zhangjiagang City Bottling Machinery Co., Ltd.
- Jiangsu, China
- Mr Phil Lane
PRODUCT DETAIL
State of health: | new | Materials used for packaging: | wooden box |
Material: | Stainless steel | weight: | 150 kg |
Mechanical test report: | if | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
place of origin; place of origin: | Jiangsu | Core components: | bearings, motors |
Bottle type: | any type | Applicable industries: | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Store, Other |
Certification: | CE ISO9001 | Marketing Type: | New Products 2020 |
Automatic level: | semi-automatic | usage: | Supply bottles for filling machines, beverages |
Voltage: | customized, customized | Video shipment inspection: | if |
port: | Shanghai Port or Ningbo Port | brand: | bottling |
Packaging Details: | Seaworthy packaging | Main selling points: | energy saving |
Warranty: | 1 year | Core component warranty: | 1 year |
Bottle volume: | 100-2000ml | Supply capacity: | 25 sets per month |
Types of: | Decryptor | Showroom location: | not any |
speed: | 1000-8000BPH | Automatic level: | semi-automatic |
Name: | bottle feeding turntable | Dimensions (L*W*H): | 850*850*1200mm |
Product Description
All models of our unscramblers

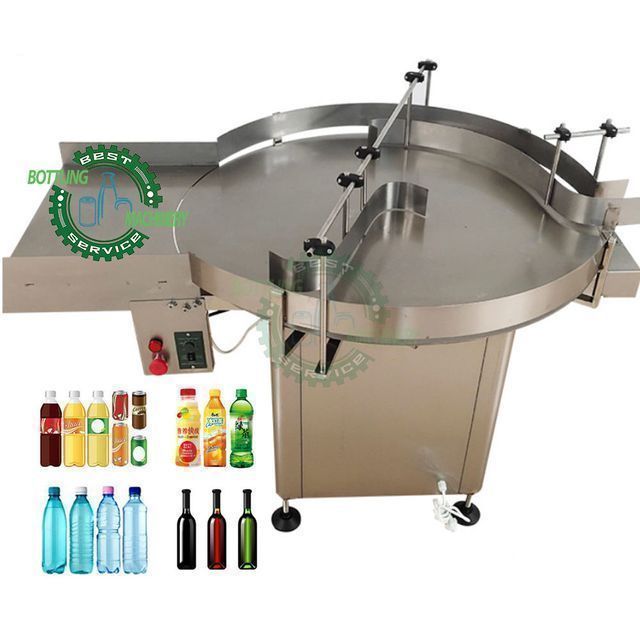

Semi-automatic rotary bottle feeding table:
It is suitable for automatic conveying of round bottles, such as the conveyor belt connected with labeling machine, filling machine and capping machine, which can automatically feed bottles and improve efficiency; it can be used as a buffer platform at the middle connection of the assembly line to reduce the length of the conveyor belt. 1. The range of applicable bottles can be adjusted freely, the bottle conveying speed is 30~80 bottles/minute, and the speed is steplessly adjustable, which is convenient for production arrangement. 2. Product placement, collection, and sorting reduce labor intensity and improve efficiency. The structure is relatively simple, stable and reliable. 3. The turntable of the bottle unscrambler drives the product to rotate automatically, and the product clings to the edge of the turntable under the fluctuation of the bottle unscrambler, and the product is exported in an orderly manner along the bottle slot of the bottle unscrambler mechanism.
model details | turntable | ||||
Turntable diameter | 550mm | 800mm | 1200mm | ||
Rotating speed (rev/min) | 0-12 | 0-10 | 0-8 | ||
net weight | 50 kg | 70 kg | 90 kg | ||
total weight | 80 kg | 100 kg | 120 kg | ||
Dimensions (mm) (L*W*H) | 600*550*1000 | 850*850*1100 | 1200*1200*1100 |
Manual bottle insertion rotary feeding table:
Workers pour the bottles on the top of the middle of the bottle unscrambler, and then insert the bottles one by one into the insertion holes around the workbench. The size and number of holes are designed according to the diameter, height and speed requirements of the bottles; the whole machine is made of SUS304 material, and the turntable Reinforced plastic is used, which is convenient for cleaning and maintenance; the machine is equipped with a speed-regulating motor, which is convenient for speed regulation;

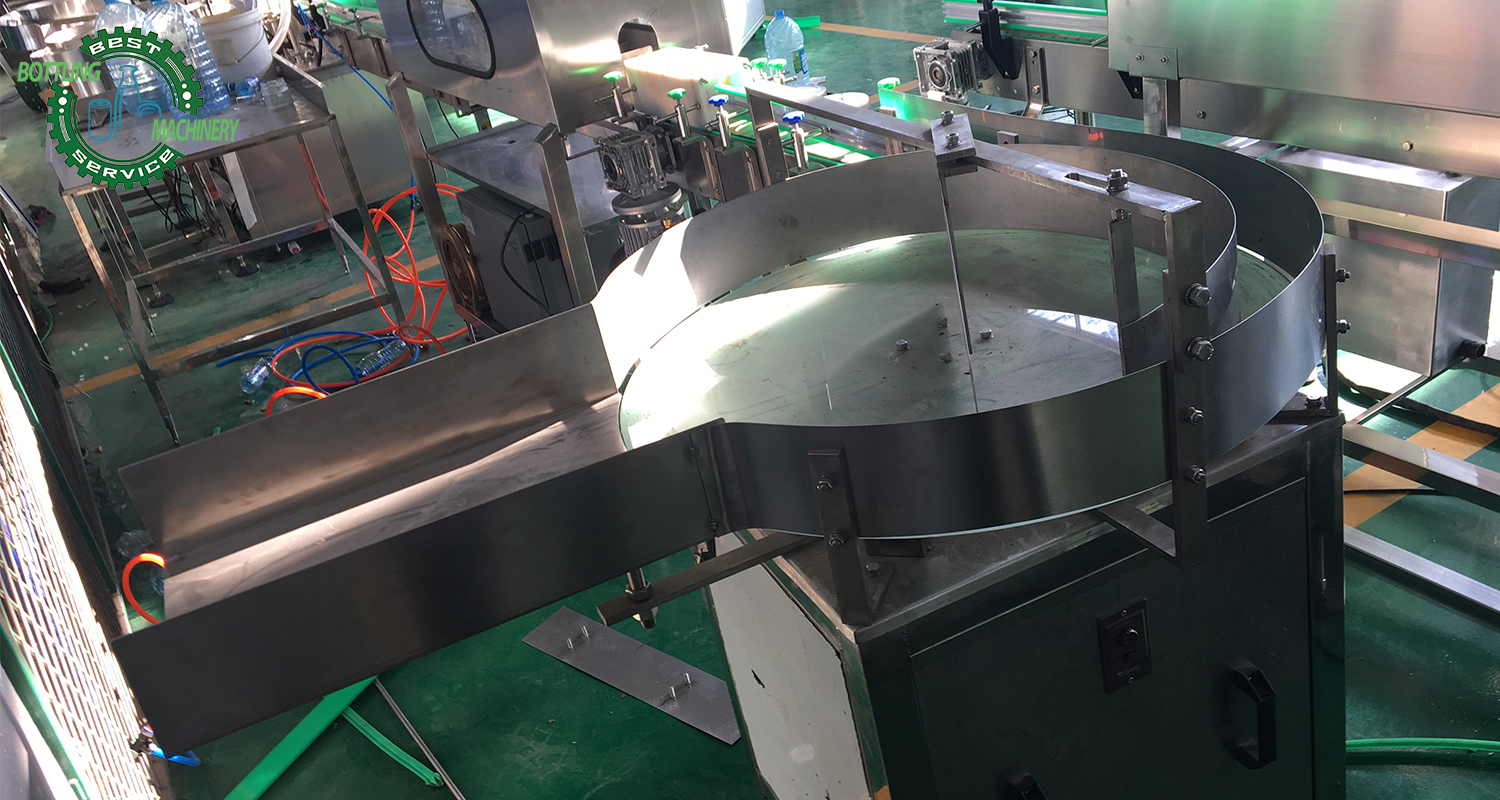

Bottle carousel:
The stacking table is connected with the belt conveyor, and the motor-driven turntable brings the bottles in. The speed of the turntable can be adjusted to suit the speed of the conveyor; the whole machine is made of stainless steel, which is easy to clean and maintain; advantages: 1. Suitable for various types and materials , the shape of the bottle; 2. The speed can be changed freely through the frequency converter;
Automatic PET bottle unscrambler:
When the bottle lifting machine starts, the messy bottles are transferred to the top of the umbrella tower and fall into the bottle lifting device, and the bottle lifting device pushes the bottles into the bottle drop groove under the action of the cam. The ordered bottles are then fed into the air conveyor via planetary wheels. The planetary gear is connected with the motor shaft through a synchronous belt.Structure: The main machine adopts a barrel-shaped casing, and the bracket is adjustable. The bracket is used to adjust the height and balance of the machine. There is a rotary cylinder inside the frame shell, and there are bottle drop slots fixed outside, the number is the same. The bottle lifting device is fixed inside. In the center of the machine, there is a stable umbrella-shaped tower. Working principle: After the bottle lifter is started, the messy bottles are transferred to the top of the umbrella tower, and then fall into the bottle lifter, which pushes the bottles into the bottle drop chute under the action of the cam. The ordered bottles are then fed into the air conveyor via planetary wheels. The planetary gear is connected with the motor shaft through a synchronous belt.
Model | LPJ-18 | LPJ-20 | LPJ-22 | LPJ-24 | |||
Capacity (500ml) | 8000 bottles/hour | 10000 bottles/hour | 12000 bottles/hour | 20000 bottles/hour | |||
Dimensions (mm) | ¢1800*2200 | ¢2000*2200 | ¢2200*2200 | ¢2250*2200 | |||
jobs | 18 | 20 | twenty two | twenty four | |||
layers | single | single | single | double | |||
weight | 2500Kg | 2800Kg | 3000Kg | 4200Kg | |||
air pressure | 0.7Mpa | ||||||
Air consumption | 0.2 cubic meters per minute | ||||||
host motor | 1.1KW | 1.1KW | 1.5KW | 2KW | |||
elevator power supply | 0.55KW | ||||||
Empty bottle elevator | 3600*1300*1300mm |

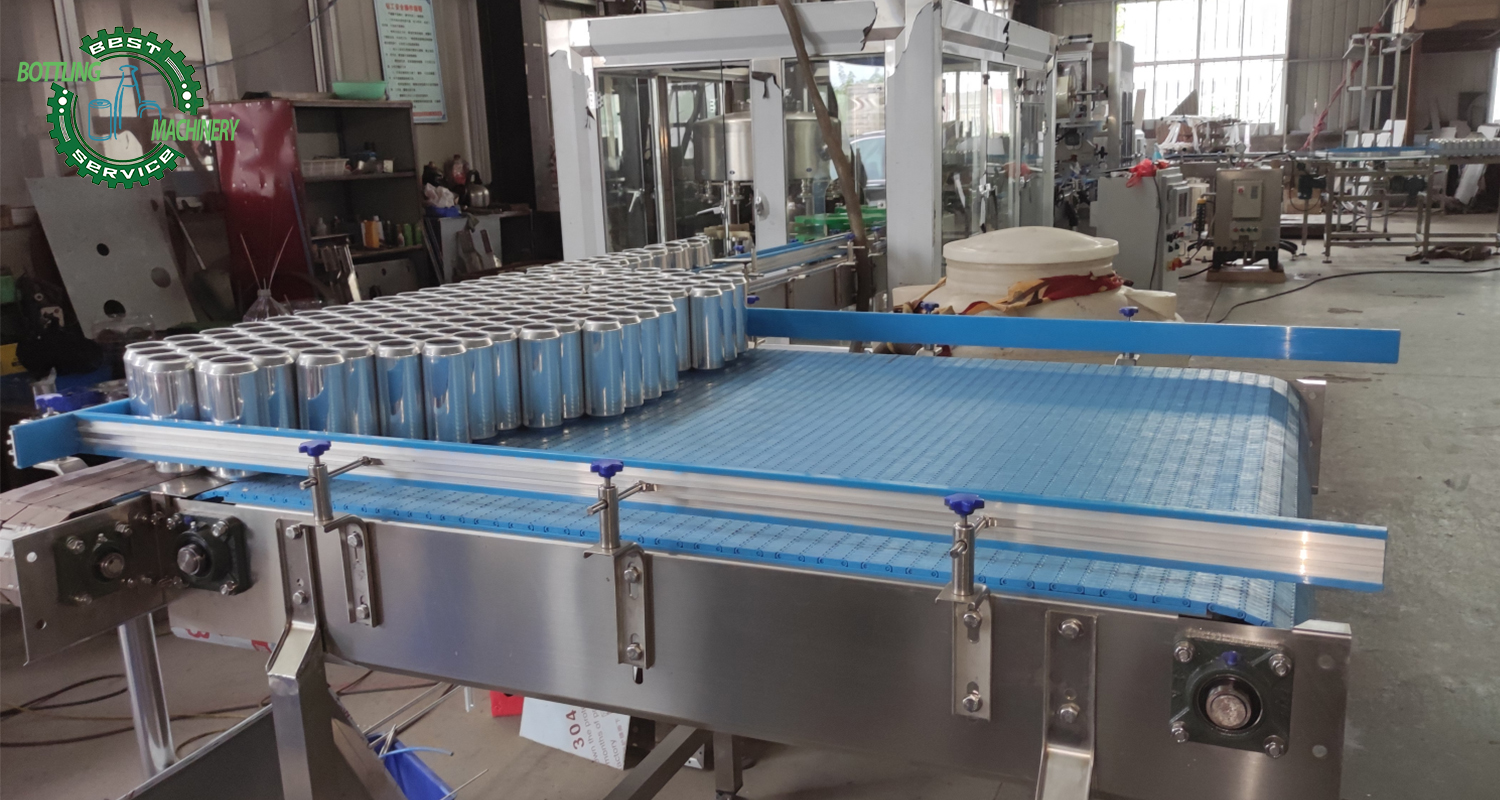

Bottle infeed conveying platform:
Wide conveying, multiple bottles can be placed on the conveying platform at one time. It is located at the front of the production line, and the empty bottles can be manually pushed onto the delivery platform with a trolley. The wide conveying platform is perpendicular to the single-row conveying, and the messy bottles are conveyed one by one through the single-row.Bottle accumulation conveying platform:
The bottle receiving conveyor platform is located at the end of the production line. It is a combination of multiple rows of conveyors. Filled bottles are manually packed or cased by a conveyor platform.We can also provide the whole bottled water production line,Please check the following:

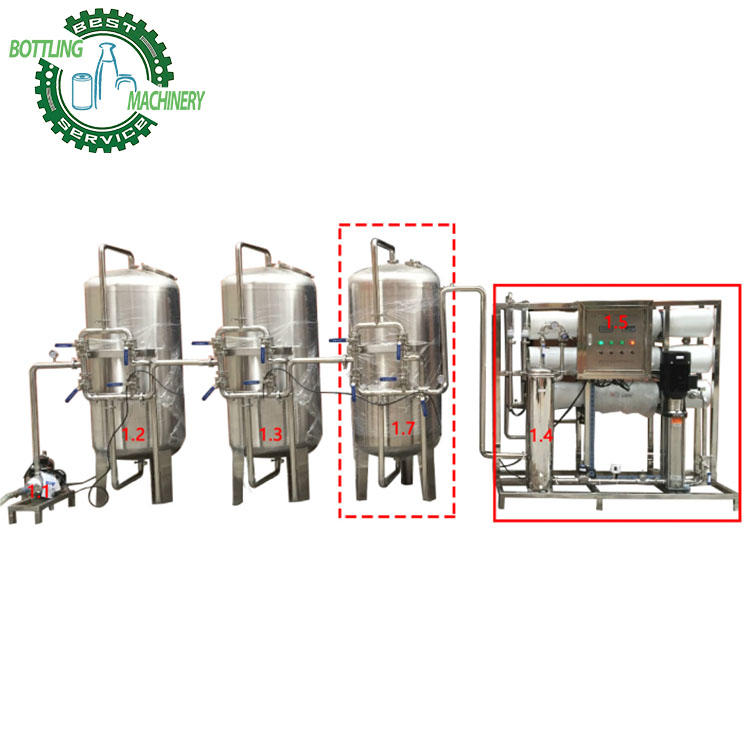

RO water treatment machine

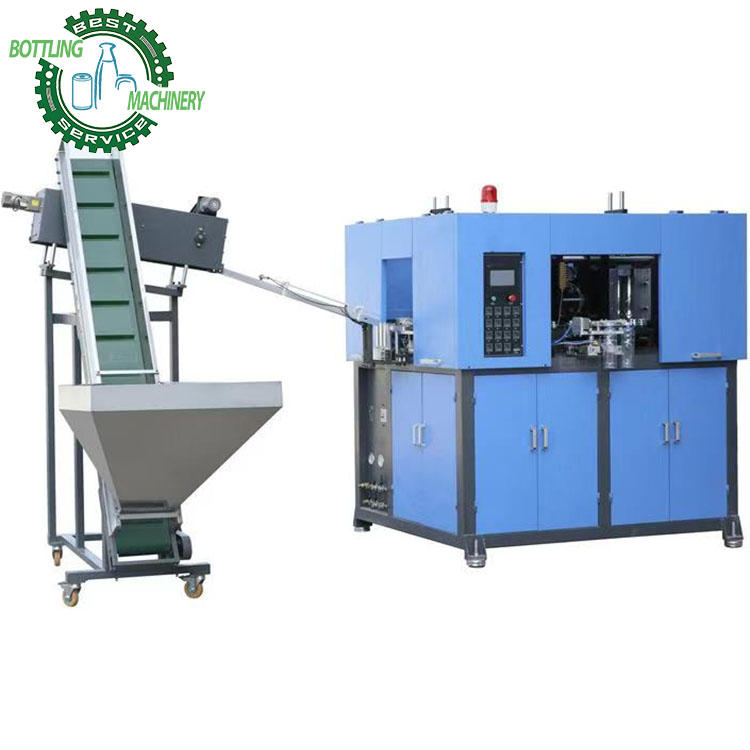

Blow Molding Machine
Blow Molding Machine

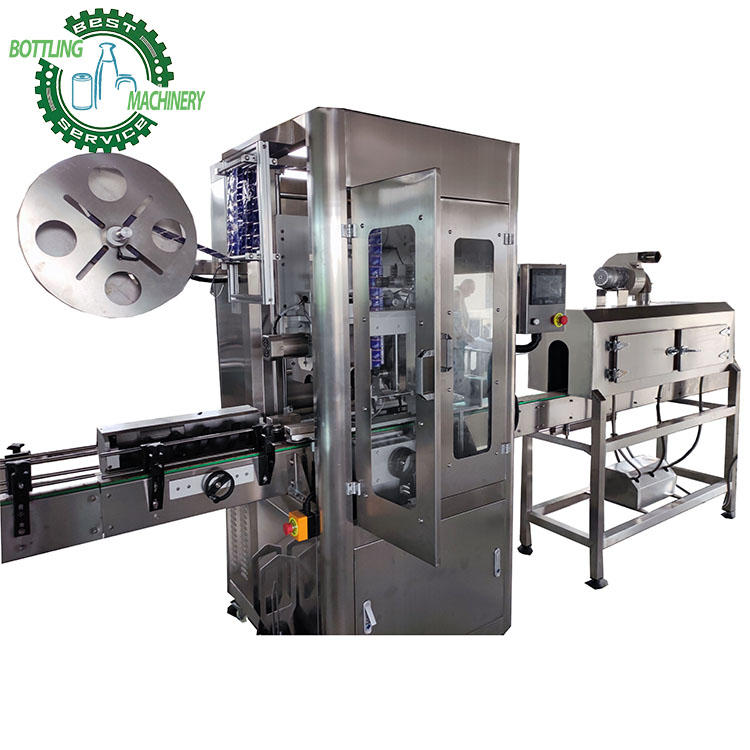

bottle labeling machine

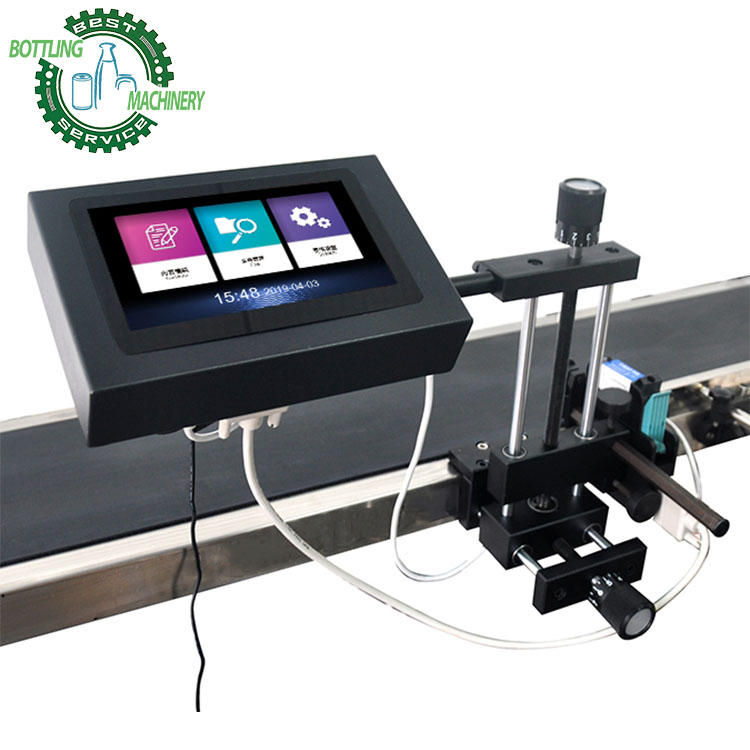

coding machine

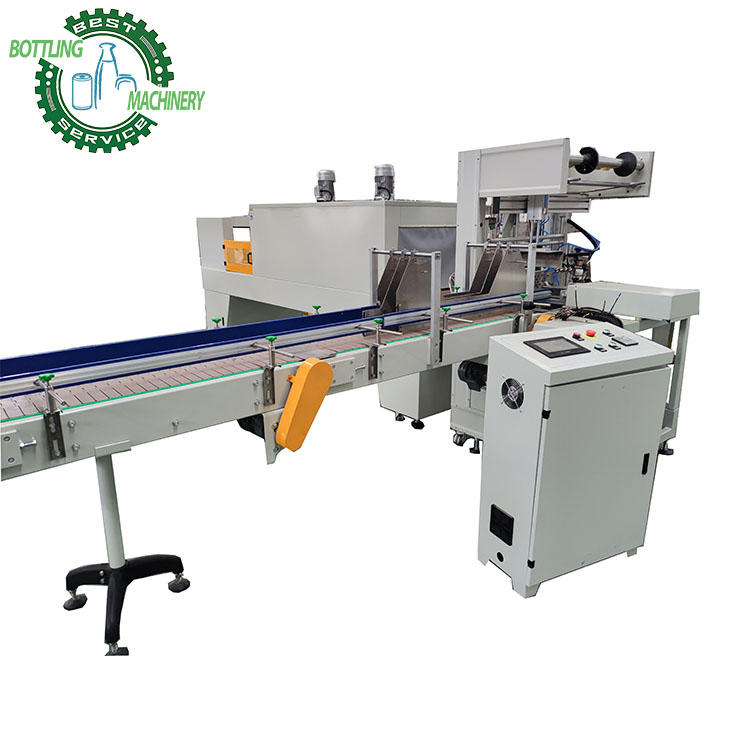

Film Shrink Packaging Machine
