Semi automatic small 2000bph rotary beer wine glass bottle 24 head water jet washing machine with heater
- $790.00 / 1 - 1 sets
$500.00 / >=2 sets - 1 set
- Zhangjiagang City Bottling Machinery Co., Ltd.
- Jiangsu, China
- Mr Phil Lane
PRODUCT DETAIL
| pack: | wooden box | weight: | 125kg |
| Options: | water heating | product name: | Semi-automatic bottled water washing machine |
| Washing position: | 24 or 30 | Video external inspection: | if |
| Warranty: | 1 year | Sales unit: | single product |
| Water consumption: | about 200 liters per hour | Application bottle: | Plastic glass bottles, cans, etc. |
| Processing: | washer | place of origin; place of origin: | Jiangsu |
| Dimensions (L*W*H): | 850*850*1150mm | Voltage: | custom made |
| brand: | bottling | Material: | Stainless Steel 304 |
| Core Components Warranty: | 1 year | Pump power: | 0.37KW |
| Gross weight per piece: | 20.000 kg | Washing speed: | 1500-3000BPH |
| Marketing Type: | New Products 2020 | Single package size: | 25X24X25 cm |
| Certificate: | CE/ISO9001 | Core components: | Bearings, motors |
| Showroom location: | not any | Mechanical test report: | if |
| Health status: | new | Applicable industries: | Hotels, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Food and Beverage Stores, Others |
| Packaging Details: | Seaworthy packaging |
Product Description

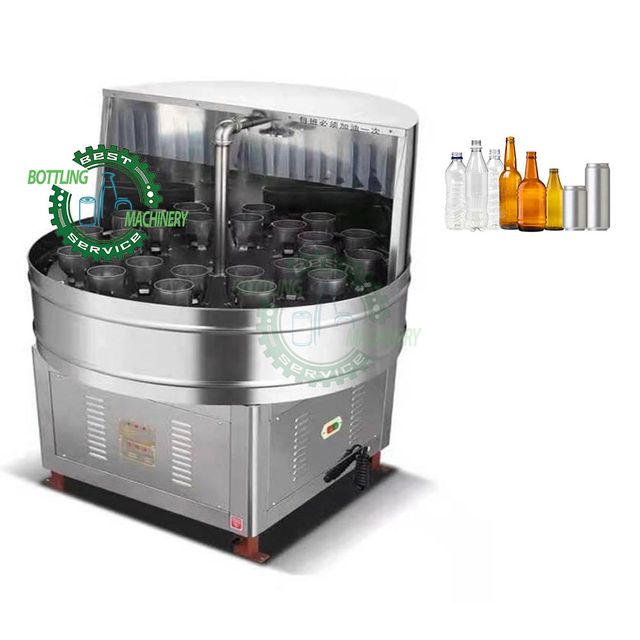

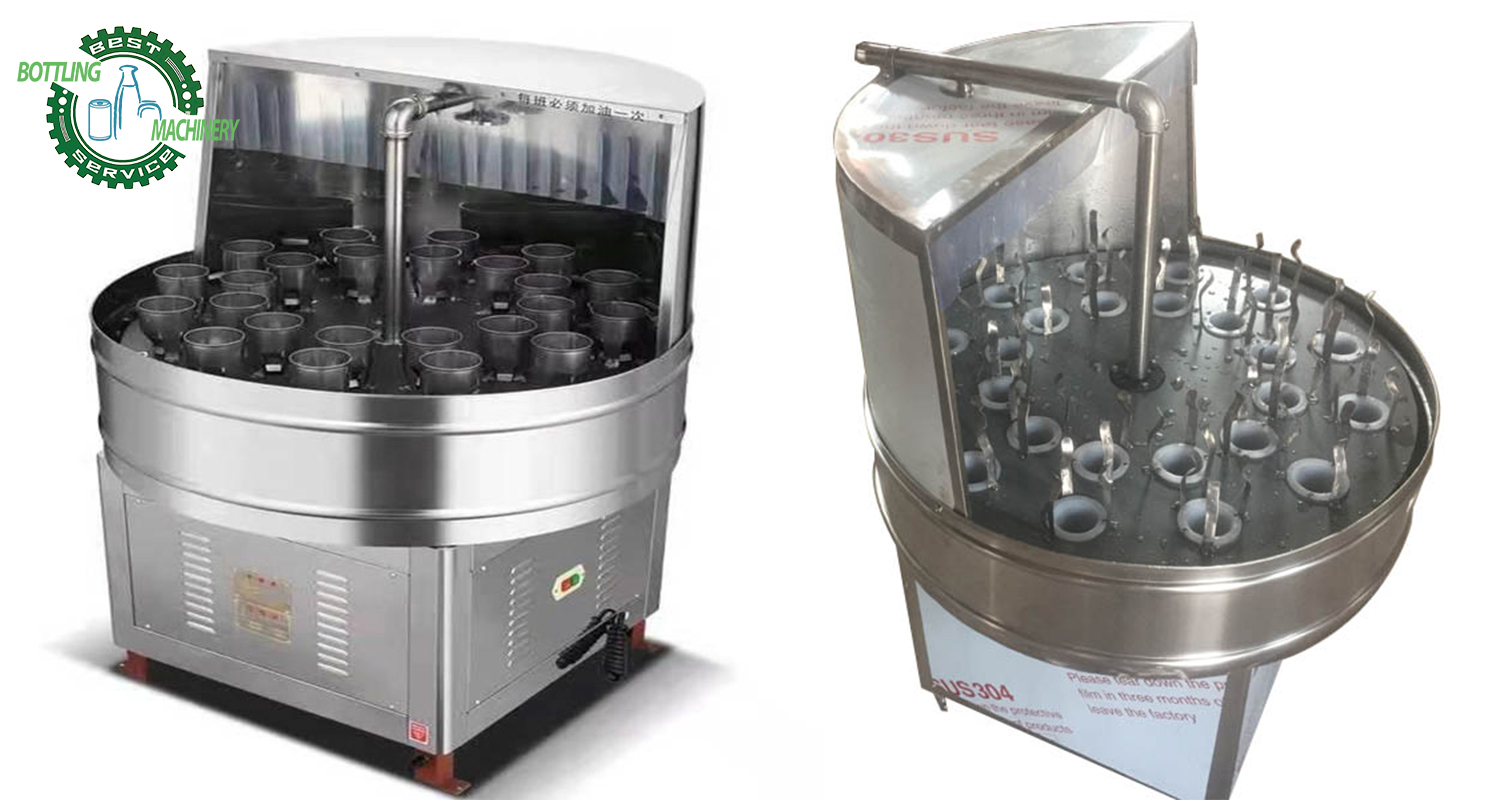

Semi-automatic water purifier for all kinds of bottles
This bottle washing machine is suitable for cleaning glass bottles, plastic bottles and cans. This product is a semi-automatic liquid filling container washing machine, which is widely used for washing bottles and containers in the production units of liquor, wine, sparkling wine, soft drinks, juice drinks, soy sauce and vinegar. Particularly suitable in small beverage production units: in addition to product into the bottle and the bottle is handled manually. The scrubbing action is done automatically, compared to manual cleaning. Work efficiency can be greatly improved. This machine uses continuous spraying to wash bottles. This machine is suitable for bottles of different sizes and can thoroughly clean the inside of the bottle. The machine material is stainless steel 304. Working process: The worker puts the bottle upside down and inserts it into the flushing position, the water will be produced to the bottom of the bottle to flush the dirt outside; there are water inlet and outlet holes on the machine. Structure: rack, washing platform, electrical part.
Model | workstation | output | Machine size | machine weight | Package dimensions | Packing |
Semi-automatic bottle washer for plastic bottles | 24PC | 3000BPH | 850*850*1150MM | 125KG | 940*940* 1250MM | wooden box |
Glass bottle semi-automatic bottle washing machine | 24PC | |||||
Large bottle semi-automatic bottle washer (3-10L) | Depends on the volume of the bottle | |||||
Semi-automatic bottle washer | 24PC |
Rotary 54 head washing machine
Product description: This machine is mainly used for cleaning glass bottles and polyester bottles before filling. Suitable for cleaning single-use polyester bottles with slight dust and glass bottles that have been washed in a bottle washer. The bottle is washed by continuous tracking spray method, which has high efficiency and good bottle washing effect. It is suitable for different bottle types, has a wide range and is easy to operate and maintain. Compared to conventional bottle washing machines, the machine consumes more than 80% less energy, water and space. At the same time, it does not pollute the environment and is easy to maintain, so the operating cost is also very low. The flushing system is designed with a water circulation and filtering device, so that the flushing water can be recycled and energy consumption is reduced. The washing process of this machine is reasonable and the residual liquid is less.
Model | BL-54 |
capacity | 1500-3000 bottles/hour |
bottle size | 100-750ml glass bottle |
Applicable bottle height | 50-320mm |
Applicable bottle diameter | 40-90mm |
strength | 0.75kw |
Water Consumption | 0.75 cubic meters per hour |
Voltage | 220V/380V |
aspect | 3300*700*1100mm |
weight | 300kg |
Frameless Automatic Rotary Bottled Water Washing Machine
The bottles are sent to the washing machine by the conveyor belt, and each bottle is clamped by the spring clip. Under the action of the motor driving energy, the spring clip advances one circle along the main shaft, the bottle is turned 180°, the bottle mouth faces the ground, and the water spray valve is opened at the same time. Spray clean pressurized water into the bottle, and as the water falls, the dirt in the bottle is taken away. The cleaned bottle is then turned 180° again and sent to the next machine. The material of the whole machine is SUS304. The spring clip is designed in Italy and can be fine-tuned according to the difference in the size of the neck to protect the neck. And the water spray system comes from the United States to ensure that the water is evenly sprayed. Easy to clean and maintain. Parameters: Rising head: 12 Capacity: 0-3000BPH (rinse time 4s per bottle) Power: 0.92KW Size: 1050*950*1700mm Weight: 700KG Applicable bottle: D∮50-100mm, H 50-350mm

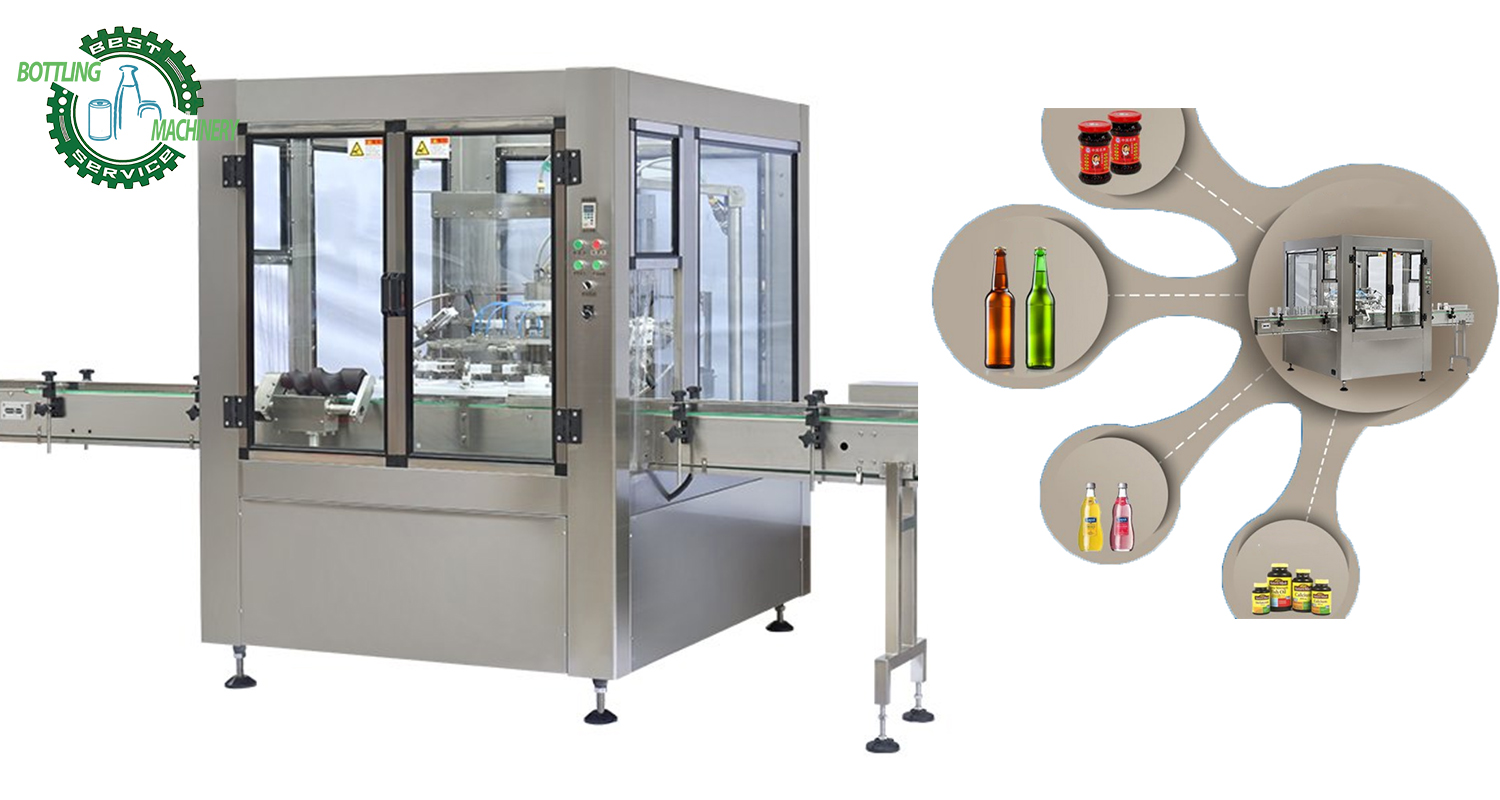

Automatic Rotary Bottled Water Washer with Outer Frame
Fast flushing, clean, automatic operation, safe and stable. The PLC control system is easy to operate, can set various parameters quickly and easily, and the equipment runs automatically.
We have shampoo stations, 12 16 24 36 etc.
This machine is mainly used for cleaning polyester bottles and glass bottles. It is suitable for automatic cleaning of bottles before filling in beverage manufacturers, wineries, sauce and vinegar factories and other food manufacturers. The whole machine adopts circulating operation and bottle-inverting structure for flushing, and is equipped with imported famous brand electric control components and automatic turning manipulators. With automatic clamping and positioning bottle mouth and automatic flushing function, the overall appearance is beautiful and durable.
1. 12 flushing nozzles, capable of flushing 2000-3000 bottles per hour, high efficiency and manpower saving. 2. The stamping parts and casting materials of the manipulator are made of the national standard 304 material, which ensures the corrosion resistance of the material. The manipulator has the characteristics of accurate positioning and easy turnover of the bottle. 3. Continuous tracking of bottle flushing, strong flushing force and long time. Good cleaning effect. Each grip part is equipped with a controlled water spray device, no bottle is not flushed, water saving and economical. 4. The key is that the operation is simple and easy to understand. (1) Power switch. (2) Water pump switch. (3) Water pump switch. (4) Emergency stop switch. (5) Automatic and manual switching. (6) Adjustable speed switch. 5. The power control equipment of the AC motor is controlled by changing the working power frequency of the motor.

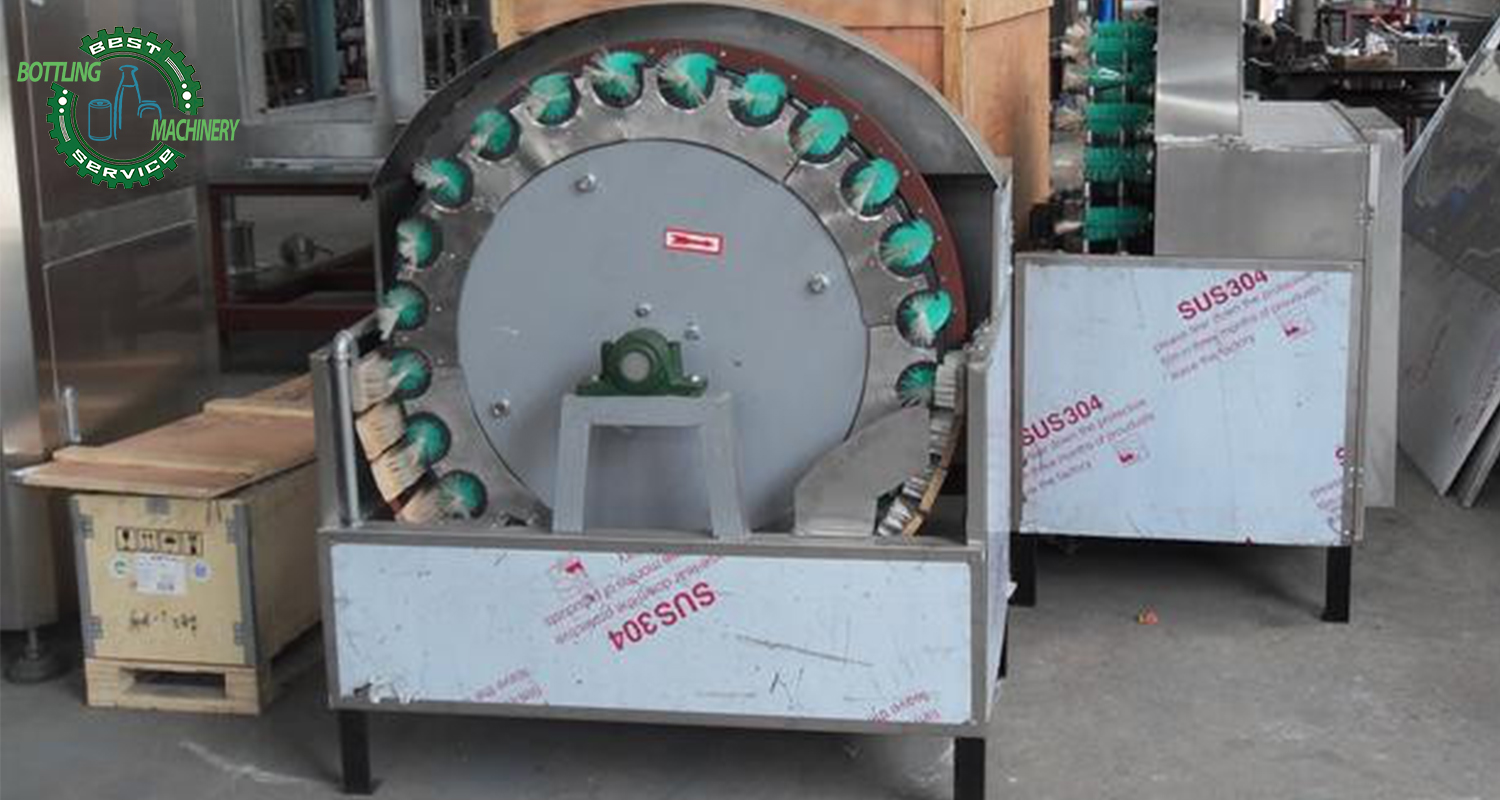

Semi-Automatic Brush Bottle Washer for Recycling Bottles
XP-24 is especially suitable for recycling glass bottles; the principle is: the diameter disc is driven to rotate by a motor; after the machine is started, it is connected to the water source to generate water. The working process is: the worker inserts the bottle into the brush position, and the bottle will rotate with the dial; the brush rotates inside the bottle to clean the inside of the bottle; the flat brush can also clean the outside of the bottle. Suitable for round bottles of various sizes, easy to replace. The ideal neck size is: 26-38mm OD. Structure: shelf, water tank, diameter plate, brush
parameter:
Capacity: 1800-2400BPH Washing position: 24 Power: 0.75KW Size: 1130*960*1370mm (without cover) Weight: 200kg

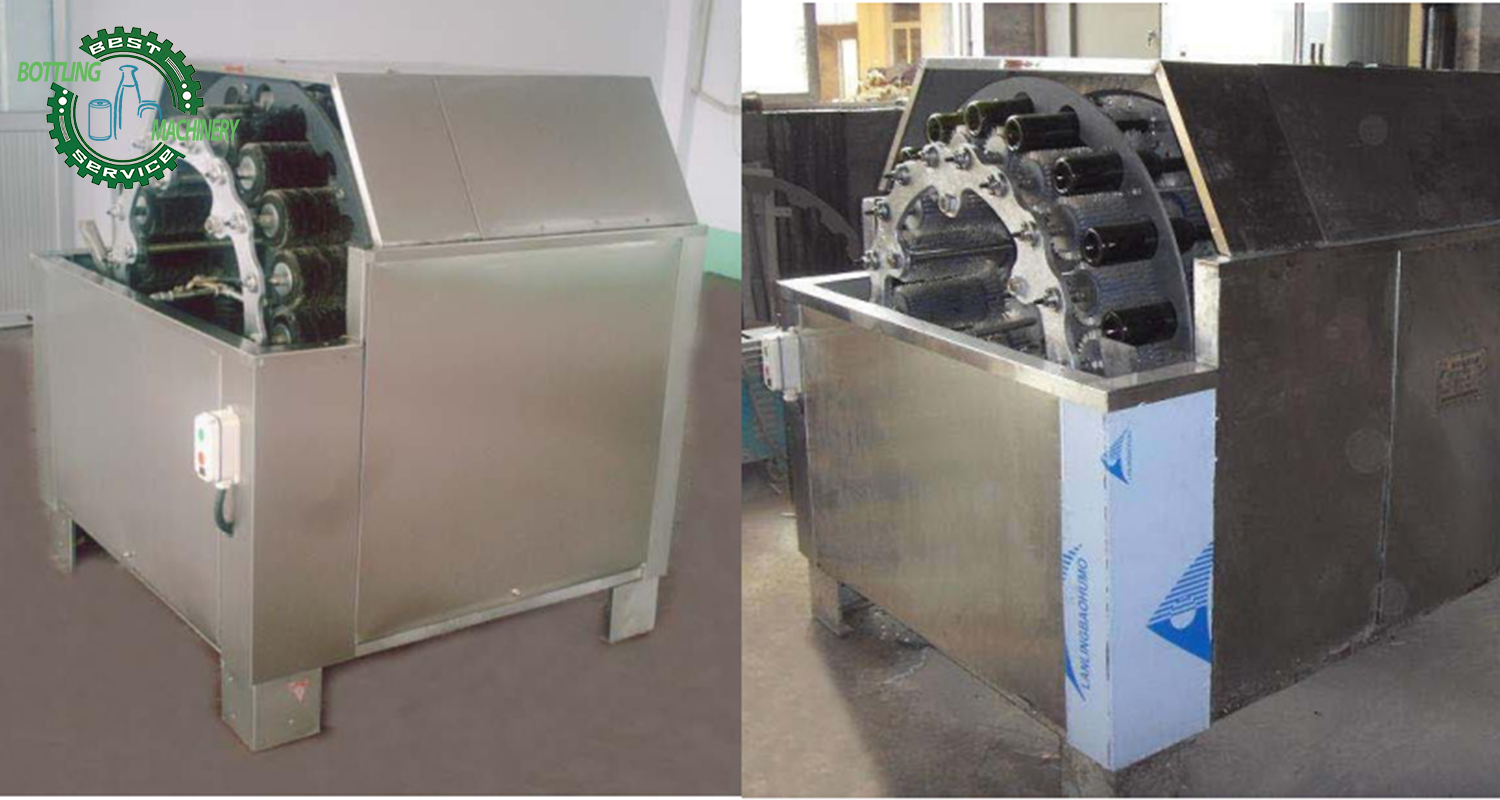

De-marking bottle washing machinefor recycling bottles
The semi-automatic brush bottle washer is especially suitable for the inside and outside of recycled glass bottles such as beer bottles, wine bottles, beverage bottles, etc., brushing, and removing paper labels. It comes with a nylon inner brush and a stainless steel outer brush. The material is high-quality stainless steel, which meets food-grade requirements. The machine greatly improves the production efficiency. The structure is simple and beautiful. Easy operation and maintenance, high efficiency. First, recycled bottles should be soaked in water for a period of time before brushing. If the bottle is heavily soiled with oily or other heavy contamination, the bottle should be soaked in alkaline water or other chemicals for easy machine scrubbing. 2. Manually put the soaked bottle into the brushing position, turn on the power, turn on the switch, the bottle will rotate with the dial, the brush will rotate inside and outside the bottle, after the rotation, the paper label will be removed, and then manually unload the bottle. Advantages: The inside and outside of the bottle are cleaned by a brush bottle machine, which improves production efficiency and reduces labor. Reasonable design, compact structure, stable performance, reliability, high production efficiency, convenient operation and maintenance Notes: A. Only applicable to round bottles. B. The bottle in the machine must be soaked before use; if the bottle has oil and other contamination, we recommend you to soak the bottle with alkaline water or other chemicals before using it in the machine.
Model | DSP-18 | DSP-36 |
rinse head | 18 pcs | 36 |
capacity | 2000BPH | 4000BPH |
strength | 3KW | 4KW |
aspect | 1240*1200*1300mm | 1900*1240*1300mm |
weight | 800kg | 1200kg |
Applicable bottle | Can be rounded according to user needs | Can be rounded according to user needs |

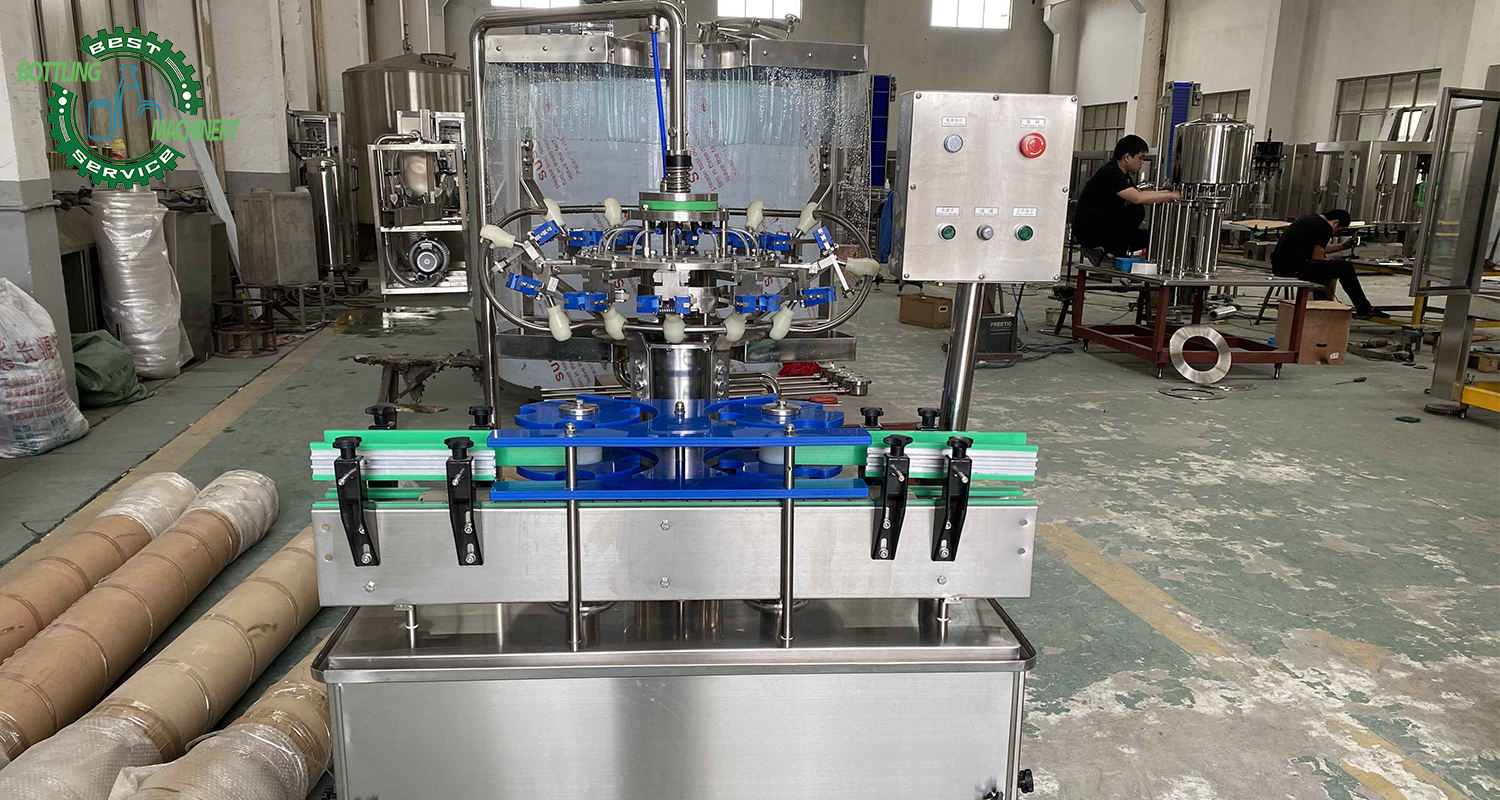

Rotary Bottle Air Washer for Glass Bottles with Lid
The washing machine is developed on the basis of digesting and absorbing foreign advanced technology, and has the international advanced level. Mainly used for lifting first-hand PET bottles or glass bottles. Advanced structure, stable performance, safe operation, convenient maintenance, high production efficiency, and stepless speed adjustment. Washing machines are ideal for small and medium beverage plants. The bottles are sent to the washing machine by the conveyor belt, and each bottle is clamped by the spring clip. Under the action of the motor driving energy, the spring clip advances one circle along the main shaft, the bottle is turned 180°, and the bottle mouth faces the ground. The clean air from the air compressor is sprayed into the bottle to blow out the dirt. The cleaned bottle is then turned 180° again and sent to the next machine. The material of the whole machine is SUS304. The spring clip is designed in Italy and can be fine-tuned according to the difference in the size of the neck to protect the neck. And the air injection system is from the United States, which can plug into the bottleneck and ensure an average high-power air injection. Easy to clean and maintain. Parameters: Rising head: 12 Capacity: 0-4000BPH (rinse time 8s per bottle) Power: 0.75KW Size: 1650*1150*1700mm Weight: 1000KG Applicable bottle: Dφ50-100mm, H 50-350mm
VIEW MORE
YOU MAY LIKE
Other Products
-

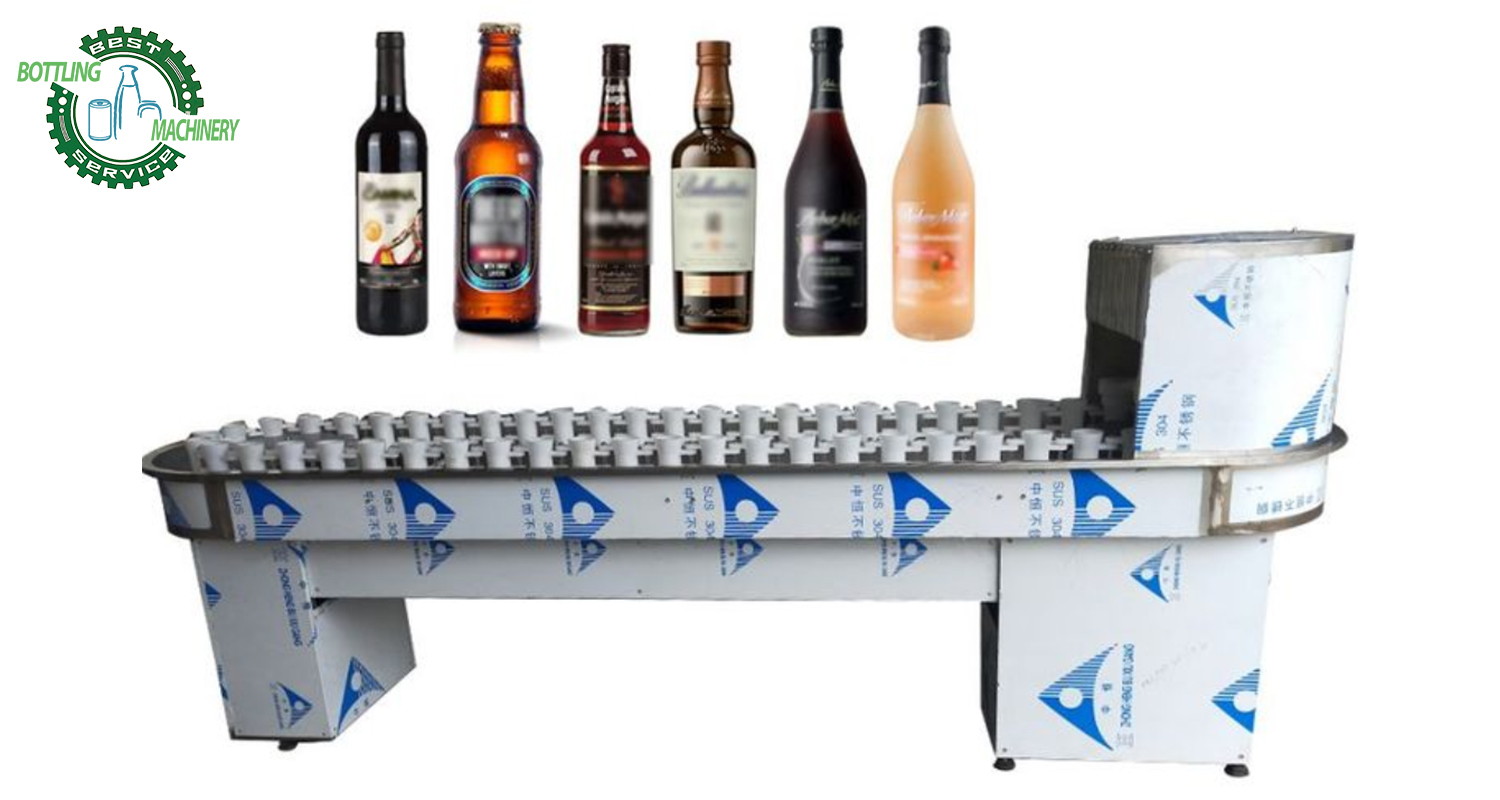

Semi-automatic stainless steel 304 turntable collection glass bottle sorting sorting table machine$500.00 - $700.00 / set -
