Carbonated lemon juice wine automatic SUS304 water spray PET plastic bottle insulation machine

PRODUCT DETAIL
Applicable industries:Manufacturing Plants, Food and Beverage Plants, Food and Beverage Stores, OthersShowroom location:not any
brand:bottlingaspect:custom made
Packaging Details:Seaworthy packagingapplication:Carbonated soft drinks/beer, etc.
Supply capacity:5 sets per monthCore Components Warranty:1 year
Core components:Motor, PLCplace of origin; place of origin:Jiangsu
speed:10,000 bottles per hourMaterial:SUS304/316
Processing:SterilizerName:Thermos Pasteurization Tunnel
Heating type:steam heatingpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Voltage:According to customer requirements, anyCertification:CE ISO9001
port:Shanghai Port or Ningbo PortHealth status:new
Processing Type:Carbonated drinksweight:2500kg, 3000kg
model:Thermos Pasteurization TunnelMarketing Type:New Products 2020
Warranty:1 yearDimensions (L*W*H):custom made
Video external inspection:ifMechanical test report:if
Auto grade:automatic
Product Description

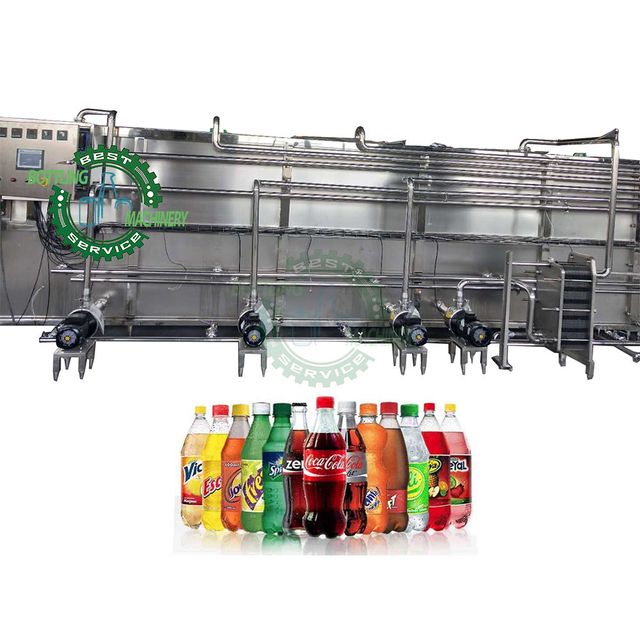

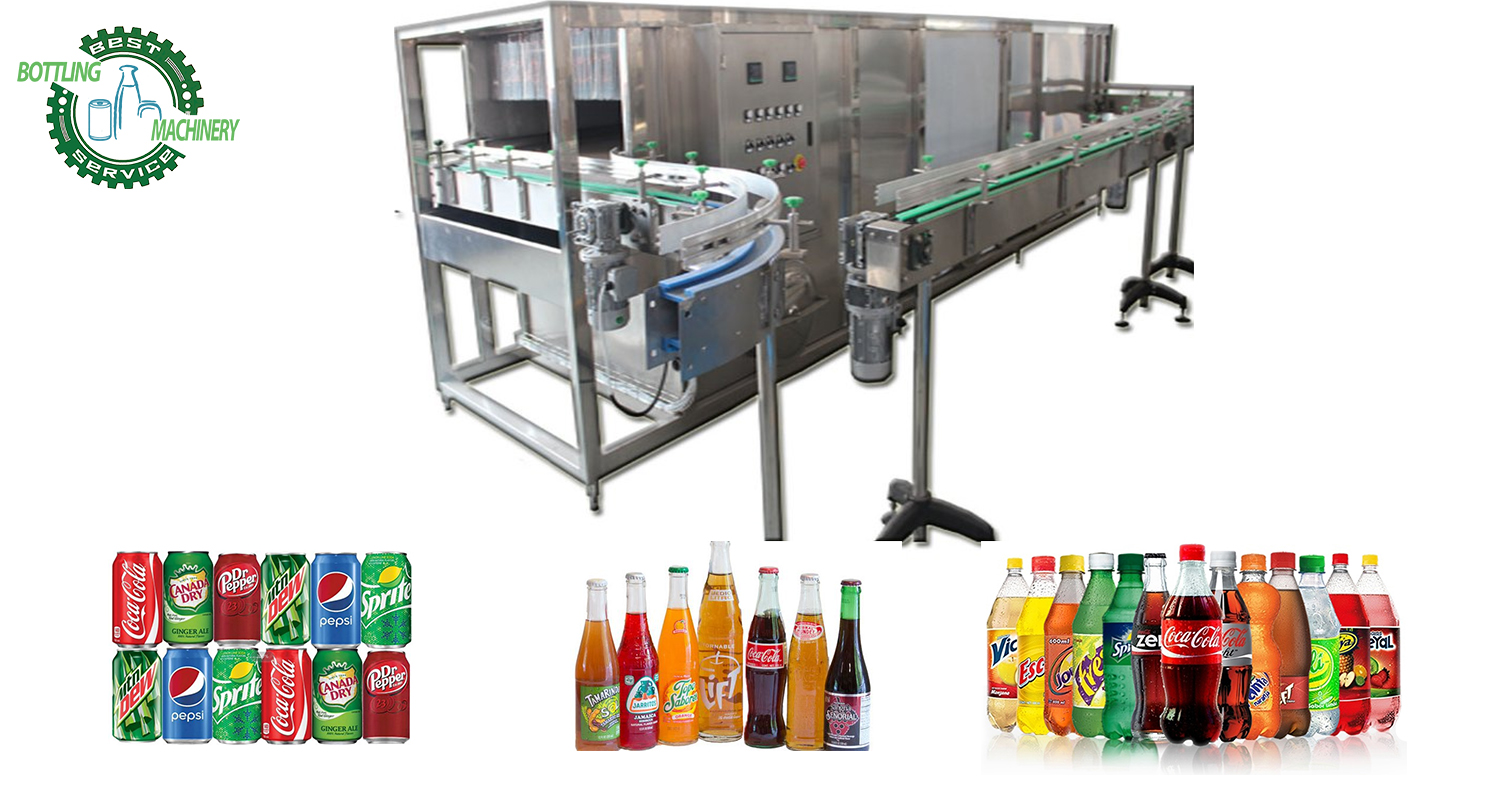

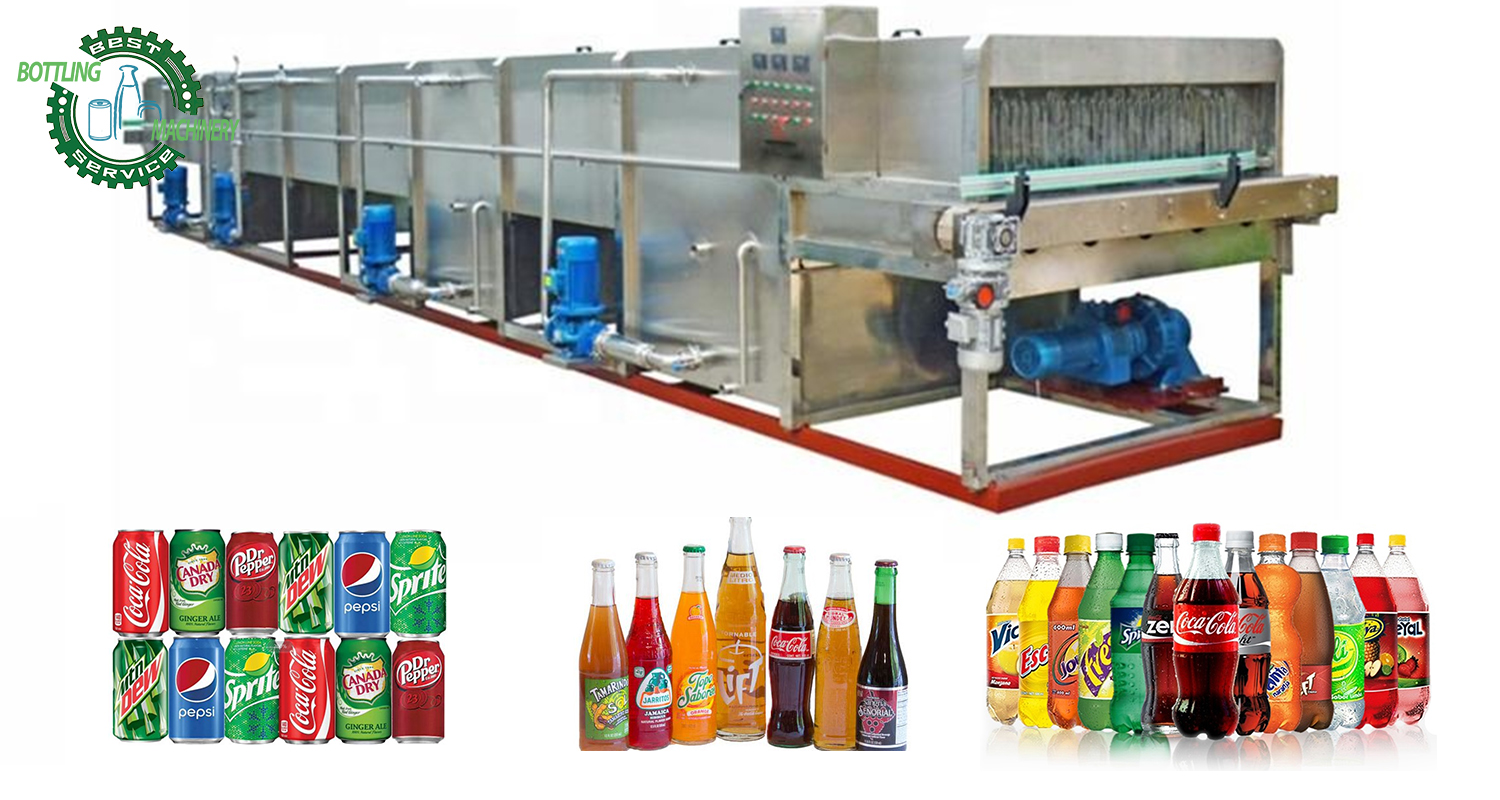

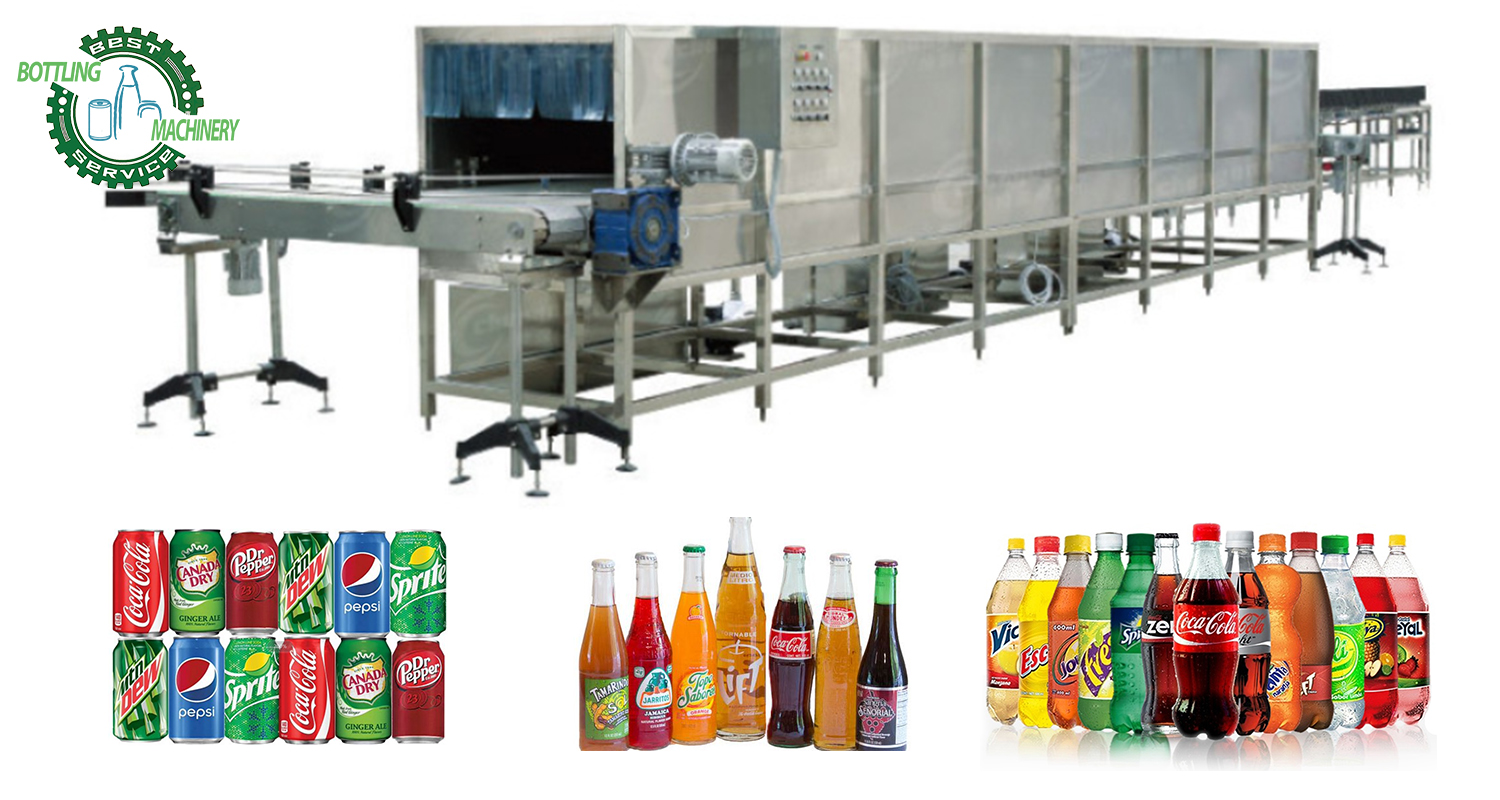

Stainless steel heated pasteurization tunnel for carbonated soft drinks/beer spray bottles/cansThis machine is used for carbonated beverages. Since the filling temperature is 0-4 degrees Celsius and the ambient temperature is 20-30 degrees, the bottle warmer adopts a three-stage steam cycle heating design, and the spray water temperature is controlled at about 40 degrees. After the bottle goes out, the temperature will be around 25 degrees. The user can fix the temperature as needed. At the end of the entire heater, there is a dryer to dry the water outside the bottle. It is equipped with a temperature control system. User can adjust the temperaturemain feature:The conveyor belt is frequency controlled. All nozzles and spray pipes are made of stainless steel, and the uniform spray water collection tank is made of stainless steel, and is equipped with a liquid level alarm device. The spray tunnel has a spray cooling circulating water pump and a steam regulating valve. The steam consumption is adjusted according to the temperature.
The spray sterilizer produced by BOTTLING MACHINERY is made of SUS304 stainless steel, and the sterilization temperature and speed can be set according to the process requirements. The machine runs smoothly, with low noise, and the stainless steel mesh belt has high strength, low flexibility, is not easy to deform, and is easy to maintain. It completely solves the "randomness" caused by the low degree of automation in the sterilization process and strengthens the "consistency". Greatly improve the success rate of sterilization. The function of the cold water area is mainly divided into three sections, namely the warm water cooling section and the cooling water cooling section. The cooling water cooling section is roughly equipped with three water tanks. After the shower pipe sprays water, it flows into the water tank through the mesh belt, and the warm water in the water tank is pumped to the warm water section for water spraying and recycling. Three preheating zones are set in the middle temperature zone, so that the bottle is gradually heated to the requirements of the pasteurization process, so as to avoid damaging the taste of the material in the bottle. The functional area will also feature three separate water tanks, heated by steam. It is transported by the circulating pump to the nozzle arranged above the mesh belt, and then evenly atomized and sprinkled on the bottle in turn, and the warm water flows from the mesh belt into the water tank for recycling.
Set up two temperature zones, mainly pasteurization zone and constant temperature zone. Two tanks are set up for high temperatures. After the steam is passed into the water tank and heated to the desired temperature, it is pumped to the top of the mesh belt for spraying. The method is the same as the above two. The temperature of the hot water in the sterilization area is automatically controlled by a thermostat, and the sterilization time is determined by the sterilization process, which can also be changed by stepless adjustment. Sterilization time: 5-40MIN Sterilization temperature: 65°C-95°C adjustable Steam pressure: 1-5KG Handling capacity: designed according to user needs Cooling method: normal temperature or forced ice water Running speed: stepless speed regulation Mesh belt width: 500-1000MM power: 5-25KW power consumption: 0.5-2.3M3/H
All our bottle heat pasteurization tunnel technical parameters:
Model
WP-4000
WP-6000
WP-12000
WP-30000
DCGF40-40-12
Capacity (500ml)
3000-5000
6000-9000
10000-15000
24000-35000
12000-15000
temperature
37-45
7000BPH
5.2KW
2450*2100*2400mm
Cooling time (minutes)
12-15
12000BPH
5.2KW
2750*2400*2400mm
transfer speed
100-550
chain width
1.22m
15000BPH
7KW
3350*2680*2400mm
steam pressure
<0.4 MPa
20000BPH
7KW
3860*3150*2400mm
Water Consumption
6 cubic meters/hour
9 cubic meters/hour
15 cubic meters/hour
28 cubic meters/hour
steam consumption
80 kg/h
120 kg/h
250 kg/h
280 kg/h
total power
4.4kW
5.2kW
6.2kW
7.5kW
8.2kW
aspect
6.2*1.5*1.7m
15*1.5*1.7m
15*1.8*1.7m
20*1.8*1.7m
4.8*2.3*2.5m
weight
2500kg
3200kg
4300kg
5600kg
10000kg
