Commercial Juice UHT Sterilizer/Small UHT Milk Processing Plant/Liquid UHT Sterilizer

PRODUCT DETAIL
Applicable industries:Food and Beverage Factory,Food Store,Food and Beverage StoreProcessing:Sterilizer
Processing:SterilizerVoltage:220V
model:HF-1Material:Stainless steel
After warranty service:Video technical supportShowroom location:not any
Discharge temperature:<65°CCore component warranty:1 year
Name:UHT Sterilizerplace of origin; place of origin:China
capacity:0.5-1 ton/hoursteam pressure:<0.4MPa
Supply capacity:800 sets per monthPackaging Details:wooden box
Marketing Type:New Products 2020Warranty:1 year
Sterilization temperature:115-135 degreesVideo shipment inspection:if
weight:210 kgDimensions (L*W*H):1200*920*1400
brand:OHFUapplication:custard
Mechanical test report:ifPackage preview:
Minimum Order Quantity:1 setHealth status:new
port:China's main portsstrength:2.2KW
payment terms:L/C, Western Union, T/TCore components:motor
Processing type:milk

Commercial Juice UHT Sterilizer/Small UHT Milk Processing Plant/Liquid UHT Sterilizer

Product Description

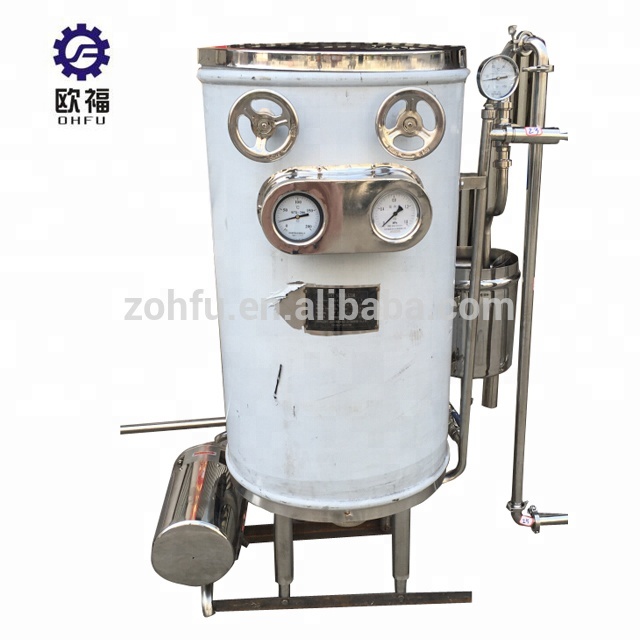

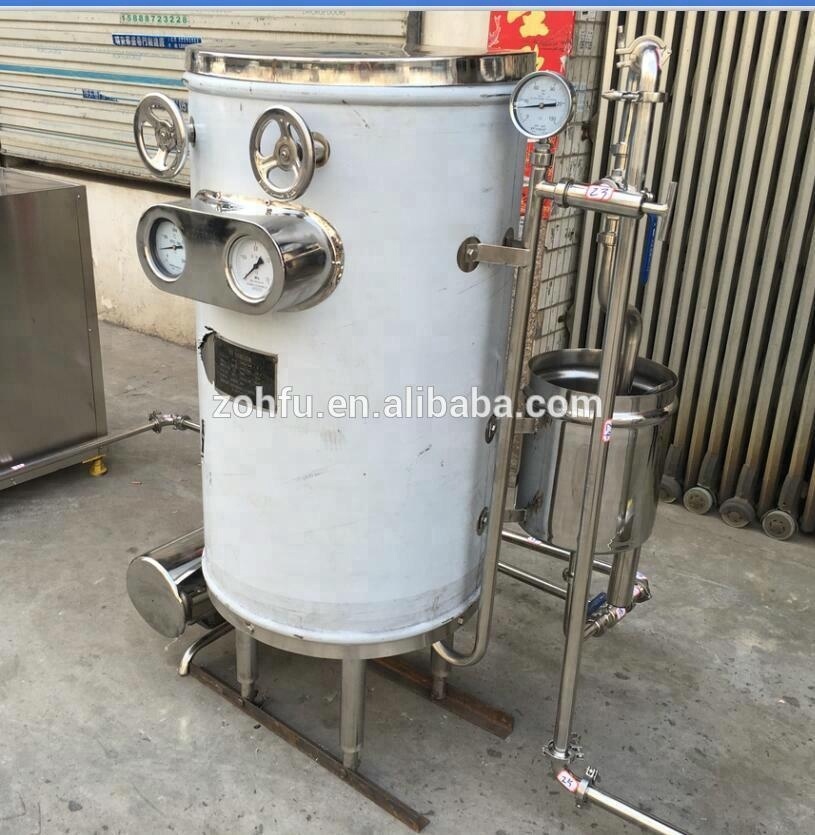

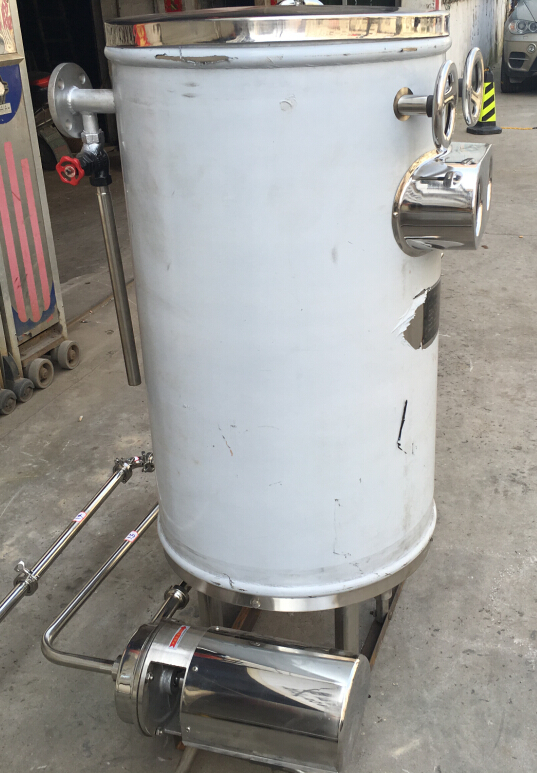

UHT milk sterilizer



The most advanced welding technology is adopted at present, and imported high-quality polished stainless steel pipelines are selected. Suitable for fresh milk, beverages, alcohol, etc. If combined with a high-pressure homogenizer, it can also be used for thick materials.
Suitable for sterilization of liquids and unpackaged products such as milk and other beverages

Advantage:

1. It can be produced continuously, and the sterilization time is extremely short;

2. The heating time is short, and high-quality products can be obtained;

3. Due to the use of ultra-high temperature sterilization, the sterilization efficiency is very high

4. Used in series with a centrifugal pump or a high-pressure homogenizer, it has a wide range of applications and is suitable for sterilization of high-viscosity materials;



5. Both hot and cold materials are used in the design of heat exchange equipment. Due to the good economic effect of waste heat utilization, the steam consumption is small.



Technical parameters of UHT milk sterilizer

Model

HF-1

HF-2

HF-4

capacity

0.5-1 ton/hour

1.5-2 tons/hour

3-4 tons/hour

Sterilization temperature

115-135°C

115-135°C

115-135°C

steam pressure

<0.4MPa

<0.4MPa

<0.7MPa

heating time

4-6S

4-6S

4-6S

Exhaust gas temperature

<65°C

<65°C

<65°C

Motor Power

2.2KW

2.2KW

4KW

aspect

1200*920*1400

1300*1100*1750

1500*1200*1850

weight

210KG

310KG

480KG
