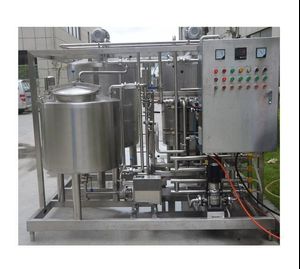

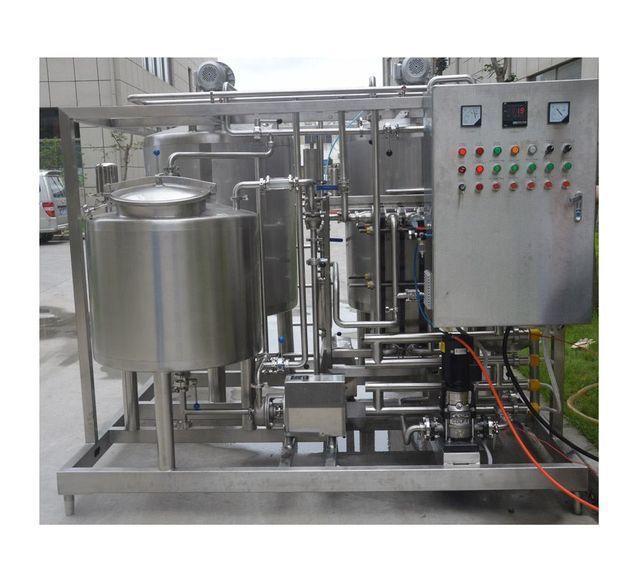

Fully Automatic 1000L/H Plate Milk Pasteurizer

PRODUCT DETAIL
Processing type:milkpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
steam pressure:0.5~0.6MPaControl type:PLC+touch screen
Origin:China ShanghaiMarketing Type:food grade
Mechanical test report:ifProcessing:HTST/UHT, Sterilizer
Showroom location:Philippines, Indonesia, Morocco, Kenya, Sri Lankabrand:CNC
Voltage:380V/220V/440Vstrength:3.5KW
Dimensions (L*W*H):depends on machine capacityweight:1500 kg
Applicable industries:Manufacturing plants, food and beverage plants, farms, milk processing plantsCertification:CE certification
Sterilizer temperature:115-135 degreesport:Shanghai
After-sales service provided:Engineers available to service machinery overseasPackage preview:
heating method:Electric heating UHT or steamPackaging Details:Standard export wooden box
model:1000Video shipment inspection:if
Health status:newSterilization time:15-30 seconds (customized)
Warranty:lifetime guaranteeSupply capacity:50 sets per month
capacity:500L-5000L/H (customized)product name:Plate sterilizer
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpCore component warranty:1 year

Fully automatic industrial 10000L/H plate type flash beer pasteurization machine



The plate pasteurizer is controlled by PLC, and the capacity is optional from 1t/hr to 15t/hr. The system works in the aseptic section and the normal section, meeting the technical requirements of low temperature, normal temperature and high temperature filling. The seven-stage heat exchanger ensures the lowest energy consumption, and the perfect design of CIP and SIP meets the needs of cleaning and sterilization. Ultra-high temperature water is used as the medium to heat the material and adjust the temperature of the filling outlet, with high precision.

working conditions
Material (beer) capacity 12000 liters/hour Inlet temperature 5°C steam pressure 0.5~0.6MPa
Design requirements
Material sterilization temperature 80°C (adjustable) Holding time 30 seconds output temperature 4°C
The main technical parameters of the equipment
Item name Technical Parameters
Device model BR26-PUT-60B (3 sections) electricity 11.6KW
heat transfer area 60 square meters Inlet and outlet diameter 63
Material 304 Cold water inlet and outlet diameter 76
Sheet size 1350×450×0.6 cold water flow 12 tons/hour
pasteurization temperature Fully automatic control Steam pipe diameter DN60×3
accuracy ±1℃ steam consumption 480 kg/h
Backflow valve working status High temperature alarm, low temperature reflow (automatic) compressed air pressure >0.6Mpa
greatest pressure 0.5MPa compressed air consumption 0.06M3/minute
weight 3.2T Equipment size 2900(L)×2000(W)×2200(H)









main part





our suppliers



our service



1. Provide equipment inspection certificates and instructions to ensure correct installation and use by users.

2. When the equipment arrives at the destination, the company will send engineers to guide the installation and

Commissioning and customer training until satisfied.

3. During the warranty period, customers will wear accessories free of charge. After the one-year warranty period, our

Companies provide parts at cost.

4. We provide lifetime maintenance service, including sending engineers to customer site when necessary

Serve.



company information

Shanghai Nancheng Machinery Co., Ltd. is a professional manufacturer dedicated to R&D, manufacturing and sales of various beverage and food machinery.

With more than 20 years of rich experience in the field of food and beverage machinery, we can help customers design, manufacture, install and operate turnkey projects of mineral water, purified water, carbonated beverages, fruit juice, milk, yogurt, cheese and ice cream production lines, etc.

Our main products include water treatment systems, bottle blowing machines, reverse osmosis systems, three-in-one filling machines, coils, plates, tubular UHT sterilizers, homogenizers, inkjet printers, liquid packaging machines, shrink stickers Labeling machine, various cans, ice cream machine, popcorn machine, bread machine, food machine, etc.

With a good reputation and popularity among loyal customers, our products have been sold and distributed to more than thirty provinces and cities in China, and exported to more than 85 countries and regions around the world. Adhering to the concept of providing customers with "innovative solutions, reliable quality and responsible service", we aim to provide machines that are more reliable, more flexible, and easier to adapt to market development and future technologies.









For example, our company has rich experience in helping customers build different production lines for different purposes. We can arrange technicians to help customers set up the whole production line of mineral water, purified water, cola, milk, juice and vinegar, oil, which we are professionally manufactured. If anyone who is interested in this field wants to buy a whole set of equipment and machines, please feel free to contact us.





We warmly welcome customers to visit our factory at any time, you will see the machines working and running



The condition of our factory!
