Beer keg cleaning and filling unit
- $3000.00 /set
- 1 set
- Jinan Zhuoda Machinery Equipment Co., Ltd.
- Shandong, China
- Mr
| Material: | stainless steel 304 | payment terms: | wire transfer |
| Dimensions (L*W*H): | 1200mmx450mm | Supply capacity: | 20 sets per year |
| Processing: | washer | Processing type: | beer |
| Certification: | CE/ISO9001:2008 | State of health: | new |
| model: | single head or 2 heads | Warranty: | 5 years |
| Applicable industries: | Hotels, food and beverage factories, restaurants, food and beverage stores | control: | Siemens PLC |
| Voltage: | AC 220V 50/60Hz | After-sales service provided: | On-site installation, commissioning and training, engineers can repair machinery overseas |
| place of origin; place of origin: | Shandong China | brand: | Tsinghua University |
| Types of: | Washing and irrigation all-in-one machine | Packaging Details: | Wooden packing |
| strength: | 18 kW | port: | Qingdao |
| weight: | 260 kg | Automatic level: | automatic |

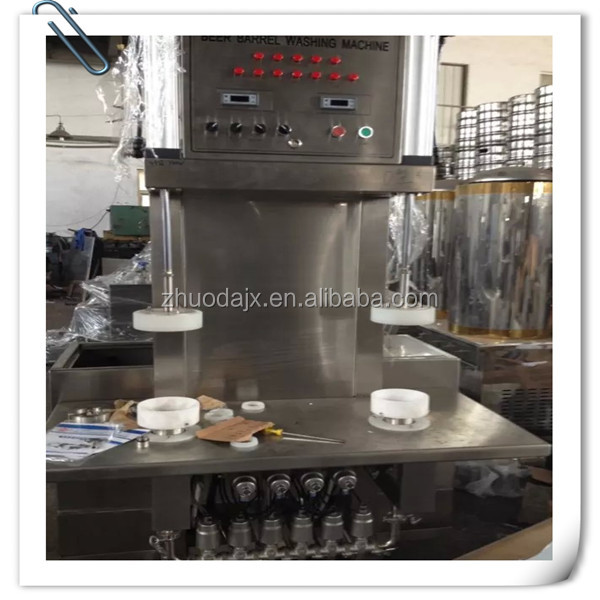

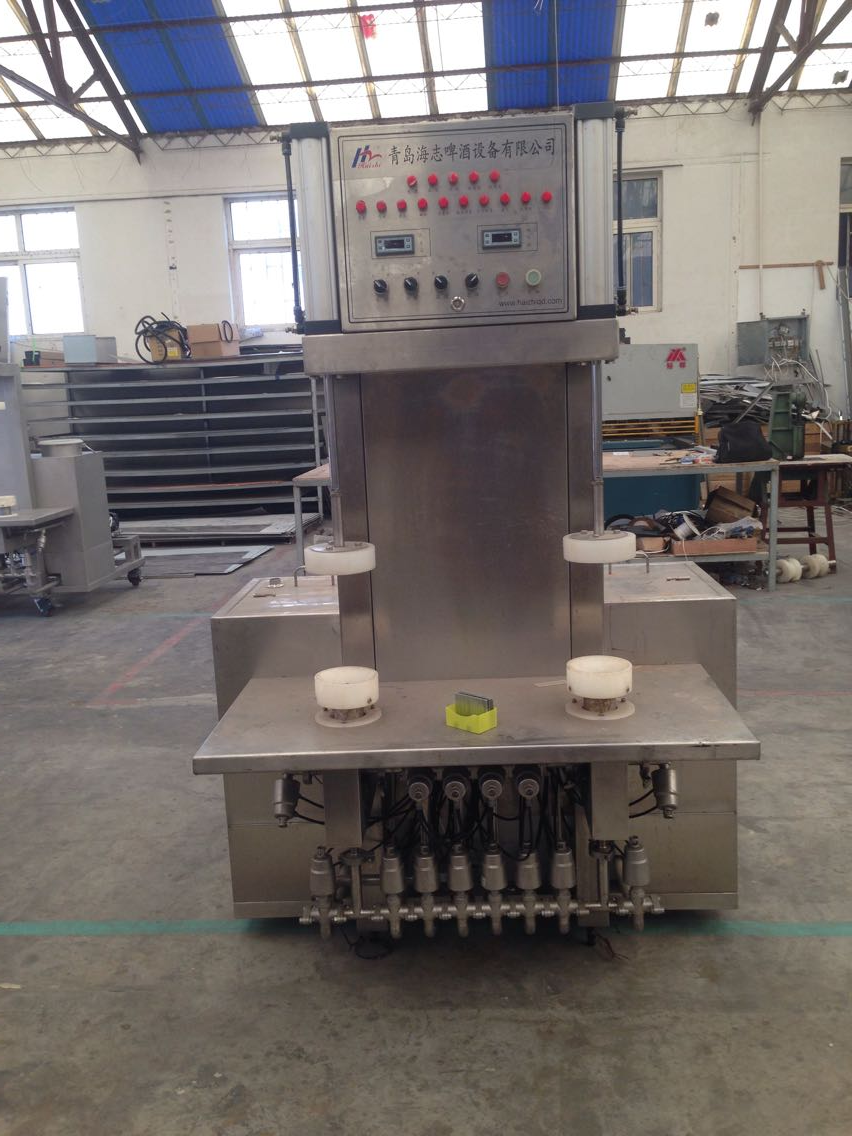

Beer keg cleaning and filling unit
1. Specifications
table size | 1200mm×450mm |
table height | 700mm |
Dimensions | 1200mm×1400mm×1900mm |
cylinder stroke | 300mm |
net weight | 260Kg |
strength | 18KW |
heating | (electric heating) 220V three-phase |
capacity | 20~40 barrels/hour |
cleaning mode | barrel upside down |
Suitable for kegs | Diameter φ250~φ500, height 360mm~600mm |
2. Technical parameters
Air pressure | 0.6~0.7Mpa |
CO2 source pressure | 0.3~0.4Mpa |
cylinder valve pressure | 0.5~0.6Mpa |
CO2 valve pressure | 0.2~0.3Mpa |
blow valve pressure | 0.2Mpa |
sterile water pressure | 0.4Mpa |
voltage | Three-phase 220V 60Hz |
3. Main structure and characteristics
This machine mainly includes frame, electrical system, air system and other piping systems. The features are as follows:
1. All parameters (time values) can be adjusted without stopping the machine.
2. The main cleaning pipeline adopts the largest straight line design, and the cleaning is powerful and thorough.
3. Double-acting pneumatic valve, reliable in quality and resistant to high temperature.
4. The main accessories adopt the world's top products, and the quality is guaranteed.
5. Sterile water and alkaline water can be recycled.
4. Working procedure
Barrel loading → start (press cylinder) → air blowing (slag discharge) → water flushing → air blowing (drainage) → alkaline water flushing → extraction pipe alkaline water flushing → air blowing cycle → clean water flushing water → extraction pipe flushed with clean water → air blowing (Release water)→Rinse with clean water→Blow air→Rinse with sterile water→Blow air→Prepare CO2 pressure→Reset the cylinder→Unload the barrel

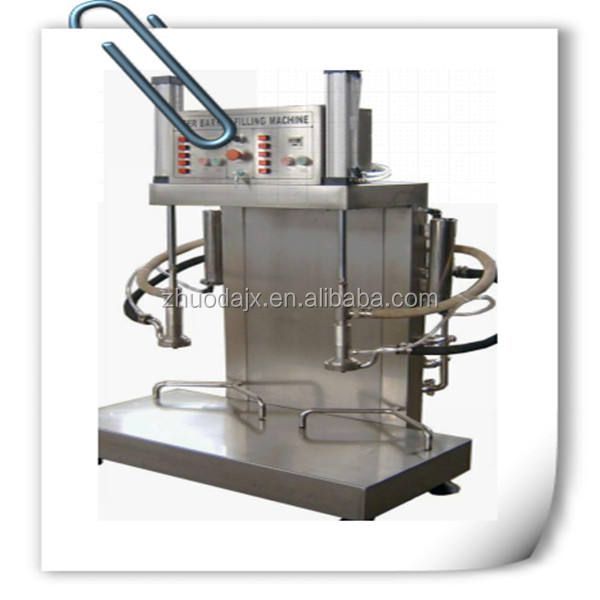

Beer Keg Filling Machine
5. Common faults and troubleshooting methods
Fault | Possible Causes | way of moving |
Cleaning head leaks | loose cylinder | check cylinder pressure |
wrong direction | Position the keg correctly | |
Gasket loose | Adjusting washer | |
PLC power off | Incorrect voltage value | check power |
High ampere value (≥3A) | check circuit | |
indicator off | The light is broken | change indicator |
Liquid remaining in bucket after cleaning process | Insufficient blowing time | Adjust pumping time |
damaged extraction tube | Replace extraction tube | |
Virus criteria not met | expired sanitizer | Change the disinfectant |
Welcome to inquire!
