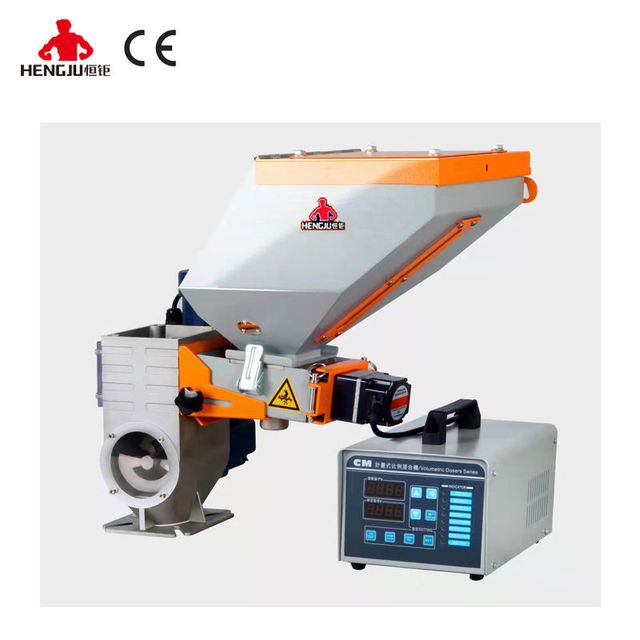

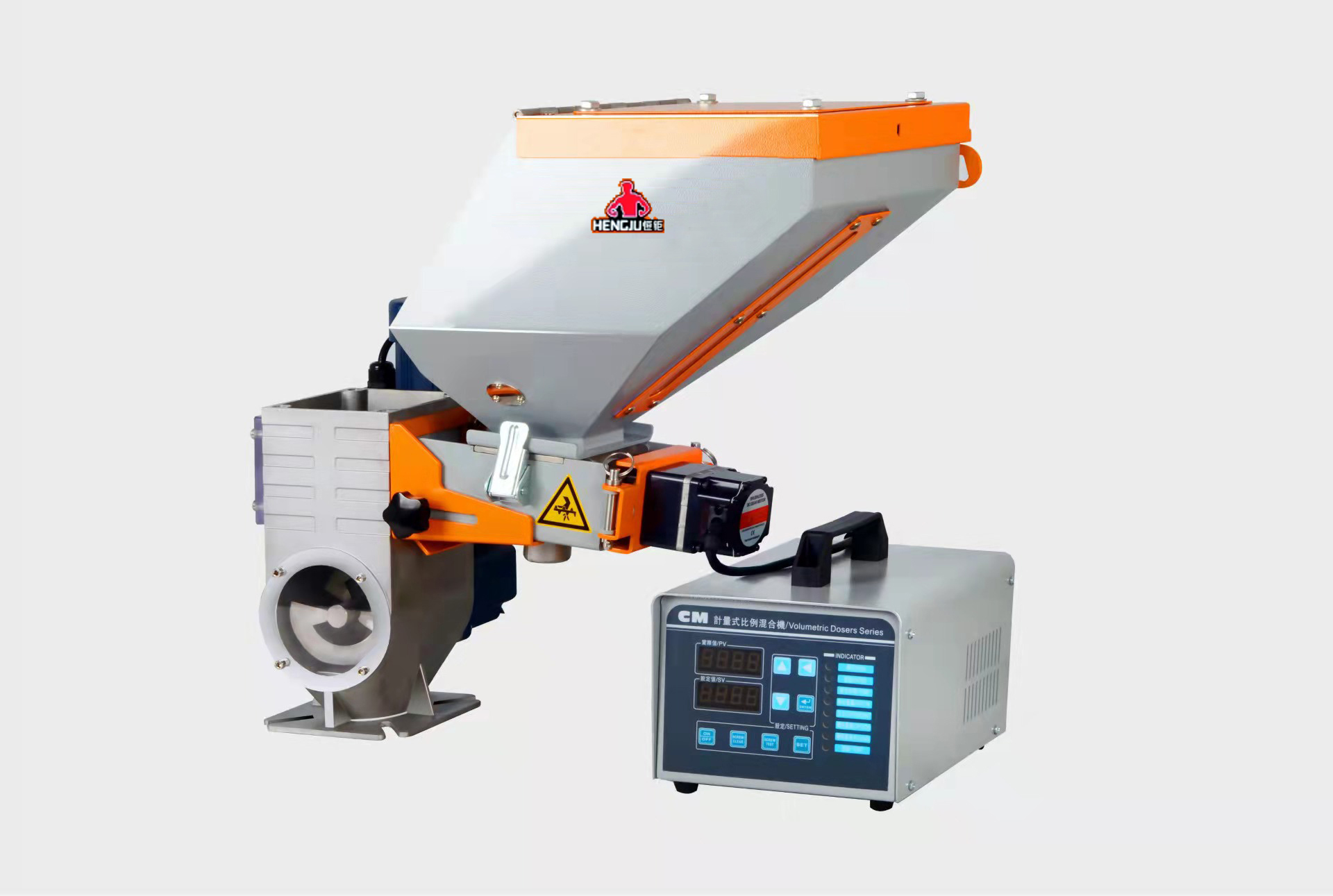

Plastic volumetric color metering mixer feeder for injection molding and extrusion production
- $1300.00 /set
- 1 set
- Dongguan Hengju Machinery Equipment Co., Ltd.
- Guangdong, China
- Ms Jenny Yuan
PRODUCT DETAIL
| Health status: | new | Material: | Stainless steel |
| brand: | permanent residence | Showroom location: | UK, Vietnam, Indonesia, India, Russia, Thailand, Malaysia |
| Capacity (kg): | 7.8 | Dimensions (L*W*H): | 420*550*295mm |
| Auto grade: | automatic | payment terms: | Western Union, T/T, MoneyGram |
| Marketing Type: | New Products 2020 | Voltage: | 220-240v/50-60Hz, customized |
| Weight (kg): | 25kg | application: | mix |
| place of origin; place of origin: | Guangdong, China | noise: | ≤60 |
| Stirring motor: | 90w | Packaging Details: | Wooden package or customized |
| Power (kW): | 0.12 | port: | Guangzhou/Shenzhen |
| Supply capacity: | 200 sets per month | Packaging Preview: | |
| Output (kg/hour): | 0.1 - 3 kg/h | Warranty: | 1 year |
| Video external inspection: | if | Hopper (L): | 12 |
| Core components: | motor | Screw diameter: | 12 |
| Weight (kW): | 25 | Output capacity (kg/hour): | 0.1-3.0 |
| Motor power (w): | 30w | Core Components Warranty: | 1 year |
| Applicable industries: | manufacturing plant, injection molding production, plastic extrusion production, plastic film production | Mechanical test report: | if |
Product Description
introduce:
Volumetric batchers are designed for automatic proportioning of 1 new material and 1-4 masterbatches/additives for injection, extrusion and blow molding production.

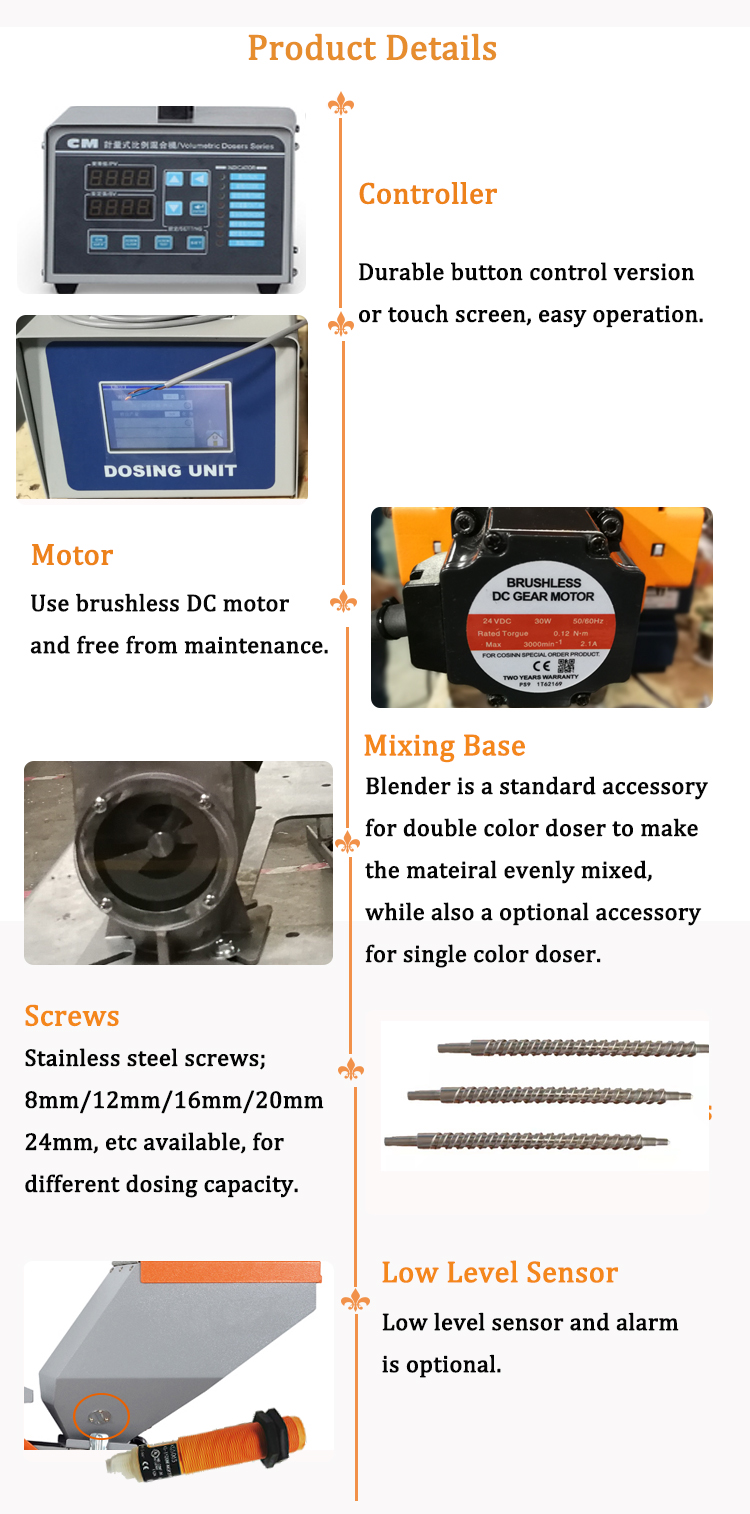

Each doser is equipped with a brushless motor and a microcomputer controller.
They can accurately calculate the ratio of masterbatch and auxiliaries.

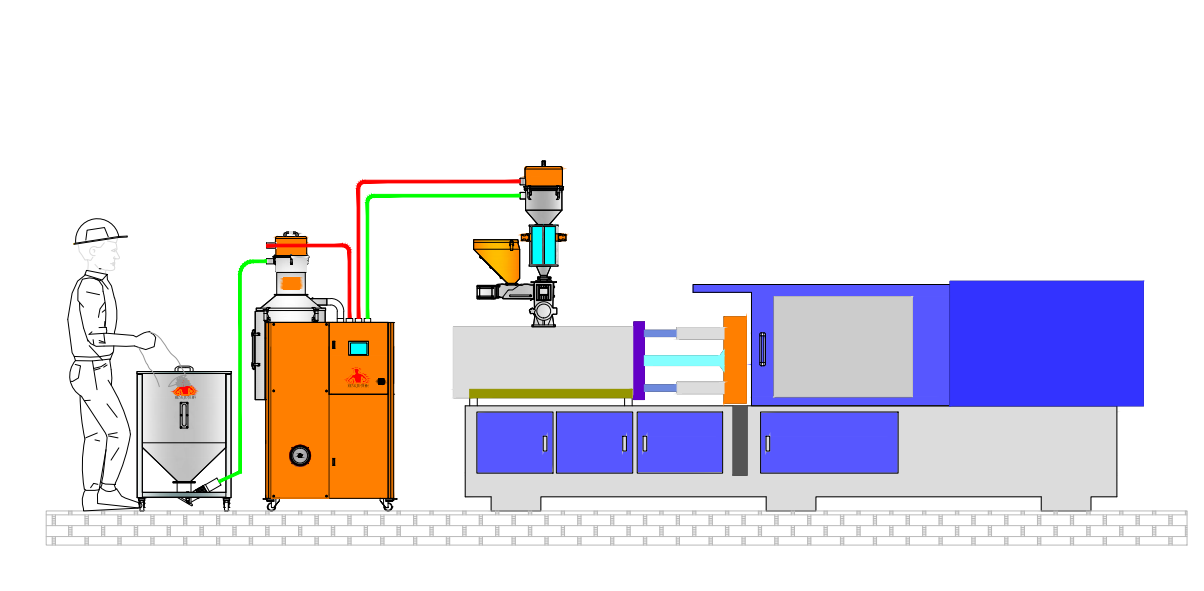

The volumetric dosing feeder can be connected with various molding machines to achieve synchronous operation and ensure product quality.
Model | HSD-08 | HSD-12 | HSD-16 | HSD-20 | HSD-24 | ||||
Motor power (W) | 30 | 30 | 30 | 30 | 30 | ||||
Mixed power (W) | 90 | 90 | 90 | 90 | 90 | ||||
Speed (RPM) | 3000 | 3000 | 3000 | 3000 | 3000 | ||||
Screw diameter (mm) | 08 | 12 | 16 | 20 | twenty four | ||||
Output capacity__kg/hr | 0.1-1.5 | 0.1-3.0 | 0.3-10 | 0.4-20 | 0.8-38 | ||||
Hopper (L) | 12 | 12 | 12 | 12 | 12 | ||||

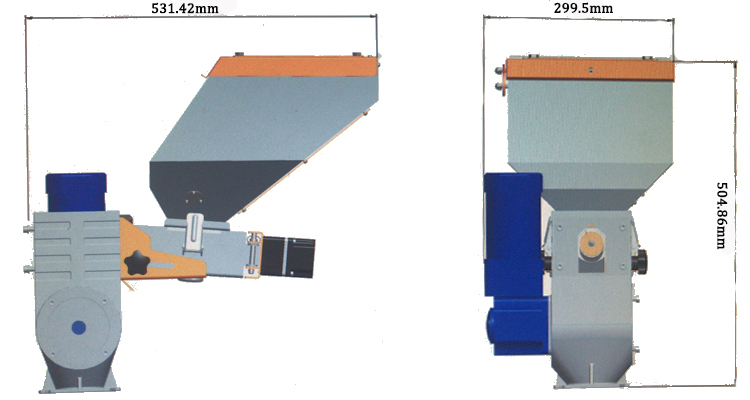

Dimensions (mm) | H420*W550*D295mm | ||||||||
Net weight/kg) | 17 | ||||||||

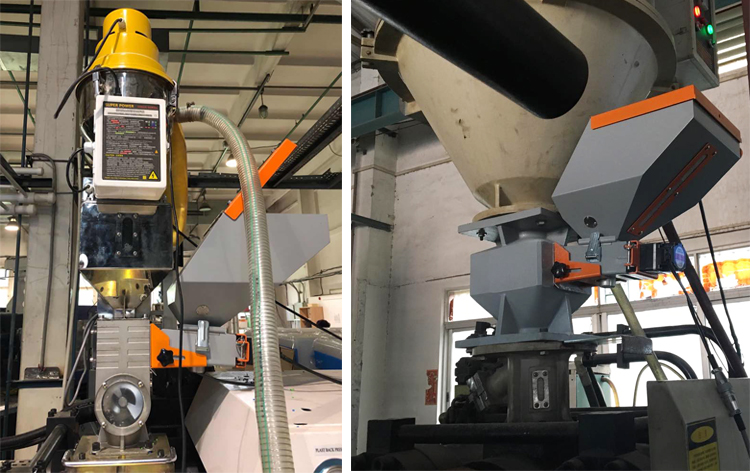

Customer case
