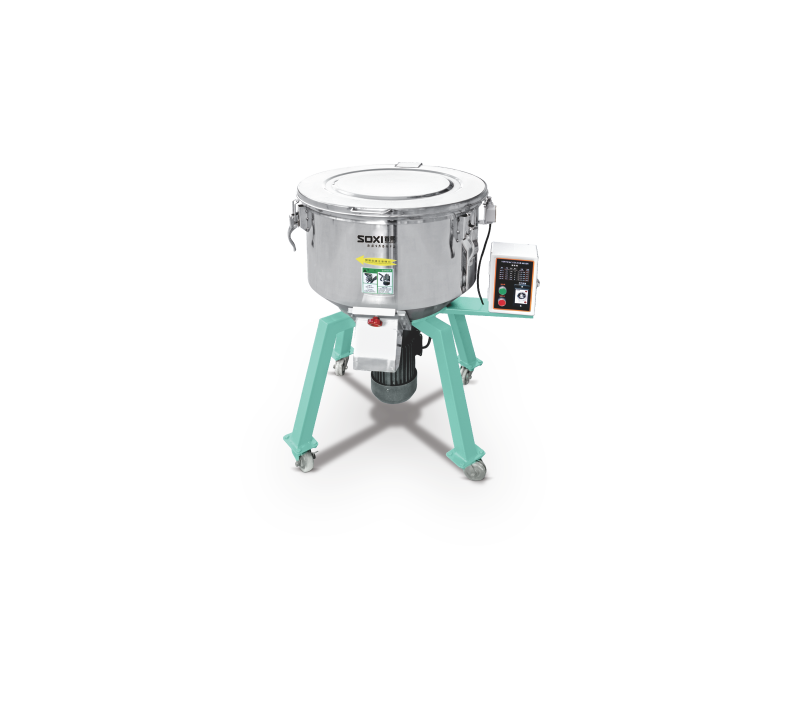

Raw material vertical masterbatch mixer plastic
- $300.00 /set
- 1 set
- Guangdong Soxi Intelligent Equipment Co., Ltd
- Guangdong, China
- Mr Miny Fan
PRODUCT DETAIL
After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Video shipment inspection: | if |
Function: | Plastic raw material processing | Stirring capacity: | 50-500kg/hour |
After-sales service provided: | Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support | Blender Type: | vertical screw mixing |
Dimensions (L*W*H): | 1130*1010*1380mm | brand: | Southie |
Mechanical test report: | if | Showroom location: | not any |
Name: | plastic mixer | Types of: | volumetric |
Packaging Details: | export wooden box | Motor Power: | 1.5-11KW |
Weight (kg): | 150 kg | Voltage: | 380V/50Hz/3 phase standard |
application: | Injection molding industry | Output (kg/h): | 0.8 - 100 kg/h |
Package preview: | Core components: | PLC, motor, screw, mixer | |
Power (kW): | 0.75KW | Supply capacity: | 800 sets per month |
port: | Shenzhen | Automatic level: | automatic |
place of origin; place of origin: | China | Advantage: | Wear-resistant |
Material: | Stainless steel | Warranty: | 1 year |
Capacity (kg): | 12L | Certification: | CE certification |
Core component warranty: | 1 year | State of health: | new |
Marketing Type: | 2019 New Products | Applicable industries: | manufacturing plant |
Key words: | volume feeder | Local service location: | not any |
Raw materials: | PVC PE WPC ABS PC | payment terms: | L/C, T/T |
Rotating speed: | 150 rpm |
Product Description
place of origin; place of origin | China |
Material | Stainless steel |
Warranty | 1 year |

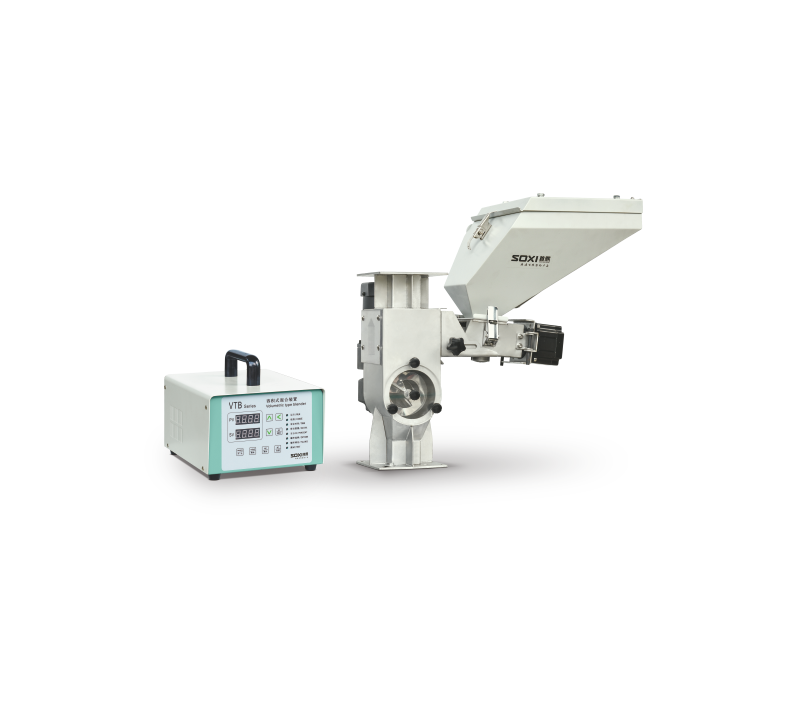

The color mixing machine can also be called a masterbatch mixer, which can be divided into a single-color masterbatch machine and a double-color masterbatch machine. It is suitable for automatic proportioning and mixing of new materials, raw materials, color masterbatches or additives, etc. The set conditions are automatically converted into raw materials for direct-drive precision screw extruded by the digital microcomputer control system, and the error is not higher than plus or minus 1%. The motor reduction ratio of the product is 38:1 and 75:1, and the screw diameter is divided into three types: 12, 14, and 16mm. Six models can be evolved to provide different outputs of 0.1-38kg/hr for customers to choose. According to customer needs, any combination of two-color master machine. Accurate measurement, even mixing The mixer is easy to set up High-precision stepping motor drives the screw The screw is wear-resistant and durable Continuous operation is accurate and stable Can store 50 sets of recipes Equipped with a communication interface, compatible with future industry 4.0
Features of screw color mixing machine: 1. Adopt DC brushless motor, maintenance-free; 2. Have permanent data storage and preservation function; 3. Adopt microcomputer control, intelligent and accurate calculation; 4. Can meet external signal input requirements; 5. Screws are chrome-plated , durable 6. Modular assembly structure, easy to disassemble, easy to clean and replace; 7. The standard base of the single-color doser is equipped with three-tube hopper magnets, which can absorb metal objects and prevent damage to the screw of the molding machine; 8. The mixer is a standard two-color doser , can meet the customer's two-color mixing needs, and the single-color master machine can be equipped with a mixer for uniform mixing; 9. The main hopper is a standard two-color machine, and a single-color machine is optional.
