Pre-filter media Reel filter Air inlet Coarse filter treatment Filter cotton Filters dust particles in the air coil
- $2.50 / >=250 square meters
- 250 square meters
- Dongguan Chuangjie Filter Material Co., Ltd.
- Guangdong, China
- Ms ruyyu yan
PRODUCT DETAIL
Origin: | Guangdong, China | thickness: | 5mm, 10mm, 15mm, 20mm |
length: | 250m/roll | Showroom location: | not any |
Package preview: | Supply capacity: | 120,000 square meters per month | |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | type: | Front air filter media, quantitative |
Video shipment inspection: | if | Applicable industries: | Advertising Agency, Building Materials Store, Construction, Energy and Mining, Farm, Clothing Store, Household, Hotel, Machine Repair Shop, Manufacturing Plant, Printing Shop, Food and Beverage Factory, Restaurant, Retail, Food Store, Food and Beverage Store, Other |
brand: | Chuangjie | product name: | Primary filter cotton |
Packaging Details: | PE bag+woven bag per roll | Material: | Polyester, cotton pulp |
port: | Shenzhen Guangzhou | Health status: | new |
Temperature resistance: | 120°C | Porosity: | 5 microns |
Core component warranty: | 3 months | width: | 1000mm according to customer requirements |
Warranty: | 3 months | color: | customer request |
Mechanical test report: | if | Filtration level: | G4(EN779), EU4(Owen) |
Core components: | other | Flammability rating: | F1 (DIN 53438), B1 (GB/T 17591-2006) |
usage: | air filter | shape: | roll or pad |
Weight (kg): | 30 | Marketing Type: | New Products 2020 |
Product Description

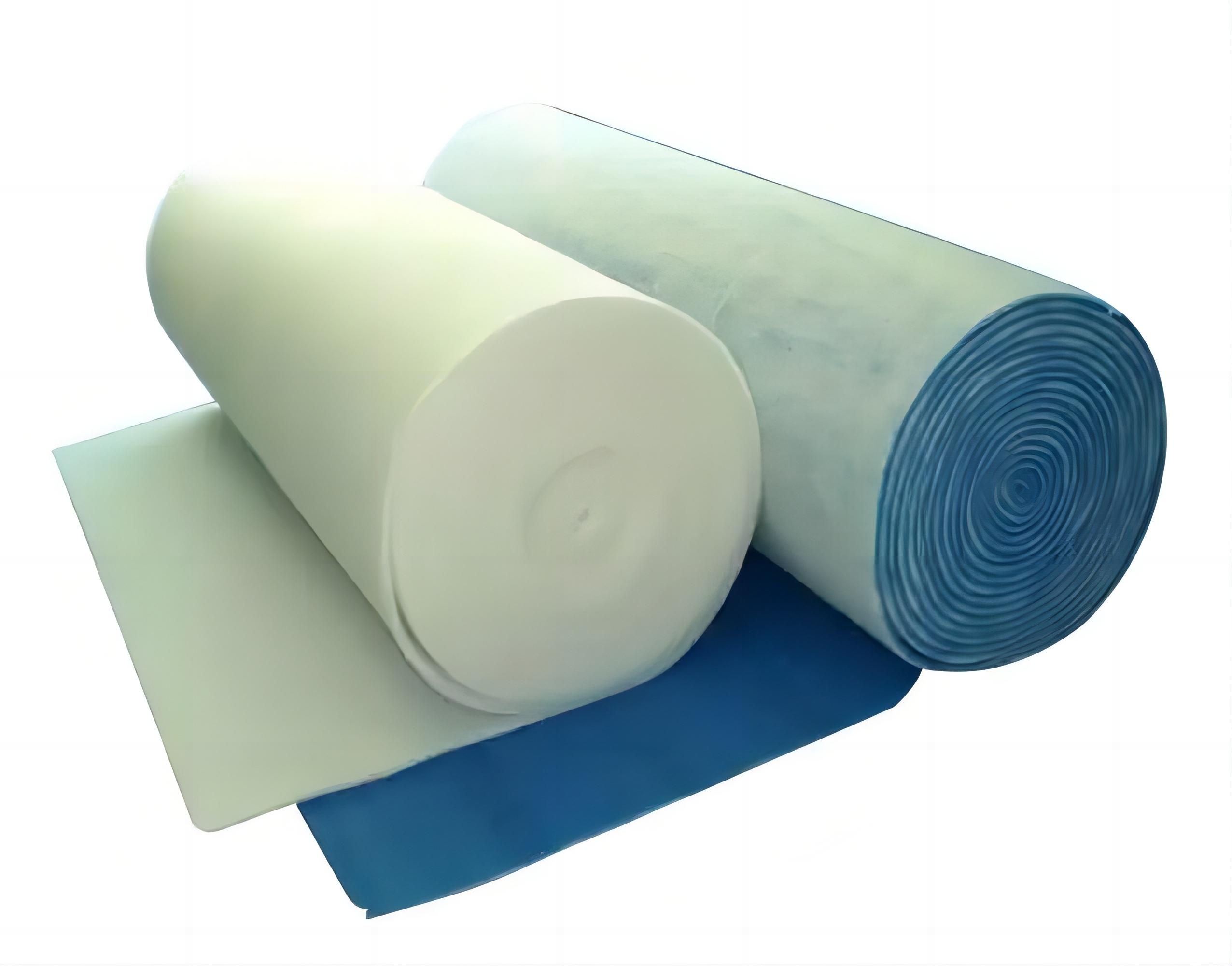

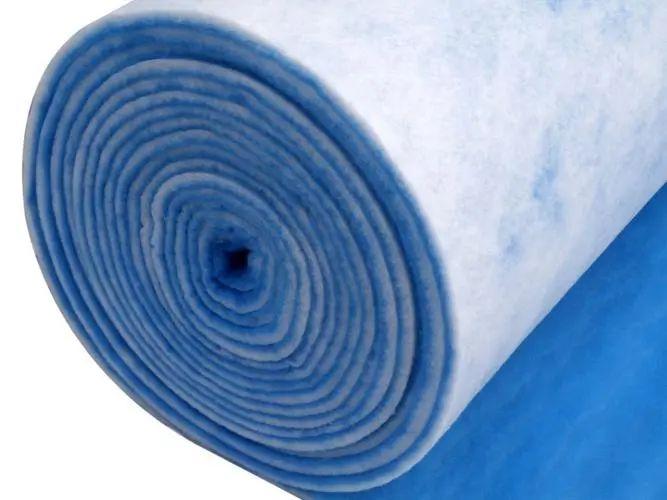

G3 G4 primary filter material roll filter cotton
air filter cottonAs the name suggests, it is actually a kind of cotton that filters the air. According to international standards, it can be divided into primary effect and medium effect filter cotton. According to European standards can be divided intoG1, G2, G3, G4, F5, F6, F7, F8.
itIt can be seen that G4 air filter cotton is actually a filter cotton classified according to European standards. For G4 air filter cotton, we will introduce it to you from its characteristics and uses.
G3 G4Primary filter filter material Roll filter cotton is widely used as filter media in clean room ventilation systems, which require resistance to high humidity and chemicals. Especially suitable for air-conditioned places such as trains or subways, pre-filtered through the air filtration program.
product name | air filter cotton | ||||
Equipment category | filter material | ||||
filter material | imported polypropylene fiber | ||||
service life | Rated air volume 2.5-3.5 months, long service life | ||||
main application | Suitable for various industrial applications: such as spraying industry, electroplating industry, surface treatment, waste gas treatment, building ventilation, pollution prevention, public buildings, air conditioning industry, home appliance industry, etc. | ||||
Features | High dust content, low resistance, strong flame retardancy, long service life, can be used many times after cleaning, economical and practical, can withstand temperature of 100°C | ||||
Applicable conditions | -10~100C, humidity: ≤80%, slightly acidic and slightly alkaline air filter |
Material | 100% polyester | ||||||||||||||||
Thickness (mm) | 5 | 10 | 15 | 20 | 25 | twenty two | 20 | twenty two | 25 | ||||||||
Rated air volume (m³/h) | 7200 | 7200 | 7200 | 5400 | 5400 | 900 | 900 | 900 | 900 | ||||||||

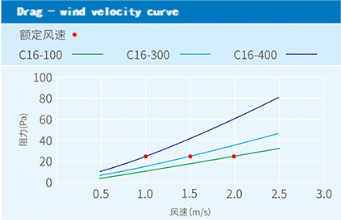

Test wind speed (m/s) | 2.0 | 2.0 | 1.5 | 1.0 | 1.0 | 0.25 | 0.25 | 0.25 | 0.25 | ||||||||

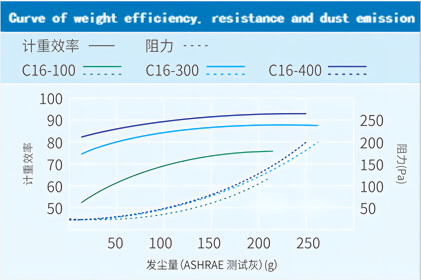

Average Weighted Efficiency (EN779) | 68% | 83% | 85% | 91% | 91%-95% | 95% | 95% | 98% | 98% | ||||||||
Initial resistance (Pa) | 20 | 20 | 20 | 25 | 35 | 25 | 28 | 35 | 45 | ||||||||
Final resistance (Pa) | 125 | 200 | 200 | 250 | 250 | 300 | 450 | 400 | 350 | ||||||||
Dust holding capacity (g/㎡) | 380 | 450 | 500 | 580 | 680 | 380 | 400 | 450 | 520 | ||||||||
Gram weight (g/㎡) | 100 | 150 | 200 | 220 | 350 | 400 | 420 | 600 | 630 | ||||||||
resistance humidity | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | ||||||||
Temperature resistance (℃) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||||||||
Filtration level | G2 | G3 | G3 | G4 | G4 | F5 | F5 | F5 | F5 | ||||||||
standard size | 1*20m, 1.6*20M, 2*20m |

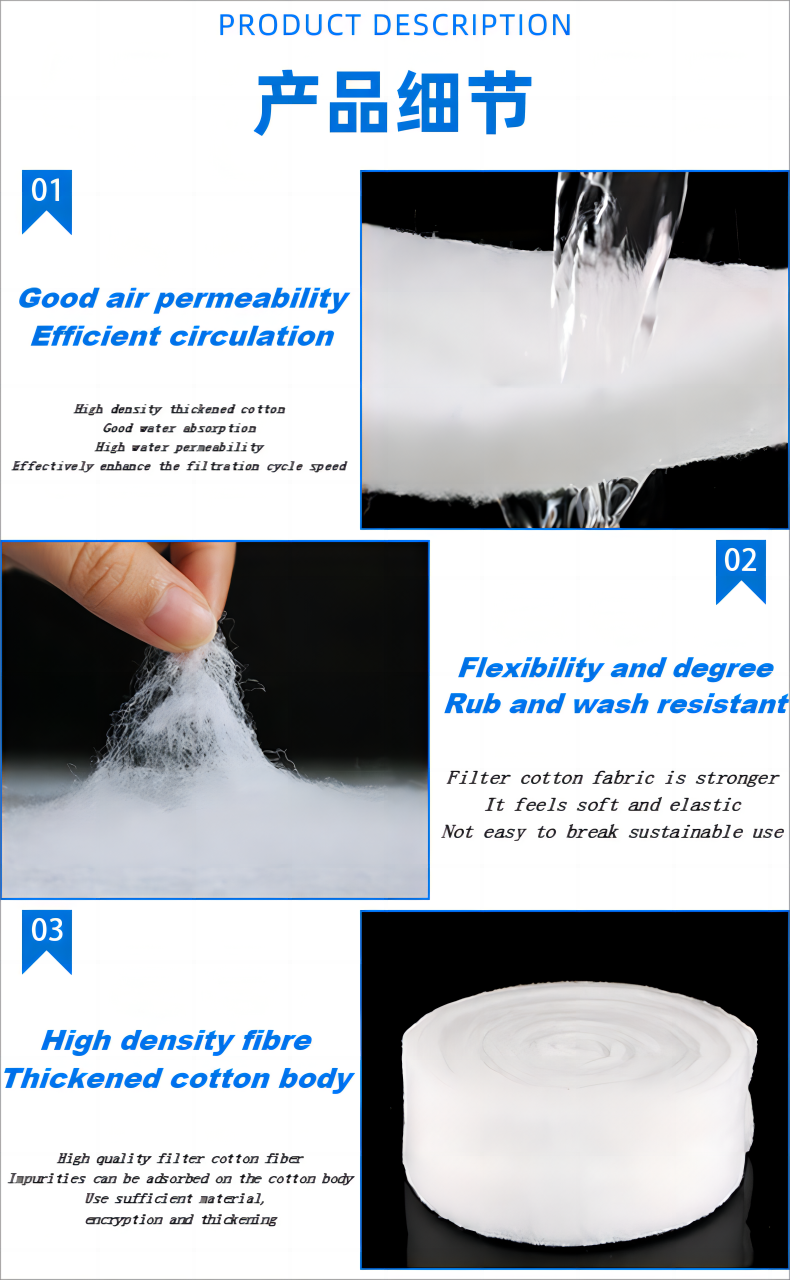

G4 air filter cotton features:

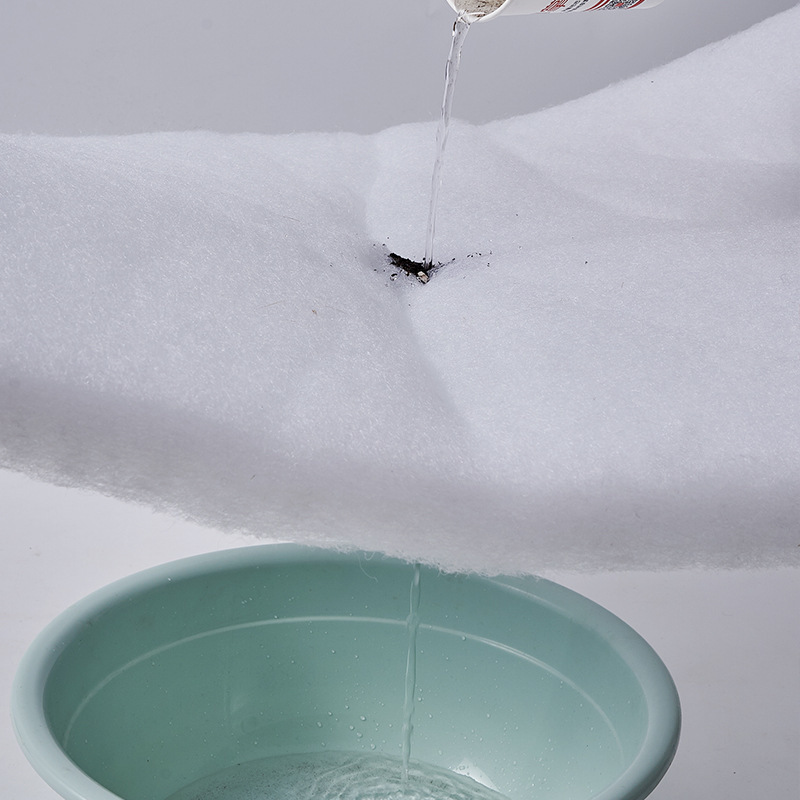

1. It is made of polyester fiber with increasing density and combed by hot air.2. Humidity resistance up to 100%rF Washable and reusable, can be washed about 2-3 times.
3. Temperature resistance up to 80℃/1760F.
4. Non-flammable, self-extinguishing, in line with DIN53438 flame retardant standard: F1.

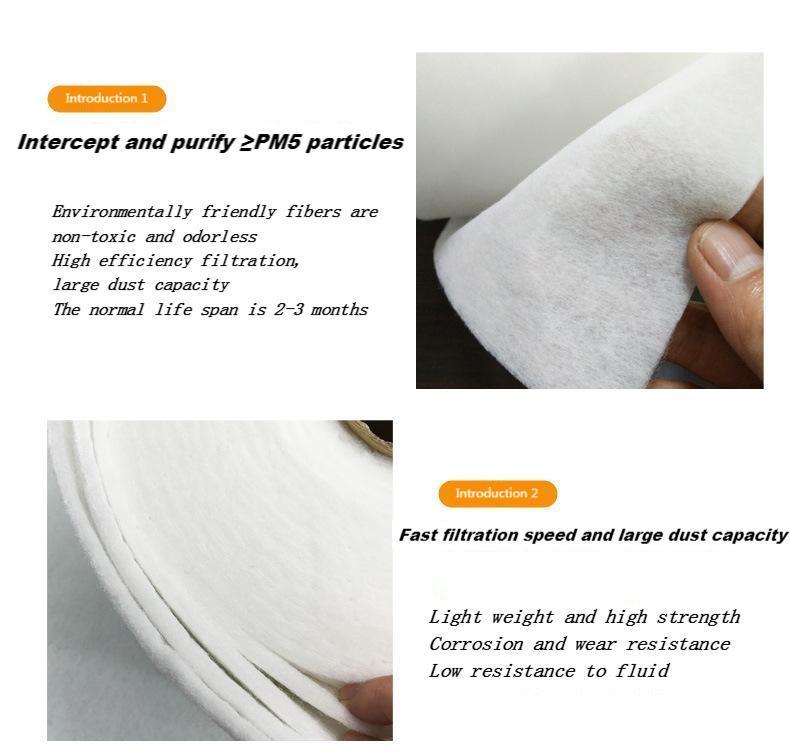

5. Filtration ≥ 5u particles and foreign matter.

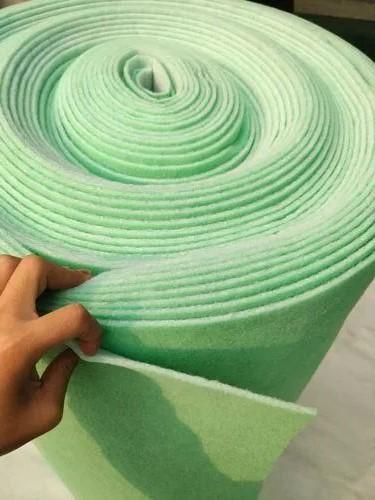

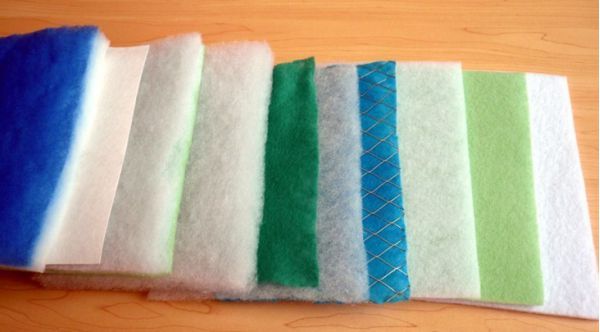

6. Coil or sheet.
7. Small resistance.
8. Excellent flame retardancy.
9. Be flexible.
10. Economical and practical.
3. Temperature resistance up to 80℃/1760F.
4. Non-flammable, self-extinguishing, in line with DIN53438 flame retardant standard: F1.
5. Filtration ≥ 5u particles and foreign matter.
6. Coil or sheet.
7. Small resistance.
8. Excellent flame retardancy.
9. Be flexible.
10. Economical and practical.
parameter:
1. Medium: Synthetic fiber with gradient density.2. EN779 grade: G2.
3. EUROVENT4/5 category: EU2.
4. Average blackout rate: 75% (ASHRAE52.1-1992).
5. DIN53438 flame retardant standard: F1.
6. Final resistance: (recommendation) 100Pa-(maximum) 200Pa.
7. Dust holding capacity: 430 grams per square meter.
8. Temperature resistance: 100℃.
9. Available in all standard cut sizes and rolls.
3. EUROVENT4/5 category: EU2.
4. Average blackout rate: 75% (ASHRAE52.1-1992).
5. DIN53438 flame retardant standard: F1.
6. Final resistance: (recommendation) 100Pa-(maximum) 200Pa.
7. Dust holding capacity: 430 grams per square meter.
8. Temperature resistance: 100℃.
9. Available in all standard cut sizes and rolls.

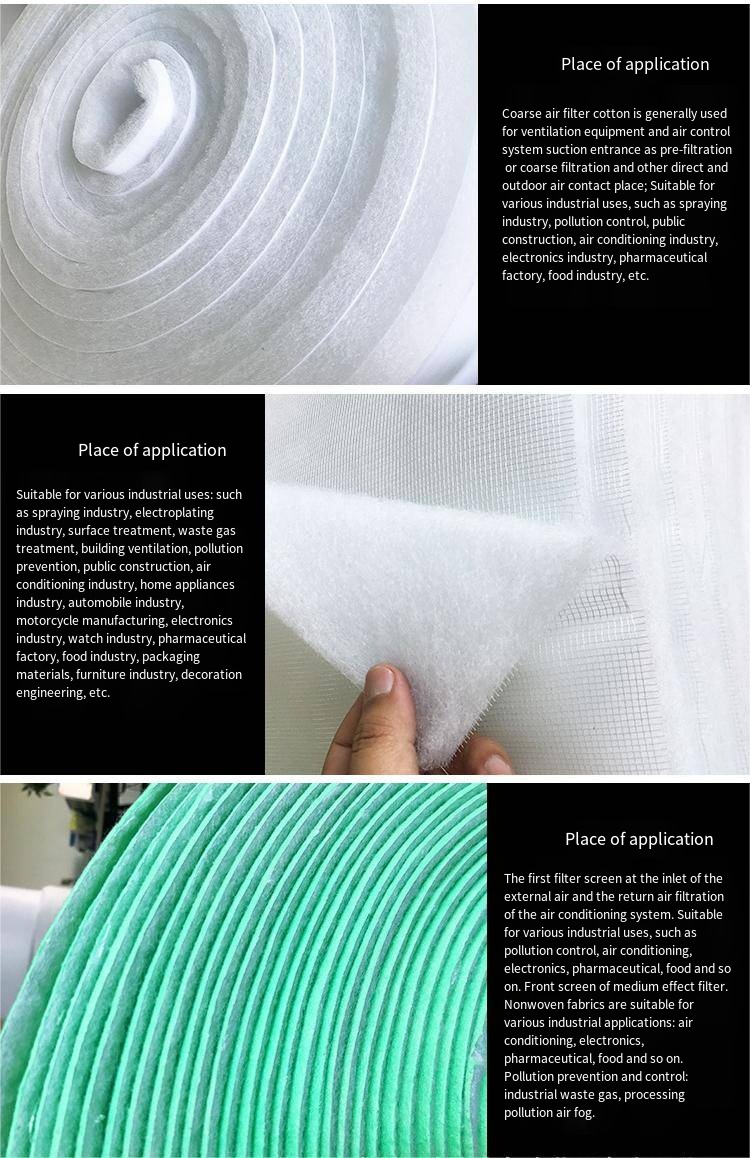

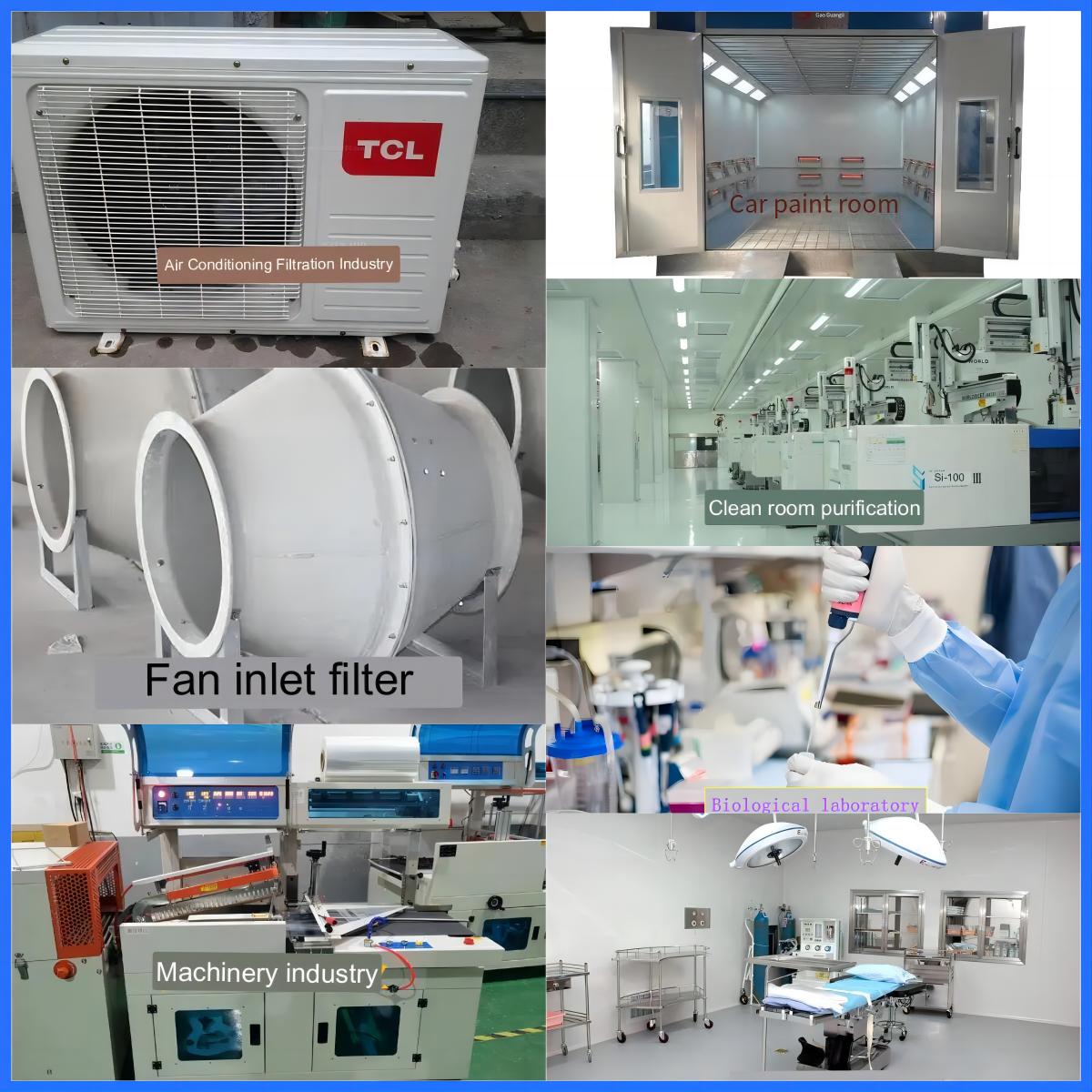

G4 air filter cotton use:
1. In air conditioning and ventilation systems.
2. As a pre-filter under high dust exposure conditions in the air supply system.

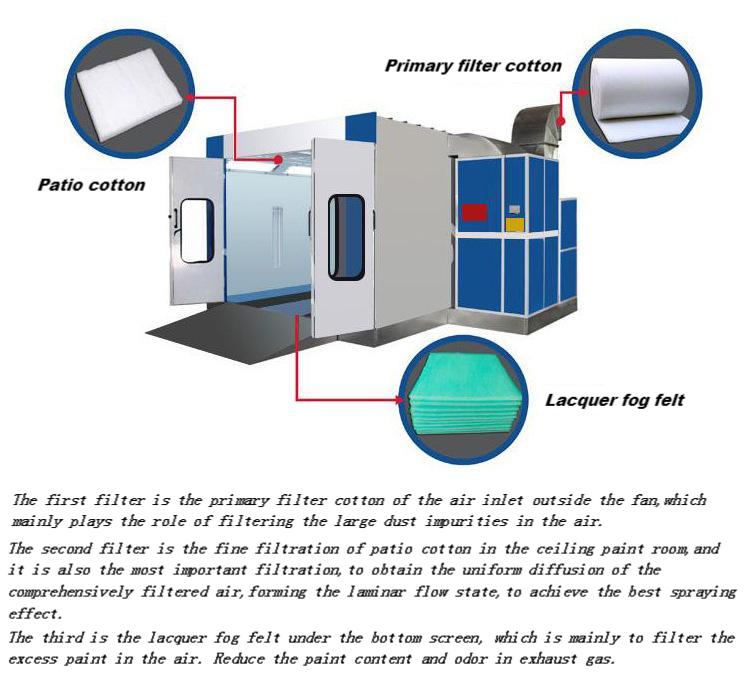

3. Pre-filtering and pressure equalization of air supply for spraying system (painting booth) and baking device.
2. As a pre-filter under high dust exposure conditions in the air supply system.
3. Pre-filtering and pressure equalization of air supply for spraying system (painting booth) and baking device.
Hot Products
Factory direct sales, large quantity price

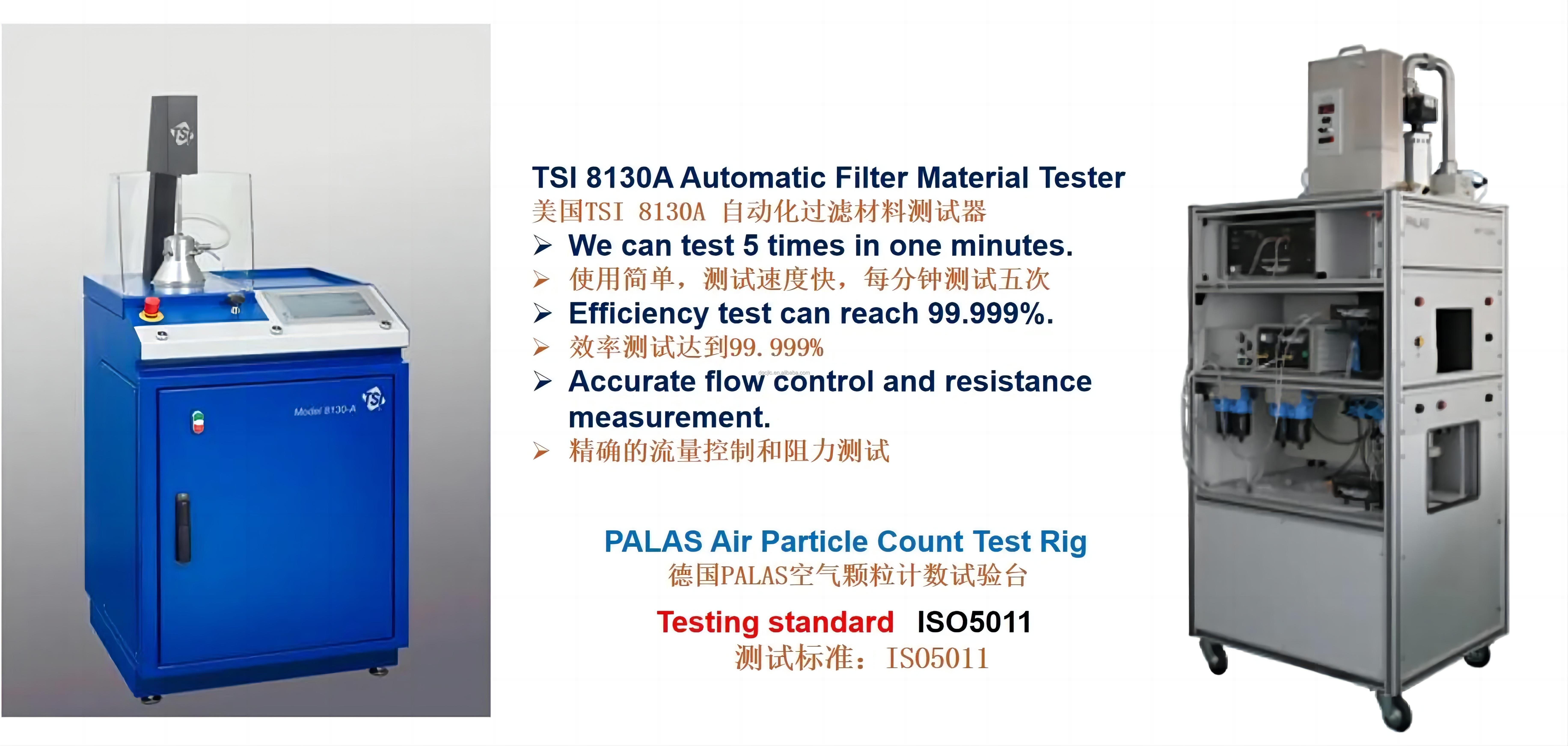

How do we test?
Product packaging

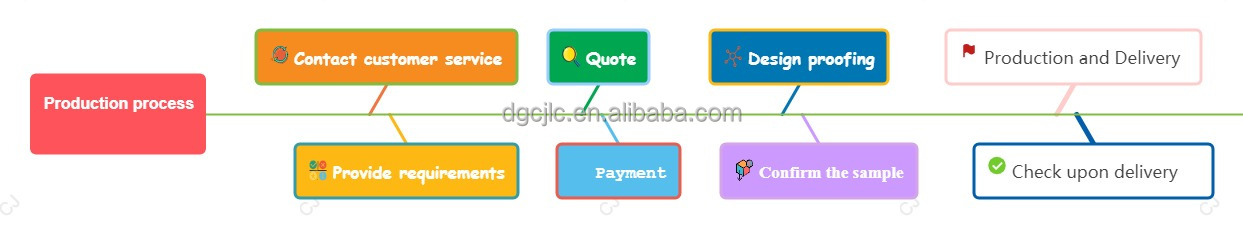

Production process>>
