Professional hydrophobic pvdf membrane filter

PRODUCT DETAIL
Machinery Test Report:Provided;Marketing Type:New Product 2020;
Core Components:Hydrophobic pvdf membrane;Package Preview:;
Warranty:1.5 years;Material:PVDF;
Local Service Location:None;Packaging Detail:box and then put into cartoon;
Warranty of core components:3 years;Shape:roll;
After Warranty Service:Online support;Port:Shanghai or Ningbo;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Energy & Mining,Food & Beverage Shops,Other,Pharmaceutical;Type:Hydrophilic and Hydrophobic;
Application1:Gas filter;Supply Ability:3000 Roll/Rolls per Day;
Application4:disc membrane;Video outgoing-inspection:Not Available;
Condition:New;Application3:lab testing;
width:270mm;Payment Terms:L/C,T/T,Western Union,Paypal;
color:white;Application2:industrial filtration equipment;
certificate:CE;ISO;Showroom Location:None;
Place of Origin:Zhejiang China;Brand Name:Tianshan filter;

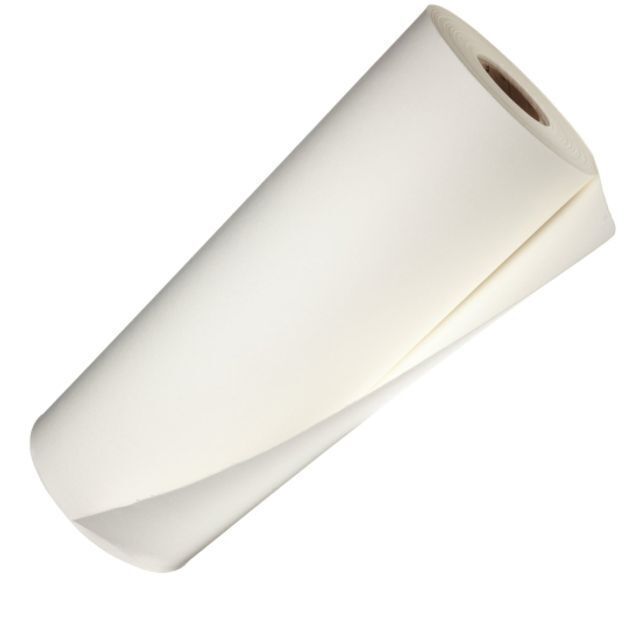

Professional hydrophobic pvdf membrane filter

Product Description

 PVDF membranes do not require the use of wetting agents, transmitting negligible extractables and increasing sample purity during sterilization or clarification procedures. Because of their exceptionally low protein binding our PVDF filters are well-utilized in the preparation of proteinaceous solutions for chromatography and other instrumental analyses. Broad chemical compatibility allows PVDF filters to accommodate a wide range of applications especially those requiring high flow rates/throughput.



Specifications



Nylon Membrane











Features







Natural hydrophobic

High non-specific adsorption

Chemical resistant to alkaline solutions and

organic solvents

Pore size: 0.10um - 3.00um

Application



Particles removing filtration of water, aqueous

solutions and solvents

Particularly suitable for alkaline solutions and organic solvents.

Polyethersulfone(PES)

Membrane















Features











Excellent throughput

Natural hydrophobic

Wide chemical compatiblity

Broad pH-range of pH 2-14

Low protein adsorption

Pore size: 0.10um - 1.20um

Application



Sterile filtration for pharmaceutical and beverage

industries laboratory filtration

Buffer filtration, tissue culture media filtration,etc

Polyvinylidene fluoride

(PVDF) Membrane













Features









Natural hydrophobic

Excellent temperature resistant

Wide chemical compatiblity

Low protein adsorption

Pore size: 0.20um - 3.00um

Application



Sterile filtration for gas/air, chemical

organic solvents,etc

Ideal for sterile manufacture of active pharmaceutical

ingredients (API)

Mixed cellulose membrane









Features







Hydrophilic, no prewetting

High flow rates and thermal stability

Low protein adsorption

Low protein adsorption

Application

Widely used in analytical and laboratory filtration

Polytetrafluoroethylene

(PTFE) Membrane



















Features







Permanently hydrophobic

Excellent chemical compatiblity

High temperature resistant

Broad pHPore size:

0.10um - 3.00um-range of pH 2-14

Application



Air/gas sterile filtration

Aggressive chemicals, reagents and solvents

bacterial removing



Technical Specification



Membrane Name Nylon PES
Pore Size (um) 0.20  0.45  0.65  0.20  0.45  0.65
Buble Point (Mpa) 0.30  0.20  0.15  0.33  0.22  0.18
pH Value 6 - 13 2 - 14
Water Flow Rate
mL/cm2/min
(ΔP=1.0bar)
Water Water
23℃ 23℃
>7 >20 >50 >20 >40 >75
PVDF CN-CA PTFE
0.20  0.45  0.80  0.20  0.45  0.65  0.10  0.20  0.45
0.09  0.06  0.04  0.30  0.20  0.15  0.15  0.10  0.07
1 - 14 4 - 8 1 - 14
Ethanol Water Air Flow Rate
23℃ 23℃ m3/m2„/h
>7 >18 >45 >10 >25 >55 >2 >4 >6
Sterilization by autoclaving (121 ℃ at 1 bar) or with ethylene oxide.
