Ultrafiltration Ceramic Membrane Microfiltration Ceramic Membrane For Oilfield Produced Water treatment

PRODUCT DETAIL
Machinery Test Report:Provided;Core Components:PLC,Pressure vessel,Pump,Filter Element;
After Warranty Service:Online support;Package Preview:;
pore size:10,20,30,50,100,200,500,800,1000nm,1200nm;Marketing Type:Ordinary Product;
Condition:New;Port:Qingdao;
Warranty:1.5 years;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Oilfield,Chemical Plant;
Brand Name:DQ;Video outgoing-inspection:Provided;
Packaging Detail:wooden carton;Supply Ability:8000 Pieces per Month;
Local Service Location:None;Payment Terms:L/C,Western Union,T/T;
Showroom Location:None;Place of Origin:Shandong, China;
Warranty of core components:1 Year;

Ultrafiltration Ceramic Membrane Microfiltration Ceramic Membrane For Oilfield Produced Water treatment



1:Description

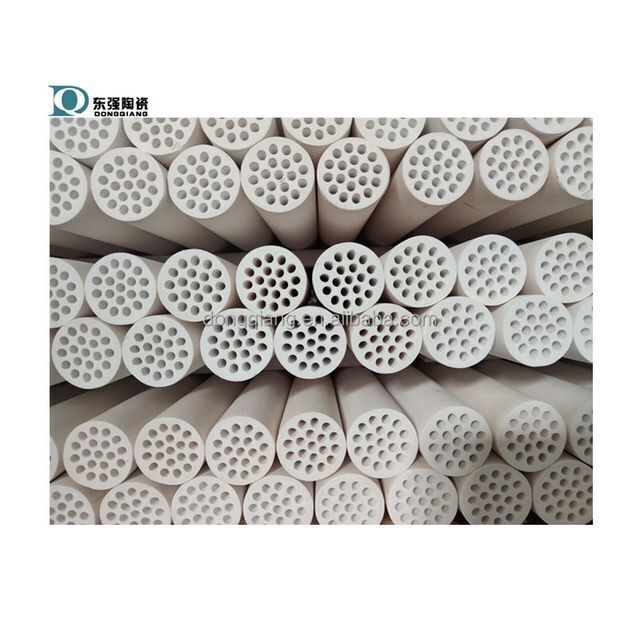

DQCM ceramic membrane is asymmetric multi-channel membranes composed of filtering layer, intermediate layer, and support layer (from the finest).





2: Filtration mode: cross flow filtration / inside-outside filtration;



3:Properties of ceramic membrane:

Support material:

 α-alumina

Pore sizes:

UF: 2,5,10,15,20,30,50nm

MF: 100,200,500,800,1200nm

Membrane material:

 Zirconia,Titania,Alumina



Length of membrane:

250-1200mm(special length upon customer's request)

Outer diamater:

12/25/30/40/52mm





Working pressure:

Normal: 0.1-0.4MPa  Max.: ≤1.0MPa

Burst pressure:

≥9.0MPa





Working temperature:

5-150℃





PH range:

 0-14





4:Specification of membranes:



5: Ceramic Membrane Compared with traditional filtration system

Compared with such tradition filter like frame filter,press filter, centrifugal filter, DE Filter

and polymeric membrane filter, ceramic membrane has many unique advantages.

1).Excellent resistance to acid, alkaline and oxidation chemicals.

2).Good solvent stability, high thermal stability.

3).Fine separability with narrow pore size distribution.

4).Extremely long working life compared with polymeric membrane.

5).Easy to be cleaned and sanitized with back flushing.

6).High mechanical strength,good abrasive resistance.



6:Applications:

Filtration,clarification,purification and concentration.

(especially for filtration of food and beverage industries,chemical and petrochemical industries,biochemical and pharmaceutical industries.)



7:Typical Applications:

1) Biochemical and Pharmaceutical Industries:

Clarification and purification of the fermentation products as well as purification or separation of product slurries;

2) Environmental applications:

   water and waster water treatment,oily water separation;

3) Food and beverage Industry:

Milk microfiltration,yogurt concentration,vegetable oil clarification,protein

concentration,and separation of soya bean protein;

wine clarification,beer clarification,fruit juice clarification;

4) Highly useful for various filtration applications in the Petro-Chemical Industry;

5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing

    liquids.



Zibo Dongqiang Ceramic Filter Co.,Ltd. is a specialized manufacturer of inorganic ceramic membrane and polymeric membrane and equipment and solution provider of membrane filtration,separation,concentration and extraction technology.

We have a R&D center,6 ceramic membrane production line,2 polymeric membrane production line,1 housing fabricating workshop,1 equipment assembly and fabricating workshop.

With the above production capacity and expertized staff,our business ranges from MF,UF,NF,RO membrane and euqipment manufacturing to the complete process development,engineering design,system integration,assembly and commissioning.

We supply our customers with:

1:Membrane module:

  Ceramic membrane,polymeric membrane and housing.

2:Membrane equipment:

  Lab scale pilot,Middle scale pilot,and industrial scale equipment.

3:Membrane technology solution:

  Water treatment,Environmental protection,Food and beverage,Biochemical,Pharmaceutical,

  Oil field industries.

4:Membrane technology and service.



*For more detailed information,feel free to contact us.
