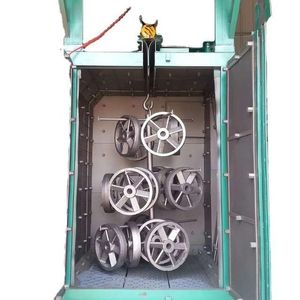

Q37 double hook wheel rim shot blasting machine
- $5000.00 /set
- 1 set
- Yancheng Fengyao Machinery Co., Ltd.
- Jiangsu, China
- Mr James Song
| Video shipment inspection: | if | usage: | Cleaning of castings, forgings, weldments, heat treatment |
| fuel: | electrical | Core components: | Shot blasting turbine |
| application: | metal surface treatment | brand: | Fengyao |
| Package preview: | Health status: | new | |
| Origin: | China | Advantage: | Easy to install and adjust |
| Marketing Type: | New product | spare parts: | Chromium manganese alloy standard parts |
| Main selling points: | Famous PLC | Weight (kg): | 6000 kg |
| Type of machine: | abrader | Material: | Metal |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | container |
| Dimensions (L*W*H): | customized | strength: | customized |
| cleaning type: | Sandblasting | Core component warranty: | 1 year |
| Mechanical test report: | if | Showroom location: | not any |
| Supply capacity: | 10 sets per month | Applicable industries: | Building material stores, manufacturing plants, machinery repair shops, construction projects |
| feature: | Anti-rust/Anti-corrosion | Cleaning process: | steel shot |
| PLC brand: | Siemens, Omron or Chinese famous brand | Surface level after blasting: | SA2.5 to SA3.0 |
| Warranty: | 1 year | Cleaning type: | Electric shot blasting/grinding wheel shot blasting |
| use: | Metal Surface Cleaning | After-sales service: | Local agent, video technical support, online support |
| port: | Shanghai | dust collector: | Element/Bag Filter Pulse Inversion |
Q37 double hook wheel rim shot blasting machine

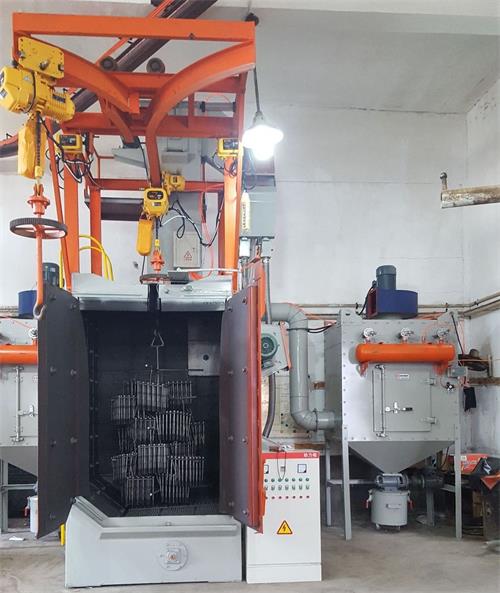

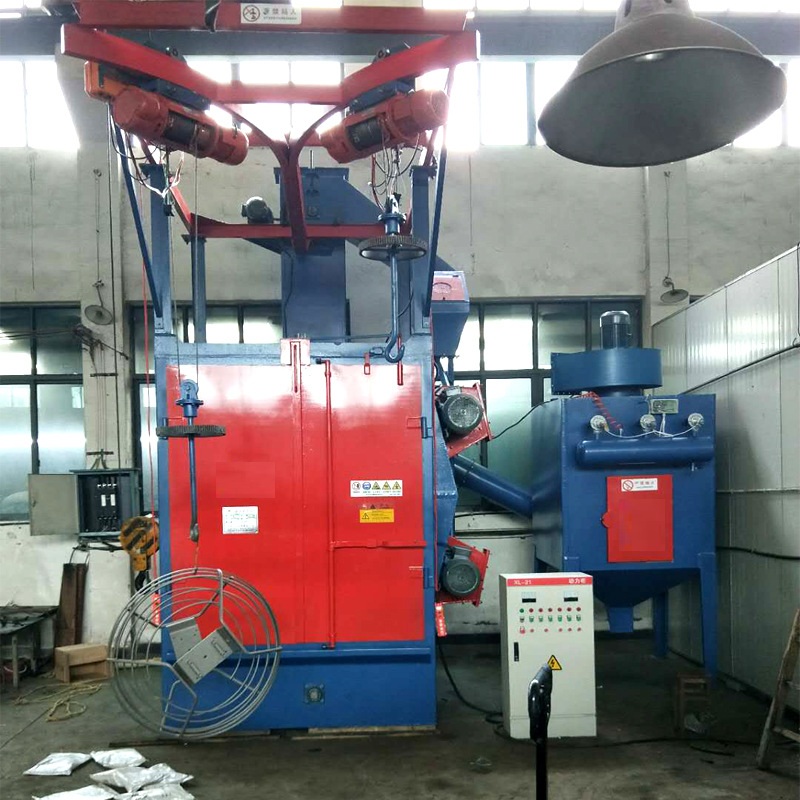

Introduction of hook type shot blasting machine
Q37 series hook type shot blasting machine is mainly used for surface cleaning and strengthening of steel structure parts, castings, aluminum alloy parts and other parts. Widely used in casting, forging, machinery and steel industry. In particular, the Q378 cleaner features no pit, double hooks without changing rails, compact structure, and high productivity.
The use of hook type shot blasting machine
The Q37 series is used for surface cleaning, dust removal and surface strengthening of various small and medium-sized castings, forgings and workpieces. Applicable to different production scales, it can be used as a single machine, or multiple sets can be used together with continuous conveying components to form a cleaning assembly line for production.
Features of Q37 shot blasting machine
1. No pit, no diversion, compact structure
2. The impeller has a large amount of shot blasting
3. High cleaning efficiency and large effective space
4. No pit form, no special requirements for workpiece structure
5. Suitable for machinery manufacturing and foundry industry
6. With dust collection device and separation device, easy to operate and in good condition
7. Easy maintenance
Technical parameters of Q37 hook type shot blasting machine
|
item type |
Q376F |
Q378 |
Q3710 |
Q3720 |
Q3750 |
|
Cleaning chamber size (mm) |
600*1100 |
800*1500 |
900*1600 |
1400*2300 |
1800*2500 |
|
Single hook load weight(kg) |
600 |
1000 |
1000 |
2000 |
5000 |
|
Abrasive flow rate (kg/min) |
2*120 |
2*200 |
2*250 |
3*250 |
4*250 |
|
Lifting capacity of hoist (t/h) |
15 |
twenty two |
30 |
45 |
60 |
|
Separator separation capacity (t/h) |
15 |
twenty two |
30 |
45 |
60 |
|
Ventilation volume (m3/H) |
5000 |
8000 |
9000 |
15000 |
18000 |
|
Power (excluding dust removal) kw |
19 |
32.5 |
36.55 |
61.27 |
78.4 |
|
Dimensions (mm)
|
4429*2850* 3443 |
4325*2660* 5009 |
5047*3850* 5156 |
6110*3599* 7842 |
7062*5460* 8652 |
