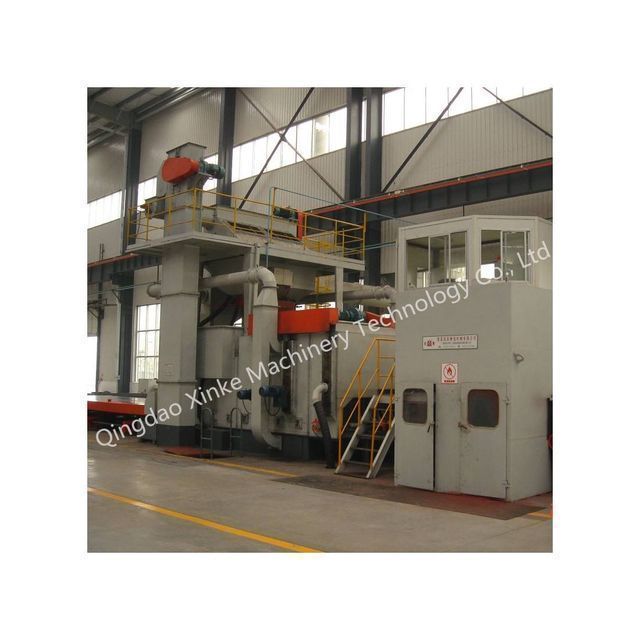

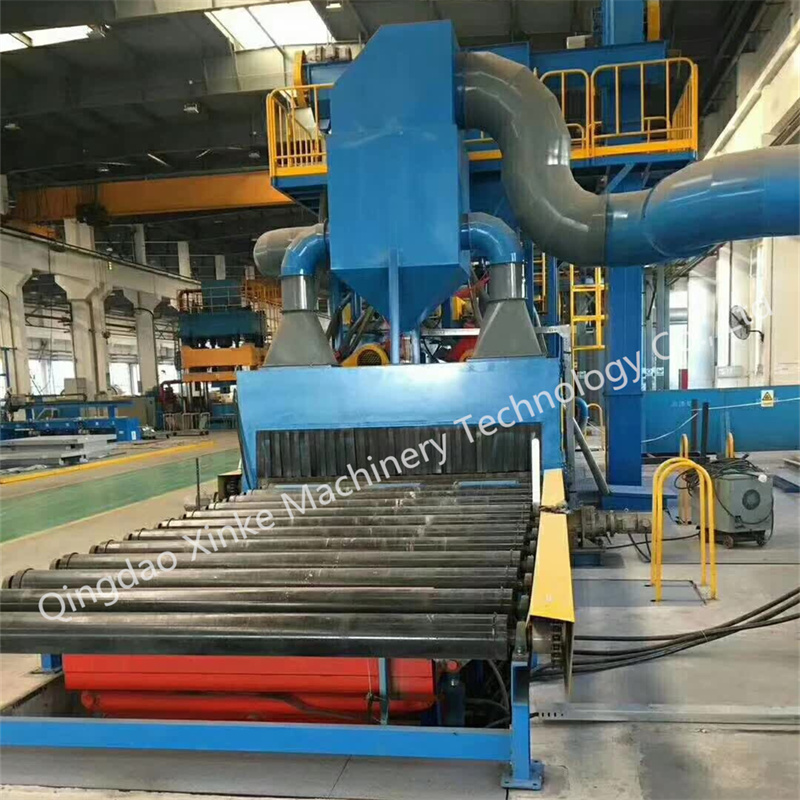

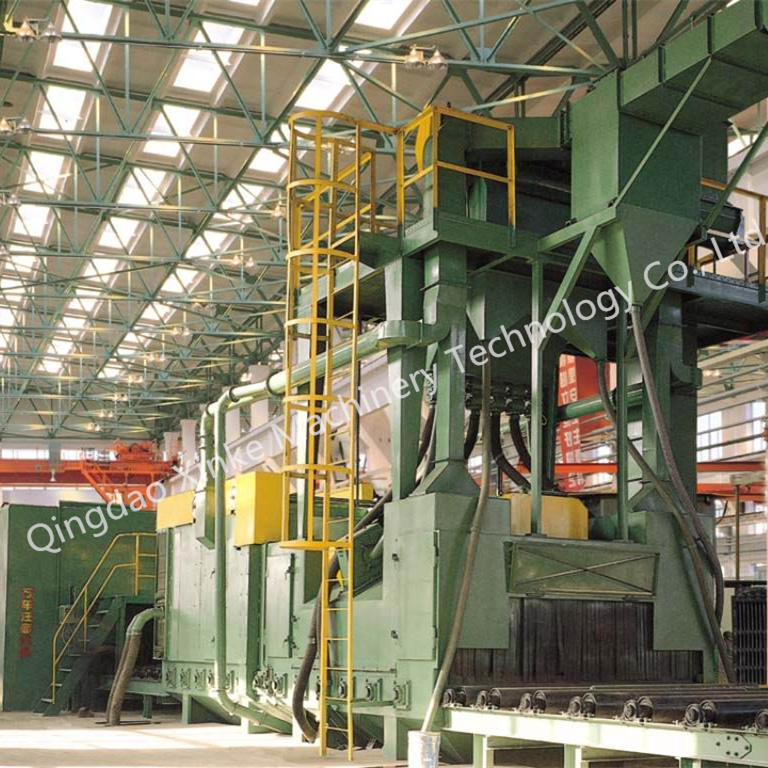

Q69 Roller Continuous Through Shot Blasting Machine for Welding Structural Steel Surface Shot Blasting
- $35000.00 /set
- 1 set
- Qingdao Xinke Machinery Technology Co., Ltd.
- Shandong, China
- Mr Jack Fu
PRODUCT DETAIL
| Packaging Details: | Nude photos or as per customer request | brand: | Qingdao Shinco |
| Core Components Warranty: | 1 year | Burner: | shot blaster |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Effective cleaning width: | 800-3000mm |
| Marketing Type: | normal product | Effective cleaning width: | 1200mm |
| Showroom location: | Italy, France, Germany, Vietnam, Philippines, Brazil | Type of machine: | grinder |
| Thickness of cleaning steel plate: | 3-60mm | strength: | 78.3kW |
| Cleaning Type: | Motor driven shot blasting | Warranty: | 1 year |
| Health status: | new | use: | polishing, deburring |
| gasoline: | electrical | Cleaning process: | Abrasive/Sand/Grit |
| Packaging Preview: | Supply capacity: | 50 sets per year | |
| Abrasive flow: | 4*250kg/min | Inlet size: | 1200*400mm |
| Dimensions (L*W*H): | custom made | port: | Qingdao |
| Mechanical test report: | Not available | place of origin; place of origin: | Shandong China |
| Main selling point: | remote control | Core components: | PLC, engine, bearing, gearbox, motor |
| Weight (kg): | 20000 kg | Material: | Forgings and Castings |
| Video external inspection: | if | Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops |
| Motor brand: | international well-known brand | Shipping speed: | 0.5-4m/min |
| Roller speed: | 0.5-4 m/min | Cleaning piece length: | 1200-12000mm |
thing | Q6910 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 |
Effective cleaning width (mm) | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
Inlet size (mm) | 1000*260 | 1200*400 | 1500*400 | 2000*400 | 2500*800 | 3000*800 | 4000*400 |
Length(mm) | 1200-12000 | 1200-12000 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
Roller conveying speed (m/min) | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
Thickness(mm) | 4-60 | 4-60 | 4-60 | 4-60 | 4-60 | 4-110 | 4.5-100 |
Shot blasting capacity (kg/min) | 4*250 | 4*250 | 4*250 | 4*250 | 6*250 | 6*360 | 8*360 |
Initial capacity (kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
Roller brush height (mm) | Do not | 200 | 350 | 450 | 600 | 850 | 900 |
Ventilation volume (m³/h) | 12000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
Total power (kw) | 78 | 78.3 | 113.5 | 156.6 | 224.55 | 204.8 | 293.6 |
1. How many days will it take to produce this machine?This is our standard machine and we have some in stock for immediate delivery upon your deposit.2. What does your factory do in terms of quality control?From the start of production to the end, we take quality very seriously, each machine is fully assembled and carefully tested before shipping.3. What is your machine quality guarantee?The quality assurance period is one year, and we choose components from world-renowned brands to keep our machines in perfect working condition.4. Can installation and debugging be carried out overseas? how much time is required?Yes, we provide overseas service, but customers need to pay the engineer's tickets and hotel, food. Small machines usually take about 20 days.
