QDY type crane casting crane double girder overhead crane

PRODUCT DETAIL
Product name:QD type double girder 100 ton overhead crane with trolley winch;Video outgoing-inspection:Provided;
Crane feature:Easy Operated Girder Bridge Crane;Local Service Location:None;
Max. Lifting Height:30m;Warranty of core components:2 years;
Condition:New;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining;
Color:Customised as requirements;Marketing Type:New Product 2020;
MOQ:1 Set;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Control Method:Wireless Remote Control+Cab Control;Showroom Location:None;
Warranty:2 years;Capacity:5ton~800t/150t;
Core Components:PLC,Engine,Gearbox,Motor,Gear;Machinery Test Report:Provided;
After-sales Service Provided:Field maintenance and repair service;Lifting mechanism:Eliectric Winch Trolley;
Work Duty:A5-A6;Port:Qingdao/ Tianjin/ Shanghai/ Others;
Max. Lifting Load:100t;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Type:Double Girder Bridge Crane;Feature:Bridge Crane;
Brand Name:Dejun 100 ton overhead crane;Span:31.5m;
Rated Lifting Moment:1000-kn;Packaging Detail:1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements.;
Place of Origin:Henan China;Power supply:110V/220V/230V/380V/440V;
Supply Ability:6000 Set/Sets per Month;
Product Description

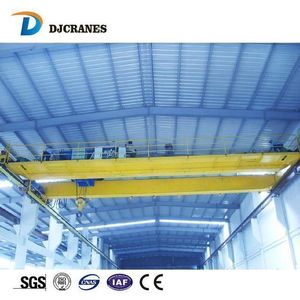

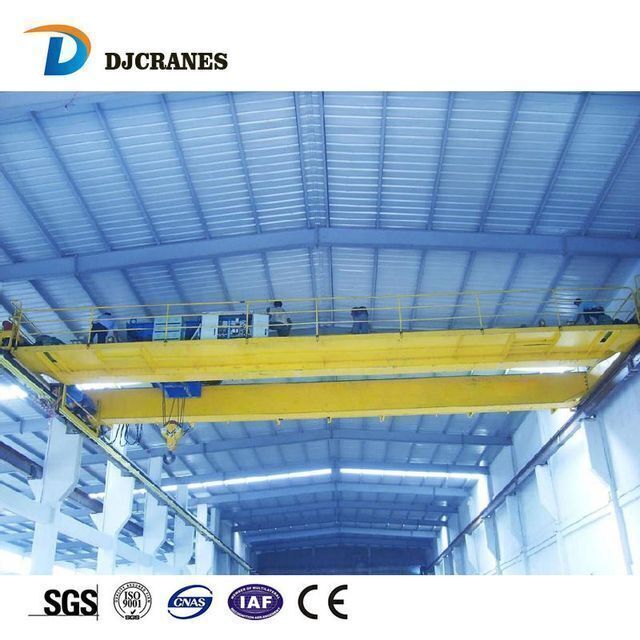

QD type double girder bridge crane with trolley winch is mainly composed of bridge, running gear of crane, trolley and electrical device, etc. It is divided into two working classes:A5 and A6 according to the use grade and load-up condition.

There are three kinds of method for entering the platform of cab:from the side, from the end and from the top.

Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab or at the same side of the cab.

Operation of the crane shall be finished in the cab completely.

Features:double beams, single or double trolley with main and aux hook, electrical system adopts Schneider, Mitsubishi, Siemens well known brand name.



Parameters

QD type double girder bridge crane' s main parameters in follow:

QD type 10t double girder bridge crane with trolley winch
Span S(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting height m 16 16 16 16 16 16 16 16
Lifting speed m/min 8.5 8.5 8.5 8.5 8.5 8.5 8.5 8.5
Trolley speed m/min 43.8 43.8 43.8 43.8 43.8 43.8 43.8 43.8
Crane speed m/min 90.7 90.7 90.7 91.9 91.9 84.7 84.7 84.7
Lifting motor kw 17 17 17 17 17 17 17 17
Trolley motor kw 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Total weight kg 13640 15520 18350 20340 22750 27140 30530 33620
Max Wheel Load KN 101 108 117 122 130 140 150 160
Track   P43 P43 P43 P43 P43 P43 P43 P43
Main dimension mm 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Rail top to main top H1 1876 1876 1876 1876 1876 1926 1926 1926
Rail top to hook centre H2 602 602 602 602 602 552 552 552
Wheel base W 4050 4050 4050 4050 4050 5000 5000 5000
Crane width B 5704 5704 5704 5882 5882 5948 5948 5948
Hook left limitation S1 1050 1050 1050 1050 1050 1050 1050 1050
Hook right limitation S2 1300 1300 1300 1300 1300 1300 1300 1300
Trolley gauge K 2000 2000 2000 2000 2000 2000 2000 2000
Note: Control mode for cab operation
Products



Packaging & Shipping
Company Information

 Henan Dejun Industry Co., Ltd is specializing in hoist, crane, winch, aerial work platform and crane parts in the world! is a specializing in hoist, crane, winch, aerial work platform and crane parts in the world!

Certifications





FAQ



1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A:
 Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A:
 Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;


4. Q: What's your warranty period?
A:
 12 months from cranes accepted;

5. Q: Do you have engineer oversea installation service?
A:
 Yes; We have;

6. Q: What kinds of products do you have?
A:
 All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?
A:
 Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?
A:
 Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.

NOTICE



For quick quotation, please fill in the following information:

1. The lifting capacity of the crane
2. The lifting height (from floor to the hook center)
3. The span (the distance between the two rails)
4. The power source in your country. Is 380V/50Hz/3P or 415V/50Hz/3P?

5. Your nearest port
