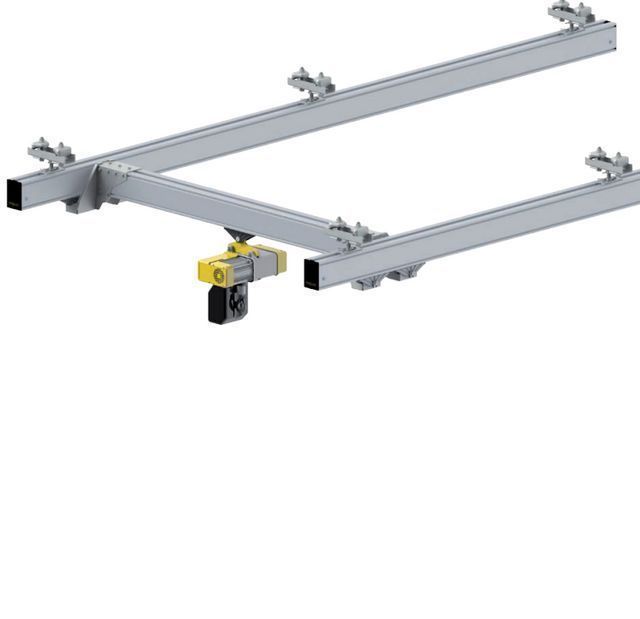

Single girder overhead aluminium light crane for gaining height in clean environments
- $100.00 / >=5 meters
- 5 meters
- Shandong Jndo Hoisting Equipment Co., Ltd.
- Shandong, China
- Ms Daisy su
| port: | Tianjin harbor | feature: | Bridge crane |
| Core Components Warranty: | 1 year | surface: | Anodizing |
| Weight (kg): | 400 kg | Maximum capacity: | 2000kg |
| Showroom location: | not any | Video external inspection: | if |
| temperature range: | -10°C to +40°C | product name: | Single girder overhead aluminum light crane |
| Marketing Type: | normal product | Health status: | new |
| maximum. Lifting height: | 8m | Packaging Details: | wrapped in plastic wrap |
| Rated lifting moment: | 125-2000kg | Core components: | rail |
| Mechanical test report: | if | Applicable industries: | Manufacturing Plants, Food and Beverage Plants |
| Warranty: | 1,1 years | payment terms: | L/C,Western Union,T/T |
| maximum. Lifting load: | 2000kg | place of origin; place of origin: | Hebei china |
| Profile Type: | 6 | Supply capacity: | 1000 meters per month |
| Material: | natural aluminum | style of working: | Manual or Electric |
| brand: | JNDO |
Single girder overhead aluminium light crane for gaining height in clean environments
Ergonomics:
Not only is it very light, but it also provides an easy and smooth marching motion with very little hand strength.
Minimal physical effort means better ergonomics and better safety.
economy:
Aluminium profiles are also usedReduce the cost of support structures. About 50% lighter than steel, the crane has less rolling resistance than comparable steel systems.
Easy to maintain:
Easy-to-access service stations allow maintenance tasks to be completed quickly without stopping work on the entire production line
Anticorrosion:
Aluminium profiles on the outside and insideAnodized Corrosion Resistant.
Safety:
Aluminum track profiles are cut to length, and bolted connections make installation easier, faster and safer than systems that require welding.
Swing mount
Pendulum installation 50-150mm
Pendulum installation 150-250mm
Pendulum installation 250-310mm

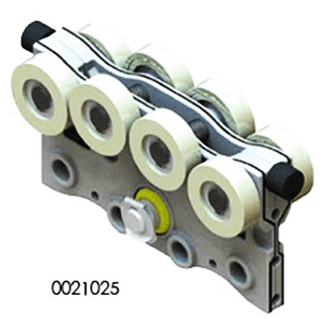

Hinged trolley
Rigid Plastic Hinged Trolley Capacity 300kg
Aluminum Hinged Trolley Capacity 600kg

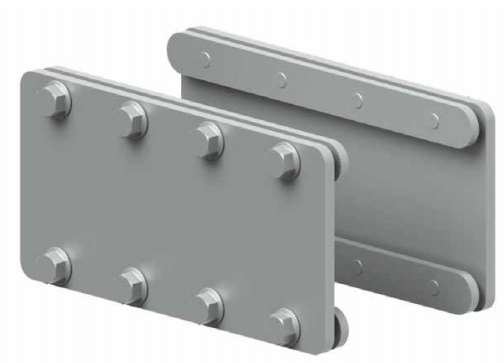

Rail joint extension profiles
Lift module with aluminium trolley

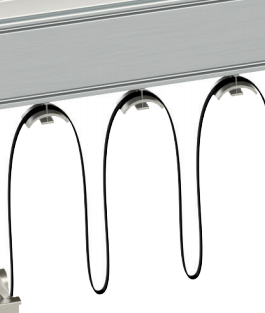

Power cable trolley
Power flat cable

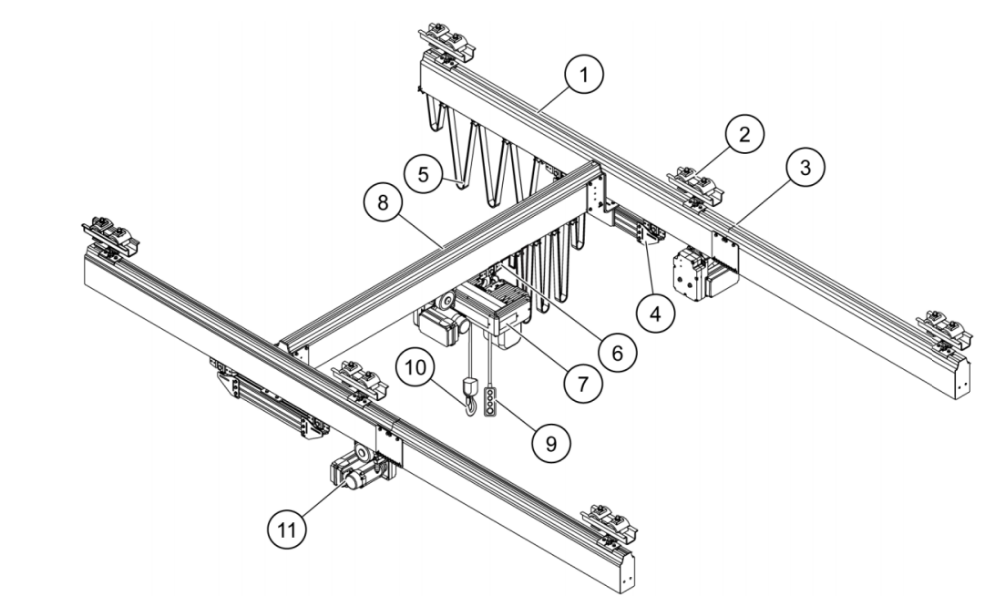

Do not. | part | describe |
1 | track | Overhead track consists of profiles for the crane bridge to move along its length |
2 | Suspension | The crane can be suspended from the bracket from the ceiling or other overhead structure |
3 | connection group | The profiles are connected to each other to form a track |
4 | Crane bridge trolley | Crane bridges are mounted on trolleys that run within the track profile. |
5 | power supply system | The power supply system supplies power to the lifting gear and electric trolley (if equipped) |
6 | cart | The hoisting device is mounted on the trolley running in the rail profile |
7 | Lifting device | Lifting device lifts and lowers loads |
8 | crane bridge | Crane bridges are also made up of profiles for the lifting gear to move along its length. |
9 | pendant controller | Operating the hoist using the hoist control |
10 | hook | Hook for attaching the load for lifting |
| 11 | motor vehicle | Electric trolleys are used where lifting equipment requires horizontal motorized movement. |
