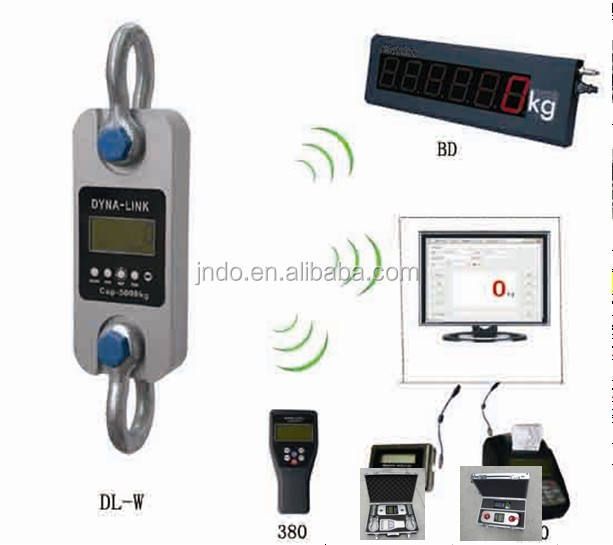

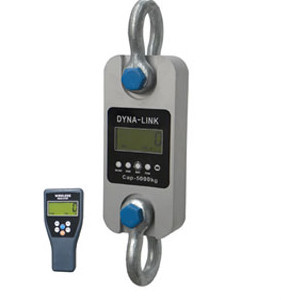

dyna-link wireless 1t 2t 3t 5t 10t 20t 50t 100t 200t dynamometer prices
- $250.00 / >=2 sets
- 2 sets
- Shandong Jndo Hoisting Equipment Co., Ltd.
- Shandong, China
- Ms Daisy su
accuracy: | 1-50 tons 0.05% | Material: | aluminum |
capacity: | 1T~200t | Supply capacity: | 600 sets per month |
Origin: | Shandong China | model: | DL |
port: | Qingdao | payment terms: | L/C, Western Union, T/T |
Packaging Details: | Steel case, very strong. | specified load: | 200 tons |
power supply: | 1.5Vx3 battery | brand: | Japan National Development Organization |
type: | Dynamometer | Battery: | "LR6(AA)" size alkaline batteries. 1.5Vx3 |
color: | silver | Display type: | LCD Monitor |
Wireless dyna-link 1t 2t 3t 5t 10t 20t 50t 100t 200t dynamometer price

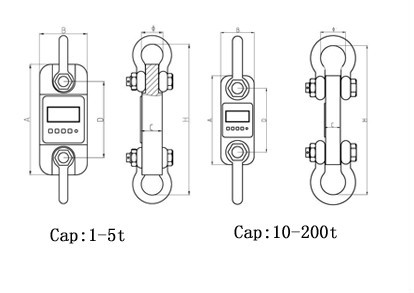

Model | A(mm) | B(mm) | C(mm) | Diameter (mm) | φ(mm) | Well) | Material |
---|---|---|---|---|---|---|---|
DL-W3-01 | 245 | 112 | 37 | 190 | 43 | 335 | aluminum |
DL-W3-02 | 245 | 112 | 37 | 190 | 43 | 335 | aluminum |
DL-W3-03 | 260 | 123 | 37 | 195 | 51 | 365 | aluminum |
DL-W3-05 | 285 | 123 | 57 | 210 | 58 | 405 | aluminum |
DL-W3-10 | 320 | 120 | 57 | 230 | 92 | 535 | alloy steel |
DL-W3-20 | 420 | 128 | 74 | 260 | 127 | 660 | alloy steel |
DL-W3-30 | 420 | 138 | 82 | 280 | 146 | 740 | alloy steel |
DL-W3-50 | 465 | 150 | 104 | 305 | 184 | 930 | alloy steel |
DL-W3-100 | 570 | 190 | 132 | 366 | 229 | 1230 | alloy steel |
DL-W3-200 | 725 | 265 | 183 | 440 | 280 | 1380 | alloy steel |
Wireless Tension Link Specifications:
Model | maximum. Capacity (kg) | Minute weight (kg) | Division (kg) | Total display times (n) |
---|---|---|---|---|
DL-W3-01 | 1000/2200 | 10/20 | 0.5/1 | 2000 |
DL-W3-02 | 2000/4400 | 20/40 | 1/2 | 2000 |
DL-W3-03 | 3000/6600 | 20/40 | 1/2 | 3000 |
DL-W3-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
DL-W3-10 | 10000/22000 | 100/200 | 5/10 | 2000 |
DL-W3-20 | 20000/44000 | 200/400 | 10/20 | 2000 |
DL-W3-30 | 30000/66000 | 200/400 | 10/20 | 3000 |
DL-W3-50 | 50000/110000 | 400/800 | 20/40 | 2500 |
DL-W3-100 | 100000/220000 | 1000/2000 | 50/100 | 2000 |
DL-W3-200 | 200000/440000 | 2000/4000 | 100/200 | 2000 |
Wireless Tension Link Instructions
Sturdy construction.
1. Accuracy: 0.05% of capacity.
2. All functions and units are clearly displayed on LCD (with backlight).
3. Numbers are 1 inch tall for easy viewing from a distance.
4. Two user-programmable set points are available for safety and warning applications or limit weighing.
5. Long battery life with 3 standard "LR6(AA)" alkaline batteries.
6. All commonly used internationally recognized units are available: kilogram (kg), short ton (t), pound (lb), newton and kilonewton (kN).
7. Infrared remote control is easier to calibrate (with password).
8. Infrared remote control with multiple functions: "ZERO", "TARE", "CLEAR", "PEAK", "ACCUMULATE", "HOLD", "Unit Change", "Voltage Check" and "Power OFF".
9.4 Local mechanical keys: "ON/OFF", "ZERO", "PEAK" and "Unit Change".
10. Low battery warning.
11. RF wireless palm indicator.
Main technical data:
exhibit | 25mm (1'') 5-digit LCD |
Power-on and zero adjustment | 20% full scale |
Manual zero range | 4% full scale |
Tare range | 20% full scale |
stable schedule | ≤10 seconds |
overload indication | 100% FS + 9e |
maximum. safety load | 125% full scale |
ultimate load | 400% full scale |
Battery Life | ≥40 hours |
Battery Type | "LR6(AA)" size alkaline batteries. 1.5V*3 |
Operating temperature | - 10℃ ~ + 40℃ |
Working humidity | ≤85%RH at 20℃ |
remote control distance | 15 meters per minute |
radio frequency | 2.4GHz (default), 433MHz, 860MHz (optional) |
wireless distance | Minute 80m(default) [200m(optional)] |
We can provide not only stunning products but also special products designed upon request. We will do our best to meet the needs of our customers.
