WDW 20kN 50kN 100kN 200kN 300kN Electromechanical Rubber Metal Steel Composite Tensile Strength Testing Machine
- $3000.00 /set
- 1 set
- Jinan Victory Instrument Co., Ltd.
- Shandong, China
- Ms Coffee Zhang
| Packaging Details: | Export plywood box, 100kn tensile testing machine, 100kn universal testing machine | accuracy: | Level 1/0.5 |
| Certificate: | EU CE, ISO | model: | WDW-20 WDW-50 WDW-100 WDW-200 WDW-300 |
| Test machine mode: | Electromechanical universal testing machine | Warranty: | 1 year |
| Customization support: | Processing | Supply capacity: | 200 sets of 100kn tensile testing machines per month |
| standard test: | ASTM A370, ISO6892, ISO7500-1, EN 10002-4 | Test material: | Metal, steel, rebar, wire rope, rubber, plastic, cable |
| Maximum load capacity: | 10kN, 20kN, 50kN, 100kN, 200kN, 300kN | power supply: | AC220V 10% 50HZ |
| Package preview: | port: | Qingdao, Shanghai, Guangzhou | |
| Test type: | Tensile test, compression test, bending test, etc. | Universal testing machine: | 100kN universal testing machine |
| brand: | virtual traffic system | payment terms: | L/C, Western Union, T/T |
| Test machine: | Universal testing machine | Origin: | Shandong Province, China |
| type: | electrical |

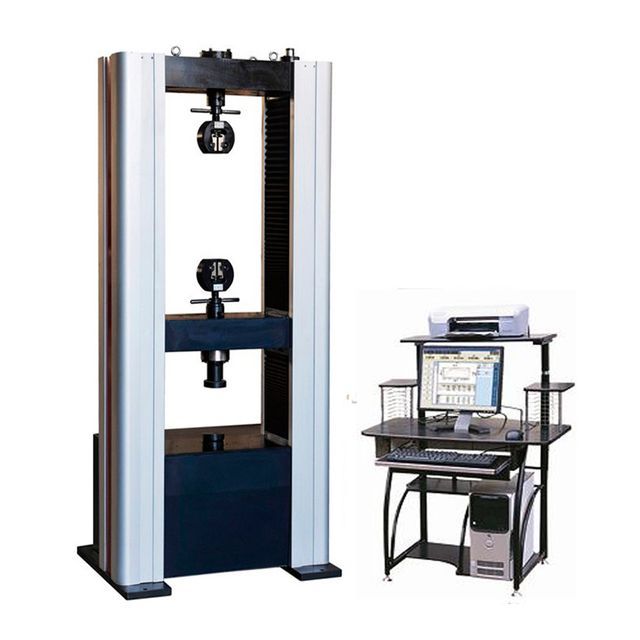

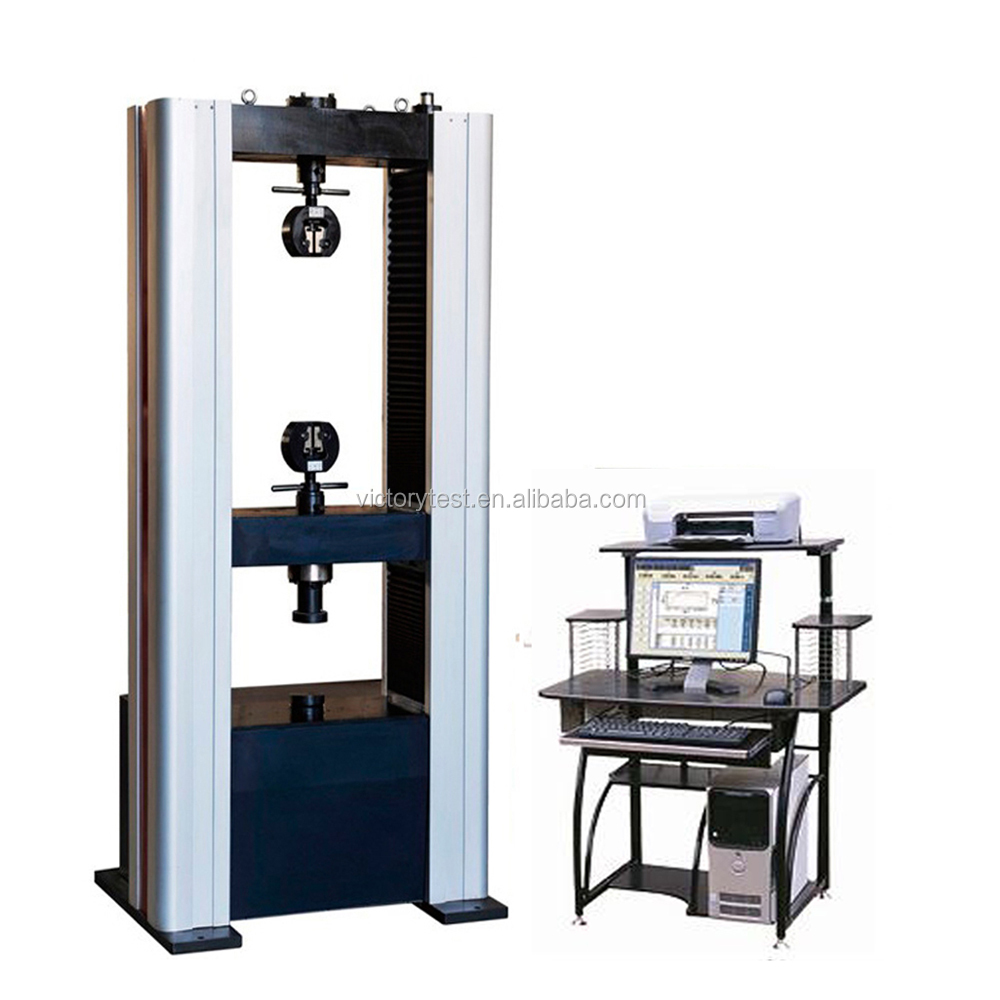

WDW 20kN 50kN 100kN 200kN 300kN Electromechanical Rubber Metal Steel Composite Tensile Strength Testing Machine
(2-column, floor type, 0.5 class)
Customers praise VTS material testing machine (good quality! good service!)
1. Applications and functions
WDW series microcomputer-controlled electronic universal testing machine is suitable for tensile, compression and bending tests of metal, steel, alloy, rubber, plastic, wire and cable, composite material, plastic profile, waterproof membrane and other materials. , rubber, plastic, wire and cable, composite materials, plastic profiles, waterproof membranes and other materials in tension, compression, bending tests. Quality inspection departments, colleges and universities, scientific research institutions, industrial and mining enterprises.
2. Main features
This machine adopts the most advanced and reliable ball screw electromechanical universal testing machine load frame structure, equipped with AC servo motor to drive the beam, photoelectric encoder to measure displacement, and high-precision weighing sensor to ensure the high resolution of the test.
Equipped with computer, software and printer, it can display, record, process and print the test results, control the test program according to the set procedure, and automatically draw the test curve in real time. The control software can automatically extract routine data, such as tensile elastic modulus, elongation at break, non-proportional elongation strength Rp0.2, etc.
It can meet the requirements of ASTM A370, ASTM E4, ASTM E9, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002 and other testing standards.
3. Main technical indicators:
|
Model |
WDW-5/10/20 |
WDW-50 |
WDW-100 |
WDW-200/300 |
WDW-500/600 |
|
Maximum load capacity |
5kN/10kN/20Kn |
50kN |
100kN |
200kN/300kN |
500kN/600kN |
|
load amplification |
no range |
||||
|
Machine category |
0.5 |
||||
|
load range |
0.4%-100% full scale |
||||
|
Load accuracy |
Within ±0.5% of the indicated load |
||||
|
load resolution |
1/300000 |
||||
|
Deformation range |
4%-100% full scale |
||||
|
Anamorphic resolution |
0.01mm |
||||
|
Displacement accuracy |
Within ±0.5% of the indicated load |
||||
|
displacement resolution |
0.01mm |
||||
|
Test speed range |
0.005mm/min-500mm/min, stepless arbitrary setting |
||||
|
Effective Stretching Space |
600 mm |
||||
|
maximum compression space |
600-800 mm |
||||
|
power supply |
1 phase, 220V-240V, 50Hz/60Hz or as specified by the user |
Three-phase, 380V-415V, 50Hz/60Hz or as specified by the user |
|||
4. Standard accessories
|
describe |
Comment |
|
control computer |
Dell brand |
|
Control card and software |
|
|
printer |
hp printer |
|
Servo Motor and Servo Driver |
|
|
High precision load cell |
|
|
High precision photoelectric encoder |
|
|
High precision ball screw lead |
|
|
Tensile test accessories |
Wedge Grips for Round and Flat Samples |
|
Compression Test Accessories |
round compression plate |
|
Bending Test Accessories |
three point bending |
|
electronic extensometer |
Optional accessories |

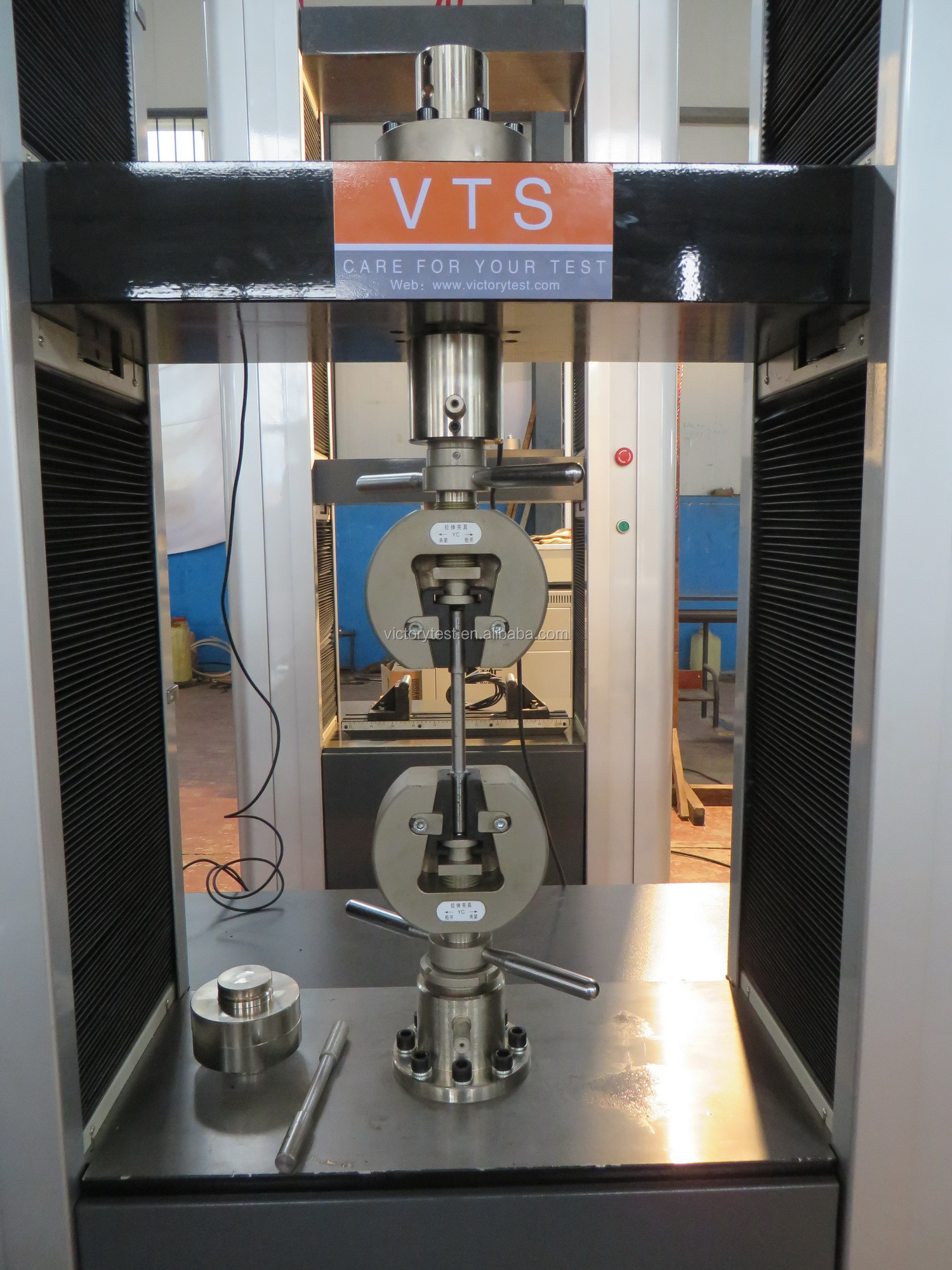

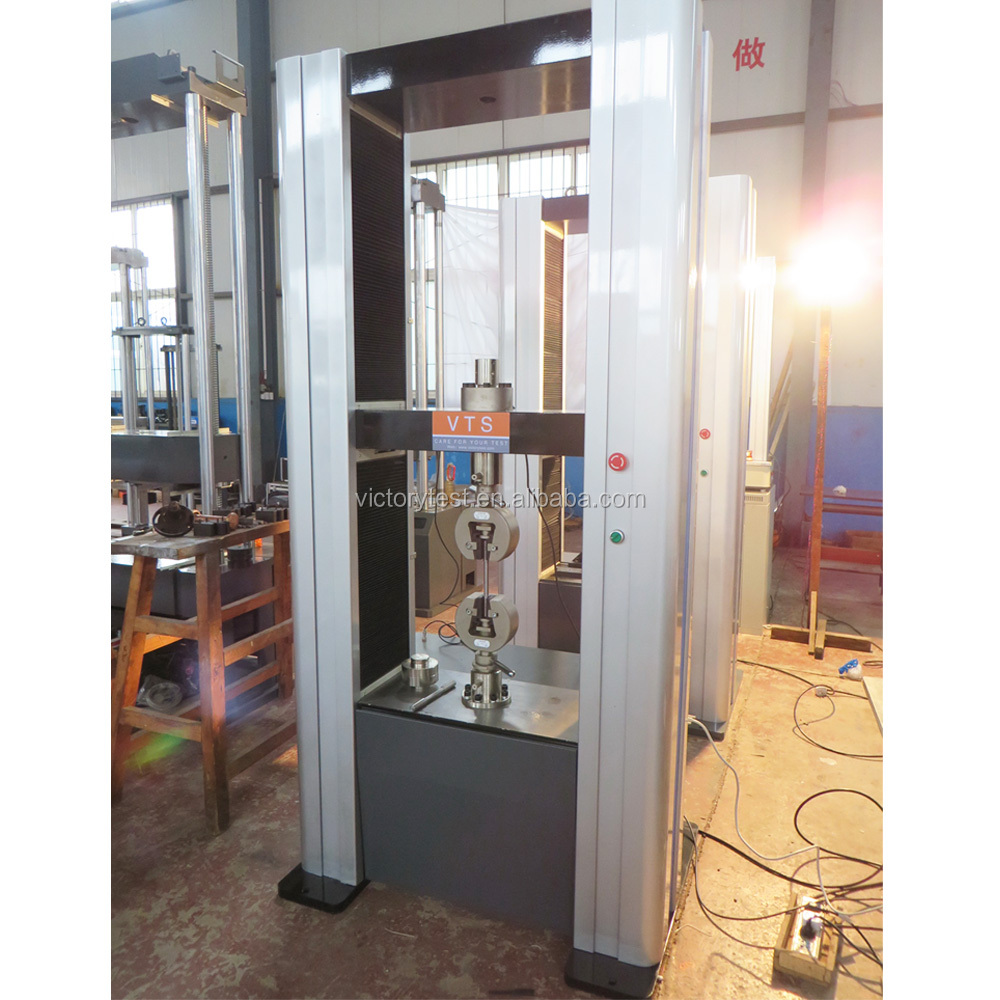

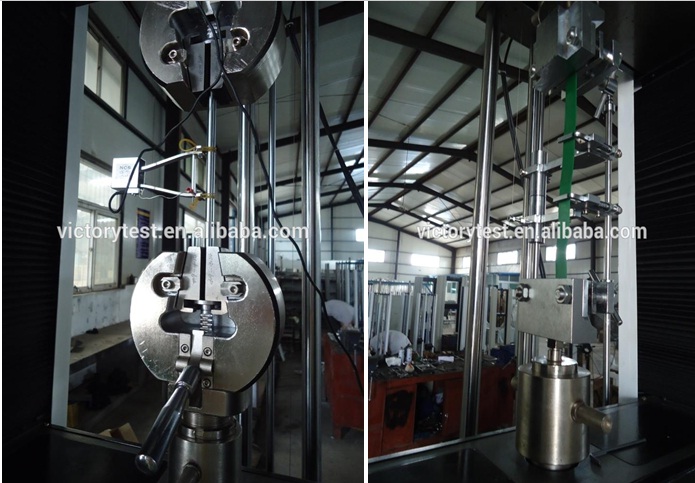

5. Tensile test photos

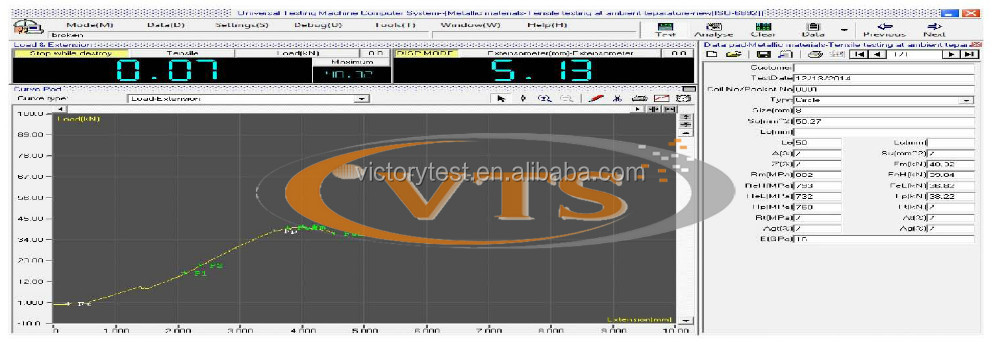

6. English test software photo
Packing is standard export packing - plywood case.
We can ship within 7-10 business days after order.
The warranty period is 12 months.
We can provide lifetime after-sales service.
