AM63C Portable Vibration Vibration Tester Portable Vibrometer Vibration Tester Vibrometer Vibration Test
- $138.89 / 10 - 49 pieces
$125.00 / 50 - 99 pieces
$111.11 / >=100 pieces - 10 pieces
- Xiamen Ance Electronics Co., Ltd.
- Fujian, China
- Mr minglai Ma
| weight: | 1 kg | Measuring range: | 0.1-199.9 mm/s effective value |
| Origin: | Guangdong, China | aspect: | 67x30x183(mm) |
| Frequency Range: | 10Hz-1KHz | Package preview: | |
| Warranty: | 1 year | measurement accuracy: | ±6%±2 |

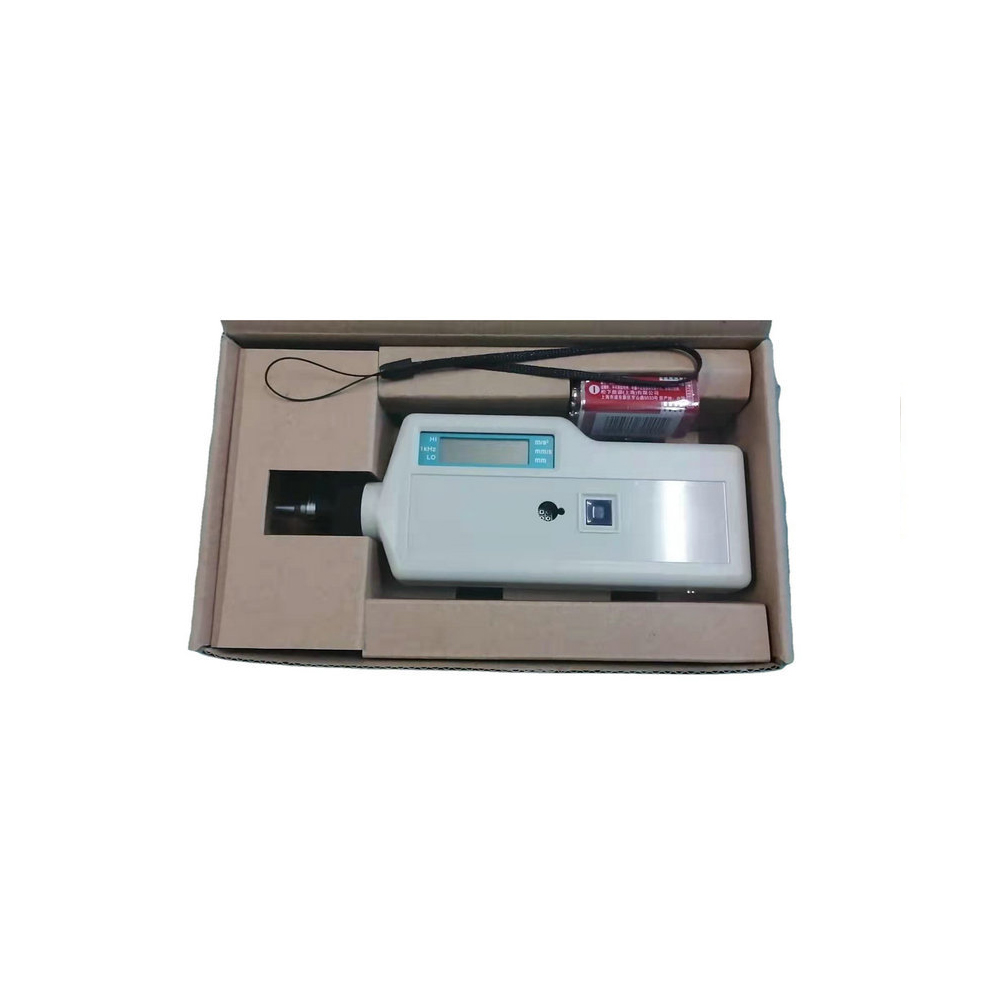

| payment terms: | wire transfer | Packaging Details: | tool box packaging |
| model: | AM63C | Supply capacity: | 10 pieces per week |
| Customization support: | OEM production | Shift: | 0.001~1.999 mm polypropylene (RMSx2.828) |
| speed: | 0.1-199.9 mm/s RMS | power supply: | 9V alkaline battery |
| brand: | Enns | type: | digital vibrometer, digital vibrometer |
| Acceleration: | 0.1-199.9m/s2 peak (RMSx1.414) | port: | Shenzhen |

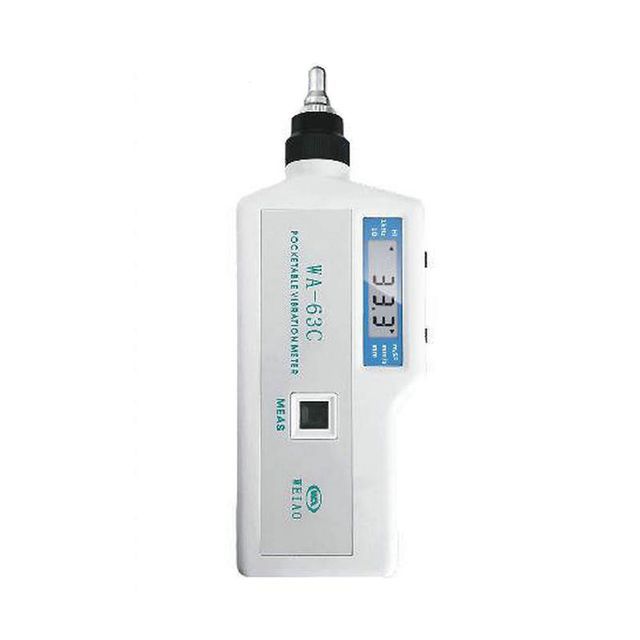

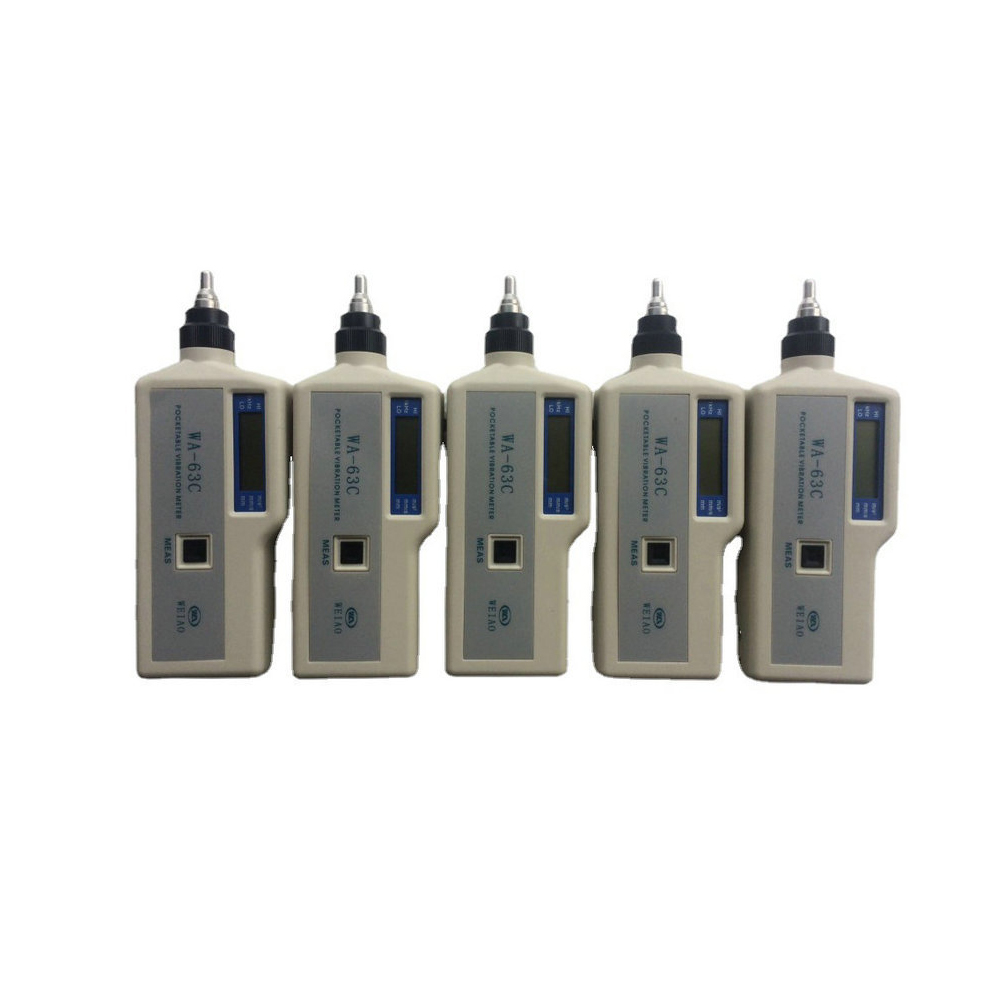

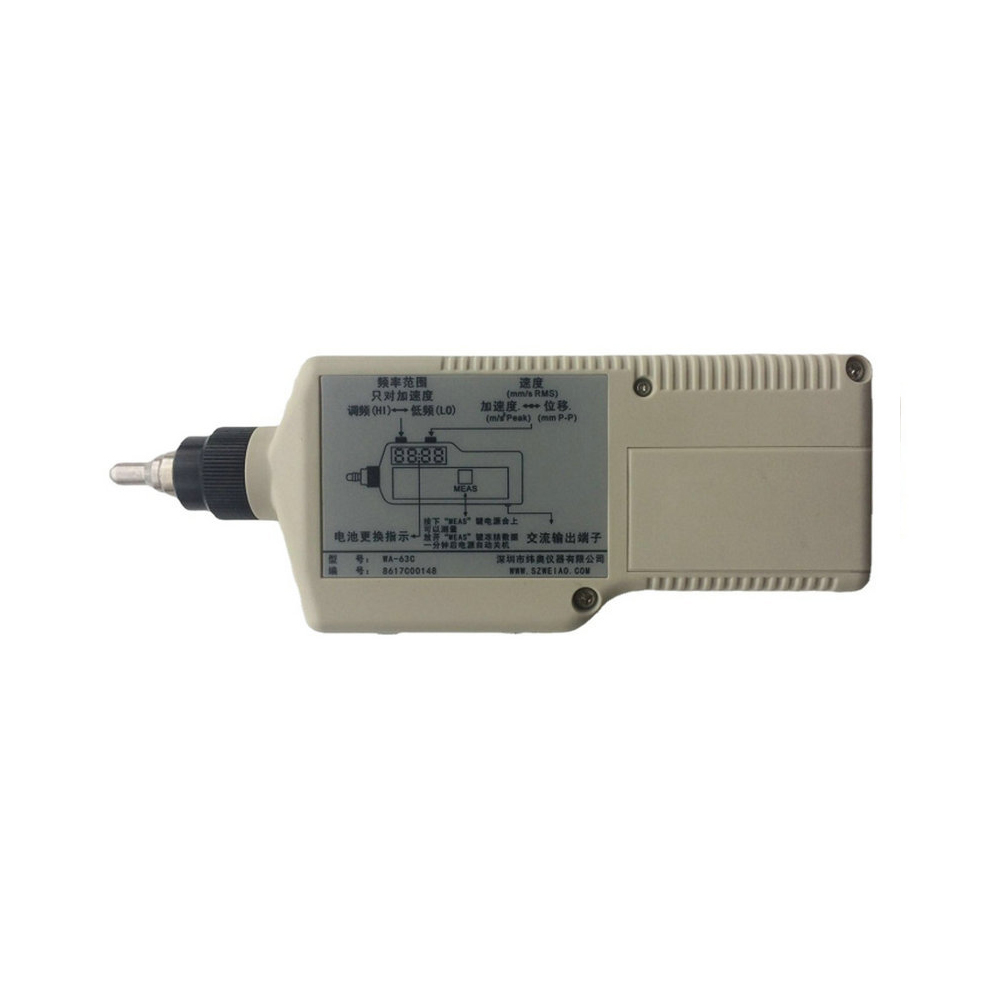

Digital Vibration Meter AM63C
One: Product introduction:
Product advantages: handset WA-63A 63C 63D and WA-63E stylus
Advantages: 1: increase temperature compensation,
2: High precision, sensitive response,
3: Amplitude-frequency linear high-bandwidth range 1~15KHz,
4: Imported sensor performance is more stable,
5: Make sure the machine passes the measurement test.
WA-63C vibration tester can measure the vibration of rotating machinery. Effective values of vibration acceleration, vibration velocity and peak-to-peak displacement can be measured. It is easy to operate and carry. It is mainly used for quick inspection of steam turbines, water turbines, motors, fans, water pumps, compressors, machine tools and other equipment, as well as preventive inspection of mechanical equipment failures. The measured value of the vibration measuring instrument is directly displayed by the liquid crystal; the instrument has an AC signal output socket for recording and analyzing vibration signals. When measuring, just hold the instrument, touch the tip of the instrument to the object to be measured, and hold down a key. The instrument can measure acceleration, velocity and displacement. For acceleration gears, two measurement ranges are selectable (10Hz to 1kHz or 1kHz to 15kHz)

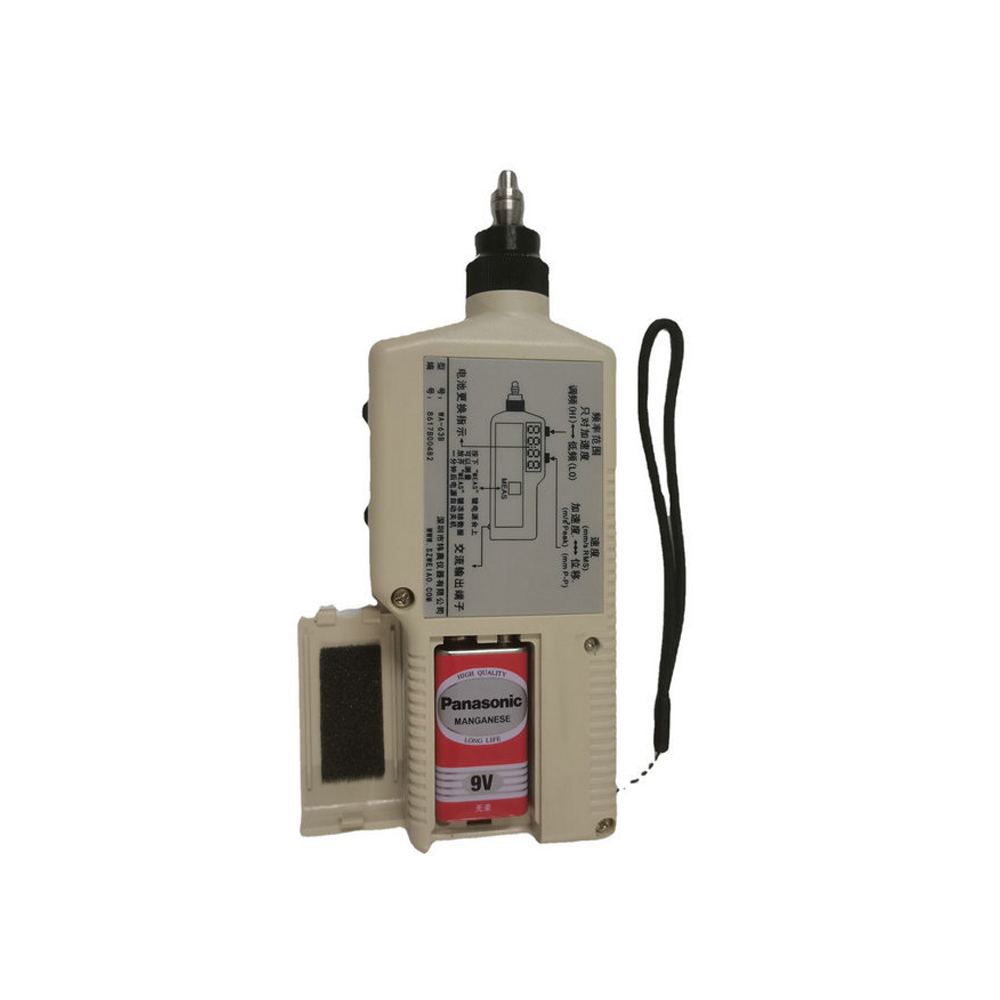

When the instrument works, it needs to use 9V battery (6F22). Since the instrument has an automatic shutdown function, there is no on/off key.
2: Performance indicators
piezoelectric acceleration type
Measuring range:
Acceleration: 0.1～199.9m/s2 peak (RMS×1.414)
Speed: 0.1 ~ 199.9 mm/s RMS
Displacement: 0.001 ~ 1.999 mm PP (RMS × 2.828)
Measurement accuracy: 80Hz
Acceleration: ±6%±2
Measuring vibration range
Acceleration: 10Hz ~ 1kHz (LO)
1kHz~15kHz(High)
Speed: 10Hz ~ 1kHz
Displacement: 10Hz ~ 1kHz
Battery: a dry battery (6F22, 9V)
Current: 9V 7mA
Battery life about 25 hours (storage temperature 25°C)
Temperature and humidity range - 10~+50℃
