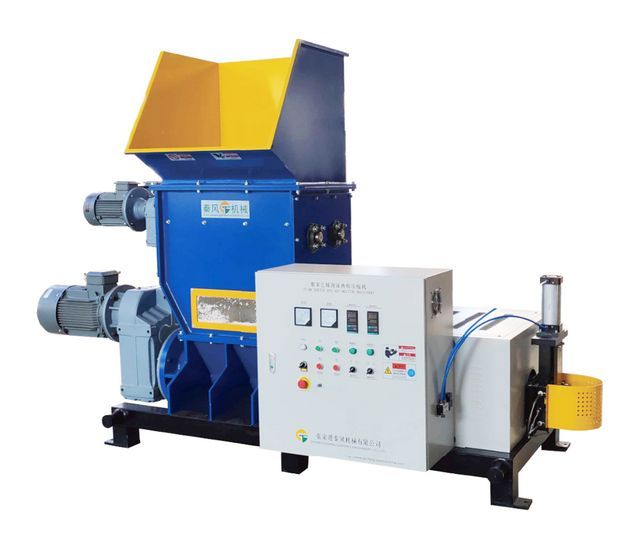

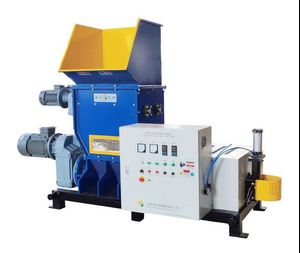

QINFENG Polystyrene Hot Melt Compactor Manufacture, Waste EPS Recycling Hot Melt Machine Plastic Melting Machine Thickener
- $1000.00 /set
- 1 set
- Zhangjiagang Qinfeng Machinery Co., Ltd.
- Jiangsu, China
- Mr Mander Chen
PRODUCT DETAIL
| Applicable industries: | Hotels, building materials stores, farms, restaurants, home furnishing, food stores, plastic recycling industry | brand: | China Promotion Association |
| Certification: | CE certification | Marketing Type: | normal product |
| capacity: | 80-100kg/hour | Mechanical test report: | if |
| Supply capacity: | Manufacturing of 20 polystyrene hot melt compactors per month | Key words: | plastic melting thickener |
| Name: | Waste EPS Recycling Hot Melt Adhesive Machine | Material processing: | Waste plastic hot melt |
| Certificate: | CE certification | Health status: | new, new |
| Core components: | Bearings, gearboxes, motors | Packaging Details: | About oue polystyrene hot melt compactor manufacture, the packaging of waste EPS recycling hot melt machine is wooden box with film. |
| Plastic Type: | PP/PE,EPS,EPE EPP XPS film | Product Category: | Plastic Recycling Compactors |
| port: | Shanghai | Local service location: | Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco |
| payment terms: | L/C, T/T | Package preview: | |
| Core component warranty: | 1 year | After warranty service: | Video technical support, online support, on-site maintenance and repair services |
| Video shipment inspection: | if | Origin: | Jiangsu, China |
| Main selling points: | multifunctional | color: | customizable |
| Showroom location: | not any | Warranty: | 1 year |
| After-sales service provided: | On-site service by overseas engineers, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support | Function: | to compact |
Product Description
Zhangjiagang Zhongfu Machinery Co., Ltd. specializes in the production of waste briquetting machines for various waste EPS, EPP, EPE, XPS, PUR, PSP, cans, films, bottles, etc. We manufacture a wide range of waste recovery compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang, China.
ApplicationsIn recent years, the recycling of waste plastics is in the ascendant. EPS is widely used in the packaging industry, but it is bulky and difficult to transport. With the purpose of reducing the pollution caused by waste plastics and improving the living environment of human beings, Qinfeng Machinery has successfully developed a new type of plastic melting machine EPS plastic compactor. After many continuous tests and researches, it has formed its own characteristics in the field of waste EPS recycling. In order to avoid the secondary pollution caused by the recycling machine to the water body and the environment, Qinfeng Machinery once again organized research personnel to overcome this technical problem. With the guiding ideology of reducing secondary pollution, the waste plastic recycling machine was upgraded. This EPS melter features high performance, space saving, and easy transport of finished product. The operation is pollution-free, protects the environment and avoids secondary pollution. Complete the recycling of waste plastics and create benefits.
main feature1) The linear structure is simple and easy to install and maintain. 2) Pneumatic components, electrical components and operating components all adopt advanced world famous brand components. 3) Simple operation and high efficiency. 4) High degree of automation, high degree of intelligence, no pollution 5) This machine adopts conveyor, which can directly increase the output.
Product parameters
EPS Hot Melt Adhesive Machine CF-HM 200The following dimensions are for reference, special requirements can be discussed in detail.
Model | CF-HM-200 plastic hot melt thickener |
Screw diameter | φ197mm |
pitch | 150 mm |
Screw speed | 110 rpm |
capacity | 100~120Kg/hour |
extrusion center height | 326mm |
Motor Power | 15KW |
Crusher motor power | 2.2kwx2 |
heating power | 10 kW |
Number of shredder blades | 2 sets 9 sets + 10 sets |
Crusher speed | 100 rpm |

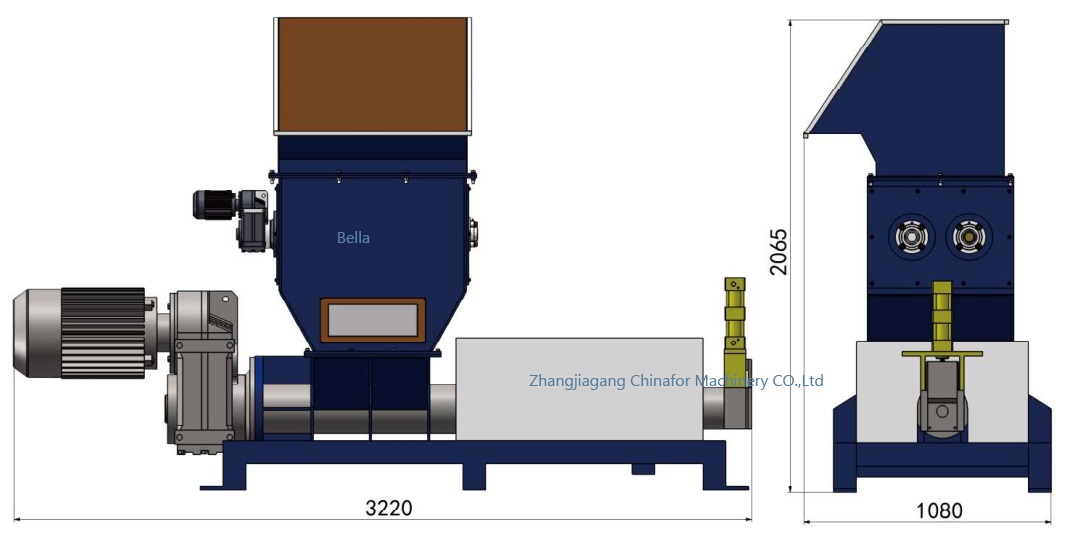

Dimensions L×W×H | 2800×1580×1950 |

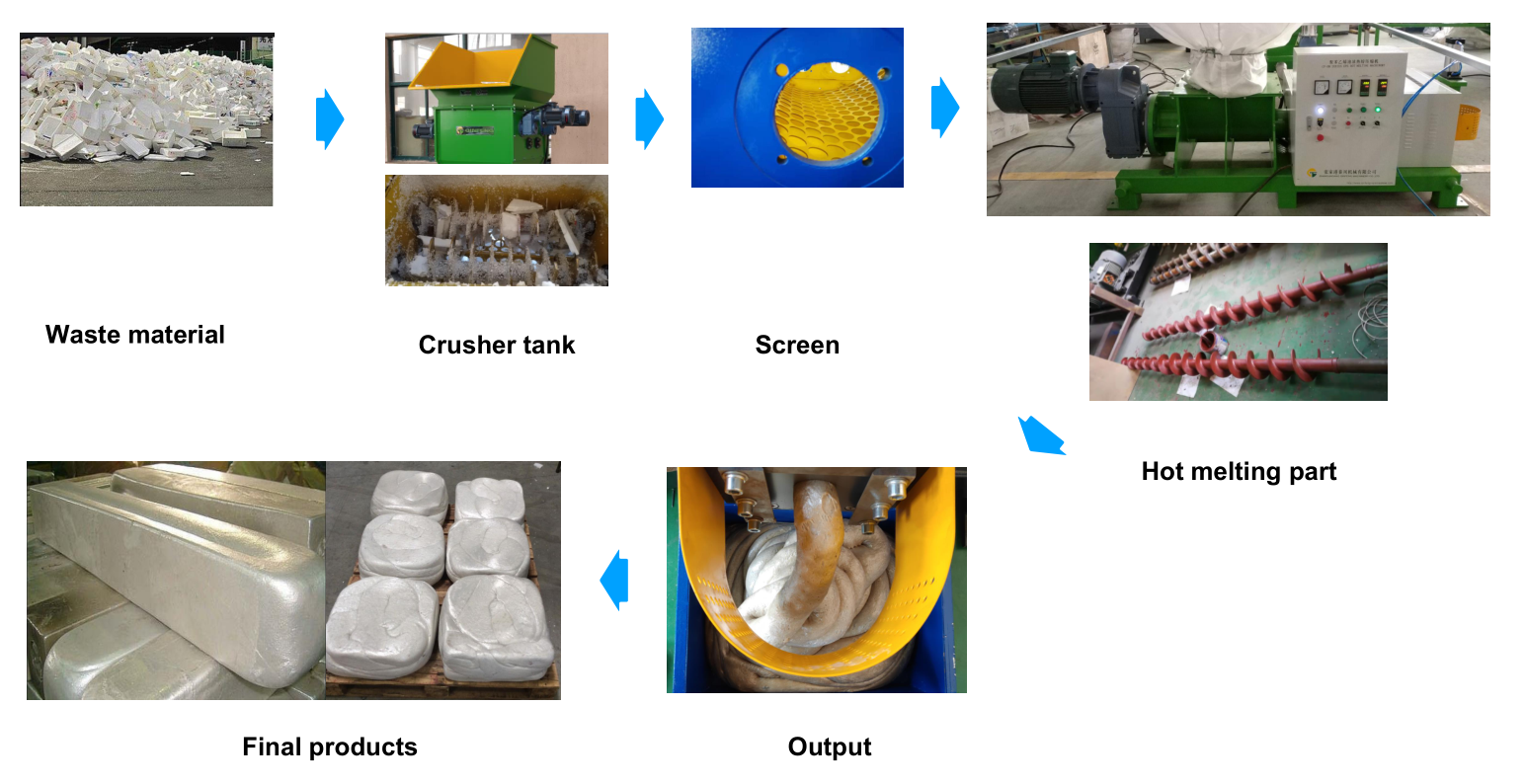

work process
1. Hopper 2. Crusher 3. Extruder 4. Mold 5. Electric control box

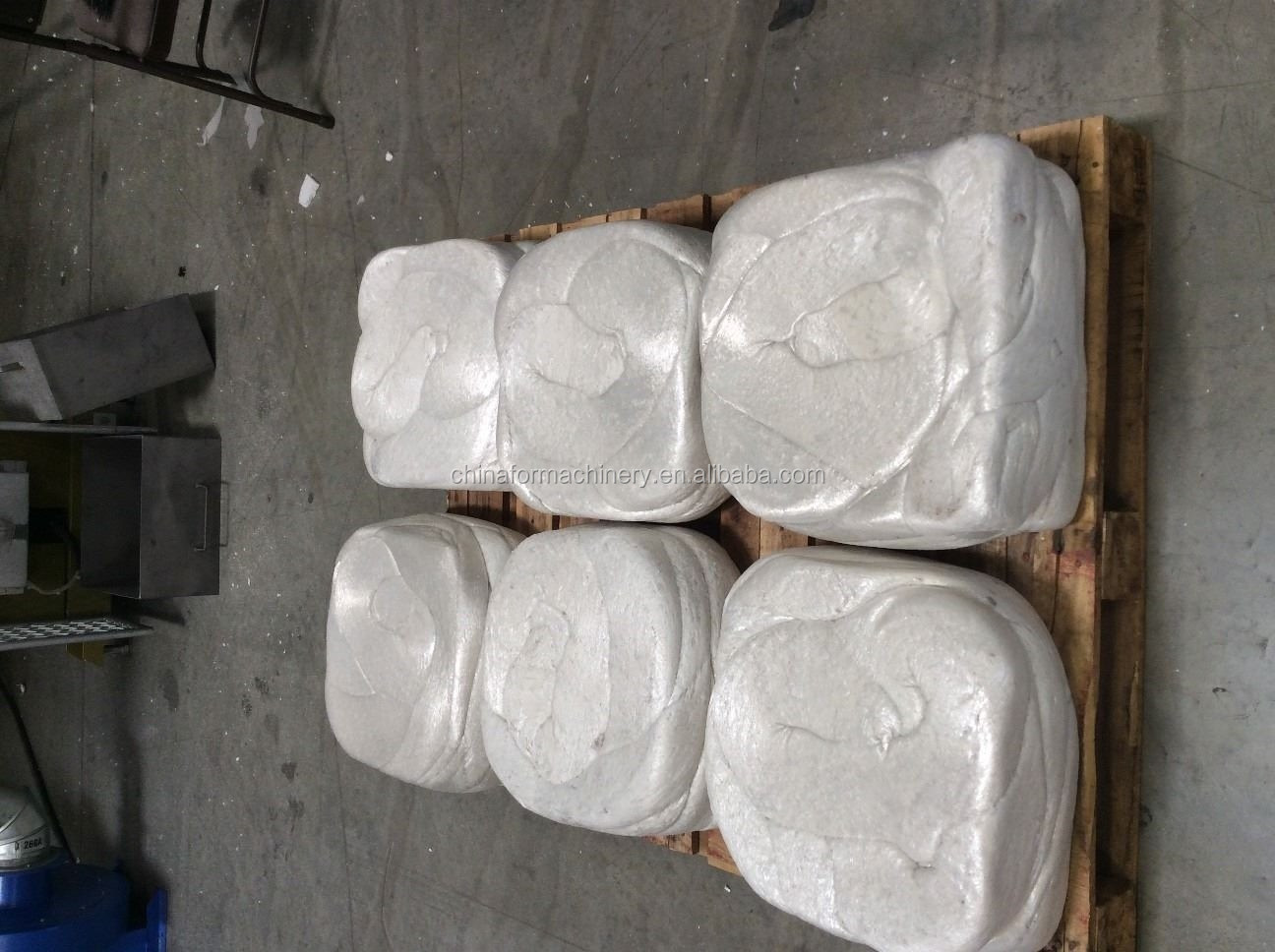

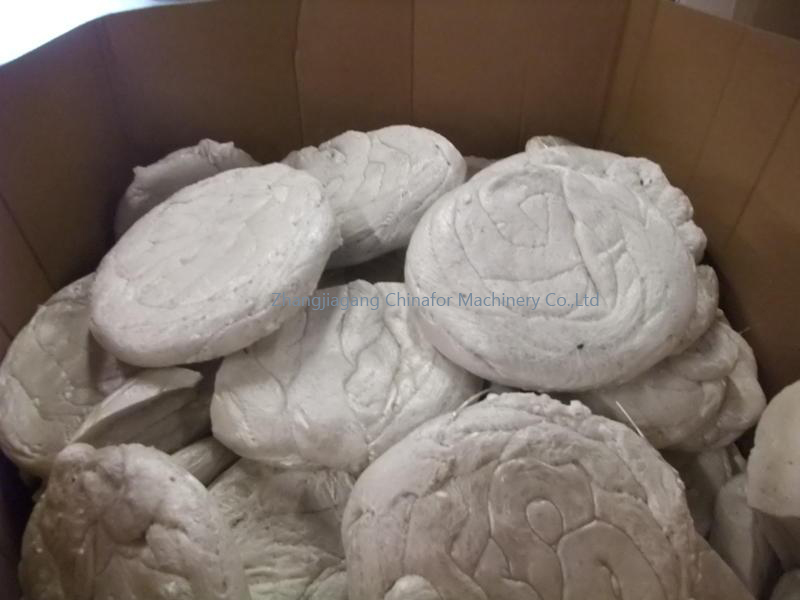

Working principle of plastic melter thickener:The double-shaft crushing blade is two parallel blade shafts with different rotation directions, each blade shaft has 18 blades, and the gear box drives the crushing material, and the material is conveyed to the barrel through the screen. The material is conveyed to the heating barrel by the high-speed rotating screw. They would then be melted at high temperatures and extruded into the intended sharps.
Plastic Melting Machine Crusher Technology:The inclined feeding hopper facilitates the insertion of EPS materials, and the materials will not be squeezed out during the crushing process. The plastic recycling machine adopts double-shaft crushing blades, two parallel blade shafts are symmetrically fixed blades, the blades on the two blade shafts are misplaced, and the blades of each shaft are evenly arranged on the knife shaft in the same direction at an arithmetic angle. The first and last blades of each axis are at a 90° angle.

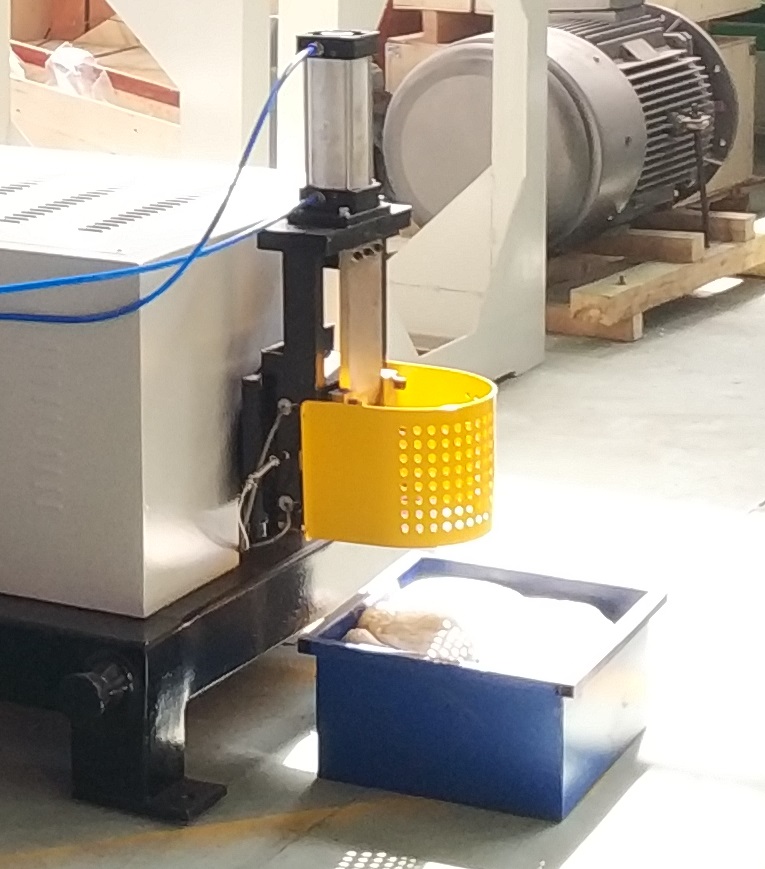

advantage:1. Low noise - the machine is driven by a gearbox instead of a belt. 2. Safety - There is a protective cover at the exit; the height of the entrance meets the safety standards; the reducer drives the machine to run safely and efficiently, and the control system is equipped with emergency stop and overload switches. 3. Good after-sales service - provide installation and commissioning according to customer needs; 12-month warranty. 4. Cost-Effective - We provide our customers with machines of excellent quality but at very reasonable prices. 5. Long lifespan - after one year, we will continue to serve customers, and the machine can run well for a long time. Our first machine is still running fine. 6. Selection of electrical components—inverter (adding an inverter can handle different materials: EPS, EPP, EPE, etc.), and other components can be installed in the machine according to customer requirements.
detailed image

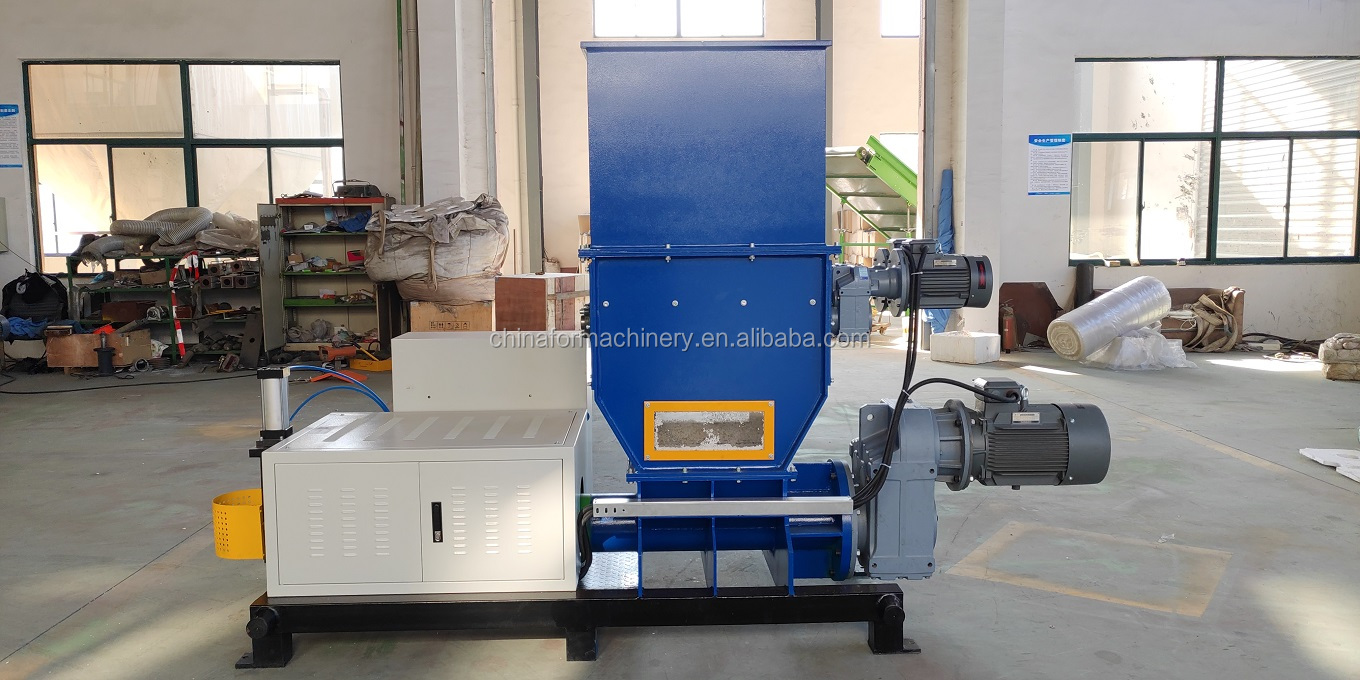

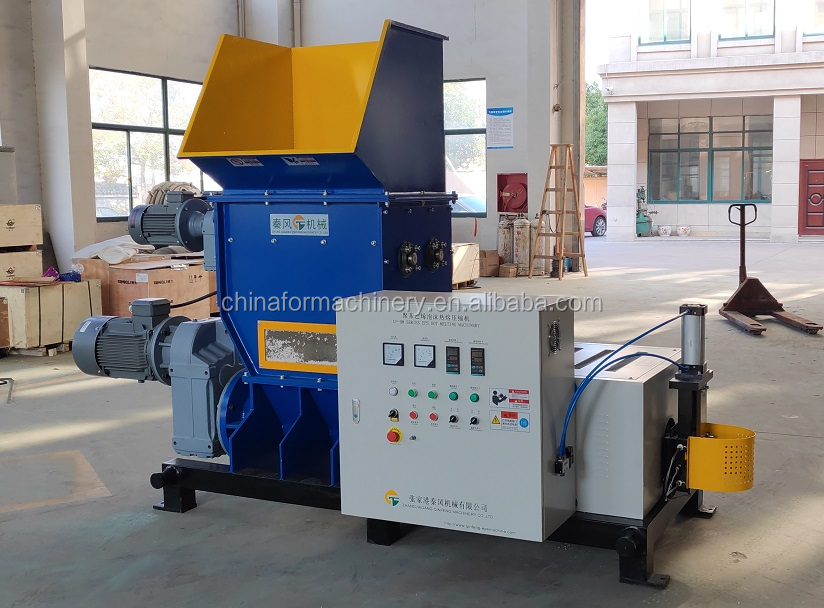

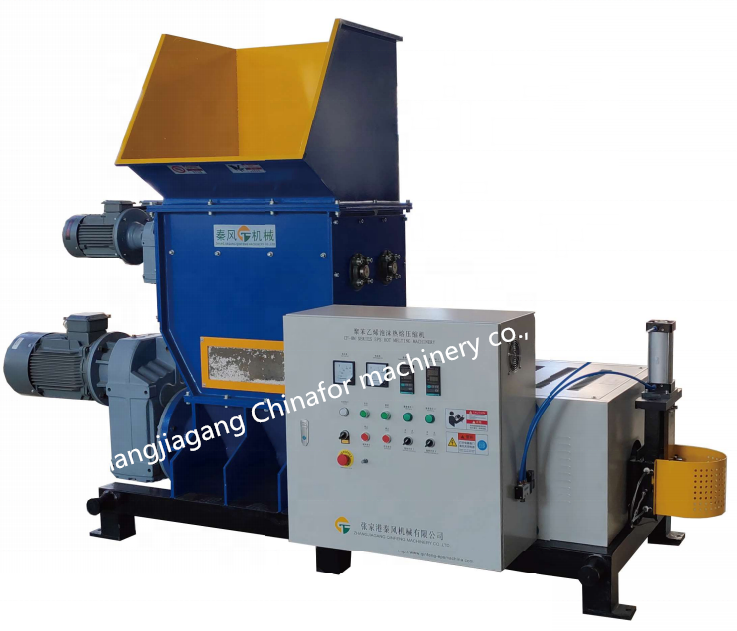

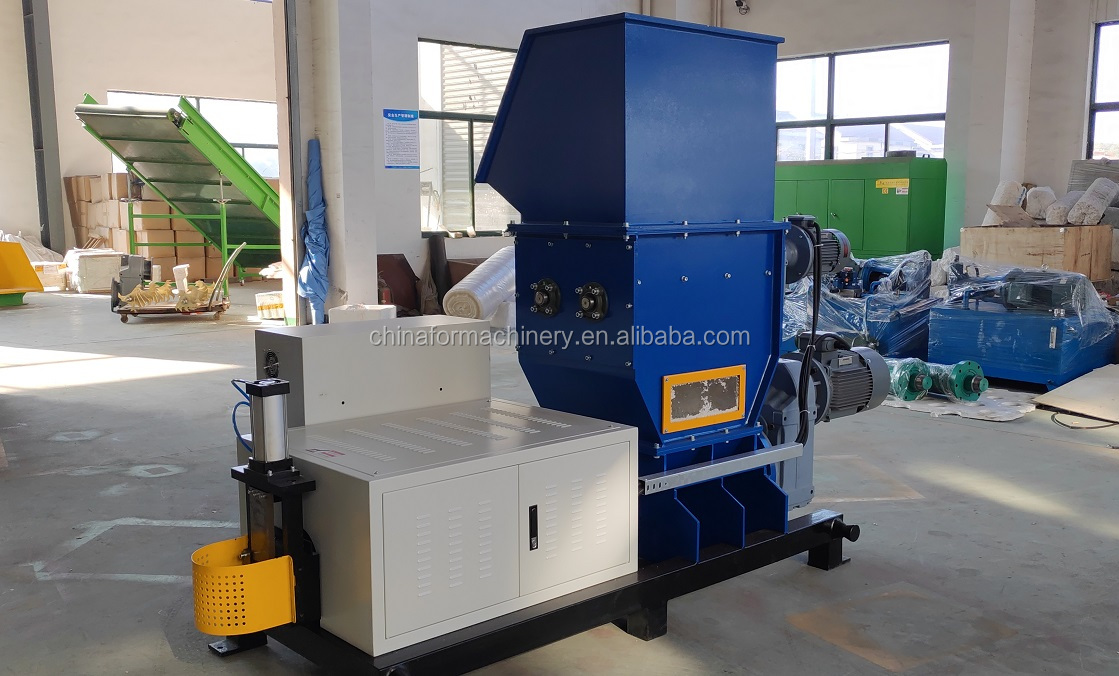

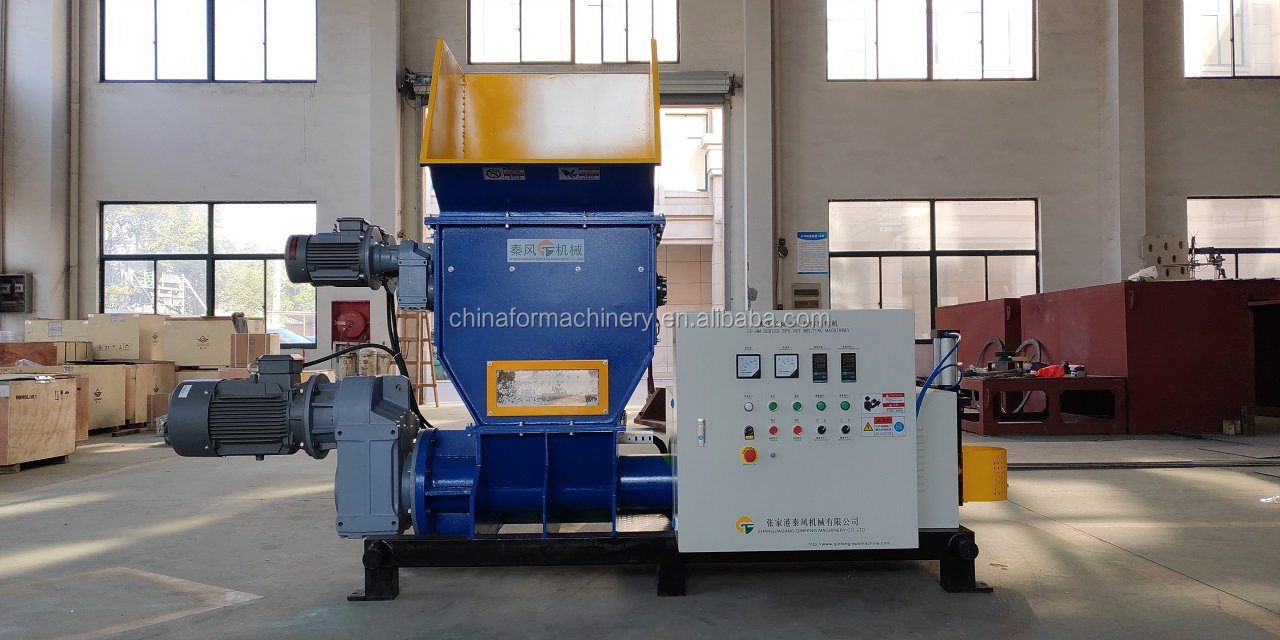

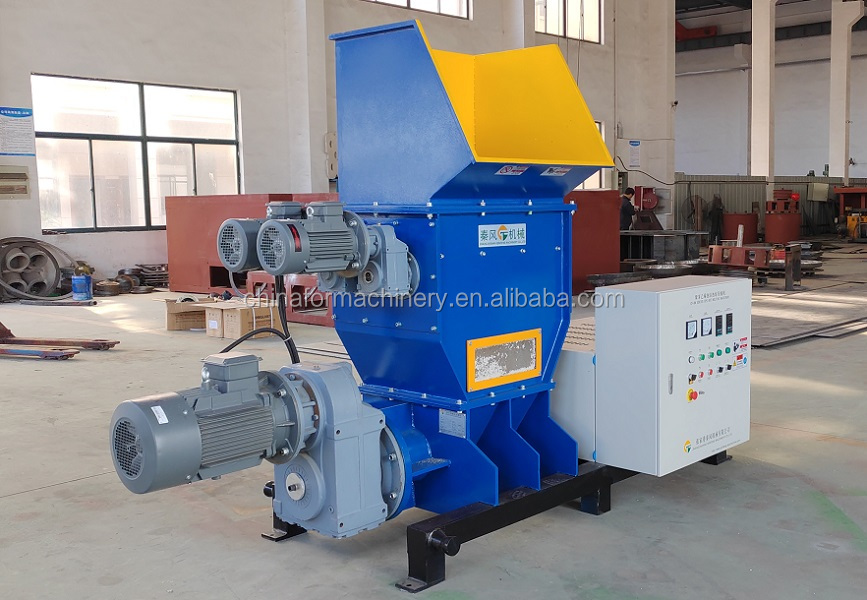

Plastic Melter CF-HM 200
