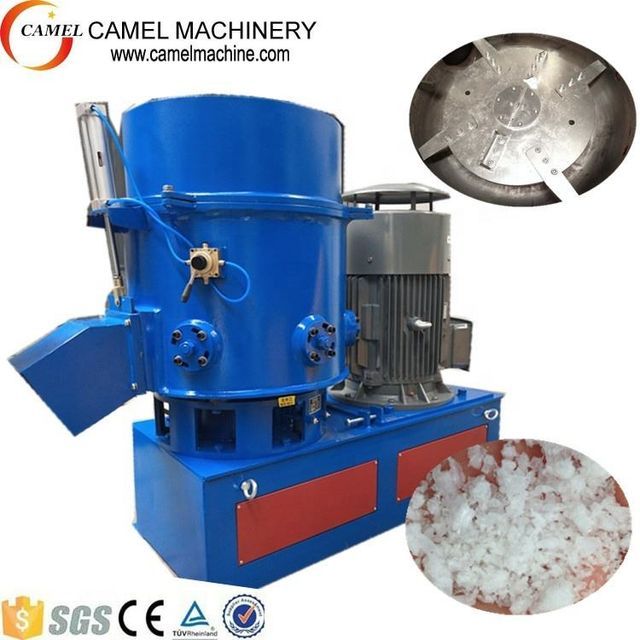

Recycled Plastic PET Fiber Plastic Film Pelletizer/Pellet Compactor
- $3260.00 /set
- 1 set
- Zhangjiagang Camel Machinery Co., Ltd.
- Jiangsu, China
- Mr Jerry xia
PRODUCT DETAIL
| Video shipment inspection: | if | Mechanical test report: | if |
| After-sales service provided: | Video technical support | Dimensions (L*W*H): | 1700*800*1500mm |
| Main selling points: | high productivity | Health status: | new |
| Warranty: | 1 year | output: | 100-800kg/hour |
| Core component warranty: | 1 year | Showroom location: | France, Peru, Indonesia, Pakistan, Mexico, Chile, Colombia, Romania, South Africa, Kazakhstan, Ukraine |
| color: | white, blue, customized | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Packaging Details: | Standard wood packaging covered with plastic film | Certification: | CE ISO TUV |
| usage: | lumps of plastic trash | Applicable industries: | Manufacturing Plant, Pellet Pellet Manufacturing, Pelletizer, Granulator, Recycling Machine |
| After warranty service: | On-site maintenance and repair services | Origin: | Jiangsu, China |
| Contactor: | Schneider, Siemens | Plastic Type: | Polyethylene, Polypropylene/Polyethylene, Polypropylene |
| Package preview: | Marketing Type: | normal product | |
| Supply capacity: | 40 sets per month | engine: | Siemens, Bader |
| port: | Shanghai port | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| application: | recycling granulator | brand: | camel |
| Weight (kg): | 1000 | Input material: | waste film plastic |
Product Description

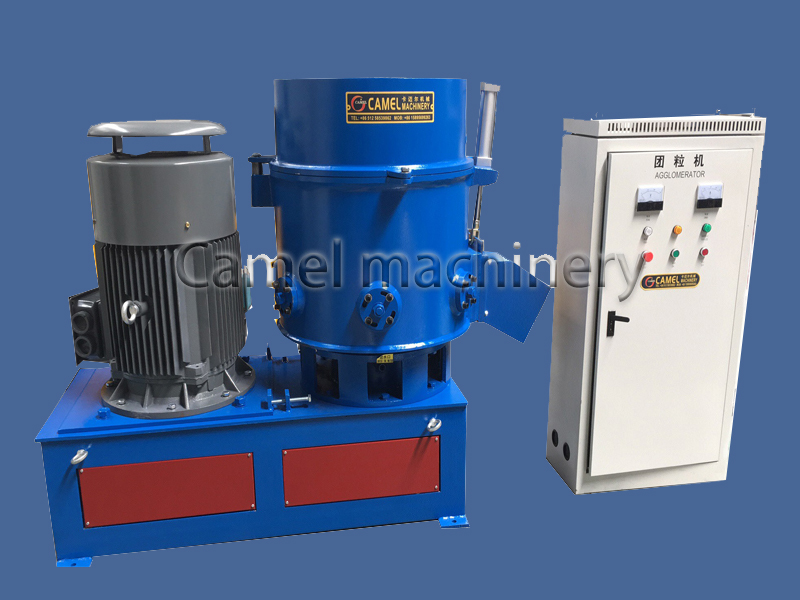

Plastic film coagulant/thickener
brief introduction:

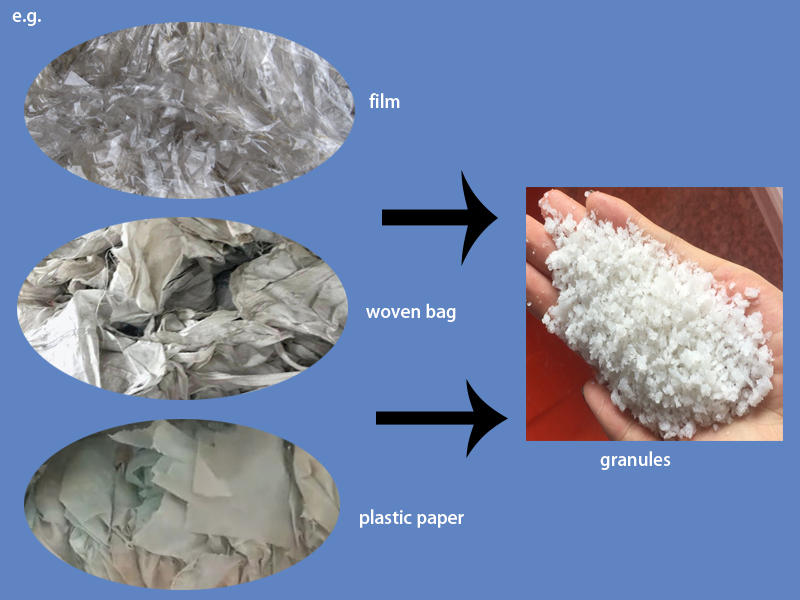

The granulator can directly recycle waste plastic film and other products with a wall thickness less than 2mm into granules. The raw material can be soft PVC, Hdpe, Ldpe, Pp, Bopp film/bag, woven bag and other thermoplastics.work process:
When the waste plastic enters the cavity of the machine, the waste plastic is cut into smaller pieces due to the crushing action of the rotary knife and the fixed knife. During the crushing process, the material absorbs a large amount of heat due to frictional movement during the crushing process, and the material will become semi-plasticized. Due to plasticization, the particles stick to each other. Spray pre-prepared cold water into the crushed material before it sticks together completely. Moisture will evaporate quickly, and the surface temperature of the crushed material will drop rapidly. So the crushed material will become small particles or granules.
advantage:
Particles of different sizes are easily identifiable and can be colored with colorants placed in containers during the crushing process. Pellets can be used directly in extrusion or injection molding machines. It can also be further granulated to meet some advanced requirements.
The machine has passed the ISO9001:2000 certificate.

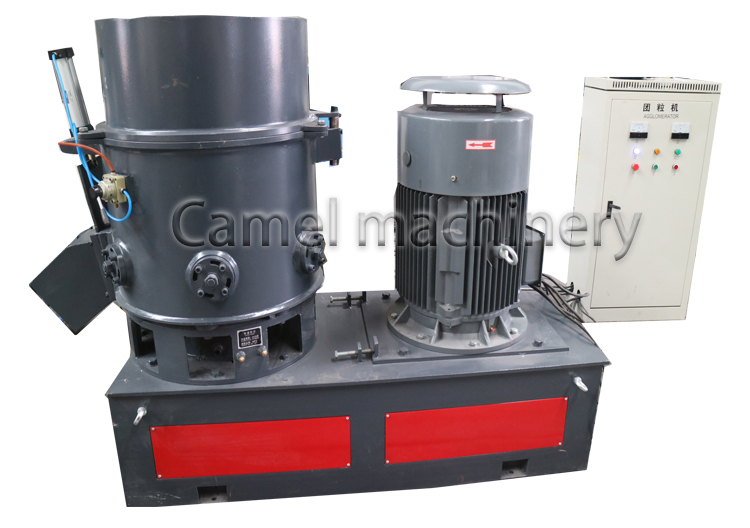

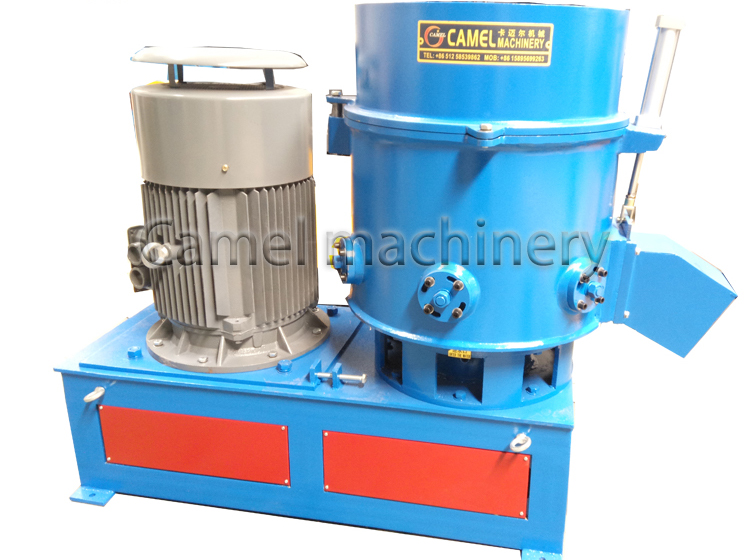

detailed drawing

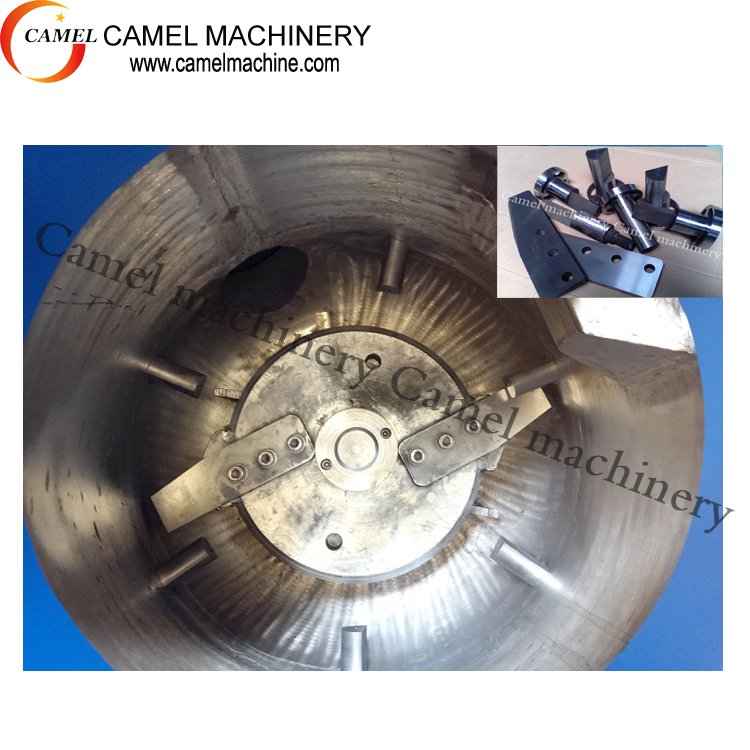

Rotary and fixed blades.
(additional blades available)

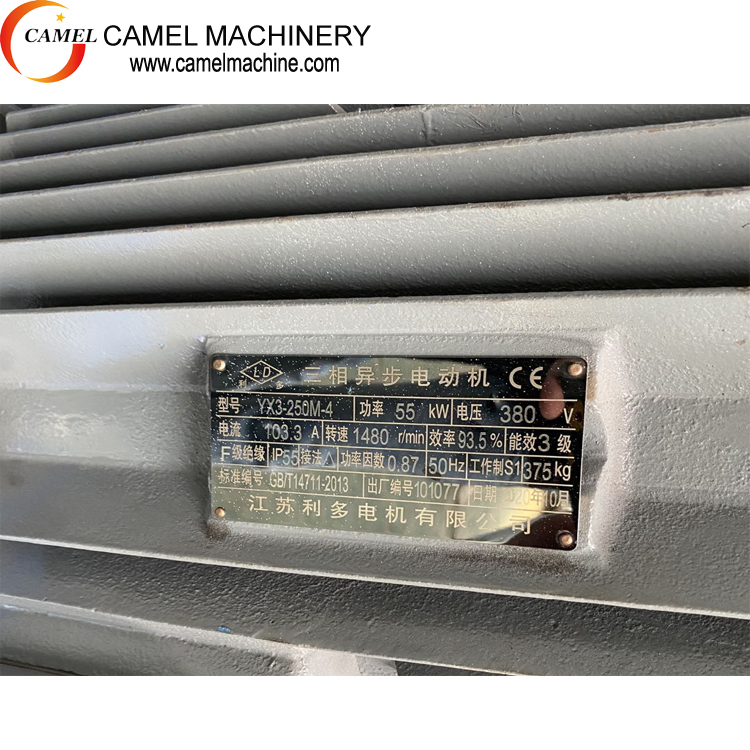

engine
(motor brand customization)

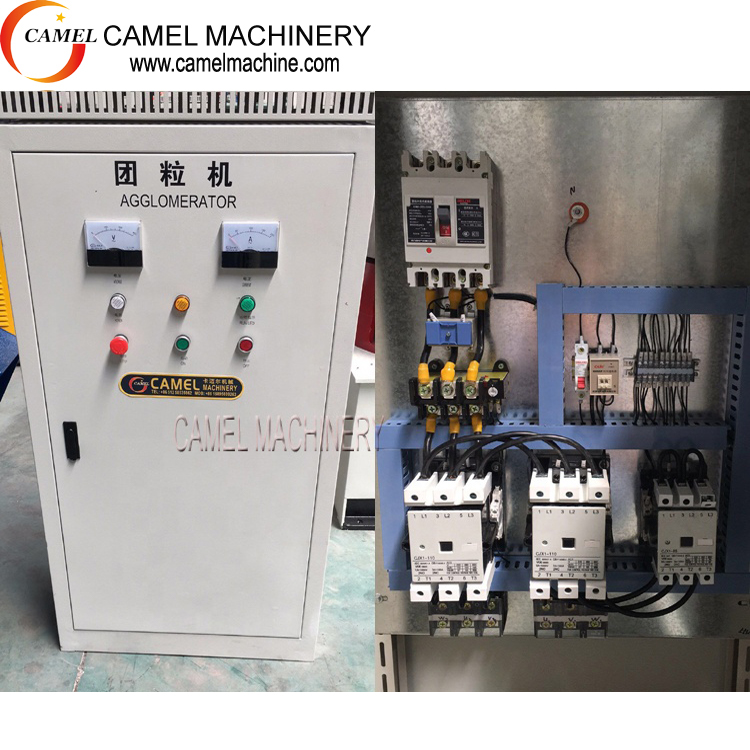

Electrical control cabinet
Technical Parameters
Model | GHC1000 | GHC800 | GHC500 | GHC300 | GHC200 | GHC100 |
Tank volume (liter) | 1000 | 800 | 500 | 300 | 200 | 100 |
Working volume (liter) | 750 | 600 | 375 | 200 | 150 | 75 |
Capacity (kg/hour) | 600~800 | 400~650 | 350~500 | 200~350 | 150~250 | 100~150 |
Motor power (Kw) | 132 | 110 | Post-90s | 75 | 55 | 37 |
Rotating blade speed (r/min) | 700 | 750 | 750 | 900 | 800 | 800 |
Number of rotary blades (pieces) | 4 | 4 | 4 | 2 | 2 | 2 |
Number of fixed blades (pcs) | 8 | 8 | 8 | 8 | 6 | 6 |
discharge model | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto |
water spray | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto |
Machine size Length x width x height (mm) | 2680×1815 ×2400 | 2170×1510 ×2140 | 2100×1510 ×2145 | 2100×1495 ×1945 | 1900×1160 ×1800 | 1900×650 ×1310 |
machine weight ( Kilogram) | 3500 | 2800 | 2500 | 2000 | 1800 | 1200 |

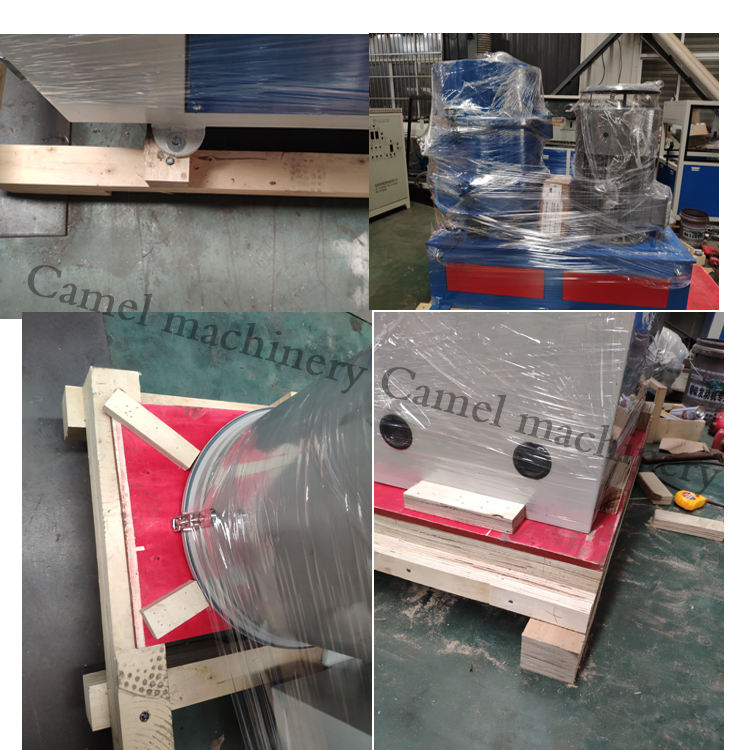

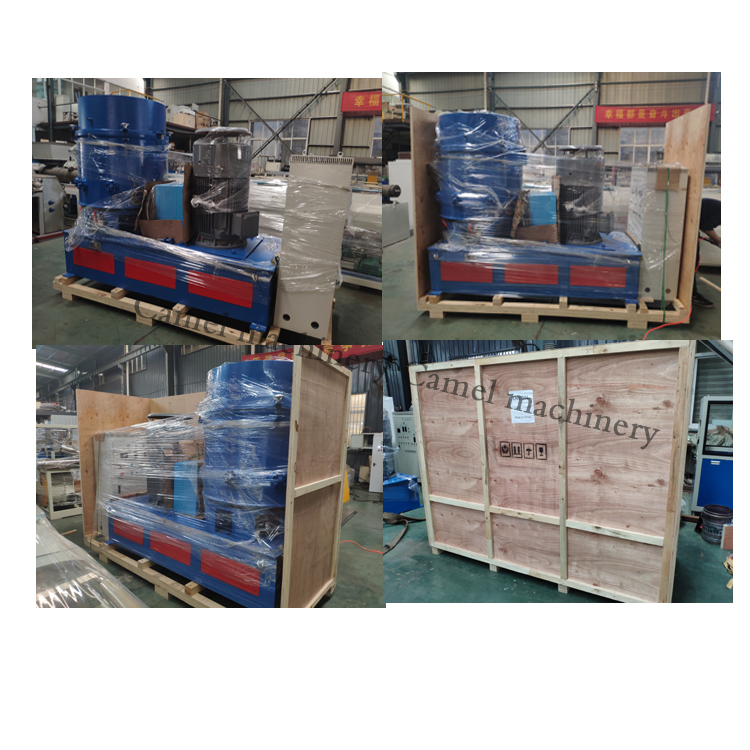

packing and loading
