RJN-300 Automatic Fish Oil Softgel Encapsulation Filling Machine
- $167000.00 / 1 - 1 pieces
$164000.00 / 2 - 2 pieces
$162000.00 / >=3 pieces - 1 piece
- Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.
- Guangdong, China
- Mr David Shi
PRODUCT DETAIL
| Video outgoing-inspection: | Provided; | Local Service Location: | None; |
| After Warranty Service: | Video technical support,Online support; | Condition: | New; |
| Warranty: | 1 Year; | Rated Rotary Speed: | 0~5r/min; |
| Capacity: | 110000pcs/h; | Machinery Test Report: | Provided; |
| Warranty of core components: | 1 Year; | Showroom Location: | None; |
| Model Number: | RJN-300; | Key Selling Points: | Automatic; |
| Product name: | RJN-300 Automatic Fish Oil Softgel Encapsulation Filling Machine; | Applicable Industries: | Food & Beverage Factory; |
| Weight (KG): | 1900 KG; | Port: | Shanghai, China; |
| Place of Origin: | Jiangsu, China; | Supply Ability: | 10 Chains per Month; |
| Packaging Detail: | Plywood case; | Noise: | <75dBA; |
| Power supply: | 380V/50Hz or 220V/60Hz; | Certification: | CE, ISO, GMP; |
| Brand Name: | NOAH; | Payment Terms: | L/C,Western Union,T/T; |
| Control Model: | Automatic; | Core Components: | Motor; |
| After-sales Service Provided: | Video technical support,Online support; | Volume for flow single-pillar pistol: | 0~2ml; |
| Total power: | 17.6kw; | Roll mould size: | Dia 150*300mm; |
| Marketing Type: | Ordinary Product; | Application: | Softgel capsule; |

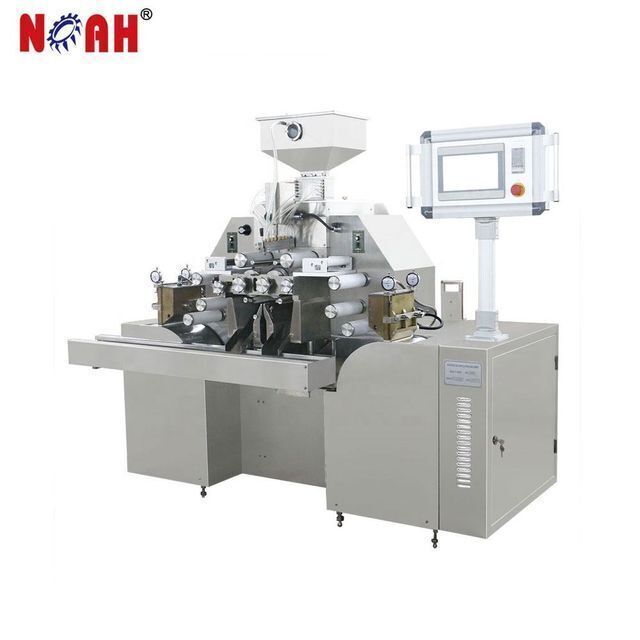

RJN-300 Automatic Fish Oil Softgel Encapsulation Filling Machine
Products Description
Applications:
Our machine is a new generation of roller die type water cooling type soft gelatin encapsulation machine.
It is optimized designed and precise manufactured on the basis of foreign latest technology.
The main technical index meets the international advanced level and conforms with the GMP standard.
The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc, such as egg shape, fish shape, cylinder, ball shape, calabash shape.

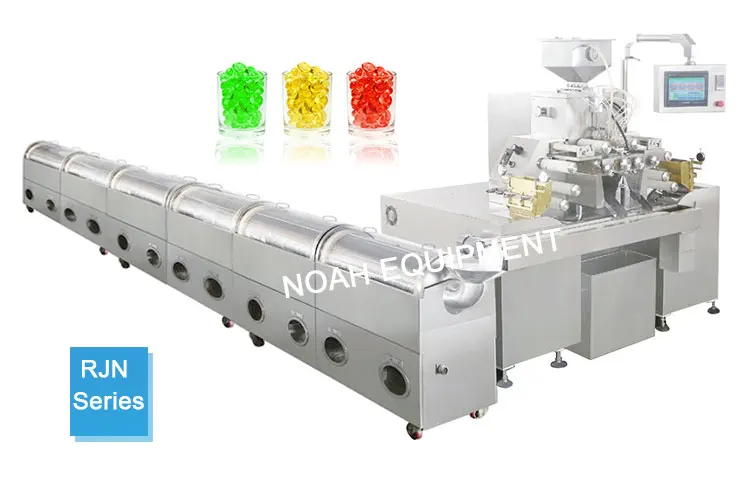

It consists of main machine, gelatin melting tank, insulated gelatin storage tank, electric control cabinet, conveyor, shape/drying rotary cage, colloid mill etc.
Advantages:
1. water cooling of this machine ensure clean environment.
2. Adopting air pressure ensure gelatin storage tank conveys gelatin on the ground, ensure better production environment.
3. The capsule conveyance belt adopt food-grade conveyance belt which is non-toxic, non-sticky, and easy to wash.
4. The shaping and drying rotary cage is made of stainless steel mesh panel with no dead corners and easy to clean. An oil basin under the rotary cage ensures no oil dropping during the
production.
5. It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.
ITEM | RJN-115 | RJN-200 | RJN-300 | ||
Rotary speed of die roll | 0-4rpm | 0-5rpm | 0-5rpm | ||
Frequency conversion stepless speed regulation | |||||
Supplying Volume for flow single-pillar pistol | 0-1ml | 0-2ml | 0-2ml | ||
Capacity | 12,800pcs/h | 65,000pcs/h | 110,000pcs/h | ||
Difference among filling volume | ±2% | ±2% | ±2% | ||
Power for whole machine | 4KW | 7.5KW | 17.6KW | ||
Contour sizes | 600×850×1650mm | 1500×1150×2000mm | 2420×1180×2210mm | ||
Weight of whole machine | 650Kg | 1050Kg | 1900Kg | ||
Detailed images
Our Advantages
Packing & Shipping
Company Profile
Customer Photos
