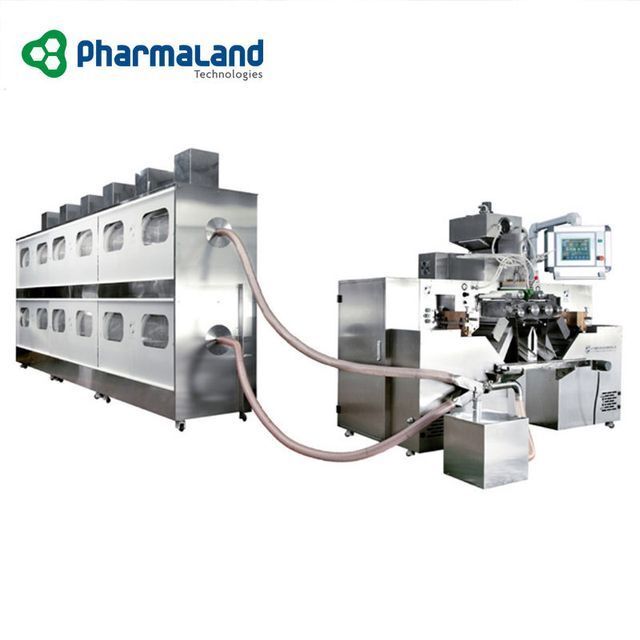

PSG-250IIIA Pharmaland High efficiency softgel capsule machine softgel machine softgel filling machine
- $177800.00 / 1 - 1 sets
$167800.00 / >=2 sets - 1 set
- PAG Pharmatech Co., Ltd. SZ
- Guangdong, China
- Ms Iris Shi
PRODUCT DETAIL
| Product name: | Soft Capsule Production Line; | Dimension(L*W*H): | 2200 X 1000 X 2100; |
| Place of Origin: | China; | Supply Ability: | 20 Sets per Month; |
| After-sales Service Provided: | Field maintenance and repair service,Online support,Video technical support,Field installation, commissioning and training; | Port: | Qingdao / Tianjin/Shenzhen/Guangzhou China; |
| Name: | Softgel Encapsulation Machine; | Local Service Location: | Canada; |
| Marketing Type: | New Product 2020; | Machinery Test Report: | Provided; |
| After Warranty Service: | Field maintenance and repair service,Online support,Spare parts,Video technical support; | Warranty: | 1 Year; |
| Core Components: | Motor; | Model: | PSG-250IIIA; |
| Showroom Location: | Canada; | Condition: | New; |
| Payment Terms: | L/C,Western Union,T/T; | Brand Name: | Pharmaland; |
| Keyword: | Soft Capsule Producing; | Video outgoing-inspection: | Provided; |
| Application: | Capsule; | Packaging Detail: | Standard Export packing, seaworthy/airfreight-worthy, suitable for changing climate and with good resistance to moisture and shocks.; |
| Model Number: | PSG-250IIIA; | Warranty of core components: | 1 Year; |
| Applicable Industries: | Pharmacy and cosmetic; | Key Selling Points: | Competitive Price; |
| Weight (KG): | 1500; |
Product Description
PSG-250II fully automatic softgel encapsulation machine is new generation of soft gelatin encapsulation machine.
The machine is integrated the latest global encapsulation technology and our gelatin encapsulation experience.
The new softgel encapsulation is with leading technology, simple but beautiful appearance.
Features
1. Water-bath Injector, the temperature fluctuated in +/-0.1℃, save 14% gelatin; improve 1.5% rate of finished products; and save the maintained cost and time.
2. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.
3. The holes of the left and right main axis are processed with extreme accuracy on the boring machine imported from Switzerland.
Though the mould roll has been extended in length, can be keep high coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.
4. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.
5. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.
6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.
7. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of soft gelatin capsule.
8. The touch screen provides professional “ recipe” function that can save the production paramters and recall them by one key.
9. The micro-lubrication device, can be adjust lubrication volume in fine volume, save cost.
10. Pneumatic clamping system makes capsule filling process more simple and reliable.
11. Motor hoisting injector can be fine located position as requirement, and reduce the workload of operator.
12. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
13. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
14. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
15. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.
16.Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.
2. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.
3. The holes of the left and right main axis are processed with extreme accuracy on the boring machine imported from Switzerland.
Though the mould roll has been extended in length, can be keep high coaxial degree that guarantees the smooth seam and finished product rate of the softgel capsule.
4. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.
5. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.
6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.
7. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of soft gelatin capsule.
8. The touch screen provides professional “ recipe” function that can save the production paramters and recall them by one key.
9. The micro-lubrication device, can be adjust lubrication volume in fine volume, save cost.
10. Pneumatic clamping system makes capsule filling process more simple and reliable.
11. Motor hoisting injector can be fine located position as requirement, and reduce the workload of operator.
12. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
13. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
14. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
15. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.
16.Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.
Specification
Mould Size (mm) | Dia. 150 X W: 250 |
Mould Revolution: (RPM) | 0-5 Rpm (adjusted variable speed) |
Volume of Plunger Pump | 0-2 ml (adjustable continuously) |
Pump Accuracy | +/- 1.5%; (Filling the Suspension & smaller filling volume) +/-0.5% (filling volume not less than 500 mg) |
Pump Type | 20 plunger pump |
Production Capacity : | (8# OV capsule) 115,440 pills/hrs(4.0 RPM) (20# OB capsule) 58,800 (4.0 RPM) |
Power Supply: | 12 Kw, 360V 3 phases (can be modified as user’s requirement |
Weight: | 1500kgs |
Machine Dimension: (L*W*H, mm) | 2040x960x1900 |
Details Images
Touch Screen
Electric parts use Siemens and Schneider
Mould
High precision mould, net gelatin cooling system
Thickness Gauge
Easy and better to control gelatin film thick
Delivered project
After-sales Service
Life-time service
We have our own oversea after sales team, our technical support and after sales service is available from China and Canada both for global market.
Company Profile
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality pharmaceutical and nutraceutical equipments and technical supports to our customers in Pharmaceutical, nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.
Pharmaland Technologies’ machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading Pharmaceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.
We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.
Our commission is to offer pharmaceutical and nutraceutical manufacturing machinery with advanced technologies at an affordable price, reliable technical supports.
Pharmaland Technologies’ machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading Pharmaceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.
We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.
Our commission is to offer pharmaceutical and nutraceutical manufacturing machinery with advanced technologies at an affordable price, reliable technical supports.
Packing & Delivery
Standard Export packing, seaworthy/airfreight-worthy, suitable for changing climate and with good resistance to moisture and shocks.
