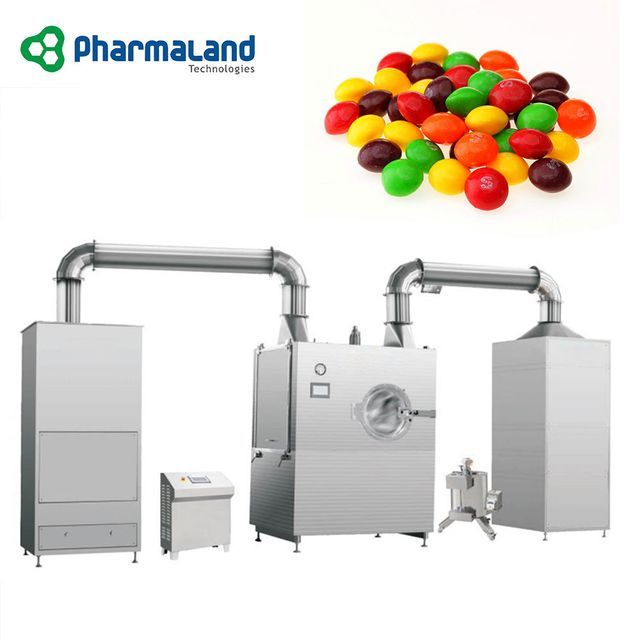

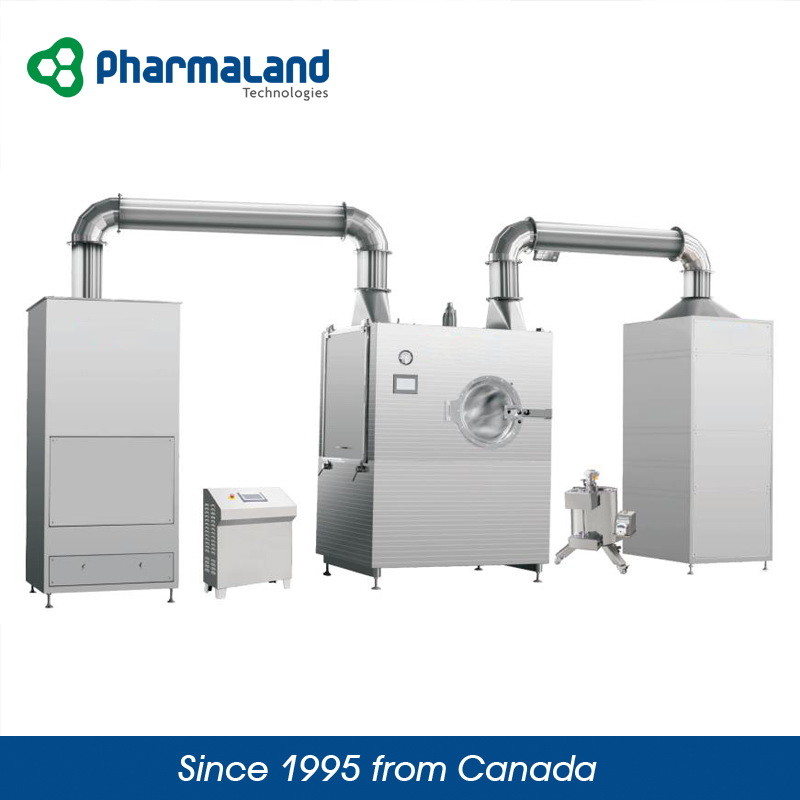

PBG-80E Small Multifunctional Coating Machine China Manufacturer Good Quality Tablet Coating Machine
- $26000.00 / 1 - 4 sets
$24000.00 / 5 - 9 sets
$22000.00 / >=10 sets - 1 set
- PAG Pharmatech Co., Ltd. SZ
- Guangdong, China
- Ms Iris Shi
| Video outbound inspection: | if | Main selling points: | automatic |
| application: | pill | Packaging Details: | Wooden case, standard export packaging, suitable for sea/air transportation, suitable for changing climate, with good moisture and impact resistance. |
| After Warranty Service: | online support | Certification: | CE |
| Core components: | PLC | Coating roller diameter (mm): | 940mm |
| Applicable industries: | manufacturing plant | Core component warranty: | 1 year |
| payment terms: | L/C, Western Union, T/T | Name: | PBG-80E |
| Showroom location: | Canada | Local service locations: | Canada |
| Key words: | tablet coater | Voltage: | 380V |
| After-sales service provided: | online support | Mechanical test report: | if |
| Supply capacity: | 10 sets per month | port: | Shanghai/Qingdao/Tianjin/Shenzhen/Guangzhou China |
| Function: | Tablet Film Coating | capacity: | 80kg/batch |
| Power (kW): | 15 | Warranty: | 1 year |
| Coating Type: | heating and coating | product name: | Automatic Tablet Coating Machine |
| Dimensions (L*W*H): | 1210*1000*2100 | Weight (kg): | 1550 |
| usage: | food | Marketing Type: | 2020 New Products |
| Coating temperature (°C): | 45 - 85°C | brand: | Farmland |
| Health status: | new | Origin: | China |
main application
PBG coating machine is mainly used in food industry. Compliant with GMP requirements, it is a high-efficiency, energy-saving, safe and clean mechatronic coating equipment, suitable for organic film coating, water-soluble coating, drop tablet coating, sugar coating of tablets and candies, chocolate and candy coating .
in principle
Under the action of the rotation of the coating roller, the tablet to be coated moves continuously in the roller. The peristaltic pump delivers the coating medium to the spray gun, which sprays it onto the surface of the tablet to be coated.
In the negative pressure state, the air inlet treatment device provides clean hot air to the tablet bed according to the set procedures and process parameters to dry the tablets.
The hot air is discharged from the outlet air treatment device at the bottom of the tablet, so that the coating medium sprayed on the tablet quickly forms a solid, dense, flat and smooth film, and the coating operation is completed.
Specification
| Maximum processing capacity (kg/time) | 80 |
| Drum speed (rev/min) | 2-18 |
| Host size(mm) | 1210*1000*2100 |
| Coating roller diameter (mm) | 940 |
| Host power (kw) | 1.5 |
| Hot air dryer motor power (kw) | 1.1 |
| Exhaust fan motor power (kw) | 3 |
| Electric heating power (kw) | 13.5 |
| Hot air temperature control range | <80 |
| Hot air flow (m³/h) | 1250-2590 |
| Exhaust fan flow (m³/h) | 2235-5228 |
| Gas source |
Pressure: >0.4mpa Consumption: 0.4 cubic meters / minute |
| steam |
Pressure: >0.4mpa Steam consumption: 60kg/h |
advantage
1. PLC man-machine interface, high efficiency, energy saving, no dust, no pollution, easy operation and cleaning, low noise.
2. Clothes are dry, well-proportioned, hard, thick and smooth.
3. Hot air dryer: After primary-intermediate-advanced three-stage filtration. The cleanliness of hot air reaches 100,000 grades.
4. Exhaust fan: equipped with shockproof and automatic dust removal device.
5. Adopt the spray gun imported from Japan.
6. Comply with "GMP" standard.
